Elinz Digital Wireless 9" Quad Splitscreen Monitor 4CH DVR Reversing CCD 800TVL Camera 12V 24V 2.4GHz

Connect up to 4 cameras~Support up to 128GB SD~120°View

(SKU: M9-RVDWT)
WAS From AUD $340.00
NOW From AUD $310.00
Sale Ends in
00:00 am, 14 January 2021
Elinz Digital Wireless 9" Quad Splitscreen Monitor 4CH DVR 1x Reversing CCD 800TVL Camera 12V 24V 2.4GHz
Elinz Digital Wireless 9" Quad Splitscreen Monitor 4CH DVR 1x Reversing CCD 800TVL Camera 12V 24V 2.4GHz
(SKU: M9-1xRVDWT)
AUD $310.00
sold out

Elinz Digital Wireless 9" Quad Splitscreen Monitor 4CH DVR 2x Reversing CCD 800TVL Camera 12V 24V 2.4GHz
Elinz Digital Wireless 9" Quad Splitscreen Monitor 4CH DVR 2x Reversing CCD 800TVL Camera 12V 24V 2.4GHz
(SKU: M9-2xRVDWT)
AUD $420.00
sold out

Elinz Digital Wireless 9" Quad Splitscreen Monitor 4CH DVR 3x Reversing CCD 800TVL Camera 12V 24V 2.4GHz
Elinz Digital Wireless 9" Quad Splitscreen Monitor 4CH DVR 3x Reversing CCD 800TVL Camera 12V 24V 2.4GHz
(SKU: M9-3xRVDWT)
AUD $520.00
In stock

Elinz Digital Wireless 9" Quad Splitscreen Monitor 4CH DVR 4x Reversing CCD 800TVL Camera 12V 24V 2.4GHz
Elinz Digital Wireless 9" Quad Splitscreen Monitor 4CH DVR 4x Reversing CCD 800TVL Camera 12V 24V 2.4GHz
(SKU: M9-4xRVDWT)
AUD $625.00
sold out


Payment made easy


Share:


Elinz Digital Wireless 9" Quad Splitscreen Monitor 4CH DVR Reversing CCD 800TVL Camera 12V 24V 2.4GHz

SKU: M9-RVDWT

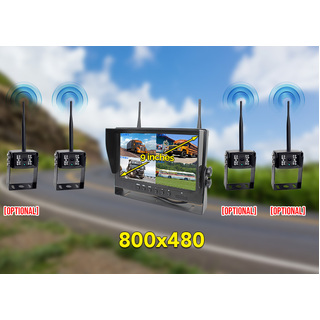

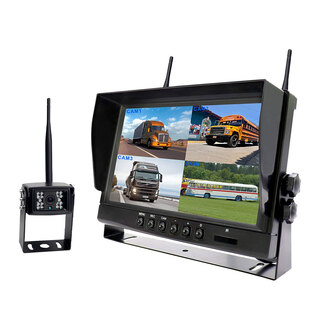

Digital Wireless 9 inches Quadscreen  DVR Reversing Camera
9 inches TFT-LCD Quad Screen Monitor

9" TFT-LCD Quad Screen Monitor

  • 800 x 480 Resolution
  • Split screen monitor - It can be single screen, Split screen,quad screen or H-split screen
  • Support audio recording for all 4 channels wireless cameras
  • Sunshade is not removable
DVR Recording Reverse Camera Kit

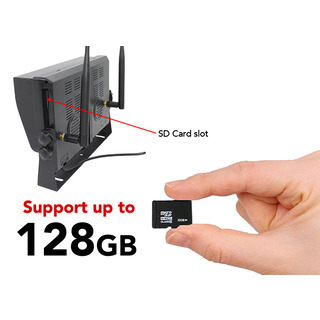

DVR Recording Function Support up to 128GB SD card

  • Can support up to 128GB SD card so you can record your footages from all camera. (SD card not included, available to be purchased separately)

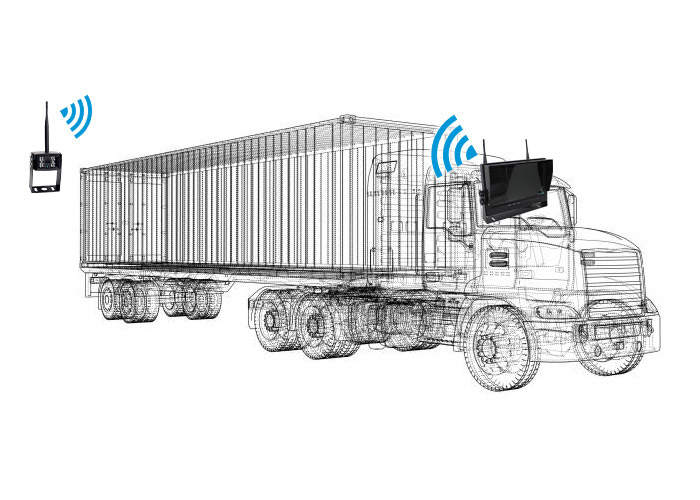

Wireless Rear View System

Wireless Rear View System

  • You do not need to run wires to connect the camera and monitor.
Camera with Built-in Microphone and Speakers

Built-in Microphone and Speakers

  • Camera has built-in microphone and monitor has built-in speakers for easy communication. Perfect solution for safe parking
Camera Wide Angle View

Wide Angle View

  • 120° wide angle rear view camera with infrared night vision help us parking our vehicles safely
Windscreen Suction Cup Mount and Car Charger

FREE Windscreen Suction Cup Mount and Car Charger

  • This new model comes with good quality windscreen suction mount so you can install the monitor easily on your windscreen
  • Also includes a car charger so you can power up your monitor via cigarette lighter outlet.
2 CH High Definition Video Input Monitor

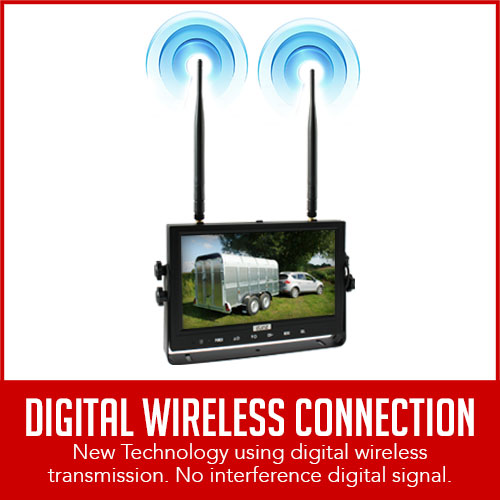

2.4GHz Digital Wireless Transmission

  • 2.4GHz Digital wireless transmission has no interference as compared to Analogue wireless transmission which is prone to interference
  • Stable signal and HD image, it is compatible to vehicles.
  • Improved wireless module to provide longer transmission distance of 30m-200m
  • Dual antennas monitor with stronger transmission 30m with barrier, 200m when no barrier.
  • Stable transmission up to 100km/h
Universal Fit Rversing DVR camera & DVR reversing Camera Kit Suitable with 12V/24V power supply

Universal Fit & Suitable with 12V/24V Power Supply

  • It is ideal for wide Variety of vehicles like cars, SUV, Utes, Semi-Trailer/Box, Truck, 5th Wheel, Trailer, Bus, Caravan and more.
  • Suitable for Trucks, Buses, Forklifts, Harvesters, Fire Trucks, Mining Trucks, Crane Trucks, trailers, SUV, Utes, Cars Semi-Trailer/Box, 5th Wheel, Caravan and more

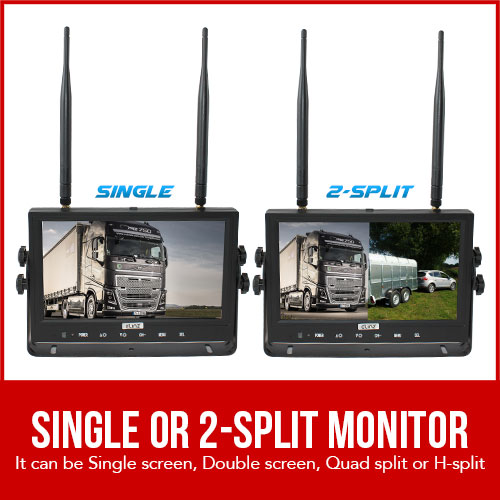

Quad and SplitScreen Monitor

Split Screen Monitor

  • Split screen monitor - It can be single screen, Split screen,quad screen or H-split screen
Parking guideline

Parking guideline can be turned on / off

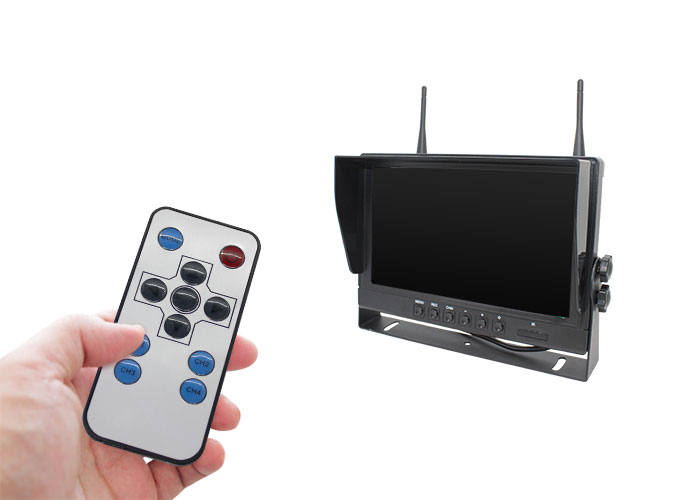

Remote Control

Remote Control

  • Remote access control that with simple interface and ability to control everything from afar.
Industrial Grade Heavy Duty CCD Camera & 800TVL Resolution Camera

Industrial Grade Heavy Duty CCD Camera & 800TVL Resolution

  • Providing you 120 degree wide field of view which can work constantly for long time
  • With bigger bracket to provide much better angle
  • Capability constructed of a metal alloy shell to withstand vehicle shock & vibration
  • This High resolution camera is 800 TVL to ensure the vivid images day and night.
18pcs IR LED Night Vision Camera

18pcs IR LED Night Vision

  • Camera comes with built-in 18 IR LEDs night vision which automatically turns on when light level is low, helping you view clearly still at night or in bad weather for added safety.
  • Night vision distance effective range is 10m.
Easy to install Wireless reversing camera monitor kit

Easy to install--Wireless

  • The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing or braking your car.
IP68 Waterproof Camera

IP68 Waterproof Camera

  • High waterproof rating making it very durable and suitable in all environments

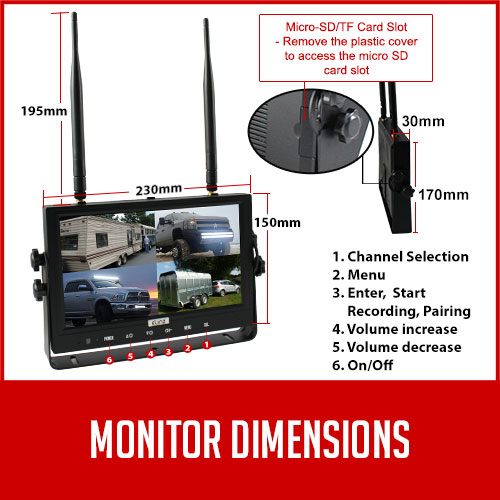

Monitor and Camera Dimensions

Product Dimensions

Product views  Wireless  DVR Reversing Camera Monitor Kit

Monitor Views

Product views  Wireless  DVR Reversing Camera Monitor Kit

Camera Views

MORE INFORMATION

Digital Wireless 9" Quad Splitscreen Monitor DVR Reversing CCD 800TVL Camera 12V 24V 2.4GHz 4CH

Most managers don’t often understand how challenging it is to handle fleet services and trucking businesses. When they do find out how difficult it is, they tend to panic and spend on equipment that their trucks and drivers may not even need. If your goal is to ensure your driver’s safety and allow them to reach their destinations on time, then all you may need is an excellent- performing reversing camera kit. These kits are designed to help your field workers handle their vehicles effectively and be able to complete their daily tasks as scheduled.

Our 9-inch Quadscreen Wireless Monitor Camera kit is also made for a long-range digital signal monitor with no interference and cameras communications for about 30 to 200 metres. Another guaranteed bestseller, this monitor for reversing camera kit can support up to 4 wireless channels, and camera view can show into different splits on screen. Suitable for 12V and 24V vehicles, our camera has a wide view angle of 120 degrees and 18 built-in IR LEDs for night vision. Featuring an impressive wireless connection, this monitor is so easy to install.

• Audio recording for all 4 channels wireless cameras
• U-Support Bracket, Center Mount Bracket, IR Remote Control, Angle Adjustment Screws, Power Cable.
• Parking guideline can be turned on / off

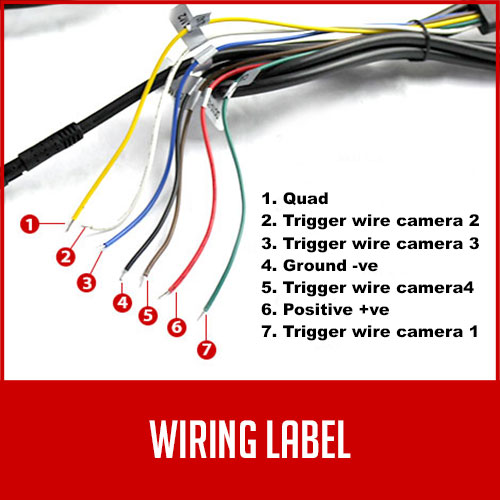

• Trigger wire auto switch to selection camera
• This wireless monitor comes with 4 wireless channels only and can be connected up to 4 wireless cameras only.

PRODUCT HIGHLIGHTS

  • 9" TFT-LCD Quad Screen Monitor
    • 800 x 480 Resolution
    • Split screen monitor - It can be single screen, Split screen,quad screen or H-split screen
    • Support audio recording for all 4 channels wireless cameras
    • Sunshade is not removable
  • DVR Recording Function Support up to 128GB SD card
    • Can support up to 128GB SD card so you can record your footages from all camera. (SD card not included, available to be purchased separately)
  • Wireless Rear View System
    • You do not need to run wires to connect the camera and monitor.
  • Built-in Microphone and Speakers
    • Camera has built-in microphone and monitor has built-in speakers for easy communication. Perfect solution for safe parking
  • Wide Angle View
    • 120° wide angle rear view camera with infrared night vision help us parking our vehicles safely
  • 800TVL Resolution
    • This High resolution camera is 800 TVL to ensure the vivid images day and night.
  • FREE Windscreen Suction Cup Mount and Car Charger
    • This new model comes with good quality windscreen suction mount so you can install the monitor easily on your windscreen
    • Also includes a car charger so you can power up your monitor via cigarette lighter outlet.
  • 2.4GHz Digital Wireless Transmission
    • 2.4GHz Digital wireless transmission has no interference as compared to Analogue wireless transmission which is prone to interference
    • Stable signal and HD image, it is compatible to vehicles.
    • Improved wireless module to provide longer transmission distance of 30m-200m
    • Dual antennas monitor with stronger transmission 30m with barrier, 200m when no barrier.
    • Stable transmission up to 100km/h
  • Universal Fit
    • It is ideal for wide Variety of vehicles like cars, SUV, Utes, Semi-Trailer/Box, Truck, 5th Wheel, Trailer, Bus, Caravan and more
  • Split Screen Monitor
    • Split screen monitor - It can be single screen, Split screen,quad screen or H-split screen
  • Optional cameras are available to be purchased from our store
  • Parking guideline can be turned on / off
  • The image can be adjusted : Mirror / Forward image adjustment available in the monitor setting
  • Suitable with 12V/24V Power Supply
    • Suitable for Trucks, Buses, Forklifts, Harvesters, Fire Trucks, Mining Trucks, Crane Trucks, trailers, SUV, Utes, Cars Semi-Trailer/Box, 5th Wheel, Caravan and more
  • Remote Control
    • Remote access control that with simple interface and ability to control everything from afar.
  • Industrial Grade Heavy Duty CCD Camera
    • Providing you 120 degree wide field of view which can work constantly for long time
    • With bigger bracket to provide much better angle
    • Capability constructed of a metal alloy shell to withstand vehicle shock & vibration
  • 18pcs IR LED Night Vision
    • Camera comes with built-in 18 IR LEDs night vision which automatically turns on when light level is low, helping you view clearly still at night or in bad weather for added safety.
    • Night vision distance effective range is 10m.
  • Easy to install--Wireless
    • The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing or braking your car.
  • IP68 Waterproof Camera
    • High waterproof rating making it very durable and suitable in all environments

ITEM DESCRIPTION

  • LCD size: 9"
  • Resolution: 800 x 3 (RGB) x 480
  • Contrast: 500 | 1
  • Brightness: 400cd/m²
  • Viewing Angle: U: 50 / D: 70, R/L: 70
  • Dot pitch: 0.0642(W) x 0.1790(H)
  • Aspect Ratio: 16 | 9
  • Channel: 4 channels
  • Operating Frequency: 2400 - 2483.5 MHz
  • Receiving Sensitivity: -89 dBm
  • Decompression Form: MPEG4
  • Transmit Output Power: 17 dBm
  • Modulation: 2.4G FSK/GFSK
  • Time Delay: 120ms
  • Transmitting Distance: 30-200M
  • Micro-SD /TF Card: Max. 128GB
  • System Format: PAL / NTSC
  • Power Supply: DC 10-32V
  • Power Consumption: Max. 6W
  • Loudspeaker: 1.5W/8Ω
  • Operating temperature: -20~+70ºC, RH90%
  • Storage temperature: -30~+80ºC,RH90%

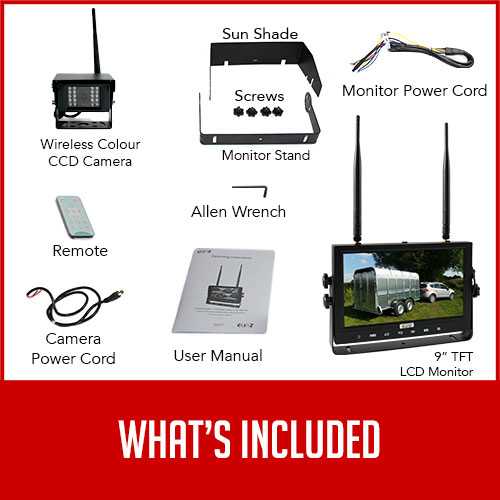

WHAT'S INCLUDED

1. 1x 9” Wireless TFT LCD Monitor

2. 1x Monitor Car Charger

3. Wireless Colour CCD Camera (No. of camera depends on the package selected)

4. Camera Power Cord

5. 1x Monitor Power Cord

6. 1x Monitor Suction Mount

7. 1x Remote Control

8. 1x Allen Wrench

9. 3x Quick Splice Terminal Clip

10. 1x User Manual

9 inches 4CH Wireless  DVR Reversing Camera Monitor Kit

Frequently Asked Questions

No FAQs Available

Troubleshooting Guides

A. No image

  1. Check power supplied to camera make sure its stable.
  2. re-pair cameras with monitor. *power needs to be supplied for screen and monitor* press channel desired then the pairing button from the camera. Repeat when necessary
  3. Check Antennas if installed correctly.
  4. make sure the setup is within the prescribed distance not more than 100m
  5. Call or email Customer support if all TS fails.

B. Flickering image, distorted image

  1. Make sure Power being used is stable for both camera and monitor.
  2. Try re-pairing cameras and swap them on different channels.
  3. Check for thick obstructions (copper,magnets etc) try removing them
  4. Call or email customer support if all TS fails.

C. Blue screen only/no signal

  1. Check if tunned in to correct camera channel
  2. Flip to all channels, see if any image appears
  3. re-pair camera to screen
  4. Call or email Customer support if all TS fails.
