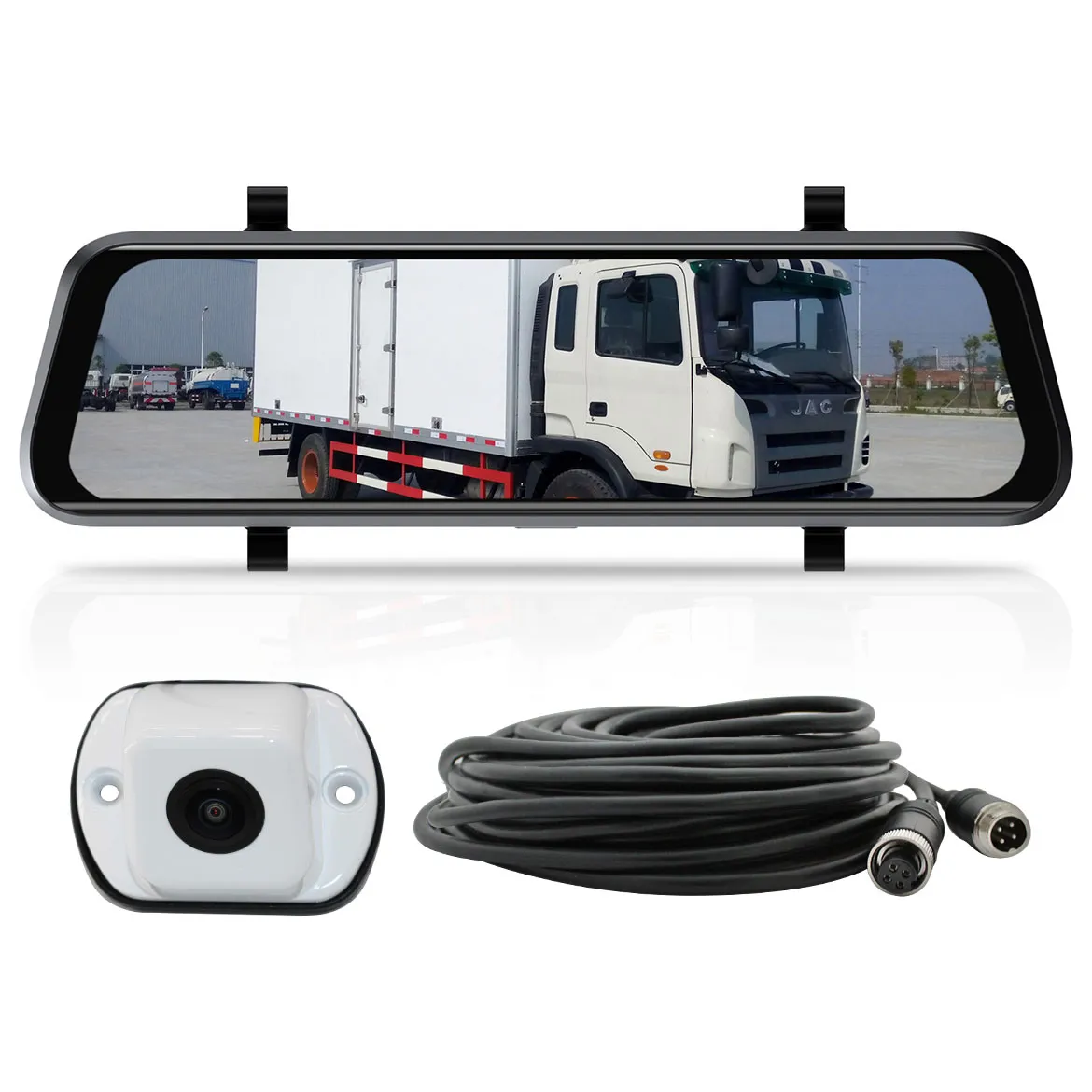

Elinz K Series 9.6" Full Screen Display Clip-on Mirror Monitor Surface Mount AHD 1080P Rear Camera White 10M Cable

The Elinz K Series 9.6" Full Screen Display Replacement Mirror AHD Monitor delivers ultra-clear rear visibility with its high-resolution 320×1280 display and smart dual-view functionality. Built for reliability and seamless compatibility with K Series AHD cameras, it ensures stable performance, safer reversing, and dependable operation in any weather.

The Elinz K Series Surface Mount Car AHD 1080P Rear Camera in White delivers crisp 1920×1080 full HD footage with a wide 180° viewing angle for maximum rear visibility and safer driving. Built with an IP69K metal housing, low-light performance, and a secure 4-pin aviation connector, it ensures reliable, all-weather monitoring and seamless compatibility with all Elinz K Series AHD monitors.

PRODUCT FEATURES

Monitor

  • 9.6 Inch Full Display Mirror Monitor - High-resolution 320×1280 screen delivers detailed and clear images for enhanced rear and reverse viewing.
  • Dual View Function - Supports standard rear vision view and automatically switches to reverse view when the vehicle is shifted into reverse by using a single camera only.
  • Compatibility - Fully compatible with all Elinz K Series AHD Cameras, ensuring seamless plug-and-play connection and optimal video performance.
  • Anti-Interference PCB Design - Ensures stable, reliable video signals by minimizing interference.
  • Wide Operating Voltage and Camera Output - Operates on DC 10-30V input and supplies DC 12V output to connected cameras, compatible with various vehicle systems.
  • Adjustable Guide Lines - Guide line feature can be turned on, off, or adjusted for safer parking and reversing.
  • Operation Memory Function - Remembers last settings for user convenience and faster setup.
  • Power Wire Inverse Protection - Protects against incorrect power wiring.
  • Working Temperature - Functions reliably in temperatures ranging from -25°C to +70°C for all-weather use.
  • Signal System: PAL/NTSC/AUTO
  • Brightness: 600 cdm
  • Contrast Ratio: 400:1
  • Video Inputs: Dual AHD1 & AHD2
  • Camera Angles: Rear vision and reverse vision by trigger
  • Guideline: On / Off / Adjustable

Camera

  • High-Resolution - Provides 1920×1080 full HD video with 180° horizontal angle for extensive coverage.
  • Continuous 24/7 Operation - Designed for reliable all-day performance to ensure constant monitoring.
  • Waterproof - IP69K rating for outstanding water and dust resistance in all conditions.
  • 4PIN Connector - The 4-pin aviation connector is considered to be one of the best connectors for reversing cameras. This robust and waterproof connector helps prevent accidental or unintended disconnection.
  • Low-Light Sensitivity - Supports a minimum illumination of 0.5 Lux at F2.0 aperture for clear images in low light.
  • Compatibility - Fully compatible with all Elinz K Series AHD Monitors, ensuring seamless plug-and-play connection and optimal video performance.
  • Vertical Angle: 95°
  • Image Sensor: 1/3" AHD camera
  • Signal System: NTSC / PAL
  • Minimum Illumination: <0.2 Lux
  • SNR: ≥48 dB
  • Power Supply: 12V (customizable to 24V)
  • Current Consumption: <90mA
  • Operating Temperature: -25℃ to 70℃
  • Storage Temperature: -30℃ to 80℃
  • Humidity: Max 95% RH
  • Housing Material: Metal

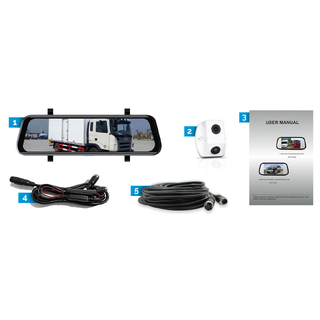

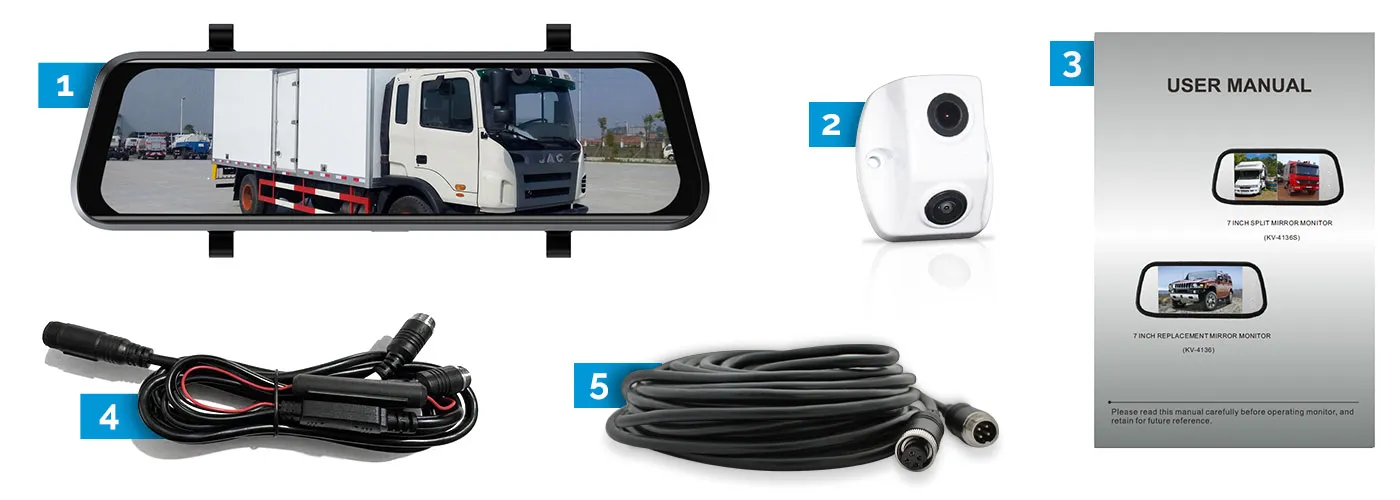

What's Included

1. 1x 9.6" Clip-on Mirror Monitor

2. 1x Surface Mount Camera

3. 1x User Manual

4. 1x Power Cable

5. 1x 10M 4PIN cable
