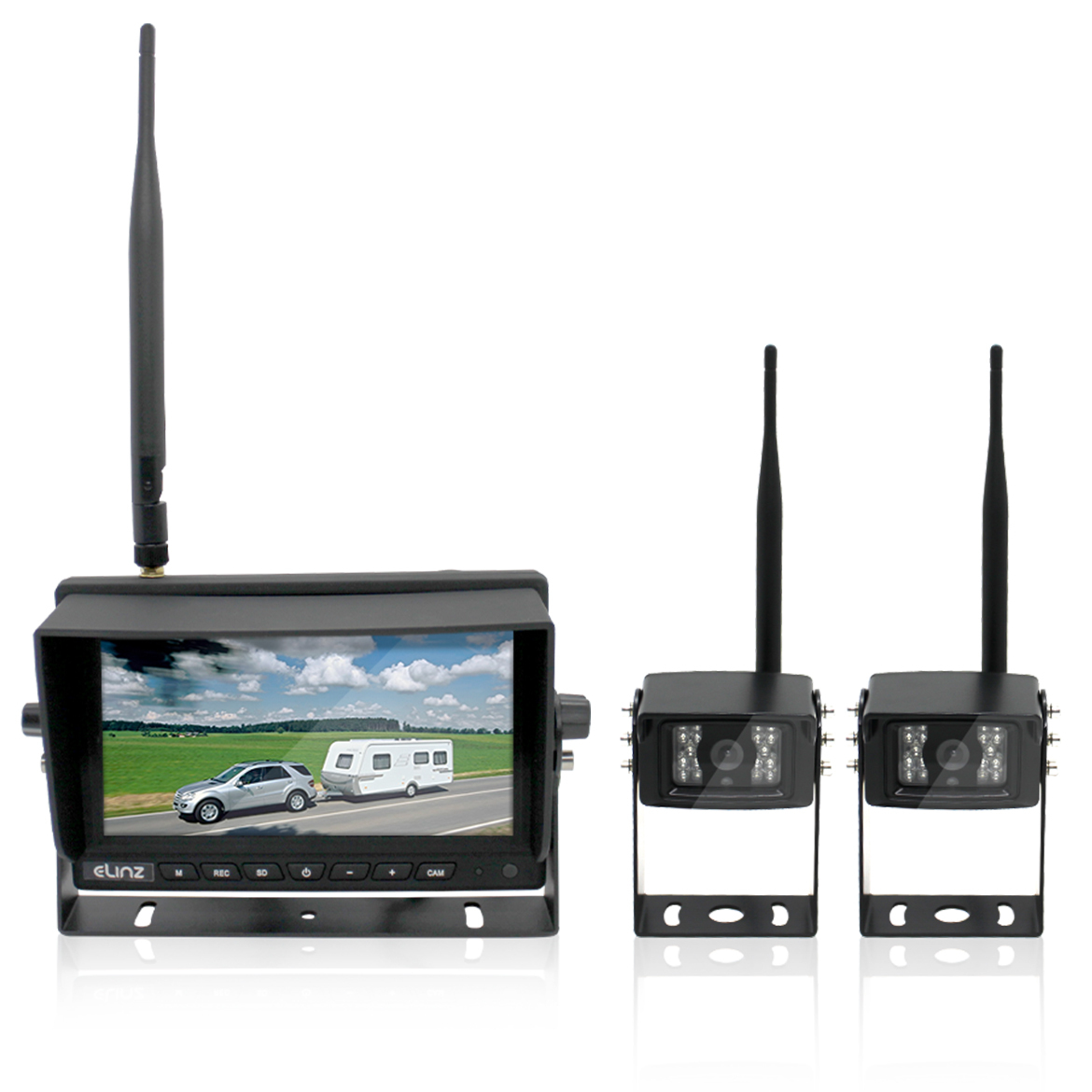

Elinz Digital Wireless 7" Splitscreen Monitor Reversing Camera CCD 12V 24V 2.4GHz

Connect up to 2 Cameras~200M Distance~120° View Angle

(SKU: M72CH-RVDWT)
WAS From AUD $279.00
NOW From AUD $265.00
Sale Ends in
12:00 pm, 3 December 2020
Digital Wireless 7" Splitscreen Monitor  1x Reversing Camera
Digital Wireless 7" Splitscreen Monitor 1x Reversing Camera
(SKU: M72CH-1xRVDWT)
AUD $265.00
In stock

Elinz Digital Wireless 7" Splitscreen Monitor  2x Reversing Camera
Elinz Digital Wireless 7" Splitscreen Monitor 2x Reversing Camera
(SKU: M72CH-2xRVDWT)
AUD $355.00
In stock


Payment made easy


Share:


Elinz Digital Wireless 7" Splitscreen Monitor Reversing Camera CCD 12V 24V 2.4GHz

SKU: M72CH-RVDWT

WiFi IP Camera 1080P CCTV

*Only 1x Camera included in the package

 7 inches TFT-LCD Split Screen Monitor

7" TFT-LCD Monitor

  • 800 x 480 resolution
  • Audio recording for all 2 channels wireless cameras

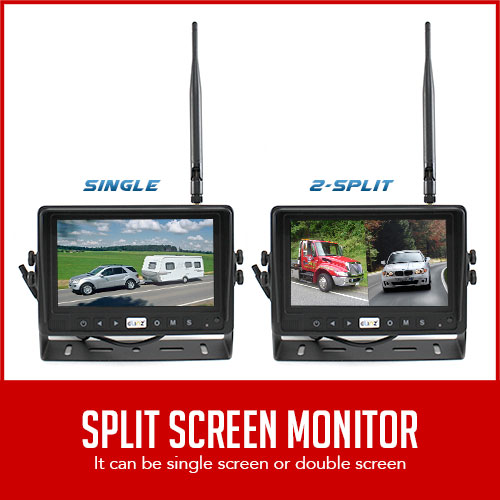

7 inches Split Screen Monitor

Split Screen Monitor

  • It can be single screen or double screen.
1080P Full HD Video Camera

DVR Recording Function

  • Can support up to 128GB SD card (SD card not included), available to be purchased separately.
Wireless Rear View System

Wireless Rear View System

  • You do not need to run wires to connect the camera and monitor.
2.4GHz Digital Wireless Transmission Up to 200M

2.4GHz Digital Wireless Transmission Up to 200m

  • 2.4GHz Digital wireless transmission has no interference as compared to Analogue wireless transmission which is prone to interference
  • Stable signal and HD image
  • Improved wireless module to provide longer transmission distance of 30m-200m
  • Dual antennas monitor with stronger transmission 30m with barrier, 200m when no barrier.
  • Stable transmission up to 100km/h
Universal Fit Reversing Camera System

Universal Fit

  • It is ideal for wide variety of vehicles like Cars, SUV ,UTEs, Semi-Trailer/Box, Truck, 5th Wheel, Trailer, Bus, Caravan and more
  • Suitable with 12V/24V power supply
Wireless Reversing Camera Parking guideline

Parking guideline can be turned on / off

Remote Control

Remote Control

  • Remote control access that with simple interface and ability to control everything from afar.
120 degrees Wide Angle View

120° Wide Angle View

  • 120° wide angle rear view camera with infrared night vision help us parking our vehicles safely
Industrial Grade Heavy Duty CCD Camera

Industrial Grade Heavy Duty CCD Camera 800TVL

  • High resolution 800 TVL
  • Bigger bracket to provide much better angle
  • Capability constructed of a metal alloy shell to withstand vehicle shock & vibration
  • IP68 Waterproof Camera - very durable and suitable in all environments
Night Vision Camera

Night Vision Camera

  • 18 Built in IR LED
  • Automatic night vision distance at 10 metres
Easy to install Wireless Reversing Camera Kit

Easy to install

  • The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing or braking your car
Monitor Labels and Dimensions

Monitor Dimensions

Camera Dimensions

Camera Dimensions

Monitor Labels and Dimensions

Monitor Views and Labels

Camera Dimensions

Camera Views and Labels

Camera Dimensions

Wiring Labels

Camera Dimensions

What is the difference between Wireless Analogue Transmission and Wireless Digital Transmission?

  • Analogue systems use the same technology /frequency as Bluetooth/wireless networks therefore analogue monitors can pick up interference from Bluetooth phones/headsets etc. Digital systems are paired and only 'see' the digital signals, therefore there is no interference.

MORE INFORMATION

This Wireless monitor and camera kit is design for a long range signal monitor and cameras communications, it's about 30-200m. 200m when no barrier or even 170m at maximum range for high quality output for time to time audio and video recording.

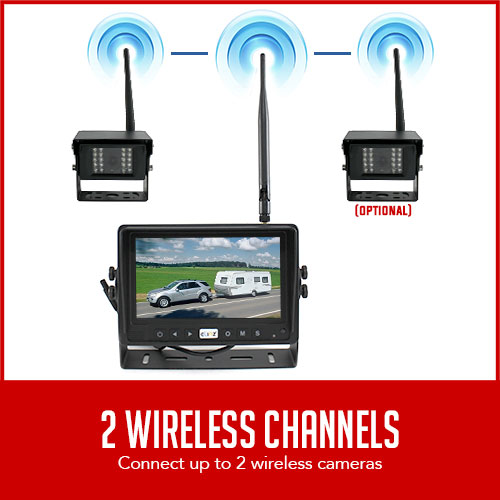

This reversing camera kit has 2 wireless channels, so can connect up to 2 wireless cameras.

Uninterrupted connection in Multi-Angle of the cameras matched with 7" SplitScreen Monitor will give you asatisfactory output. It has a camera with 120 degree view angle and 2.4Ghz transmission.

PRODUCT HIGHLIGHTS

  • 7" TFT-LCD Split Screen Monitor
    • 800 x 480 resolution
    • Audio recording for all 2 channels wireless cameras
  • Split Screen Monitor
    • It can be single screen or double screen
  • DVR Recording Function
    • Can support up to 128GB SD card (SD card not included, available to be purchased separately
  • Wireless Rear View System
    • You do not need to run wires to connect the camera and monitor.
  • 2.4GHz Digital Wireless Transmission Up to 200m
    • 2.4GHz Digital wireless transmission has no interference as compared to Analogue wireless transmission which is prone to interference
    • Stable signal and HD image
    • Improved wireless module to provide longer transmission distance of 30m-200m
    • Dual antennas monitor with stronger transmission 30m with barrier, 200m when no barrier.
    • Stable transmission up to 100km/h
  • Universal Fit
    • It is ideal for wide variety of vehicles like Cars, SUV ,UTEs, Semi-Trailer/Box, Truck, 5th Wheel, Trailer, Bus, Caravan and more
    • Suitable with 12V/24V power supply
  • Parking guideline can be turned on / off
  • Remote Control
    • Remote control access that with simple interface and ability to control everything from afar.
  • 120° Wide Angle View
    • 120° wide angle rear view camera with infrared night vision help us parking our vehicles safely
  • Industrial Grade Heavy Duty CCD Camera 800TVL
    • High resolution 800 TVL
    • Bigger bracket to provide much better angle
    • Capability constructed of a metal alloy shell to withstand vehicle shock & vibration
    • IP68 Waterproof Camera - very durable and suitable in all environments
  • Night Vision Camera
    • 18 Built in IR LED
    • Automatic night vision distance at 10 metres
  • Easy to install
    • The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing or braking your car
  • Optional cameras are available to be purchased from our store

ITEM DESCRIPTION

  • LCD size: 7"
  • Resolution: 800 x 3 (RGB) x 480
  • Contrast: 500 | 1
  • Brightness: 400cd/m²
  • Viewing Angle: U: 50 / D: 70, R/L: 70
  • Dot pitch: 0.0642(W) x 0.1790(H)
  • Aspect Ratio: 16 | 9
  • Channel: 2 channels
  • Operating Frequency: 2400 - 2483.5 MHz
  • Receiving Sensitivity: -89 dBm
  • Decompression Form: MPEG4
  • Transmit Output Power: 17 dBm
  • Modulation: 2.4G FSK/GFSK
  • Time Delay: 120ms
  • Transmitting Distance: 30-200M
  • Micro-SD /TF Card: Max. 128GB
  • System Format: PAL / NTSC
  • Power Supply: DC 10-32V
  • Power Consumption: Max. 6W
  • Loudspeaker: 1.5W/8Ω
  • Operating temperature: -20~+70ºC, RH90%
  • Storage temperature: -30~+80ºC,RH90%

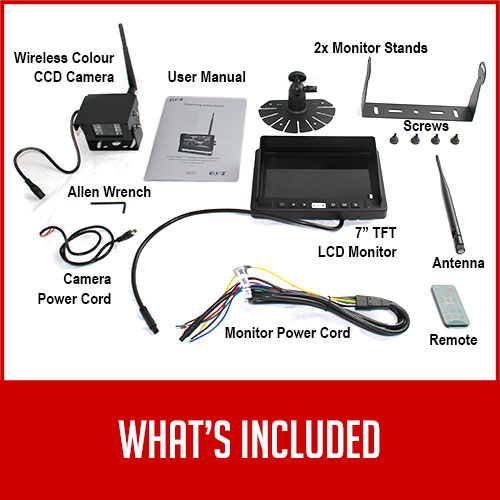

WHAT'S INCLUDED

1. 7” TFT LCD Monitor

2. Wireless Colour CCD Camera (No. of camera depends on the package selected)

3. Camera Power Cord

4. Monitor Power Cord

5. 1x Monitor Stand

6. 1x Monitor Suction Mount

7. 1x Monitor Antenna

8. 1x Car Charger

9. 3x Wire Tap Connectors

10. 1x Remote Control

11. Allen Wrench

12. Screws

13. User Manual

WiFi IP Camera 1080P HD Wireless Indoor

CAMERA PACKAGES

WiFi IP Camera 1080P HD Wireless Indoor

Frequently Asked Questions

No FAQs Available

Troubleshooting Guides

A. No image

  1. Check power supplied to camera make sure its stable.
  2. re-pair cameras with monitor. *power needs to be supplied for screen and monitor* press channel desired then the pairing button from the camera. Repeat when necessary
  3. Check Antennas if installed correctly.
  4. make sure the setup is within the prescribed distance not more than 100m
  5. Call or email Customer support if all TS fails.

B. Flickering image, distorted image

  1. Make sure Power being used is stable for both camera and monitor.
  2. Try re- pairing cameras and swap them on different channels.
  3. Check for thick obstructions (copper,magnets etc) try removing them
  4. Call or email customer support if all TS fails.

C. Blue screen only/no signal

  1. Check if tunned in to correct camera channel
  2. Flip to all channels, see if any image appears
  3. re- pair camera to screen
  4. Call or email Customer support if all TS fails.
