Elinz 7" Quad Screen Waterproof Monitor HD 12V/24V Reversing CCD Camera Mining Vehicle Truck Caravan Boat

800x480~Sunshade~120 degree

(SKU: W7QUADRV4PIN10MASTER)
From AUD $279.00
Elinz Waterproof 7" Quad Monitor with 1 Camera and 1x 10M Cable
Elinz Waterproof 7" Quad Monitor with 1 Camera and 1x 10M Cable
(SKU: W7QUADRV4PIN10)
AUD $279.00
In stock

Elinz Waterproof 7" Quad Monitor with 2 Camera and 2x 10M Cable
Elinz Waterproof 7" Quad Monitor with 2 Camera and 2x 10M Cable
(SKU: W7QUADRV4PIN10-RV4PIN)
AUD $323.00
In stock

Elinz Waterproof 7" Quad Monitor with 3 Camera and 3x 10M Cable
Elinz Waterproof 7" Quad Monitor with 3 Camera and 3x 10M Cable
(SKU: W7QUADRV4PIN10-2RV-10M)
AUD $363.00
In stock

Elinz Waterproof 7" Quad Monitor with 4 Camera and 4x 10M Cable
Elinz Waterproof 7" Quad Monitor with 4 Camera and 4x 10M Cable
(SKU: W7QUADRV4PIN10-3RV2-10M)
AUD $405.00
In stock


Payment made easy


Share:


Elinz 7" Waterproof Monitor HD 12V/24V Quad Splitscreen Reversing CCD Camera Mining Vehicle Truck Boat

SKU: W7QUADRV4PIN10MASTER

7 inches Waterproof  Monitor HD Reversing Camera Kit
7 inches Colour TFT-LCD wide screen with Sunshade design

7” Colour TFT-LCD Wide Screen with Sunshade Design

  • Prevent the glare of sunlight, with better picture clarity, colour contrasting and sharpness in large screen
  • 800x480 pixels resolution for high definition image

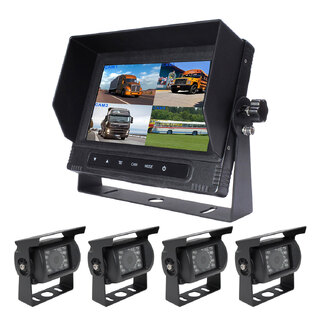

Monitor Splitscreen/Quadscreen Display

Monitor Split or Quad Screen Display

  • Different Demo screens can displayed: single, split, triple or quad screen view
4 Input 1 Output

4 Input 1 Output

  • Can be connected up to 4 cameras, cameras can be powered up by the monitor
Waterproof IP69 Monitor

Waterproof IP69

  • This quad monitor has the highest level of protection.
  • Dust tight complete protection from dust and contact. Waterproof beyond 3ft immersion.
  • Dustproof, Explosion Proof and Hydrochloric Acid Resistant
Suitable or 12V/24V power supply

Suitable or 12V/24V Power Supply

  • Ideal for regular 12V car battery or heavy duty 24V truck
  • Suitable for boat, harvester, mining truck, crane

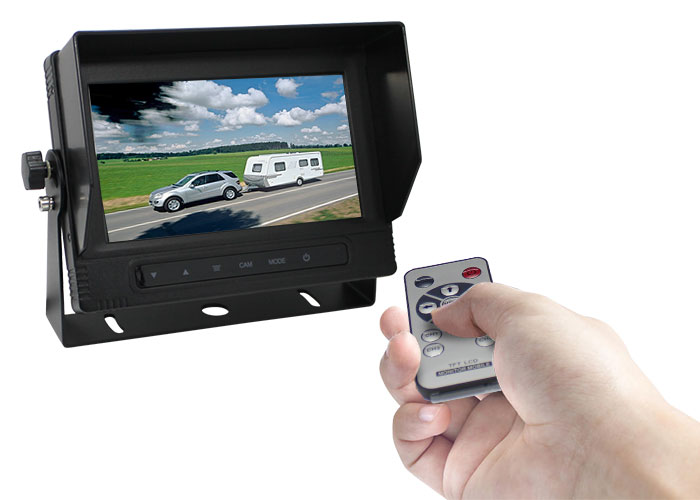

Full Function wireless remote control, OSD menu

Full Function Wireless Remote Control, OSD Menu

  • You can control from a distance without needing to push buttons on monitor.
Professional advanced 10m 4 Pin Cable with connector

Professional Advanced 10M 4PIN Cable with Connector

  • No need another power wire for camera
  • Advanced 4PIN cable allowing monitor to power up camera
Industrial Grade Heavy Duty IR Night Vision Colour CCD Camera

Industrial Grade Heavy Duty IR Night Vision Colour CCD Camera

  • 120 degree wide field of view CCD camera
  • CCD image sensor made by SHARP company
  • Heavy duty CCD camera is hard metal cased, IP68 waterproof and mudproof.
  • 600TVL camera

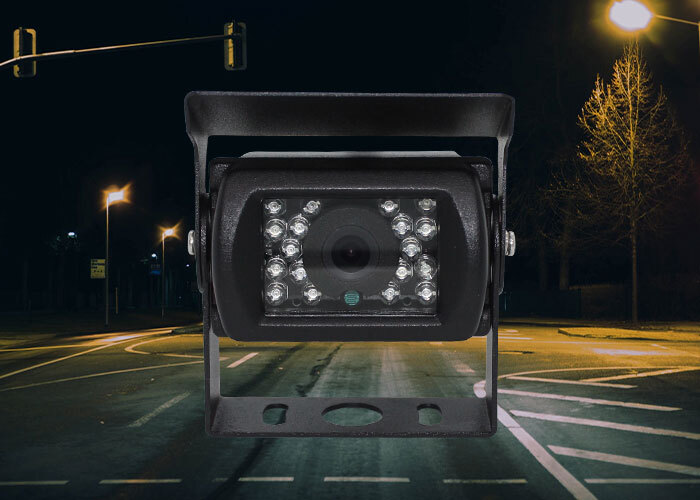

Automatic night vision distance at 10 metres

Automatic Night Vision Distance at 10 Metres

  • Provides excellent night vision which gives you a clear and high quality video even at night
  • 18 built-in IR LED
Bracket Screw Lock Check

Bracket Screw Lock

  • With the bracket screw lock, it can hold the monitor in placed
Monitor and Camera dimensions

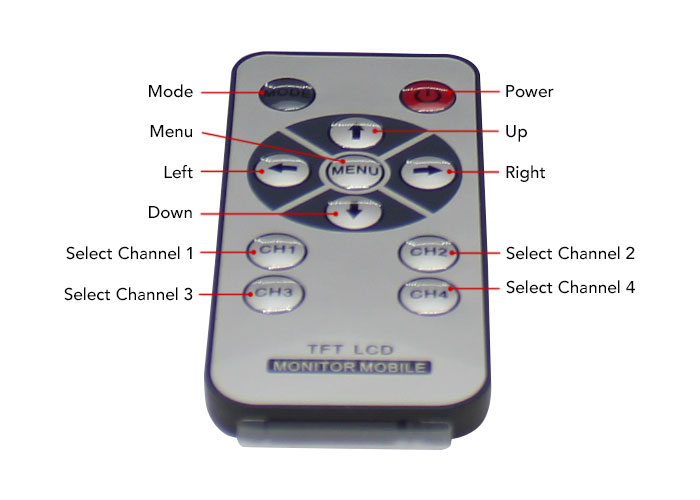

Remote Labels

Monitor and Camera views

Monitor Labels

Monitor and Camera dimensions

Wiring Labels

Monitor and Camera views

Product Views

Monitor and Camera dimensions

Product Dimensions



MORE INFORMATION

7" Waterproof 4CH Monitor HD 12V/24V Quad Splitscreen Reversing CCD Camera Mining Vehicle Truck Boat IP69

This 7" Waterproof quad screen monitor with sunshade design that prevents the glare of sunlight for better picture clarity. It is designed to meet the demands of environment application where the monitor is exposed to water elements. Suited for dusty or wet conditions found in industrial and outdoor environments, provide protection from direct or windblown dust and rain, splashing water, snow, ice formation and even temporary submersible, such as deserts, ships, simply constant exposure to changing weather conditions. Can apply to truck, boat, harvester, mining truck, forklift, caravan, crane, or even grapple tractor.

The Industrial Grade Heavy Duty IR Night Vision Colour CCD Camera has 120 degree wide field with image sensor made by SHARP company. It has automatic night vision distance at 10m which provides excellent clear and high quality video even at night.

It comes with professional advanced 10M 4PIN cable with connector that allows monitor to power up camera. No need another power wire for camera.

There are 4 packages available that allows you to choose the number of cameras included depending on your needs. Check them out now.

PRODUCT HIGHLIGHTS

  • 7” Colour TFT-LCD Wide Screen with Sunshade Design
    • Prevent the glare of sunlight, with better picture clarity, colour contrasting and sharpness in large screen
    • 800x480 pixels resolution for high definition image
  • Monitor Split or Quad Screen Display
    • Different Demo screens can displayed: single, split, triple or quad screen view
  • 4 Input 1 Output
    • Can be connected up to 4 cameras, cameras can be powered up by the monitor
  • Waterproof IP69
    • This quad monitor has the highest level of protection.
    • Dust tight complete protection from dust and contact. Waterproof beyond 3ft immersion.
    • Dustproof, Explosion Proof and Hydrochloric Acid Resistant
  • Suitable or 12V/24V Power Supply
    • Ideal for regular 12V car battery or heavy duty 24V truck
    • Suitable for boat, harvester, mining truck, crane
  • Full Function Wireless Remote Control, OSD Menu
    • You can control from a distance without needing to push buttons on monitor.
  • Professional Advanced 10M 4PIN Cable with
    • No need another power wire for camera
    • Advanced 4PIN cable allowing monitor to power up camera
  • Industrial Grade Heavy Duty IR Night Vision Colour CCD Camera
    • 120 degree wide field of view CCD camera
    • CCD image sensor made by SHARP company
    • Heavy duty CCD camera is hard metal cased, IP68 waterproof and mudproof.
    • 600TVL camera
  • Automatic Night Vision Distance at 10 Metres
    • Provides excellent night vision which gives you a clear and high quality video even at night
    • 18 built-in IR LED
  • Bracket Screw Lock Check
    • With the bracket screw lock, it can hold the monitor in placed

ITEM DESCRIPTION

  • Monitor: 7” Colour Waterproof Monitor
  • Power Supply: Automobile storage battery (12-24V).
  • Power Consumption: 4W Maximum
  • Resolution: 800 X 3 X(RGB)X 480
  • Contrast: 500:1
  • Brightness: 400cd/㎡.
  • Viewing Angle: U: 50°/ D: 60°, R/L: 70°
  • Operating Temperature: -10℃~+65℃
  • Storage temperature: -30℃ to + 80℃ RH90%
  • Video Inputs: 4CH
  • Waterproof Rating: IP69

WHAT'S INCLUDED

1. 1x 7" Quad Screen HD Monitor

2. CCD Reversing Camera (no. of cameras depends on the package selected)

3. 10m 4PIN Cable (no. of cables depends on the package selected)

4. 1x Remote Control

5. 1x Power Supply Adapter Cable

6. 1x Sunshade

7. 1x Mounting Bracket

8. 1x User Manual

Monitor, reversing camera, 10m cable
