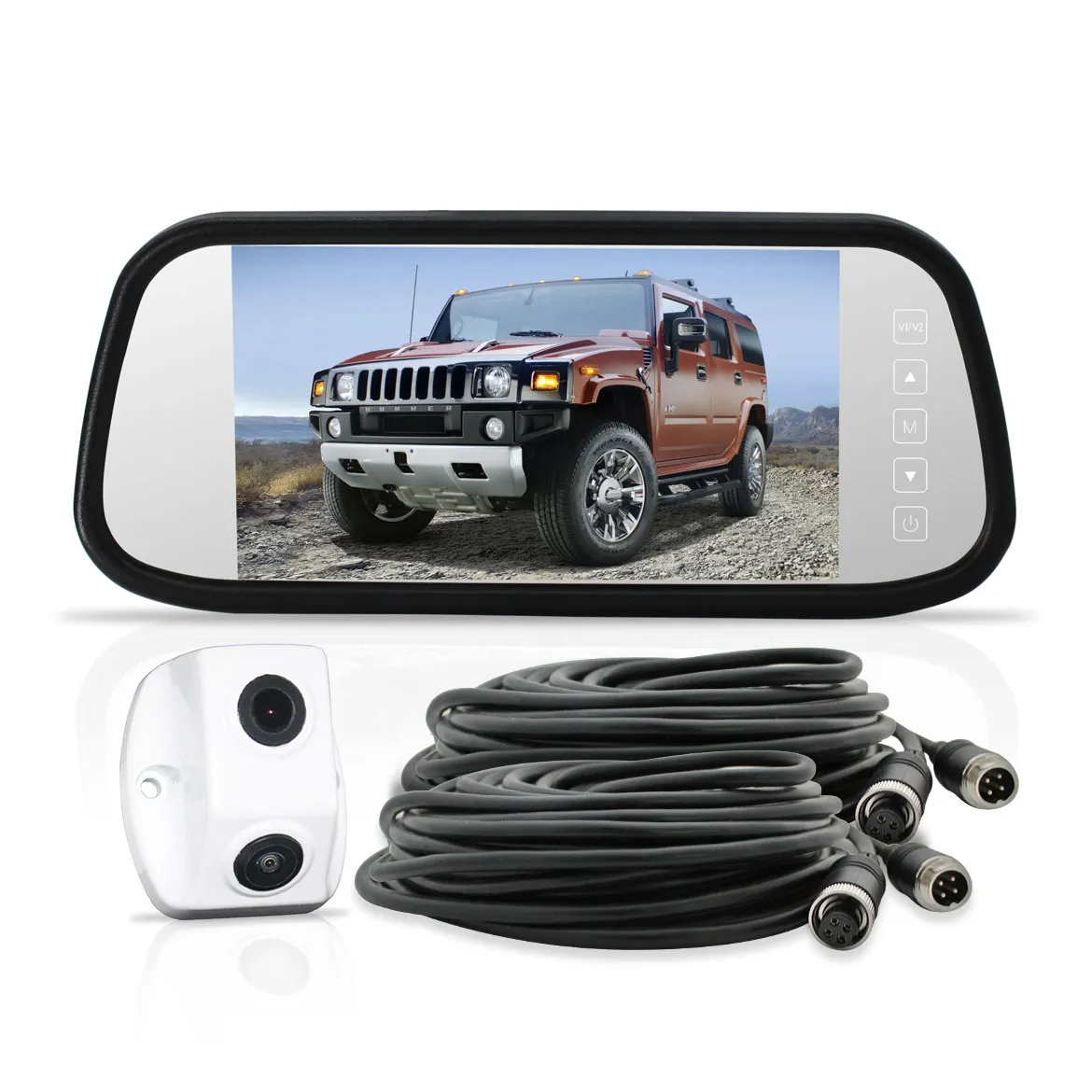

7" Replacement Mirror AHD Monitor Dual Lens 1080P Reversing Camera 10M Cable

The Elinz K Series 7" Replacement Mirror AHD Monitor delivers crisp, vibrant visuals with its IPS display, high resolution, and reliable anti-interference design. Built for seamless compatibility with Elinz K Series cameras, it offers dual-view functionality, wide voltage support, and user-friendly controls for dependable performance in any driving condition.

The Elinz K Series Dual Lens AHD 1080P Camera delivers full HD clarity with two lenses providing wide rear and reverse views for complete vehicle coverage. Built with an IP69K waterproof metal housing and 24/7 reliability, it ensures clear, dependable monitoring in any environment.

PRODUCT FEATURES

Monitor

  • 7 Inch IPS Display - High-quality A+ panel ensures sharp images and vibrant colours for excellent visibility.
  • High Resolution and Brightness - 1024×RGB×600 resolution with 600 cdm brightness for clear viewing day or night.
  • Dual View Function - Supports standard rear vision view and automatically switches to reverse view when the vehicle is shifted into reverse by using a single camera only.
  • Compatibility - Fully compatible with all Elinz K Series AHD Cameras, ensuring seamless plug-and-play connection and optimal video performance.
  • Anti-Interference PCB Design - Ensures stable, reliable video signals by reducing interference.
  • Wide Operating Voltage and Output - Operates on DC 10-32V input and supplies DC 12V output to connected cameras.
  • Low Power Consumption - Working current under 300mA and idle current under 120mA for energy efficiency.
  • Temperature Tolerance - Operates reliably from -25°C to +70°C in various environments.
  • User-Friendly OSD Menu - Adjustable settings for brightness, contrast, saturation, tint, language, and screen rotation.
  • Signal System: PAL/NTSC/AUTO
  • Brightness: 600cdm
  • Contrast Ratio: 400:1
  • Video Inputs: 2 channel AHD, NTSC/PAL/Auto signal systems
  • Camera Support: CVBS, 720P@25/30, 1080P@25/30 AHD cameras
  • Output Voltage: DC 12V to cameras
  • Working Current: <300mA
  • Idle Current: <120mA
  • Languages(OSD Menu): English, Chinese, Japanese
  • Flip Image: Mirror/Normal/Up/Down
  • Connector: 4P Activation
  • Mounting: Replacement bracket for windshield + 1 over bracket

Camera

  • High-Resolution Dual Lens - Offers 1920×1080 full HD resolution with two lenses
  • Horizontal Angle - upper lens has a 140° horizontal rear view and the downward lens features a 180° reverse view for comprehensive coverage.
  • Waterproof - Rated IP69K for water resistance
  • Power and Connectors - Operates on DC 12V power supply via 4PIN Aviation connectors for flexible installation.
  • Compatibility - Fully compatible with all Elinz K Series AHD Monitors, ensuring seamless plug-and-play connection and optimal video performance.
  • Image Sensor - 1/3" AHD Full HD camera supporting 1080P resolution
  • Minimum Illumination -0.5 Lux / F2.0 aperture for clear visibility in low light. Signal-to-noise ratio is ≥48 dB.
  • Working Hours - 24/7 continuous operation
  • Current Consumption - <180mA (two cameras)
  • Connectors - 4PIN Aviation
  • Working Environment - 25°C to 70°C, RH 95% max
  • Storage Temperature - -30°C to 80°C
  • Housing - Metal

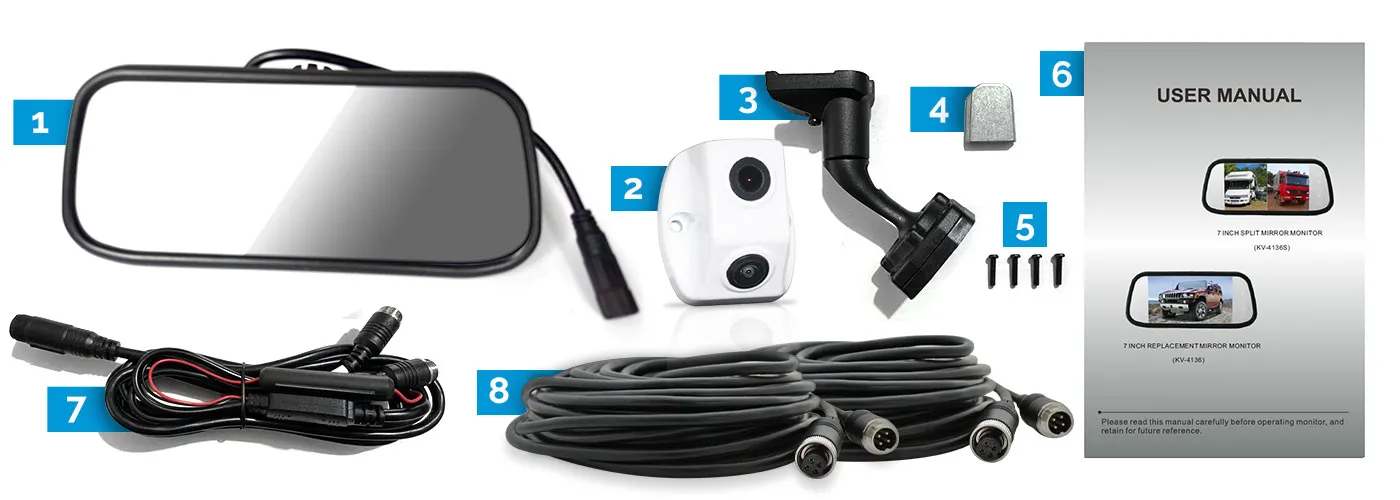

What's Included

1. 1x 7" Car Mirror Monitor

2. 1x Dual Lens Camera

3. 1x Bracket

4. 4x T-Slot

5. 1x Screws

6. 1x User Manual

7. 4x Power Cable

8. 2x 10M 4PIN Cable
