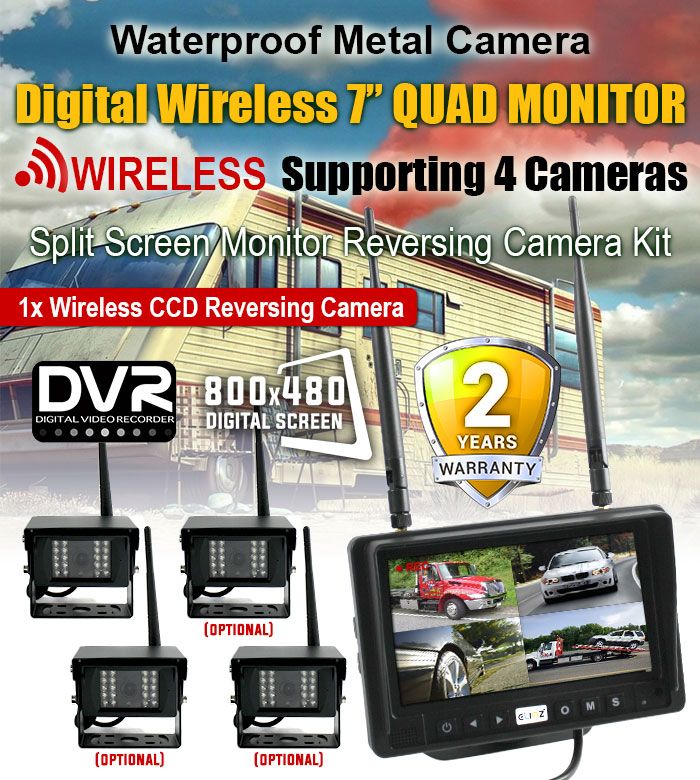

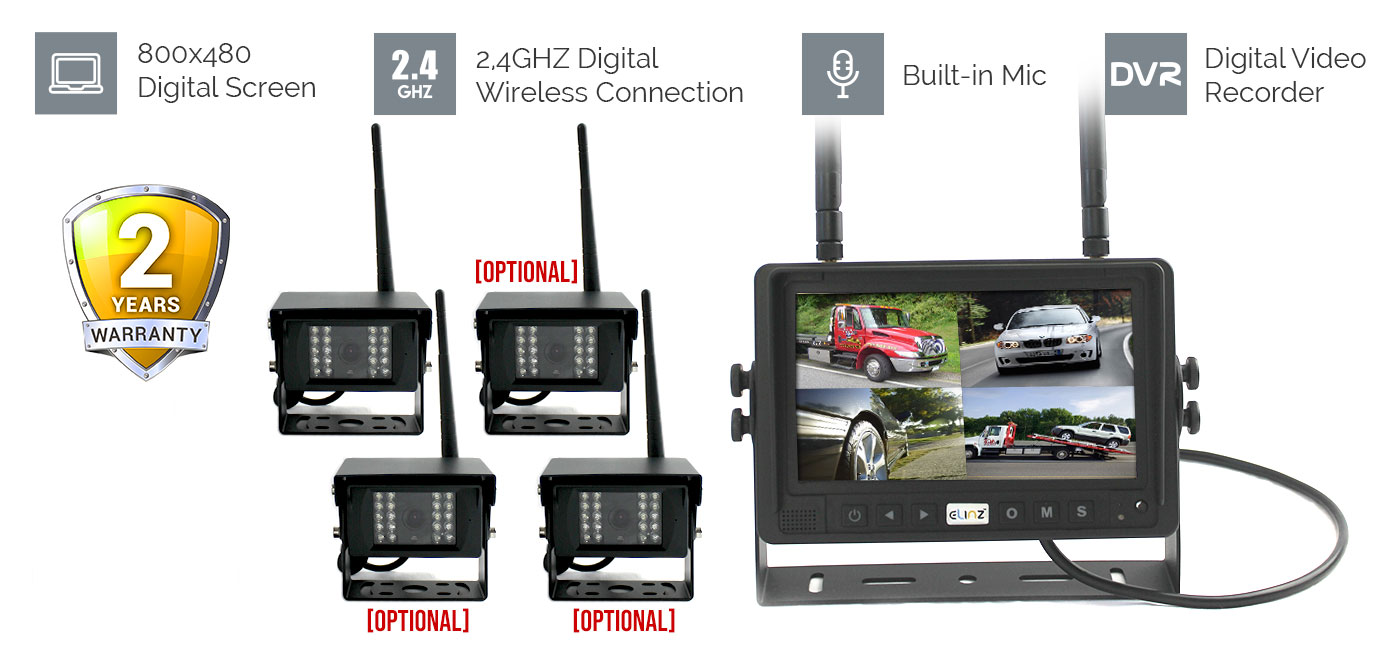

Digital Wireless 7" Quad Monitor Splitscreen CCD Reversing Camera DVR 12V 24V 2.4GHz

Connect upto 4 cameras~800x480 Res~120 degree 20 IR LED

(SKU: M7DG-RVDWT)
WAS From AUD $319.00
NOW From AUD $286.00
Sale Ends in
12:00 pm, 19 November 2020
Elinz Wireless 7" Quad Monitor 1x Reversing Camera DVR Package
Elinz Wireless 7" Quad Monitor 1x Reversing Camera DVR Package
(SKU: M7DG-1xRVDWT)
AUD $286.00
In stock

Wireless 7" Quad Monitor DVR 2x Reversing Camera Package
Wireless 7" Quad Monitor DVR 2x Reversing Camera Package
(SKU: M7DG-2xRVDWT)
AUD $375.00
In stock

Elinz Wireless 7" Quad Monitor DVR 3x Reversing Camera Package
Elinz Wireless 7" Quad Monitor DVR 3x Reversing Camera Package
(SKU: M7DG-3xRVDWT)
AUD $465.00
In stock

Wireless 7" Quad Monitor DVR 4x Camera Package
Wireless 7" Quad Monitor DVR 4x Camera Package
(SKU: M7DG-4xRVDWT)
AUD $550.00
In stock


Payment made easy


Share:


Elinz Digital Wireless 7" Quad Monitor Splitscreen CCD Reversing Camera DVR 12V 24V 2.4GHz

SKU: M7DG-RVDWT

Digital Wireless 7 inches Quadscreen Monitor Reversing Camera

*Only 1x Camera included in the package

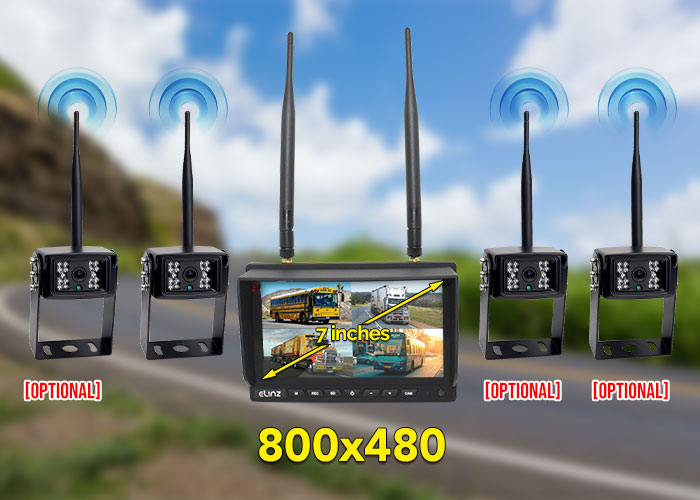

7 inches TFT-LCD Quad Screen Monitor

7" TFT-LCD Quad Screen Monitor

  • 800 x 480 resolution
  • Audio recording for all 4 channels wireless cameras
  • The image can be adjusted : Mirror / Forward image adjustment available in the monitor setting

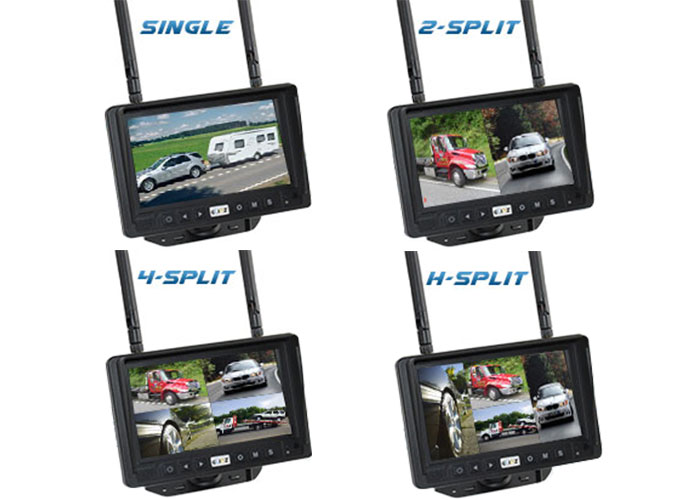

7 inches Split Quad Screen Monitor

Split Screen Monitor

  • It can be single screen, Split screen, quad screen or H-split screen
DVR Recording Function Reversing Camera

DVR Recording Function

  • Can support up to 128GB SD card (SD card not included, available to be purchased separately)
 Wireless Rear View System

Wireless Rear View System

  • You do not need to run wires to connect the camera and monitor.
2.4GHz Digital Wireless Transmission Up to 200M

2.4GHz Digital Wireless Transmission Up to 200m

  • 2.4GHz Digital wireless transmission has no interference as compared to Analogue wireless transmission which is prone to interference
  • Stable signal and HD image
  • Improved wireless module to provide longer transmission distance of 30m-200m
  • Dual antennas monitor with stronger transmission 30m with barrier, 200m when no barrier.
  • Stable transmission up to 100km/h
12V/24V Back up camera system

Universal Fit

  • It is ideal for wide variety of vehicles like Cars, SUV, UTEs, Semi-Trailer/Box, Truck, 5th Wheel, Trailer, Bus, Caravan and more
  • Suitable with 12V/24V power supply
Wireless ReversingCamera Parking guideline

Parking guideline can be turned on / off

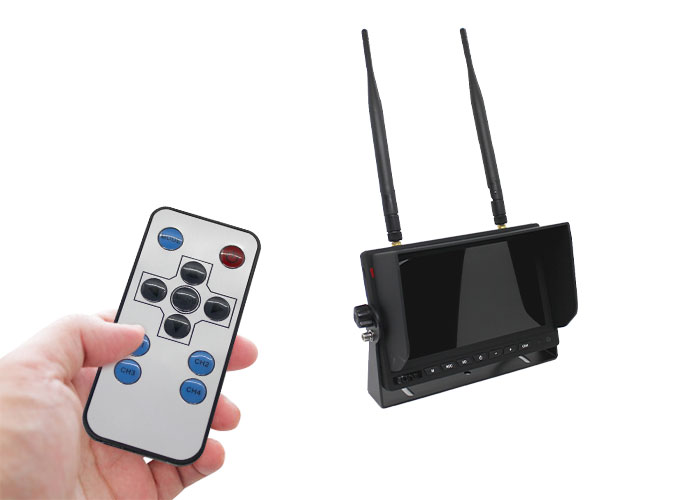

Remote Control

Remote Control

  • Remote control access that with simple interface and ability to control everything from afar.
Wide Angle View Reverse Camera

120° Wide Angle View

  • 120° wide angle rear view camera with infrared night vision help us parking our vehicles safely

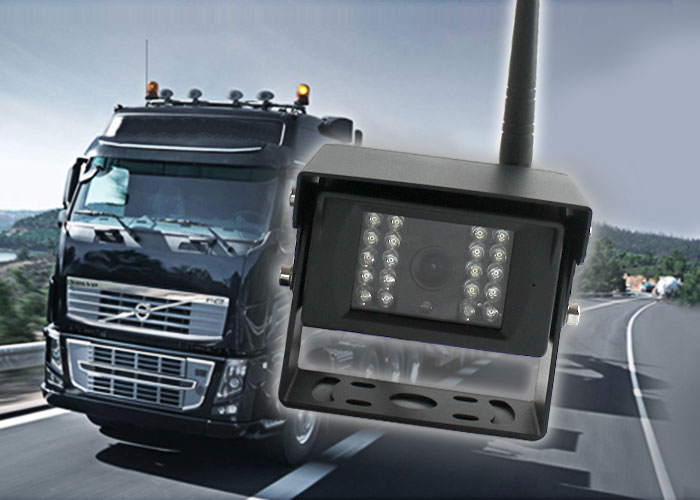

Industrial Grade Heavy Duty CCD Camera

Industrial Grade Heavy Duty CCD Camera 800TVL

  • High resolution 800 TVL
  • Bigger bracket to provide much better angle
  • Capability constructed of a metal alloy shell to withstand vehicle shock & vibration
  • IP68 Waterproof Camera - very durable and suitable in all environments
Monitor Compatibility

Night Vision Camera

  • 18 Built in IR LED
  • Automatic night vision distance at 10 metres
Easy to install Wireless Reversing Camera Kit

Easy to Install

  • The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing or braking your car

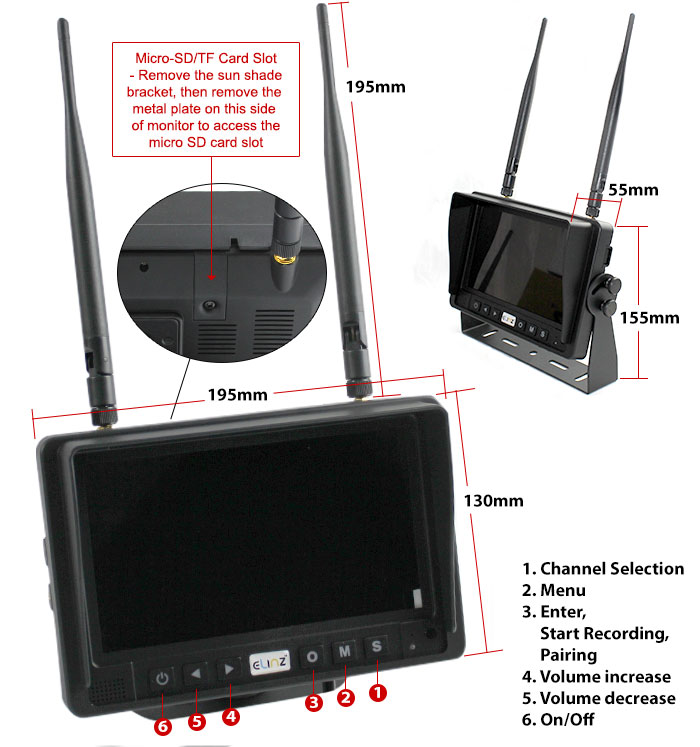

Monitor Labels and Dimensions

Monitor Labels

Monitor Labels and Dimensions

Monitor Dimensions

Camera Dimensions

Camera Dimensions

Camera Dimensions

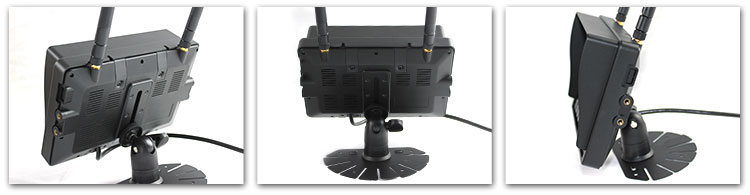

2 Ways to Install Monitor

  • Using monitor stand
  • Using suction mount
Camera Dimensions

Wiring Labels

Camera Dimensions

What is the difference between Wireless Analogue Transmission and Wireless Digital Transmission?

  • Analogue systems use the same technology /frequency as Bluetooth/wireless networks therefore analogue monitors can pick up interference from Bluetooth phones/headsets etc. Digital systems are paired and only 'see' the digital signals, therefore there is no interference.

MORE INFORMATION

Digital Wireless 7" Quad Monitor Splitscreen CCD Reversing Camera DVR 12V 24V 2.4GHz

There are various challenges that you may face when you are in a fleet management service or trucking business. For some companies, they tend to invest in a lot of technology to ensure that all their vehicles are performing as they should be. However, you don’t really have to spend so much money on various types of equipment. In order to guarantee that your trucks and fleets are actively doing their duties, all you will need is an excellent-performing reversing camera kit. These camera kits can help your field workers get to their destinations and provide them with safety when handling their vehicles.

Our Wireless Monitor and Camera kit is intended for a long-range signal monitor and cameras communications. It boasts of approximately 30 to 200 metres with no interference. You get a 200-metre range when there is no barrier. Seamless connection in multi-angles, cameras perfectly partnered with our bestselling 7-inch Quad screen monitor to result in a satisfactory output. What makes our product worth spending for is its camera with a 120-degree view angle and 2.4Ghhz transmission.

Never miss this deal. Get the camera package you need for 1x camera up to 4x cameras.

What is the difference between Wireless Analogue Transmission and Wireless Digital Transmission?

Analogue systems use the same technology /frequency as Bluetooth/wireless networks therefore analogue monitors can pick up interference from Bluetooth phones/headsets etc. Digital systems are paired and only 'see' the digital signals, therefore there is no interference.

PRODUCT HIGHLIGHTS

  • 7" TFT-LCD Quad Screen Monitor
    • 800 x 480 resolution
    • Audio recording for all 4 channels wireless cameras
    • The image can be adjusted : Mirror / Forward image adjustment available in the monitor setting
  • Split Screen Monitor
    • It can be single screen, Split screen, quad screen or H-split screen
  • DVR Recording Function
  • Can support up to 128GB SD card (SD card not included, available to be purchased separately)
  • Wireless Rear View System
    • You do not need to run wires to connect the camera and monitor.
  • 2.4GHz Digital Wireless Transmission Up to 200m
    • 2.4GHz Digital wireless transmission has no interference as compared to Analogue wireless transmission which is prone to interference
    • Stable signal and HD image
    • Improved wireless module to provide longer transmission distance of 30m-200m
    • Dual antennas monitor with stronger transmission 30m with barrier, 200m when no barrier.
    • Stable transmission up to 100km/h
  • Universal Fit
    • It is ideal for wide variety of vehicles like Cars, SUV ,UTEs, Semi-Trailer/Box, Truck, 5th Wheel, Trailer, Bus, Caravan and more
    • Suitable with 12V/24V power supply
  • Parking guideline can be turned on / off
  • Remote Control
    • Remote control access that with simple interface and ability to control everything from afar.
  • 120° Wide Angle View
    • 120° wide angle rear view camera with infrared night vision help us parking our vehicles safely.
  • Industrial Grade Heavy Duty CCD Camera 800TVL
    • High resolution 800 TVL
    • Bigger bracket to provide much better angle
    • Capability constructed of a metal alloy shell to withstand vehicle shock & vibration
    • IP68 Waterproof Camera - very durable and suitable in all environments
  • Night Vision Camera
    • 18 Built in IR LED
    • Automatic night vision distance at 10 metres
  • Easy to install
    • The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing or braking your car
    • Automatic night vision distance at 10 metres
  • Optional cameras are available to be purchased from our store
  • 2 Ways to Install Monitor
    • Using monitor stand
    • Using suction mount

ITEM DESCRIPTION

  • LCD size: 7"
  • Resolution: 800 x 3 (RGB) x 480
  • Contrast: 500 | 1
  • Brightness: 400cd/m²
  • Viewing Angle: U: 50 / D: 70, R/L: 70
  • Dot pitch: 0.0642(W) x 0.1790(H)
  • Aspect Ratio: 16 | 9
  • Channel: 4 channels
  • Operating Frequency: 2400 - 2483.5 MHz
  • Receiving Sensitivity: -89 dBm
  • Decompression Form: MPEG4
  • Transmit Output Power: 17 dBm
  • Modulation: 2.4G FSK/GFSK
  • Time Delay: 120ms
  • Transmitting Distance: 30-200M
  • Micro-SD /TF Card: Max. 128GB
  • System Format: PAL / NTSC
  • Power Supply: DC 10-32V
  • Power Consumption: Max. 6W
  • Loudspeaker: 1.5W/8Ω
  • Operating temperature: -20~+70ºC, RH90%
  • Storage temperature: -30~+80ºC,RH90%

WHAT'S INCLUDED

1. 7” TFT LCD Monitor

2. Wireless Colour CCD Camera (No. of camera depends on the package selected)

3. Camera Power Cord

4. Monitor Power Cord

5. 1x Monitor Stand

6. 1x Monitor Suction Mount

7. 1x Remote Control

8. Allen Wrench

9. Quick Splice Terminal Clip

10. User Manual

What's Included Reversing Camera Kit System

Frequently Asked Questions

No FAQs Available

Troubleshooting Guides

A. No image

  1. Check power supplied to camera make sure its stable.
  2. re-pair cameras with monitor. *power needs to be supplied for screen and monitor* press channel desired then the pairing button from the camera. Repeat when necessary
  3. Check Antennas if installed correctly.
  4. make sure the setup is within the prescribed distance not more than 100m
  5. Call or email Customer support if all TS fails.

B. Flickering image, distorted image

  1. Make sure Power being used is stable for both camera and monitor.
  2. Try re- pairing cameras and swap them on different channels.
  3. Check for thick obstructions (copper,magnets etc) try removing them
  4. Call or email customer support if all TS fails.

C. Blue screen only/no signal

  1. Check if tunned in to correct camera channel
  2. Flip to all channels, see if any image appears
  3. re- pair camera to screen
  4. Call or email Customer support if all TS fails.
