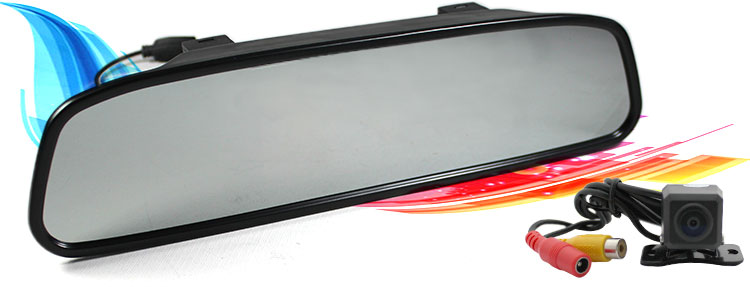

Elinz 4.3" Colour Digital TFT LCD Screen Car Rearview Mirror Monitor Reversing Camera
Clip onto Rearview Mirror 170 degree Reverse Camera
SKU | R43MI-RVSMALL |
Barcode # | 0686494501331 |
Brand | Elinz |
Wired or Wireless Transmission | Wired Transmission |
Monitor Type | Rearview Mirror Monitor |
Channel | 2 CH |
Camera Type | CMOS camera |
Monitor Size | 4.3" |
Camera System | RCA System |
Shipping Weight | 0.5400kg |
Shipping Width | 0.002m |
Shipping Height | 0.002m |
Shipping Length | 0.002m |
Unit Of Measure | ea |
Help other users shop smarter by writing reviews for products you have purchased.
Elinz 4.3" Colour Digital TFT LCD Screen Car Rearview Mirror Monitor Reversing Camera
SKU: R43MI-RVSMALL
![Mini OBD2 Bluetooth 4.0](https://www.elinz.com.au/assets/images/product-R43MI-RVSMALL.jpg)
![](https://www.elinz.com.au/assets/images/selling-point-icons-M5-RVWRL.jpg)
![Bluetooth 4.0 OBD II Scanner](https://www.elinz.com.au/assets/images/monitor-R43MI-RVSMALL.jpg)
4.3 inches Monitor
- Resolution degree: 640(W) x RGB x 480(H)
- System: PAL/NTSC
![Wireless Diagnostic Scanner ARM Chipset](https://www.elinz.com.au/assets/images/parking-lines-R43MI-RVSMALL.jpg)
Parking Line
- Helps and guides you in parking or reversing your vehicle. A more convenient way to park safely.
![Mini OBD2 V1.5 Firmware](https://www.elinz.com.au/assets/images/view-R43MI-RVSMALL.jpg)
Slim Feature
- We specially source for this anti-reflective rearview mirror, so even when the screen is not turned on, the monitor will show the rearview from the mirror clearly.
![For OBDII Compliant Vehicles](https://www.elinz.com.au/assets/images/wiring-R43MI-RVSMALL.jpg)
Product Wirings
![Easy to Install Mini Diagnostic](https://www.elinz.com.au/assets/images/mirror-R43MI-RVSMALL.jpg)
Product Views
![Real-Time Data Viewing](https://www.elinz.com.au/assets/images/dimensions-R43MI-RVSMALL.jpg)
Product Dimensions
MORE INFORMATION
4.3" Colour Digital TFT LCD Screen Car Rearview Mirror Monitor Reversing Camera Kit
Features 2 AV inputs which allows you to attach up to two reverse cameras at rear. This package comes with 1/4 colour CMOS camera with 170 degree view angle. This camera is IP67 waterproof and durable.
Monitor has parking line that helps and guide you in parking and reversing your vehicle. Reverse image will show on the screen automatically when the reverse gear is induced. Easily Clip-on to your existing rearview mirror. We specially source for this anti reflective rearview mirror so even when the screen is not turned on, the monitor will show the rearview from mirror clearly.
PRODUCT HIGHLIGHTS
- Display picture and distance behind vehicle
- Reverse image will show on the screen automatically when the reverse gear is induced
- Night vision and waterproof camera
- Wide vision area from camera
- Shock resistant designed specifically for mobile use
- Input power: DC12V+/-20%
- With gridline
- Clip on your existing rearview mirror
- 2 AV inputs (allows you to attach up to two reverse cameras at rear)
ITEM DESCRIPTION
Monitor
- Screen size : 4.3 inch
- Display mode : 4:3
- Format:PAL or NTSC
- Pixels : 640(W)*RGB*480(H)=307200 points
- Power supply : DC12V(+/-10%)
- Power consumption : 5W
- Two video inputs
- Adjustable bracket design
- Operating temperature : -10-+50
- Storage temperature : -20-+60
Reversing Camera
- 1/4 color CMOS camera
- System : 656X492
- Minimum illumination : 0.5 LUX
- Electron shutter : 1/60s-1/20US
- Resolution : More than 380 TV line
- S/n ratio : More than 48dB
- Voltage : DC12V(+/-10%)
- Waterproof : IP67
- View of angle : 170 degree
- License installation

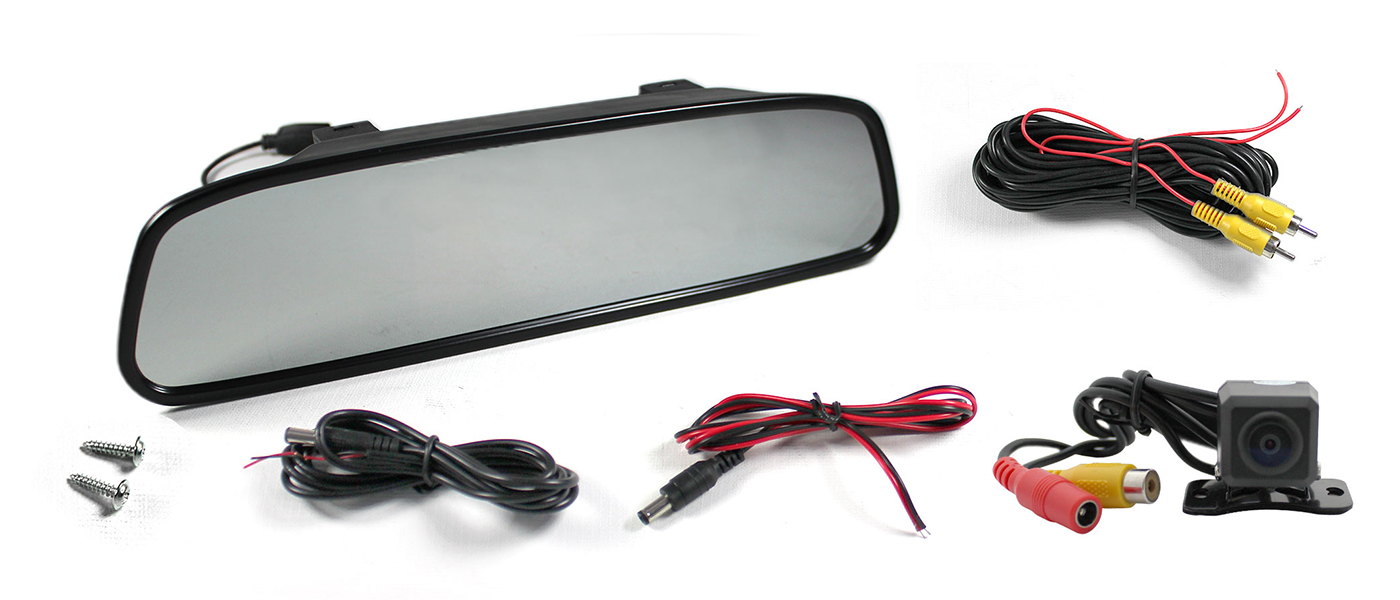

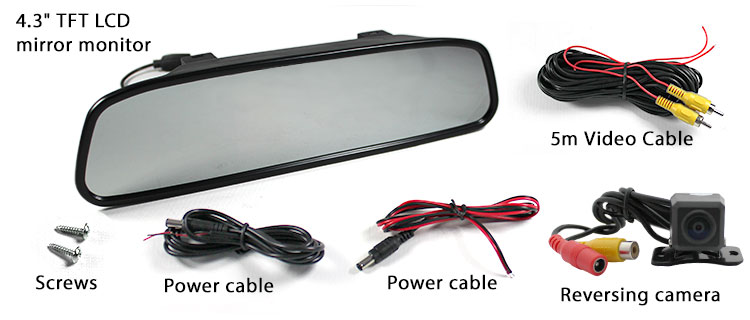

WHAT'S INCLUDED
1. 1x 4.3" TFT LCD Mirror Monitor
2. 1x Reversing Camera
3. 1x 5M Video Cable
4. Screws
5. 2x Power Cables
*Product on the video may differ from the actual product. Video is displayed to show the importance and use of the product.
