Elinz Digital Wireless 9" Quad Splitscreen DVR Recording Function Built-in Speakers 12V 24V 2.4GHz Monitor Only

SKU: M9DG

4CH Digital Wireless 9'' Quad Monitor Splitscreen Monitor

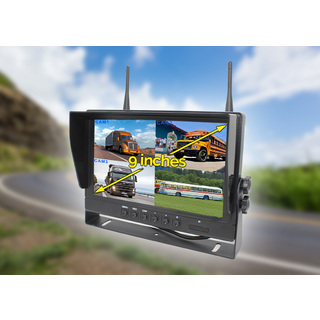

9'' TFT-LCD Quad Screen Monitor

9" TFT-LCD Quad Screen Monitor

  • 800 x 480 Resolution
  • Support audio recording for all 4 channels
  • Sunshade is not removable
DVR Recording Function

DVR Recording Function

  • Can support up to 128GB SD card so you can record your footages from all camera. (SD card not included, available to be purchased separately)
Wireless Rear View System

Wireless Monitor

  • No more complicated long video cables from the monitor to the camera.

    *Note: camera is not included

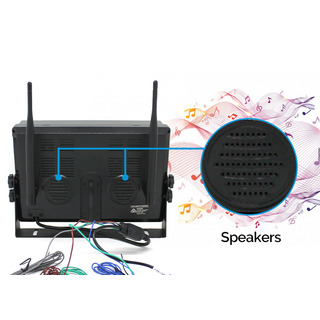

Camera with Speakers

Built-in Speakers

  • With built-in speakers for easy communication, designed to support camera with mic.

FREE Windscreen Suction Cup Mount and Car Charger

  • This new model comes with good quality windscreen suction mount so you can install the monitor easily on your windscreen.
  • Also includes a car charger so you can power up your monitor via cigarette lighter outlet.

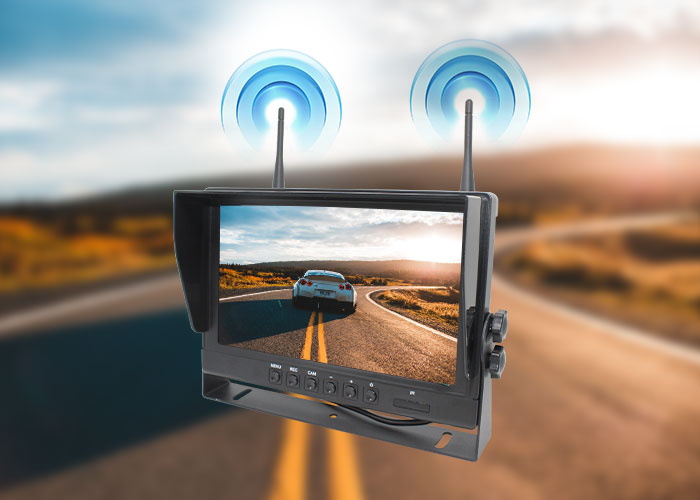

2.4GHz Digital Wireless Transmission Up to 200m

2.4GHz Digital Wireless Transmission

  • 2.4GHz Digital wireless transmission has no interference as compared to Analogue wireless transmission which is prone to interference.
  • Stable signal and HD image, it is compatible to vehicles.
  • Improved wireless module to provide longer transmission distance of 30m-200m.
  • Dual antennas monitor with stronger transmission 30m with barrier, 200m when no barrier.
  • Stable transmission up to 100km/h
Universal Fit

Universal Fit

  • It is ideal for wide variety of vehicles like cars, SUV, UTEs, Semi-Trailer/Box, Truck, 5th Wheel, Trailer, Bus, Caravan and more.

Quad Split Screen Monitor

  • This Quad view monitor allows you to show single screen, split screen, quad screen or H-split screen.
Parking Guideline can be turned on/off

Parking Guideline Can Be Turned On/Off

Suitable with 12V/24V Power Supply

  • Suitable for Trucks, Buses, Forklifts, Harvesters, Fire Trucks, Mining Trucks, Cane Trucks, Trailers, SUV, UTEs, Cars Semi-Trailer/Box, 5th Wheel, Caravan and more

Easy to Install

  • The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing or braking your car.

    * Note: camera is not included
Monitor Dimensions

Product Dimensions

Monitor Labels

Monitor Views

Camera Dimensions

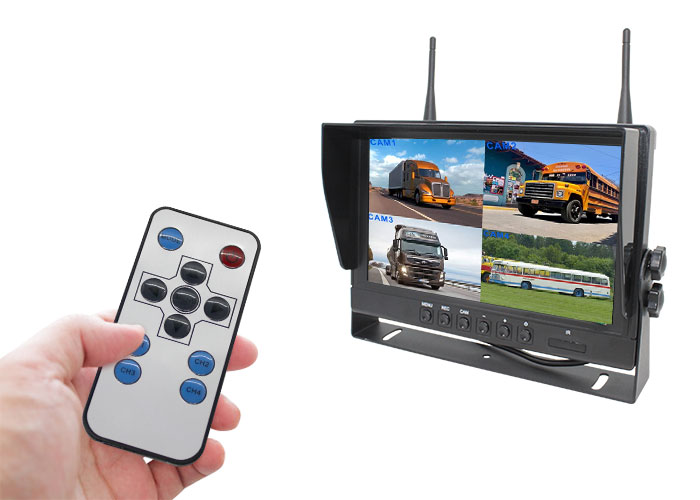

Remote

  • * No Batteries Included

MORE INFORMATION

4CH Digital Wireless 9" Quad Splitscreen DVR Recording Built-in Speakers 12V 24V 2.4GHz Monitor Only

9" TFT-LCD Quad Screen Monitor that has 4 channels to support audio recording up to 4x cameras.The image can be adjusted : Mirror / Forward image adjustment available in the monitor setting. It uses 2.4GHz Digital wireless transmission has no interference as compared to Analogue wireless transmission which is prone to interference. This monitor has DVR Recording Function that can support up to 128GB SD card so you can record your footages from all camera. (SD card not included, available to be purchased separately).

It is ideal for wide variety of vehicles like Cars, SUV, UTEs, Semi-Trailer/Box, Truck, 5th Wheel, Trailer, Bus, Caravan and more. Suitable with 12V/24V power supply. You have 2 Ways to Install Monitor (1) Using monitor stand and (2) Using suction mount.

What is the difference between Wireless Analogue Transmission and Wireless Digital Transmission?

Analogue systems use the same technology/frequency as bluetooth/wireless networks therefore analogue monitors can pick up interference from Bluetooth phones/headsets etc. Digital systems are paired and only 'see' the digital signals, therefore there is no interference.

*Note: Cameras not included

If you need a wireless reversing camera monitor kit, please Click here

PRODUCT HIGHLIGHTS

  • 9" TFT-LCD Quad Screen Monitor
    • 800 x 480 Resolution
    • Support audio recording for all 4 channels
    • Sunshade is not removable
  • DVR Recording Function
    • Can support up to 128GB SD card so you can record your footages from all camera.(SD card not included, available to be purchased separately)
  • Wireless Monitor
    • No more complicated long video cables from the monitor to the camera.

      * Note: camera is not included



  • Built-in Speakers
    • With built-in speakers for easy communication, designed to support camera with mic.
  • FREE Windscreen Suction Cup Mount and Car Charger
    • This new model comes with good quality windscreen suction mount so you can install the monitor easily on your windscreen
    • Also includes a car charger so you can power up your monitor via cigarette lighter outlet.
  • 2.4GHz Digital Wireless Transmission
    • 2.4GHz Digital wireless transmission has no interference as compared to Analogue wireless transmission which is prone to interference
    • Stable signal and HD image, it is compatible to vehicles.
    • Improved wireless module to provide longer transmission distance of 30m-200m
    • Dual antennas monitor with stronger transmission 30m with barrier, 200m when no barrier.
    • Stable transmission up to 100km/h
  • Universal Fit
    • It is ideal for wide Variety of vehicles like cars, SUV, UTEs, Semi-Trailer/Box, Truck, 5th Wheel, Trailer, Bus, Caravan and more
  • Quad Split Screen Monitor
    • This Quad view monitor allows you to show single screen, Split screen, quad screen or H-split screen
  • Parking Guideline can be Turned On / Off
  • Suitable with 12V/24V Power Supply
    • Suitable for Trucks, Buses, Forklifts, Harvesters, Fire Trucks, Mining Trucks, Crane Trucks, Trailers, SUV, UTEs, Cars Semi-Trailer/Box, 5th Wheel, Caravan and more
  • Easy to Install
    • The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing or braking your car.

      * Note: camera is not included

ITEM DESCRIPTION

  • LCD Size: 9"
  • Resolution: 800 x 3 (RGB) x 480
  • Contrast: 500 | 1
  • Brightness: 400cd/m²
  • Viewing Angle: U: 50 / D: 70, R/L: 70
  • Dot pitch: 0.0642(W) x 0.1790(H)
  • Aspect Ratio: 16 | 9
  • Channel: 4 channels
  • Operating Frequency: 2400 - 2483.5 MHz
  • Receiving Sensitivity: -89 dBm
  • Decompression Form: MPEG4
  • Transmit Output Power: 17 dBm
  • Modulation: 2.4G FSK/GFSK
  • Time Delay: 120ms
  • Transmitting Distance: 30-200M
  • Micro-SD /TF Card: Max. 128GB
  • System Format: PAL / NTSC
  • Power Supply: DC 10-32V
  • Power Consumption: Max. 6W
  • Loudspeaker: 1.5W/8Ω
  • Operating temperature: -20~+70°C, RH90%
  • Storage temperature: -30~+80°C,RH90%

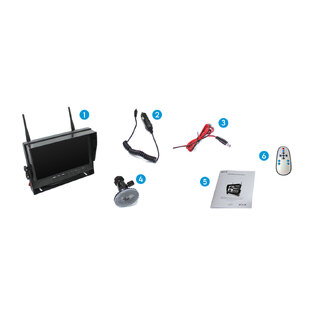

WHAT'S INCLUDED

1. 1x 9" Wireless TFT LCD Monitor

2. 1x Monitor Car Charger

3. 1x Monitor Power Cord

4. 1x Monitor Suction Mount

5. 1x User Manual

6. 1x Remote (*Batteries Not Included)

9'' Wireless Monitor, Wirings
