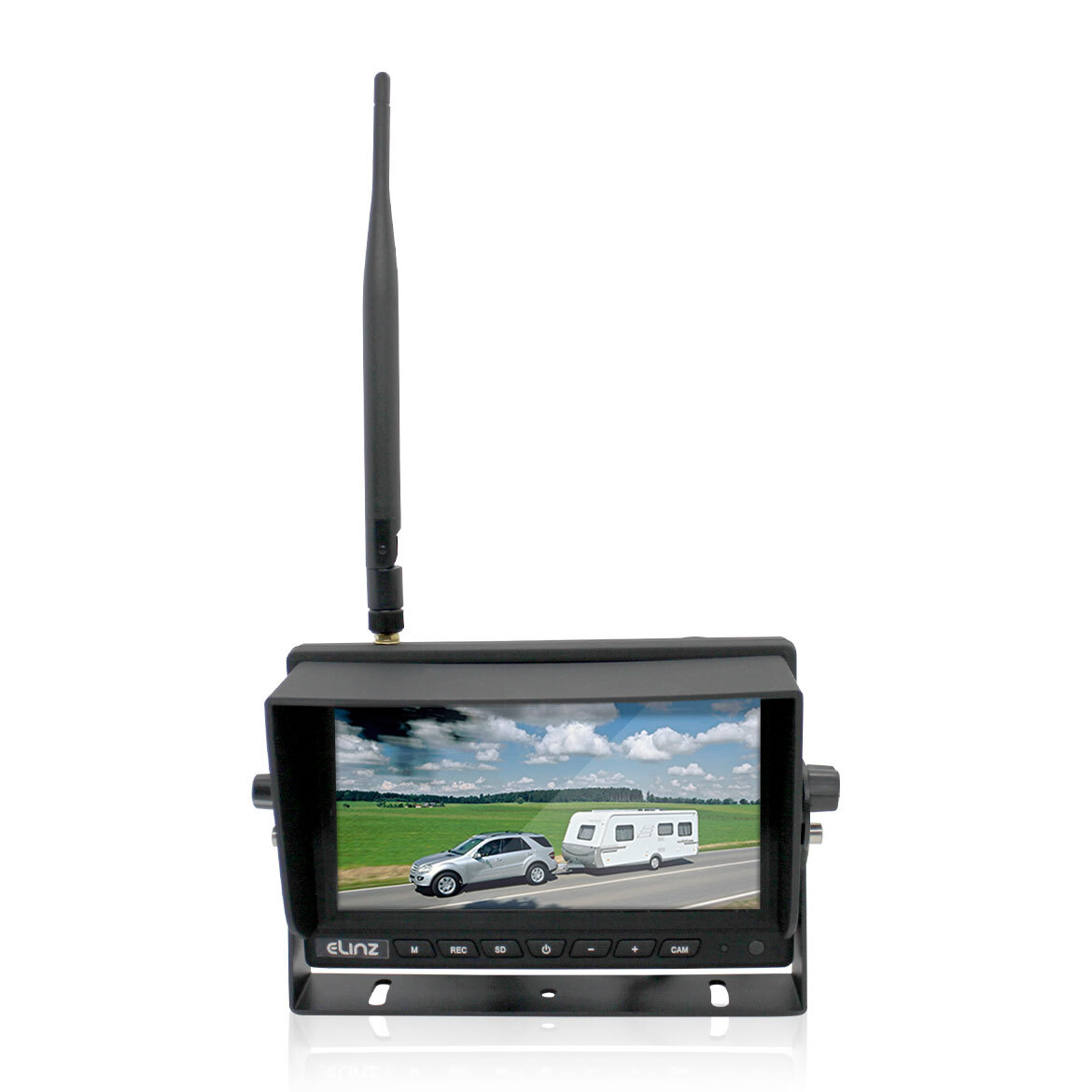

7" TFT-LCD Monitor
With the 800x480 7" monitor, you can view clearly and in sharp detail the video footage from the cameras
Split Screen Monitor
Can easily switch from single to double screen for better viewing experience
DVR Recording Function
Can support up to 128GB SD card so you have more than enough storage space to save recorded videos.
* SD Card is not included
2.4GHz Digital Wireless Transmission
Ensures strong and stable signal transmission distance of up to 30m at 100km/h
Parking Guideline Support
This parking guidelines helps in parking or reversing for your peace of mind and safety. Can be turned on or off
Easy to Install
Monitor wires are clearly labeled and can be easily connected
Compatible with 12V/24V Vehicles
Suitable for cars, trucks, trailer and caravan
Built-in Speakers
Works best with reverse camera with mic to hear clearly audio instructions from a person when reversing
Wiring Labels
Monitor Dimensions
Monitor Labels
Elinz 2CH Digital Wireless 7" DVR Splitscreen Monitor 12V 24V Car Caravan Truck Trailer
7" Splitscreen TFT-LCD Monitor with the 800x480 resolution. It has a DVR Recording Function that can support up to 128GB SD card (SD card not included). Monitor has 2.4GHz Digital Wireless Transmission to ensure strong and stable signal transmission distance of up to 30m at 100km/h. Compatible with 12V/24V Vehicles. With Built-in Speakers that works best with reverse camera with mic.
*This listing is for monitor only.

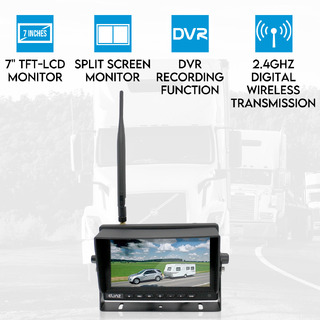

PRODUCT HIGHLIGHTS
- 7" TFT-LCD Monitor
- With the 800x480 7" monitor, you can view clearly and in sharp detail the video footage from the cameras
- Split Screen Monitor
- Can easily switch from single to double screen for better viewing experience
- DVR Recording Function
- Can support up to 128GB SD card so you have more than enough storage space to save recorded videos
- 2.4GHz Digital Wireless Transmission
- Ensures strong and stable signal transmission distance of up to 30m at 100km/h
- Parking Guideline Support
- This parking guidelines helps in parking or reversing for your peace of mind and safety. Can be turned on or off
- Easy to Install
- Monitor wires are clearly labeled and can be easily connected
- Compatible with 12V/24V Vehicles
- Suitable for cars, trucks, trailer and caravan
- Built-in Speakers
- Works best with reverse camera with mic to hear clearly audio instructions from a person when reversing
PRODUCT SPECIFICATIONS
- LCD Size: 7"
- Resolution: 800 x 3 (RGB) x 480
- Contrast: 500 | 1
- Brightness: 400cd/m²
- Viewing Angle: U: 50 / D: 70, R/L: 70
- Dot pitch: 0.0642(W) x 0.1790(H)
- Aspect Ratio: 16 | 9
- Channel: 2 Channels
- Operating Frequency: 2400 - 2483.5 MHz
- Receiving Sensitivity: -89 dBm
- Decompression Form: MPEG4
- Transmit Output Power: 17 dBm
- Modulation: 2.4G FSK/GFSK
- Time Delay: 120ms
- Transmitting Distance: 30m
- Micro-SD /TF Card: Max. 128GB
- System Format: PAL / NTSC
- Power Supply: DC 10-32V
- Power Consumption: Max. 6W
- Loudspeaker: 1.5W/8Ω
- Operating temperature: -20~+70ºC, RH90%
- Storage temperature: -30~+80ºC,RH90%
WHAT'S INCLUDED
1. 1x 7” TFT LCD Monitor
2. 1x Sunshade
3. 1x Monitor Stand
4. 1x Car Charger
5. 1x Windscreen Mount
6. 1x Power Cord
7. 1x User Manual
