5" Car Wireless Reversing Camera Monitor Rear View Kit CCD Reverse 12V 24V

IP67~Free Car Charger~600TVL~2.4GHz~120° View Angle

(SKU: M5-RVWRL)
AUD $93.00
In Stock


Payment made easy

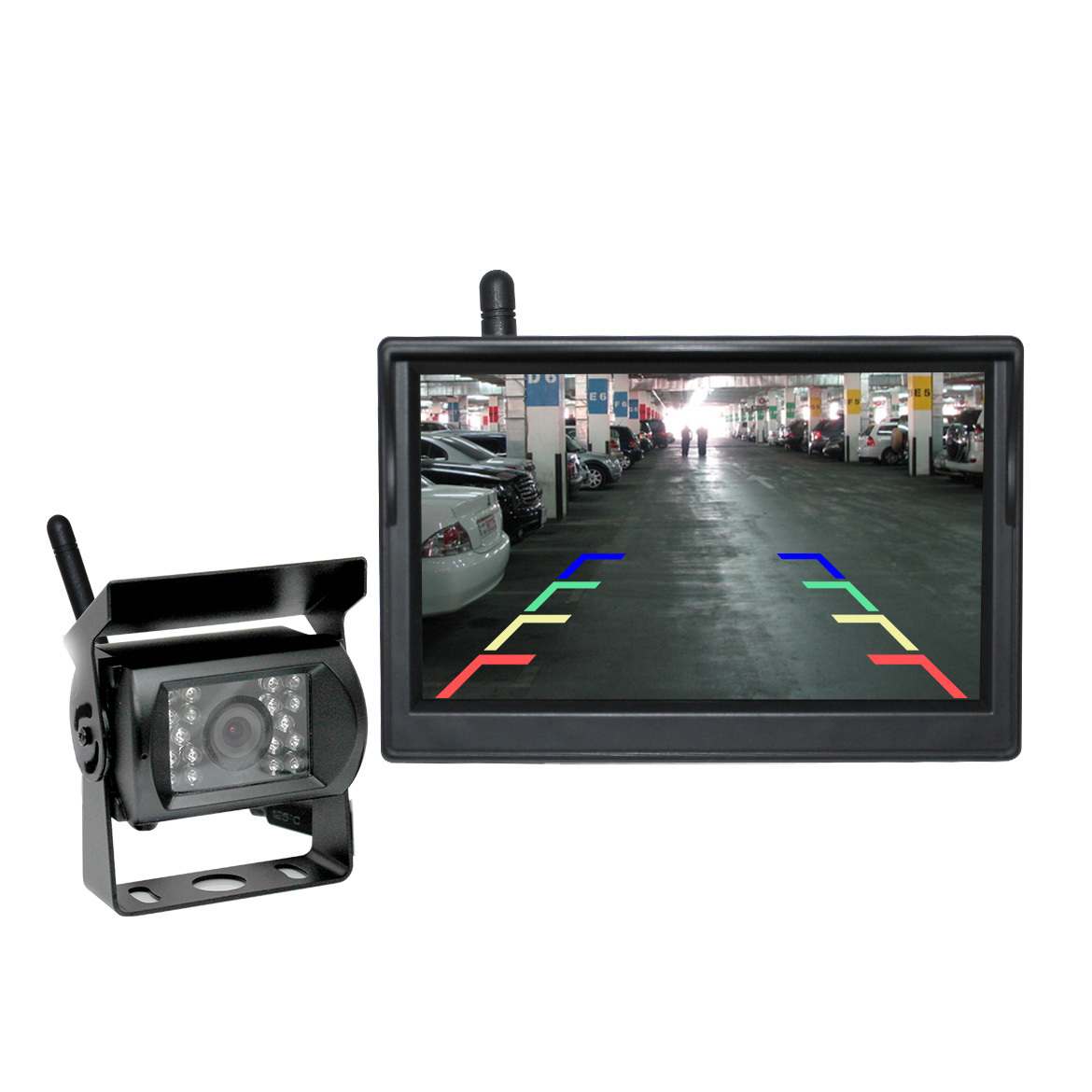

5" Car Wireless Reversing Camera Monitor Rear View Kit CCD Reverse 12V 24V

5 inch Wireless Monitor  Reversing Camera Kit
120 degree CCD Reverse Camera

120° Wide view angle

  • It gives you wider view when backing, reversing and lesser blind spots.

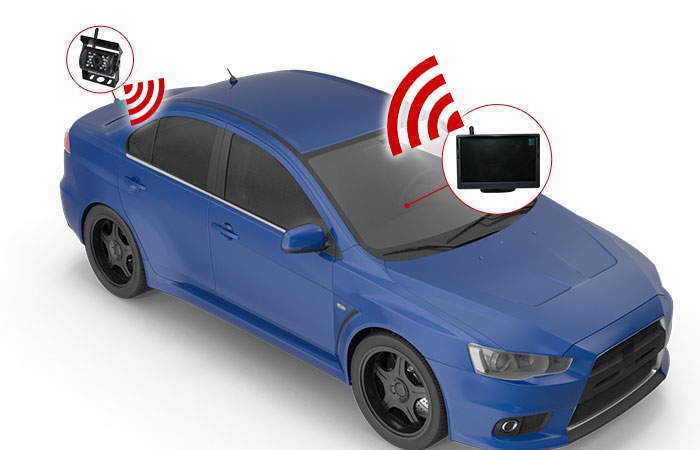

Wireless Rear View Camera Kit

Wireless Rear View System

  • Built-in 2.4GHz wireless transmitter and receiver with an effective wireless range ≤ 164 feet or 30 meters (open air)
5 inch Wireless Reverse Monitor

5" Colour TFT LCD Wireless Monitor

  • Suitable for Cars, SUV, Van, RV, Trucks, Motorhomes, Trailers with No Interference signals providing clear pictures.

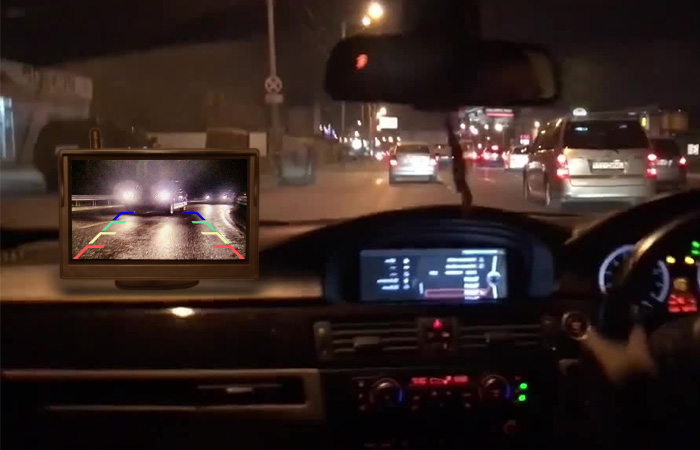

Night Vision Camera

Night Vision

  • 18 IR LED CCD Wireless Reversing Camera
  • 600TVL with clear images

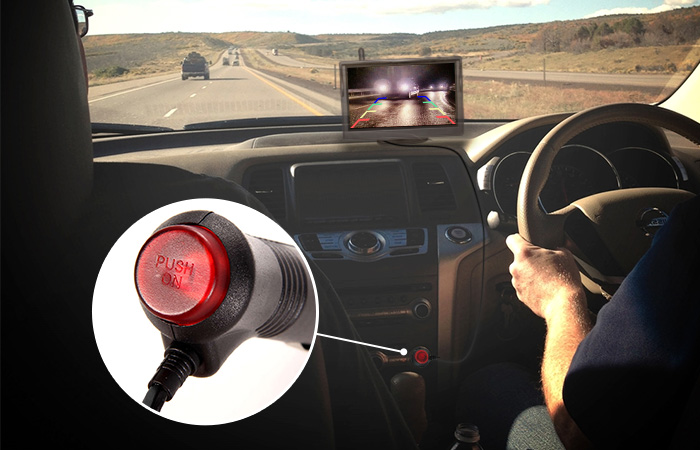

Car Charger for Rearview Monitor

Free Car Charger

  • To power up monitor and with switch for convenient installation
Easy Installation Reverse Camera Kit

Easy Installation

  • Won’t take over 2 minutes to install the monitor,as soon as you plugged it to the cigarette lighter.
  • Monitor automatically turns on and switch to rearview camera when reversing.

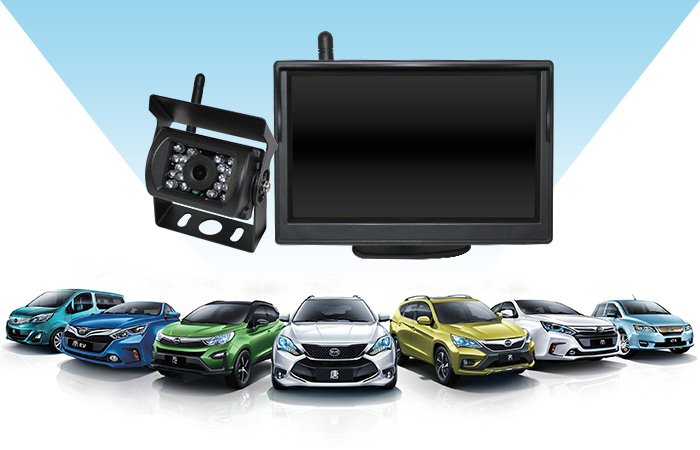

Reverse Camera System 12V 24V

Flexible Vehicle Compatibility

  • Voltage Range From 12-24V DC
Clip on 7 inch Rearview mirror monitor

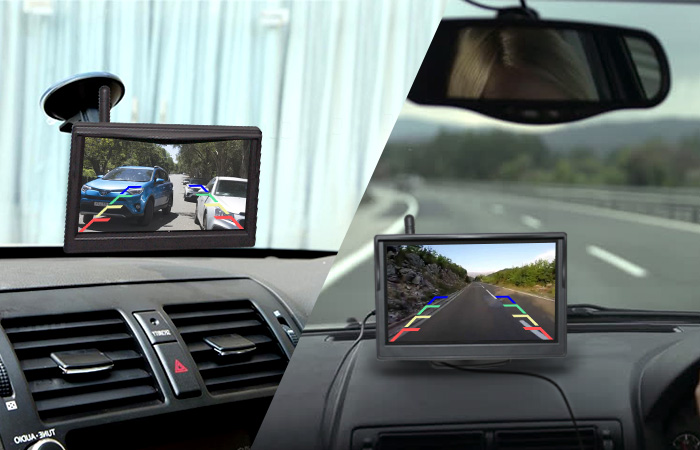

Suction Base & Dash Board Stand

  • You have 2 options on installing the monitor, either using windscreen suction cup mount or dash board stand.

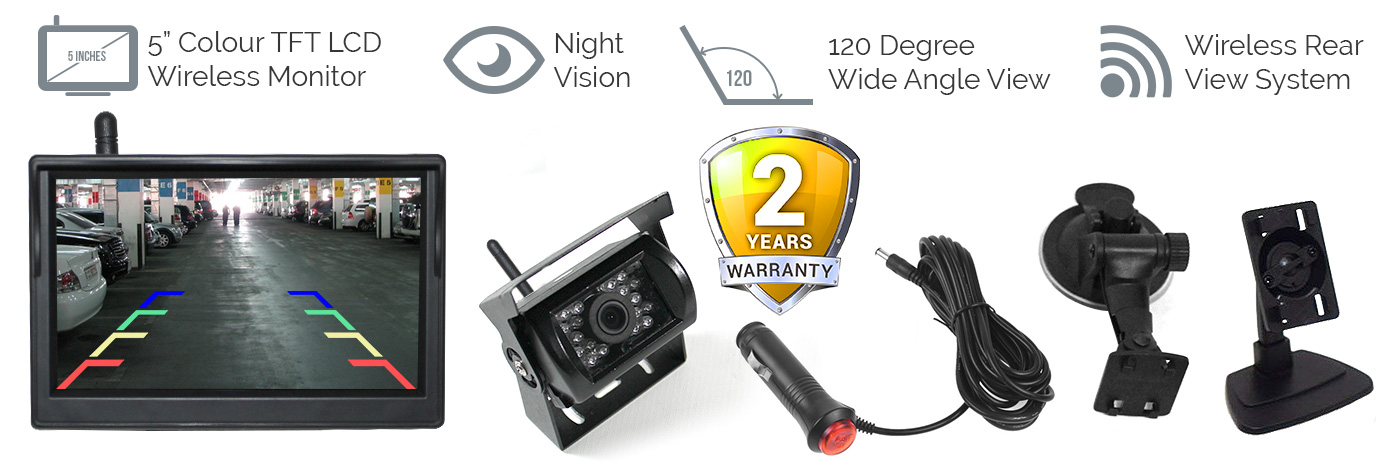

5inch Wireless Monitor Rear View Kit Reversing Camera

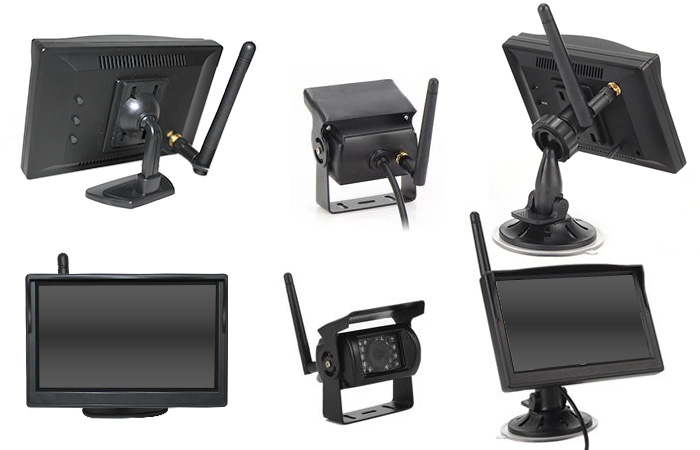

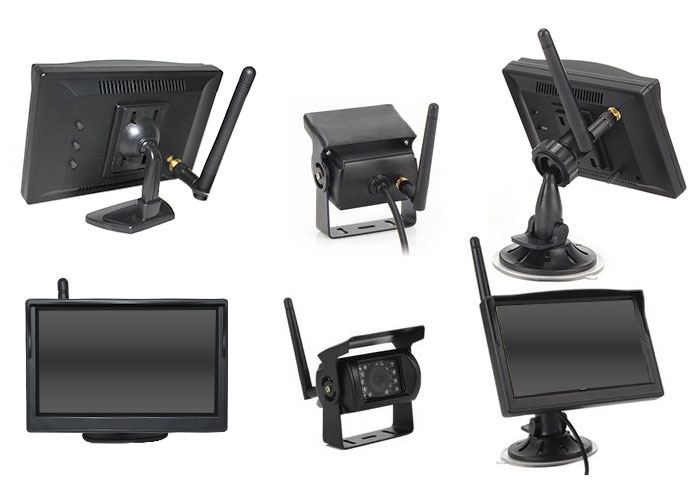

Product Views

Rearview Monitor Remote Control

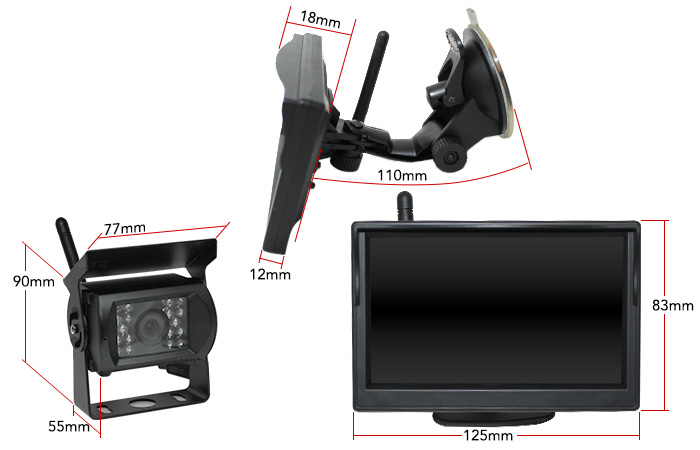

Dimensions

MORE INFORMATION

Safety and protection is what we can offer you with this 5" monitor wireless reversing CCD camera. Featuring a 600TVL camera to provide you clear images with 18 IR LED for night vision. A wide angle view of 120 degree for lesser blind spots and you can easily install this in minutes. This wireless reverse camera system comes with FREE car cigarette charger with switch for convenient installation.

It has a wireless transmission of ≤30 meters in the open field. It has a high rating of IP67 making it very durable and suitable in all environments.

What are you waiting for? Get this awesome reverse camera system for your vehicle and build up confidence in driving, making yourself, your passengers, other drivers and people around you, much safer.

PRODUCT HIGHLIGHTS

  • 5" Colour TFT LCD Monitor
    • 800x480 Resolution
    • NTSC/ PAL switch
  • Analog Wireless Transmission
    • Effective wireless range of ≤ 164 feet≤30 meters in the open field
    • Built-in 2.4GHz wireless transmitter and receiver
  • Easy Installation
    • It won’t take over 2 minutes to install the monitor, as soon as you plugged it to the cigarette lighter.
    • Monitor automatically turns on and switch to rearview camera when reversing.
    • It comes with a monitor stand and a suction cup to install your monitor on desired location
  • Suitable for Cars, SUV, Van, RV, Trucks, Motorhomes, Trailers with No Interference signals providing clear pictures.
  • Night Vision Supported
    • 18 IR LED CCD Wireless Reversing Camera
  • Industrial Grade Heavy Duty Colour CCD Camera
    • High resolution image
    • 120 degree wide field of view CCD camera
    • It provides wide view angle for reversing and improves visibility for the driver and safety for pedestrians
    • 600TVL camera
    • IP67 waterproof rating
  • Free Car Cigarette Charger
    • With switch for convenient installation
  • Flexible Vehicle Compatibility: Voltage Range From 12-24V DC

ITEM DESCRIPTION

Monitor Specifications

  • SKU: M5-RVWRL
  • Screen Size: 5 inches
  • Display Component: Color TFT LCD
  • LED Backlight Brightness: 300 cd/m2
  • Screen Ratio: 16:09
  • Pixel: 800 x 480
  • System: PAL / NTSC system(auto switch)
  • Contrast Ratio: 1000:01:00
  • Power Requirement: DC 12~24V
  • Power: ≤5W
  • Current:≤450mA
  • Seismic Level: 4G
  • Wireless Transmission: ≤30 meters in the open field
  • Video: 2 video input (1 Wireless, 1 Wired)
  • Rear View: V2 auto reverse when trigger activated
  • Operate Mode: Key operation and remote control
  • Working Temperature: -10℃~+60℃

Camera Specifications

  • Image Sensor: CCD
  • Definition: 600 TVL
  • Scanning System: 2:1 interface
  • Illumination: 0.5Lux, IR ON
  • Viewing Angle: 120 degrees
  • IR LEDs: 18pcs
  • Image: Mirror / Pre-image optional
  • Video Format: PAL / NTSC
  • Video Output: 1.0vp-p, 75Ω
  • Electronic Shutter: 1/60~1/10,000 second
  • Gama: 0.45
  • S/N Ration: >48 db
  • Waterproof Rating: IP67
  • Seismic Level: 4G
  • Reception: ≤30 meters in the open air
  • Power Requirement: DC 12~35V
  • Power: ≤3W
  • Current: ≤250mA
  • Working Temperature: -10℃~+60℃
  • Storage Temperature: -20℃~+70℃

WHAT'S INCLUDED

  1. 1 x 5 Inch Digital TFT LCD Wireless Monitor
  2. 1 x Wireless CCD Camera
  3. 1 x Dashboard Stand
  4. 1 x Suction Base
  1. 2 x Power Cables
  2. 1 x Car Charger with Switch Button
  3. Screws

7 inch Clip-on Rearview Mirror Monitor Reversing Camera

(M5-RVWRL)

SKU M5-RVWRL
Barcode # 0606015374893
Shipping Weight 0.5000kg
Shipping Width 0.020m
Shipping Height 0.020m
Shipping Length 0.050m
Shipping Cubic 0.000020m3
