Elinz 5" AHD Monitor Wired 4PIN 2 Channel HD Video Inputs Single View 12V 24V 800*480 Windscreen Mount
Easy to Install~Guidelines On/Off
SKU | M500AHD |
Barcode # | 0743966017001 |
Brand | Elinz |
Shipping Weight | 0.5800kg |
Shipping Width | 0.230m |
Shipping Height | 0.140m |
Shipping Length | 0.065m |
Shipping Cubic | 0.002093000m3 |
Help other users shop smarter by writing reviews for products you have purchased.

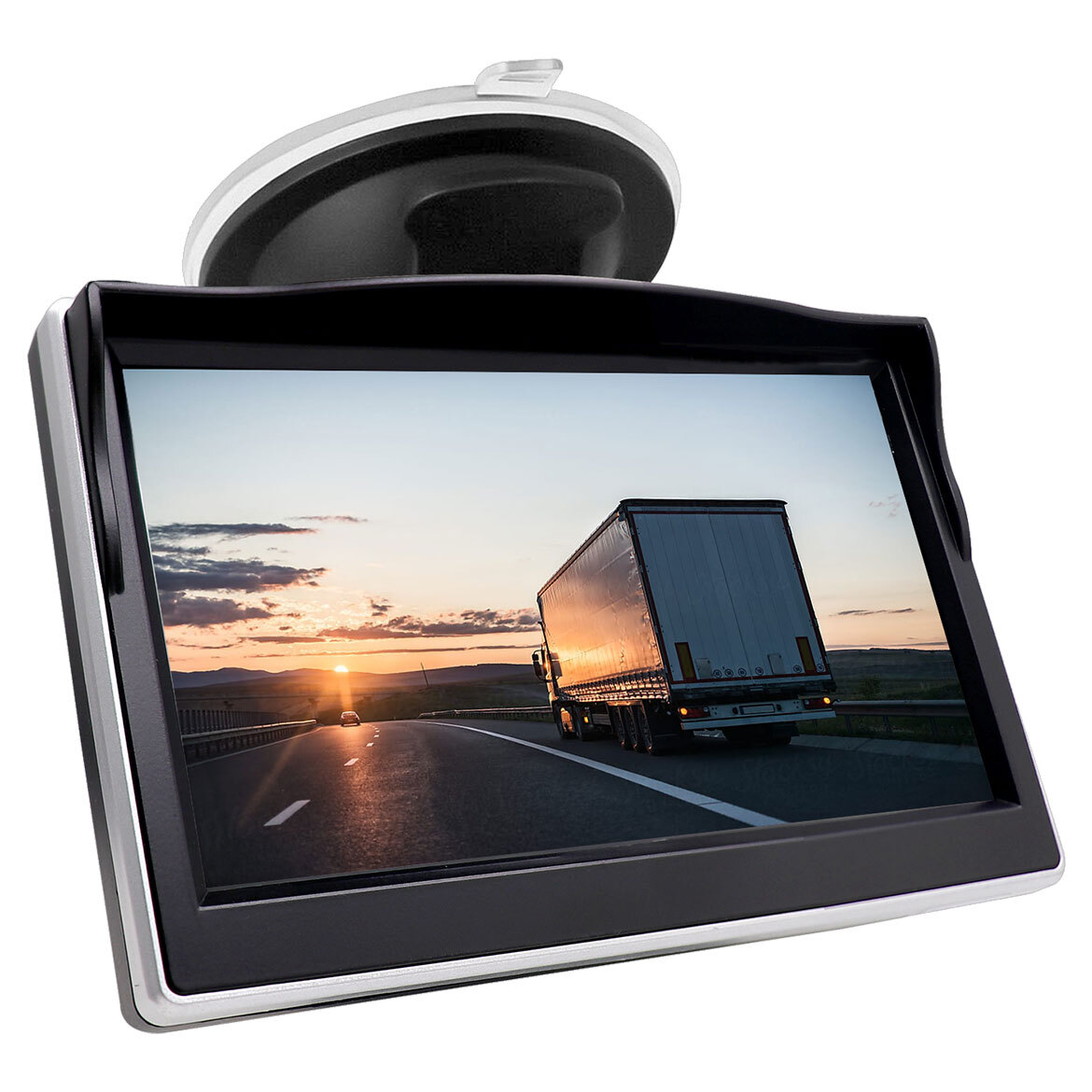

Elinz 5" AHD Monitor Wired 2 Channel HD Video Inputs Single View 12V 24V 800*480 Windscreen Mount
Upgrade your vehicle's visibility with the Elinz 5" AHD Monitor. This advanced system features Analog High Definition (AHD) technology, delivering sharper and higher-quality video compared to standard analog monitors.
PRODUCT HIGHLIGHTS
- AHD (Analog High Definition)
- AHD Analog High Definition monitors offer a higher resolution and quality video footage than standard analog monitors.
- 5" LCD Display
- This 5" AHD Monitor offers 800*480 screen resolution, perfect for enhancing visibility on Cars, SUVs, RVs, and Utes by providing real-time images so you can have a clear view of what's behind your vehicle.
- 2CH Single View
- Supports up to two AHD cameras.
- Compatible Cameras: RV4PINAHD, RV4PINAHDFWR, RV64PINAHD, RVBALL4PINAHD, RV4PIN2LEDAHD, RV4PIN4LEDAHD, RV4PIN8LEDAHD, RV4PIN12LEDAHD.
- Guidelines On/Off
- The monitor has a built-in parking guide lines to making it easier and safer for you when reversing. Guidelines can be turned ON/OFF.
- DC 12-24V Power Source
- Compatible with most vehicles with a power input range DC12-24V. The monitor supplies DC12V power to cameras.
- Easy to Install
- This monitor is equipped with a powerful suction cup mount which can provides great stability and making it very easy to install.
ITEM DESCRIPTION
- Screen Size: 5 inch
- Monitor Type: AHD
- Display Technology: LCD
- Screen Resolution: 800*480
- Video Input: 720P/1080P
- Video Channels: 2CH
- Connection Type: 4PIN
- Power Consumption: <5W
- Operating Temperature: -30~ +70 ºC
- Input Voltage: DC12V-24V
- Output Voltage: DC12V
- Compatible Cameras: RV4PINAHD, RV4PINAHDFWR, RV64PINAHD, RVBALL4PINAHD, RV4PIN2LEDAHD, RV4PIN4LEDAHD, RV4PIN8LEDAHD, RV4PIN12LEDAHD
WHAT'S INCLUDED
- 1x Monitor
- 1x Suction Cup Mount
- 1x Power Cord
- 1x User Manual
