Elinz Caravan Two Camera 4PIN System Trailer cable 7" Monitor HD 12V/24V Reversing CCD Camera Kit

Premium Package Trailer 4PIN Monitor can PowerUp Camera

(SKU: M7SRVDOM-RVSMA4PIN-CBLTRA)
AUD $269.95
In Stock


Payment made easy


Share:


Caravan Two Cameras 4PIN System with Trailer Cable

SKU: M7SRVDOM-RVSMA4PIN-CBLTRA

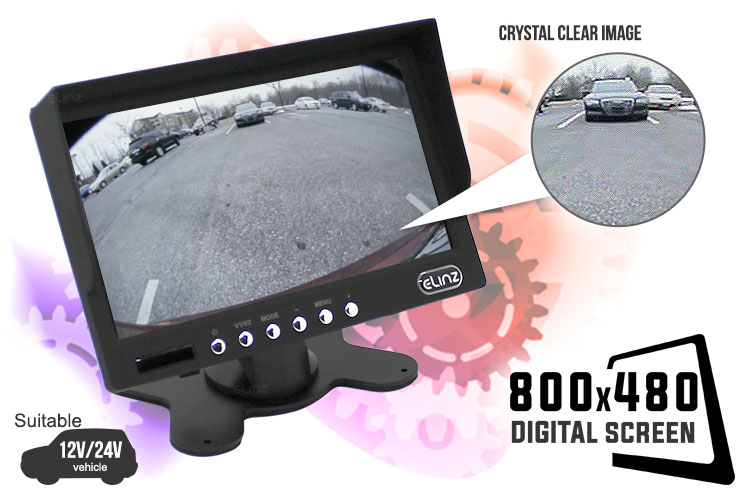

7" TFT LCD Monitor

  • 800x480 Digital Screen, Crystal Clear Image
  • 16:9/4:3 switch freely
  • Resolution: 480TV lines
  • The image supports to be rotated up and down, left and right
  • Can connect to DVD / MP4 / Camera, etc.

Two Video Inputs, Reversing First

  • Two video inputs, reversing first connect two cameras (cameras are optional and sold seperately) to the monitor. You can view one camera while driving and the 2nd camera will turn on automatically when reversing.

Compatible to 12V/24V

  • This monitor can be used with Trucks / Caravans / Cars

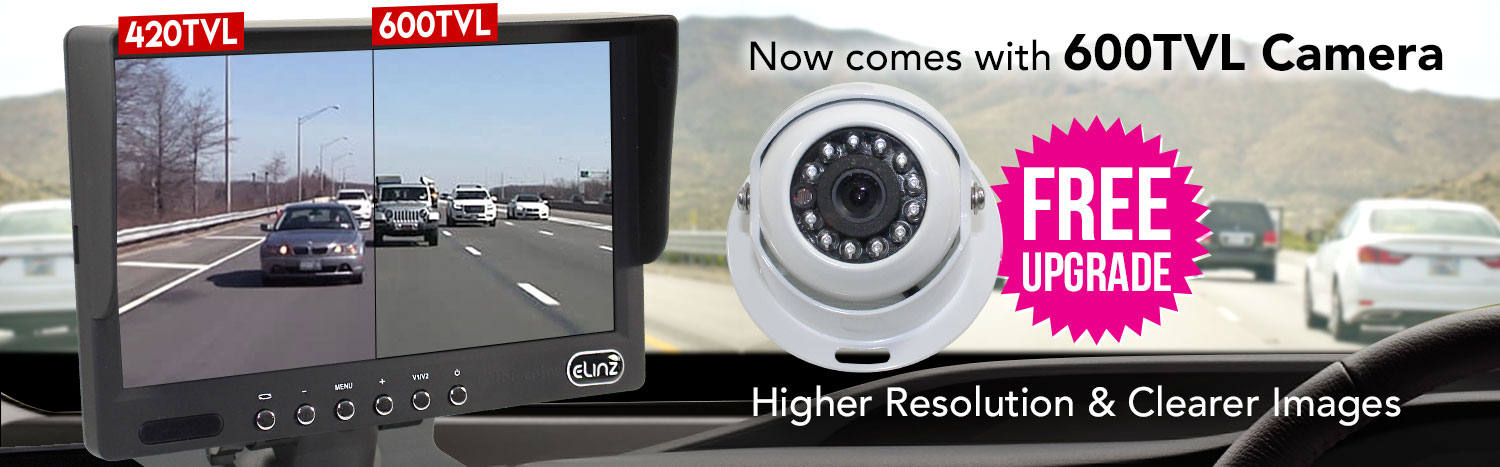

Now Comes with 600TVL Camera

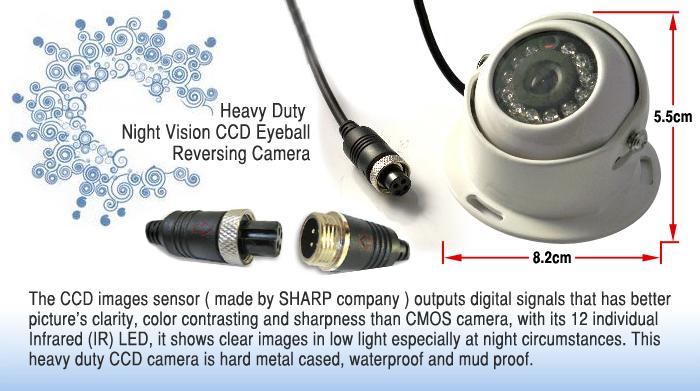

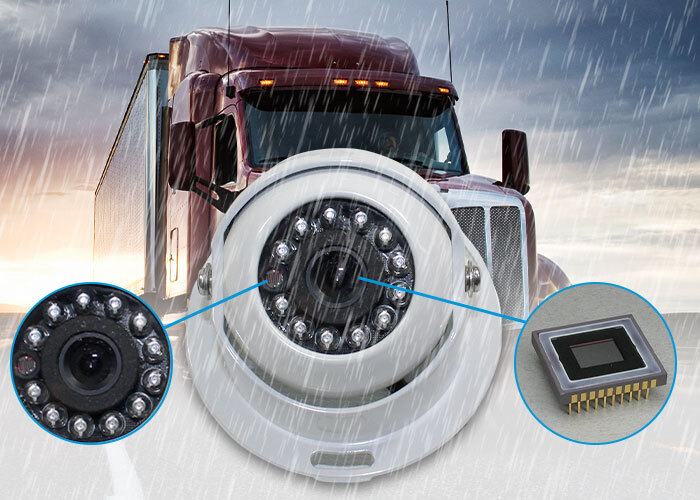

CCD Eyeball Reversing Camera

  • With CCD image sensor made by sharp company
  • 12 individual infrared (IR) LED to show clear images in low light especially at night circumstances.
  • Heavy Duty CCD camera with hard metal cased, waterproof and mudproof.

CMOS Reversing Camera

  • 150° wide angle, Sharp lens
  • Waterproof & protection against dust

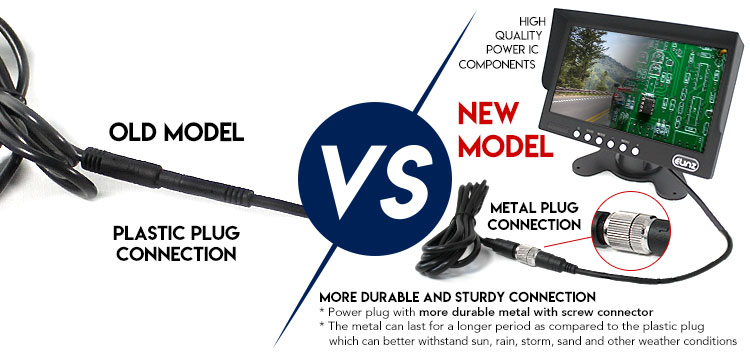

New Upgraded Model

80,000RPM Rotation Speed

The Image can be Rotated Up, Down, Left and Right

Trailer Cable Suzy Coil

  • 5 PIN AP-TP20 metal connector with male and female connector
  • 4 PIN metal connector for CCD Camera

Waterproof Function

  • With elasticity length from 2 meters to 4 meters

Wiring Diagram

Installation Diagram

  • Connect and disconnect the cable between your trailer/caravan easily.
  • Easy to install. You can D.I.Y. as long as you can locate your vehicle’s 12V/24V power source.

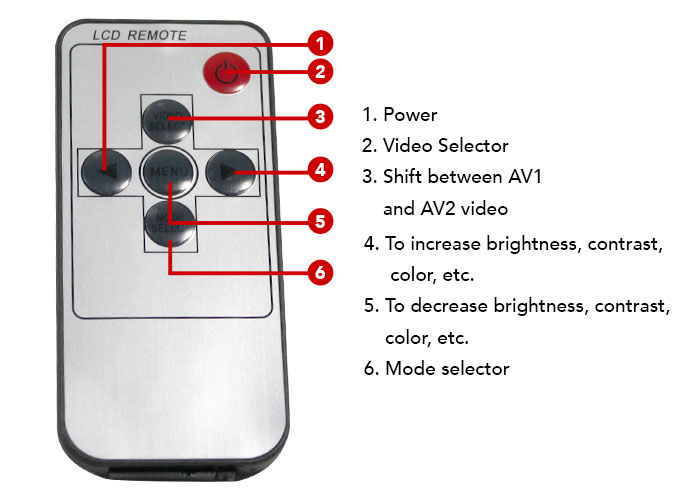

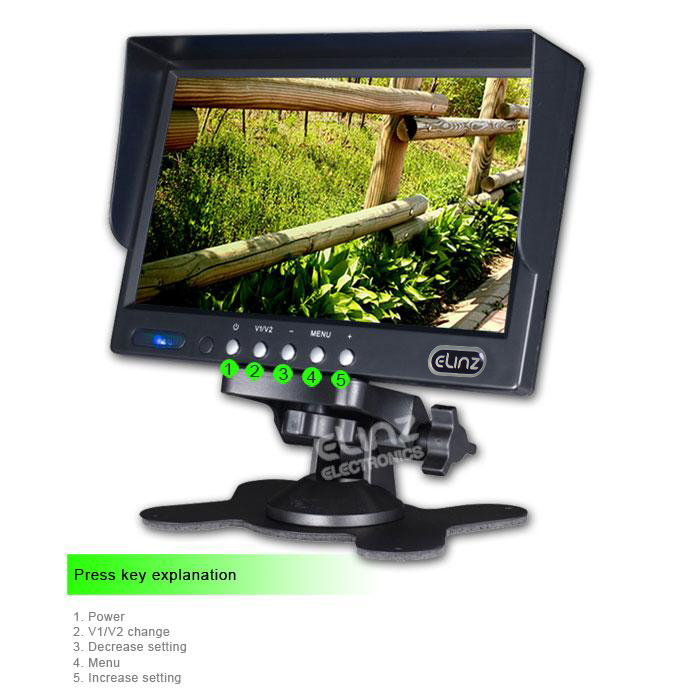

Remote Controller Labels

Camera Dimensions

CMOS Camera Dimensions

Product Dimensions and Labels

MORE INFORMATION

Elinz Caravan Two Camera 4PIN System Trailer cable 7" Monitor HD 12V/24V Reversing CCD Camera Kit

7" TFT LCD HD monitor that can be connected up 2 cameras. The image can be rotated up and down, left and right. This monitor can be used with Trucks / Caravans / Cars. Two video inputs, reversing first connect two cameras (Only 1 Reversing Camera is included) to the monitor. You can view one camera while driving and the 2nd camera will turn on automatically when reversing.

PRODUCT HIGHLIGHTS

  • 7" TFT LCD Monitor
    • 800x480 Digital Screen, Crystal Clear Image
    • 16:9/4:3 switch freely
    • The image supports to be rotated up and down, left and right
    • Can connect to DVD / MP4 / Camera, etc.
  • Two Video Inputs, Reversing First
    • The image can be rotated up and down, left and right
    • Two video inputs, reversing first connect two cameras (cameras are optional and sold seperately) to the monitor. You can view one camera while driving and the 2nd camera will turn on automatically when reversing.
  • Compatible to 12V/24V
    • This monitor can be used with Trucks / Caravans / Cars
  • Wireless remote control
    • Easy to operate with complete functions

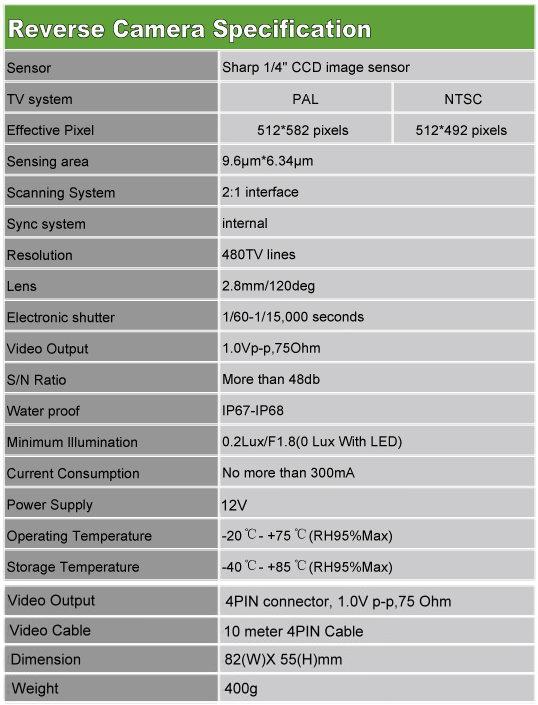

ITEM DESCRIPTION

  • 800*480 Digital Screen, Crystal Clear Image
  • Sunshade design
  • Two way video input
  • Suitable for 12V/24V vehicle
  • Wireless remote control
  • The image can be rotated up and down, left and right
  • Can connect to DVD/MP4/Camera etc
  • Camera sensor: Sharp 1/4" CCD image sensor
  • Resolution: 480TV lines
  • Waterproof rating:IP67- IP68
  • TV System : PAL/NSTC

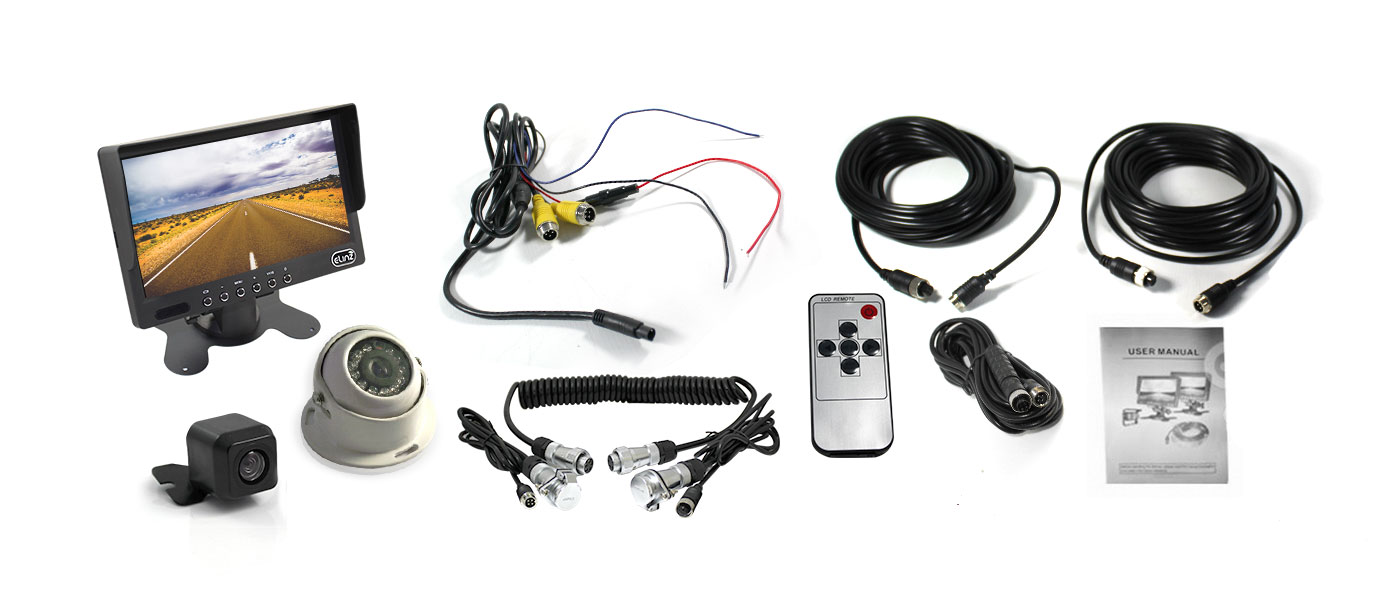

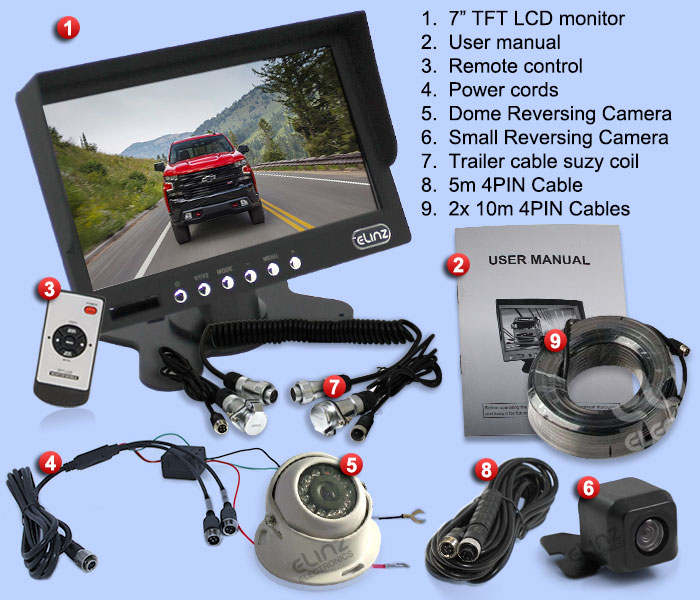

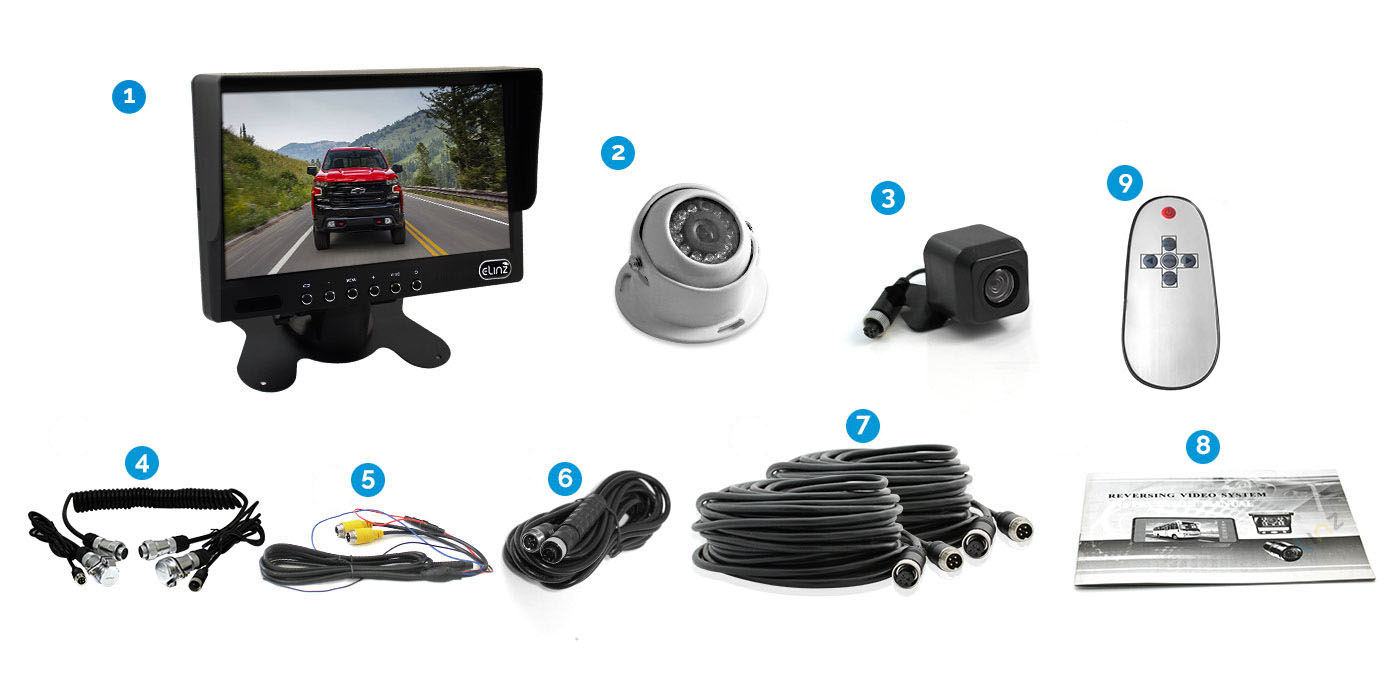

WHAT'S INCLUDED

1. 1x 7" TFT LCD Monitor

2. 1x Dome Reversing Camera

3. 1x CMOS Reversing Camera

4. Remote Controller

5. Trailer Cable Suzy Coil

6. Power Cords

7. 1x 5M Cable

8. 2x 10M Cable

9. User Manual

Frequently Asked Questions

A. What are the benefits of the camera's CCD image sensor?

The camera's CCD image sensor enables the unit to capture images with better picture quality, clarity, and sharpness. This gives you a huge advantage, especially when driving at night.

B. Do I need to connect the reversing camera to a power source?

No, you don't have to. This camera kit comes with 4 PIN cables for fast and easy installation. The cables allow the monitor to power up the camera on its own.

C. Does the unit come with a remote control?

Yes. The camera system comes with a remote control so you don't have to fiddle with the monitor if you want to switch views or adjust screen brightness and colour.


Troubleshooting Guides

No Troubleshooting Guides Available

*Product on the video may differ from the actual product. Video is displayed to show the importance and use of the product.
