4CH Digital Wireless 7" Quad Monitor Splitscreen DVR 12V 24V 2.4GHz

SKU: M7DG

Digital Wireless 7 inches Quadscreen Monitor Reversing Camera
7 inches TFT-LCD Quad Screen Monitor

7" TFT-LCD Quad Screen Monitor

  • 800 x 480 resolution
  • Audio recording for all 4 channels wireless cameras
  • The image can be adjusted : Mirror / Forward image adjustment available in the monitor setting

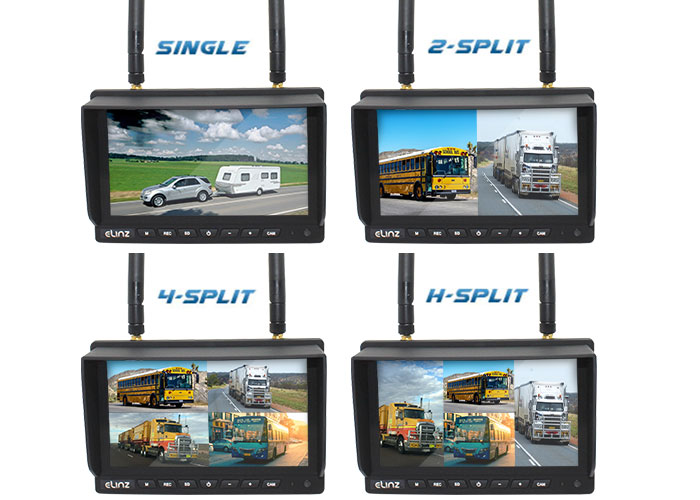

7 inches Split Quad Screen Monitor

Split Screen Monitor

  • It can be single screen, Split screen, quad screen or H-split screen
DVR Recording Function Reversing Camera

DVR Recording Function

  • Can support up to 128GB SD card (SD card not included, available to be purchased separately)
Camera Dimensions

2 Ways to Install Monitor

  • Using monitor stand
  • Using suction mount

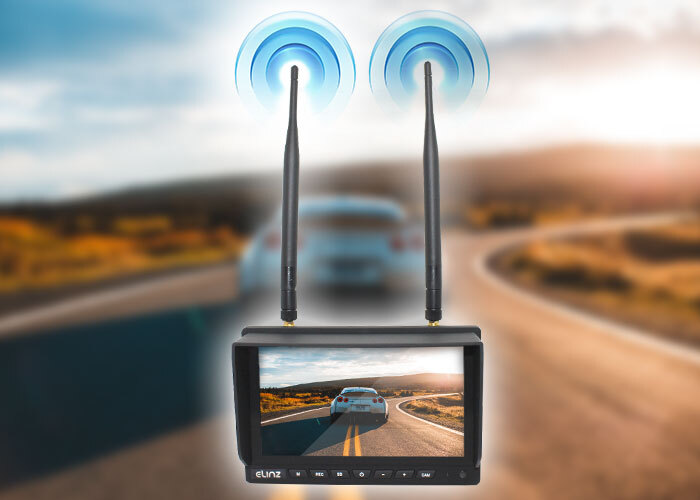

2.4GHz Digital Wireless Transmission Up to 200M

2.4GHz Digital Wireless Transmission Up to 200m

  • 2.4GHz Digital wireless transmission has no interference as compared to Analogue wireless transmission which is prone to interference
  • Stable signal and HD image
  • Improved wireless module to provide longer transmission distance of 30m-200m
  • Dual antennas monitor with stronger transmission 30m with barrier, 200m when no barrier.
  • Stable transmission up to 100km/h
12V/24V Back up camera system

Universal Fit

  • It is ideal for wide variety of vehicles like Cars, SUV, UTEs, Semi-Trailer/Box, Truck, 5th Wheel, Trailer, Bus, Caravan and more
  • Suitable with 12V/24V power supply
Wireless ReversingCamera Parking guideline

Parking guideline can be turned On / Off

Monitor Labels and Dimensions

Monitor Labels

Monitor Labels and Dimensions

Monitor Dimensions

Camera Dimensions

Wiring Labels

Camera Dimensions

What is the difference between Wireless Analogue Transmission and Wireless Digital Transmission?

  • Analogue systems use the same technology /frequency as Bluetooth/wireless networks therefore analogue monitors can pick up interference from Bluetooth phones/headsets etc. Digital systems are paired and only 'see' the digital signals, therefore there is no interference.
Camera Dimensions

Remote

  • * No Batteries Included

MORE INFORMATION

4CH Digital Wireless 7" Quad Monitor Splitscreen Monitor DVR 12V 24V 2.4GHz 800x480

7" TFT-LCD Quad Screen Monitor that has 4 channels to support audio recording up to 4x cameras.The image can be adjusted : Mirror / Forward image adjustment available in the monitor setting. It has 2.4GHz Digital wireless transmission has no interference as compared to Analogue wireless transmission which is prone to interference.

It is ideal for wide variety of vehicles like Cars, SUV ,UTEs, Semi-Trailer/Box, Truck, 5th Wheel, Trailer, Bus, Caravan and more. Suitable with 12V/24V power supply. You have 2 Ways to Install Monitor (1)Using monitor stand and (2) Using suction mount.

What is the difference between Wireless Analogue Transmission and Wireless Digital Transmission?

Analogue systems use the same technology /frequency as Bluetooth/wireless networks therefore analogue monitors can pick up interference from Bluetooth phones/headsets etc. Digital systems are paired and only 'see' the digital signals, therefore there is no interference.

*Note: Cameras not included


PRODUCT HIGHLIGHTS

  • 7" TFT-LCD Quad Screen Monitor
    • 800 x 480 resolution
    • Audio recording for all 4 channels wireless cameras
    • The image can be adjusted : Mirror / Forward image adjustment available in the monitor setting
  • Split Screen Monitor
    • It can be single screen, Split screen, quad screen or H-split screen
  • DVR Recording Function
  • Can support up to 128GB SD card (SD card not included, available to be purchased separately)
  • Wireless Rear View System
    • You do not need to run wires to connect the camera and monitor.
  • 2.4GHz Digital Wireless Transmission Up to 200m
    • 2.4GHz Digital wireless transmission has no interference as compared to Analogue wireless transmission which is prone to interference
    • Stable signal and HD image
    • Improved wireless module to provide longer transmission distance of 30m-200m
    • Dual antennas monitor with stronger transmission 30m with barrier, 200m when no barrier.
    • Stable transmission up to 100km/h
  • Universal Fit
    • It is ideal for wide variety of vehicles like Cars, SUV ,UTEs, Semi-Trailer/Box, Truck, 5th Wheel, Trailer, Bus, Caravan and more
    • Suitable with 12V/24V power supply
  • Parking guideline can be turned on / off
  • 2 Ways to Install Monitor
    • Using monitor stand
    • Using suction mount

ITEM DESCRIPTION

  • LCD size: 7"
  • Resolution: 800 x 3 (RGB) x 480
  • Contrast: 500 | 1
  • Brightness: 400cd/m²
  • Aspect Ratio: 16 | 9
  • Channel: 4 channels
  • Operating Frequency: 2400 - 2483.5 MHz
  • Receiving Sensitivity: -89 dBm
  • Decompression Form: MPEG4
  • Transmit Output Power: 17 dBm
  • Modulation: 2.4G FSK/GFSK
  • Time Delay: 120ms
  • Transmitting Distance: 30-200M
  • Micro-SD /TF Card: Max. 128GB(not included)
  • System Format: PAL / NTSC
  • Power Supply: DC 10-32V
  • Power Consumption: Max. 6W
  • Loudspeaker: 1.5W/8Ω
  • Operating temperature: -20~+70ºC, RH90%
  • Storage temperature: -30~+80ºC,RH90%

WHAT'S INCLUDED

1. 1x 7" TFT LCD Wireless Monitor

2. 1x Hard Wiring Power Cord

3. 1x Car Charger

4. 1x Monitor Stand

5. 1x Monitor Suction Mount

6. User Manual

7. Screws

8. Remote ( * No Batteries included )

What's Included Reversing Camera Kit System
