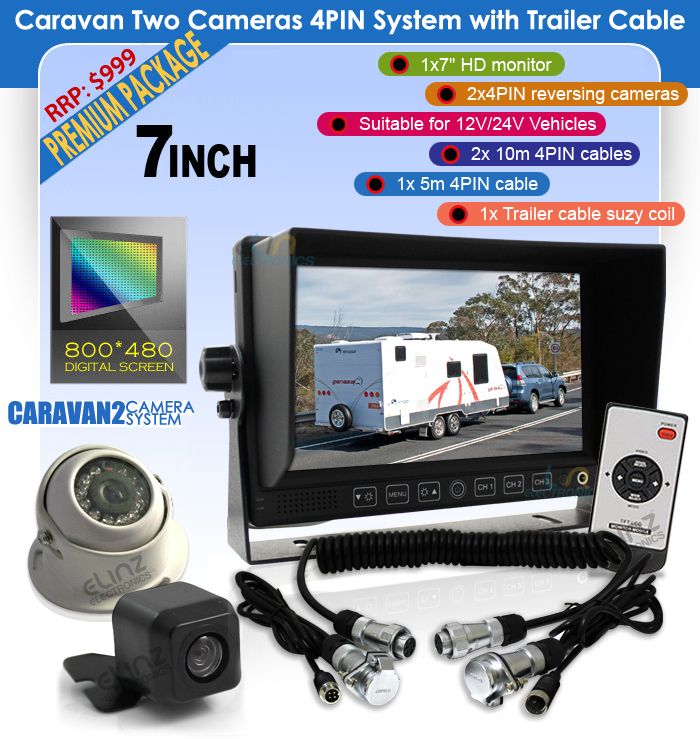

Elinz 7" Monitor HD 12V/24V Reversing CCD 2 Camera 4PIN System Trailer Cable Caravan

3AV inputs Premium Package 4PIN Monitor CanPower Camera

(SKU: GEAR7DOM-RVSMA4PIN-CBLTRA)
WAS From AUD $276.00
NOW AUD $266.00
Sale Ends in
12:00 pm, 31 December 2020
Hurry! Only 3 Left!


Payment made easy


Share:


Elinz 7" Monitor HD 12V/24V Reversing CCD 2 Camera 4PIN System Trailer Cable Caravan

SKU: GEAR7DOM-RVSMA4PIN-CBLTRA

7 inch Monitor Reversing 2x Camera Kit with Trailer Cable

7 Inch HD Monitor

  • 800x480 Digital Screen, Crystal Clear Image
  • This monitor can be used with Trucks / Caravans / Cars
  • Rearview image can also be shown on screen at all times
  • 16:9/4:3 switch freely
  • Can connect to DVD / MP4 / Camera, etc.
Heavy Duty 480TVL 4PIN Eyeball Reversing Camera

Heavy Duty 480TVL 4PIN Eyeball Reversing Camera

  • Powerful 12 LEDs for night vision
  • 120 degree wide view angle
  • IP67 Waterproof
  • CCD image sensor made by Sharp company
Mini CMOS 4PIN Camera

Mini CMOS 4PIN Camera

  • 150 degree wide angle view
  • It has built-in photosensitive chip and infrared night vision
  • Small colour mini camera which can be mounted easily on vehicle's bumper
4PIN Cables 10m, 5m

4PIN Cables Included

  • It comes with 1x 5 meters and 2x 10 meters 4PIN connecting cables
Wiring Diagram Camera and Monitor

Wiring Diagram

  • 4 PIN advanced cables allow the monitor to power up the cameras
Heavy Duty Trailer Cable

Heavy Duty Trailer Cable & Connectors

  • 5PIN AP-TP20 metal connector with male and female connector
  • Waterproof function
  • 4PIN metal connector for CCD camera
  • With elasticity length from 2000mm to 4000mm
  • Very tight connection, durable and reliable.
Compatible to 12V &24V Vehicles

Compatible to 12V & 24V Vehicles

  • This can be used with Trucks / Caravans / Cars
  • Premium reversing camera package that would suit car caravan setup
  • The camera behind the caravan can turn on all the time while driving, and the 2nd camera will turn on automatically when reversing.

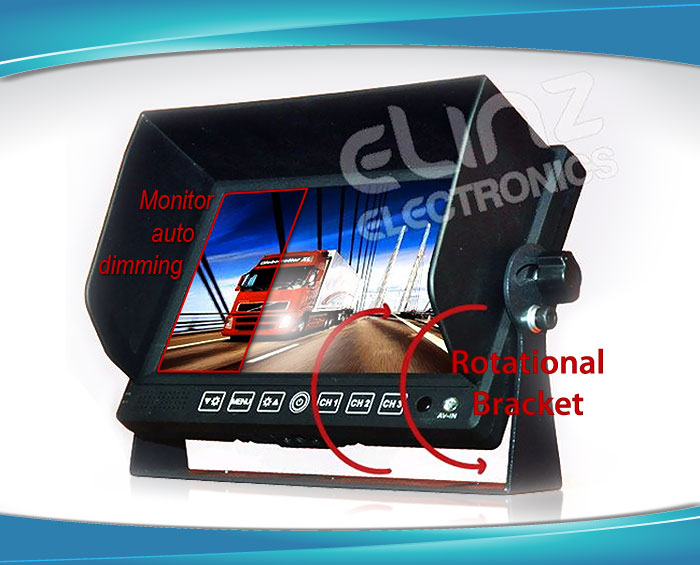

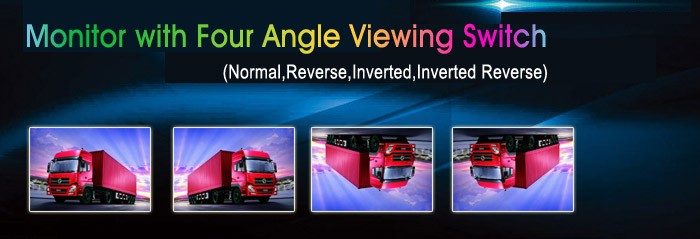

Image can be Rotated

Image can be Rotated

  • The image can be rotated up and down, left and right

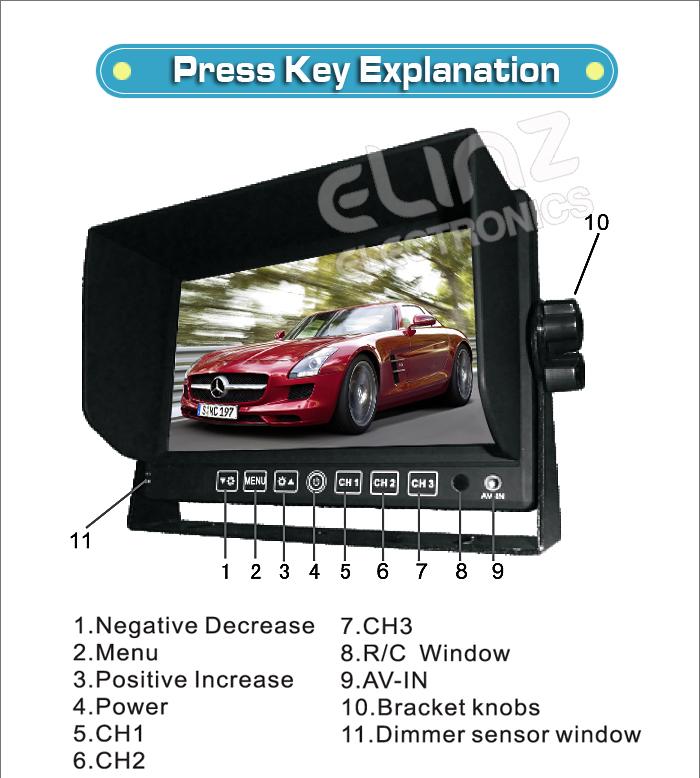

Monitor Labels

Monitor Label

Application Reversing Camera and Monitor Set up

Application

Built-in Light Sensor

Built-in Light Sensor

Removable Sun visor

Removable Sun Visor

Wiring Label

Wiring Label

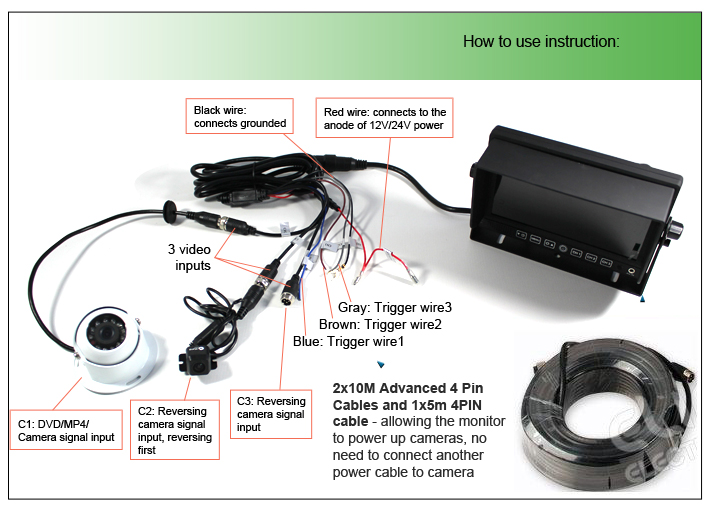

How to Connect Wirings

How to Connect Wirings

Remote Control Label

Remote Control Label

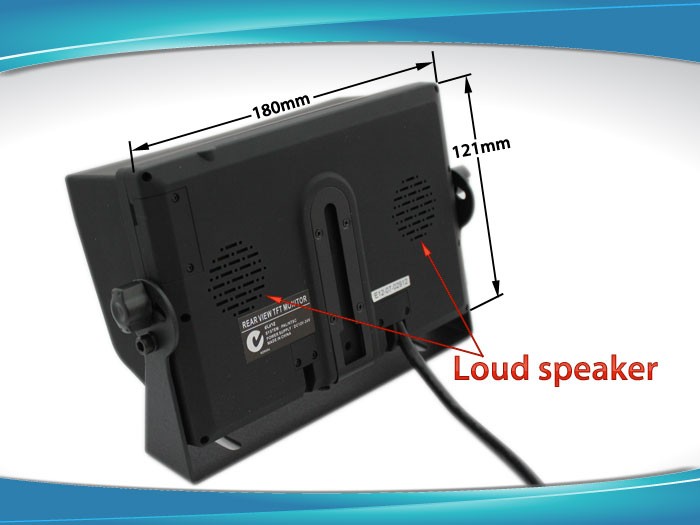

Monitor Camera Dimensions

Dimensions

MORE INFORMATION

7" Monitor HD 12V/24V Reversing CCD 2 Camera 4PIN System Trailer Cable Caravan

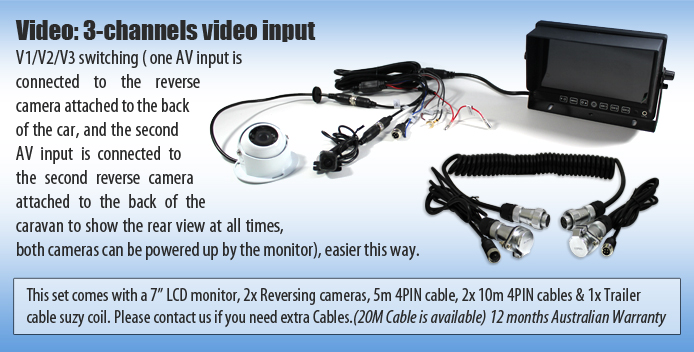

7" monitor with 2x reversing cameras, 2x10m 4PIN cables and1x5m 4PIN cable is a premium reversing camera package that would suit car caravan setup. It has two video inputs, reversing first. This can be used on 12v/24v vehicles like Trucks / Caravans / Cars. With 800x480 Digital Screen crystal clear image and wide angle viewing reverse camera. The camera behind the caravan can turn on all the time while driving, and the 2nd camera will turn on automatically when reversing.

Package comes with wireless remote control to easily to operate the system. The 4PIN cables allows the monitor to power up cameras and no need to connect another power cable to cameras. This reverse camera system is easy to install. You can DIY as long as you can locate your vehicle's 12V / 24V power source.

It comes with trailer cable for connecting and disconnecting when hitching your caravan. This cast alloy connector can be mounted adjacent on same bracket and suitable for truck trailer, semitrailer or caravan applications.

PRODUCT HIGHLIGHTS

  • 7 Inch HD Monitor
    • 800x480 Digital Screen, Crystal Clear Image
    • This monitor can be used with Trucks / Caravans / Cars
    • Rearview image can also be shown on screen at all times
    • 16:9/4:3 switch freely
    • Can connect to DVD / MP4 / Camera, etc.
  • Heavy Duty 480TVL 4PIN Eyeball Reversing Camera
    • Powerful 12 LEDs for night vision
    • 120 degree wide view angle
    • IP67 Waterproof
    • CCD image sensor made by Sharp company.
  • Mini CMOS 4PIN Camera
    • 150 degree wide angle view
    • It has built-in photosensitive chip and infrared night vision
    • Small colour mini camera which can be mounted easily on vehicle's bumper.
  • 4PIN Cables Included
    • It comes with 1x 5 meters and 2x 10 meters 4PIN connecting cables.
  • Wiring Diagram
    • 4 PIN advanced cables allow the monitor to power up the cameras.
  • Compatible to 12V & 24V Vehicles
    • This can be used with Trucks / Caravans / Cars
    • Premium reversing camera package that would suit car caravan setup
    • The camera behind the caravan can turn on all the time while driving, and the 2nd camera will turn on automatically when reversing.
  • Heavy Duty Trailer Cable & Connectors
    • 5PIN AP-TP20 metal connector with male and female connector
    • Waterproof function
    • 4PIN metal connector for CCD camera
    • With elasticity length from 2000mm to 4000mm
    • Very tight connection, durable and reliable.
  • Image can be Rotated
    • The image can be rotated up and down, left and right
  • Wireless Remote control
    • Easy to operate.

ITEM DESCRIPTION

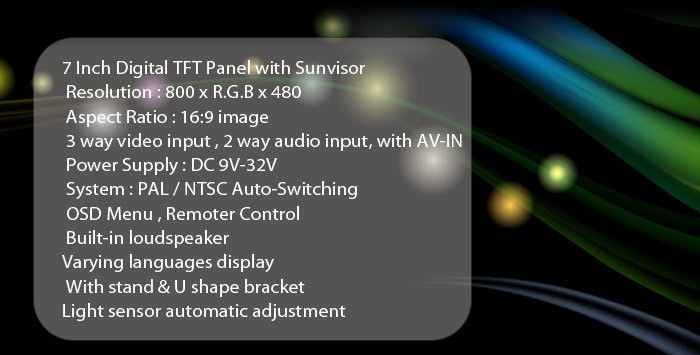

Monitor

  • Monitor Size: 7” Digital Panel with Sunvisor
  • Resolution: 800x R.G.B x480
  • Aspect Ratio: 16:9 image
  • Video Input: 3 Way video input, 2 way audio input with AV-IN
  • Power Supply: DC9V-32V
  • System: PAL/NSTC Auto-Switching
  • OSD Menu, remote control
  • Speaker: Built-in Loudspeaker
  • Bracket: With stand & U shape bracket
  • Light Sensor: Automatic adjustment

Dome Camera

  • Sensor: Sharp ¼” CCD image sensor
  • TV System: PAL/NTSC
  • Effective pixel: 512*582px, 512*492px
  • Sensing Area: 9.6um*6.34um
  • Scanning System: 2:1 interface
  • Sync System: Internal
  • Resolution: 480TVL
  • Lens: 2.8mm/120deg
  • Electronic Shutter: 1/60-1/15,000sec
  • Video Output: 1.0Vp-p,75Ohm
  • S/N Ratio: More than 48db
  • Waterproof: IP67-IP68
  • Minimum Illumination: 0.2Lux/F1.8(0 Lux with LED)
  • Power Supply: 12V

Mini CMOS Camera

  • Connection: 4PIN plug
  • CMOS PAL
  • View Angle: 150 degree
  • Night Vision: Built-in Photosensitive chip
  • Waterproof
  • Automatic while balance AGC and BLC

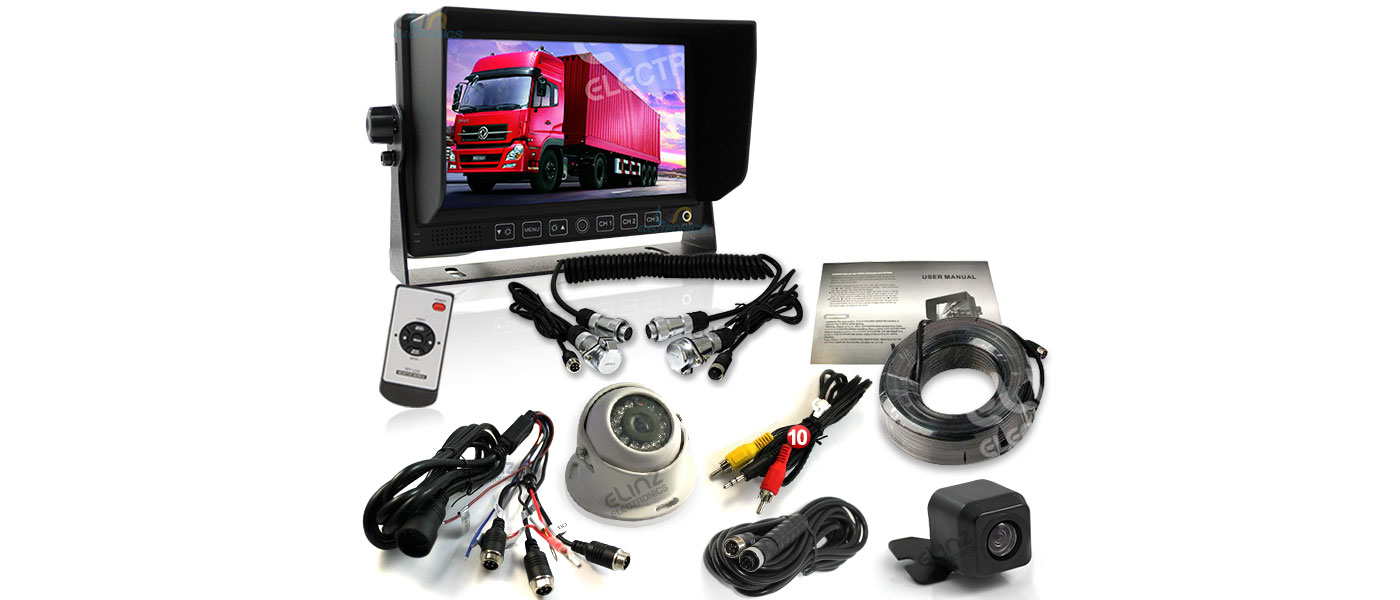

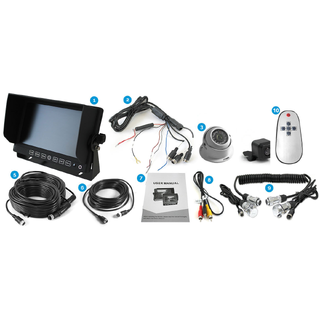

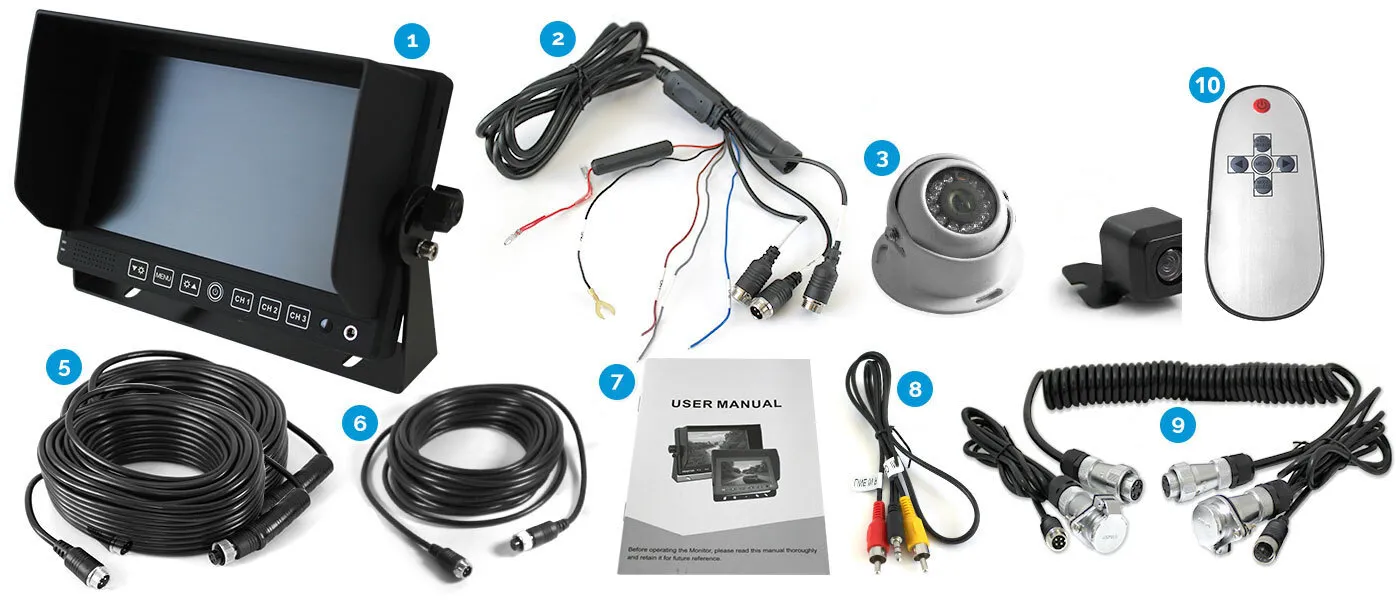

WHAT'S INCLUDED

1. 1x 7 Inch TFT LCD Monitor

2. 1x Power Cord

3. 1x Remote Control

4. 1x Dome Reversing Camera

5. 1x CMOS Mini Camera

6. 2x 10m 4PIN Cable

7. 1x 5m 4PIN Cable

8. User Manual

9. 1x AV in Cable

10. 1x Suzy Trailer Cable Coil

Monitor, Cmos Camera, CCD Camera, Trailer Cable

Frequently Asked Questions

A. Can the camera kit be used for small vehicles as well?

Yes. This camera system is designed for both 12v and 24v so you can install it in your vehicle no matter how big or small it is.

B. Do you have to connect the second camera to another power source?

You don't have to. This camera kit comes with two (2) 10m 4PIN cable and one (1) 5m 4PIN cable. This means the two reversing cameras automatically switch on when the monitor is turned on. There's no need to connect them directly to a power source.

C. Is there a way to protect the cables when the cameras are not in use?

This camera kit comes with a dust cap cover for the trailer cable so you can keep the connection clean when your caravan and the camera system are not in use.
