Elinz 7" Monitor HD 12V/24V Reversing CCD Eyeball Camera Truck Caravan
7 High Definition Monitor with Eyeball Dome Camera
SKU | M7SRVDOME10 |
Barcode # | 0686494501171 |
Brand | Elinz |
Wired or Wireless Transmission | Wired Transmission |
Channel | 2 CH |
Monitor Size | 7.0" |
Camera System | 4PIN System |
Camera Type | CCD Camera |
Shipping Weight | 1.9666kg |
Shipping Width | 0.100m |
Shipping Height | 0.260m |
Shipping Length | 0.425m |
Unit Of Measure | ea |
Great product, well priced and service from Elinz excellent.
Excellent vision & picture quality. Very stable if mounted correctly. Simple setup.
7 Inch TFT LCD Colour Monitor Heavy Duty CCD Eyeball Reversing Camera
SKU: M7SRVDOME10



7" TFT LCD Monitor
- 800x480 Digital Screen, Crystal Clear Image
- 16:9/4:3 switch freely
- Resolution: 480TV lines
- The image supports to be rotated up and down, left and right
- Can connect to DVD / MP4 / Camera, etc.

Two Video Inputs, Reversing First
- Two video inputs, reversing first connect two cameras (cameras are optional and sold seperately) to the monitor. You can view one camera while driving and the 2nd camera will turn on automatically when reversing.

Compatible to 12V/24V
- This monitor can be used with Trucks / Caravans / Cars

CCD Eyeball Reversing Camera
- With CCD image sensor made by sharp company
- 12 individual infrared (IR) LED to show clear images in low light especially at night circumstances.
- Heavy Duty CCD camera with hard metal cased, waterproof and mudproof.

New Upgraded Model

Now Comes with 600TVL Camera

The Image can be Rotated Up, Down, Left and Right

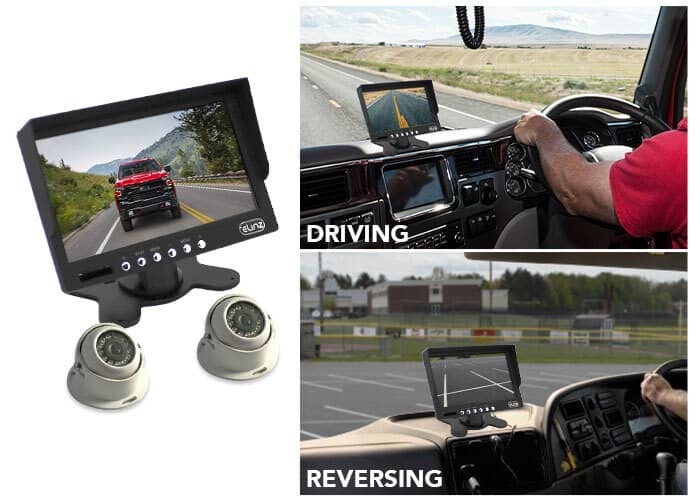

Application #1

Application #2

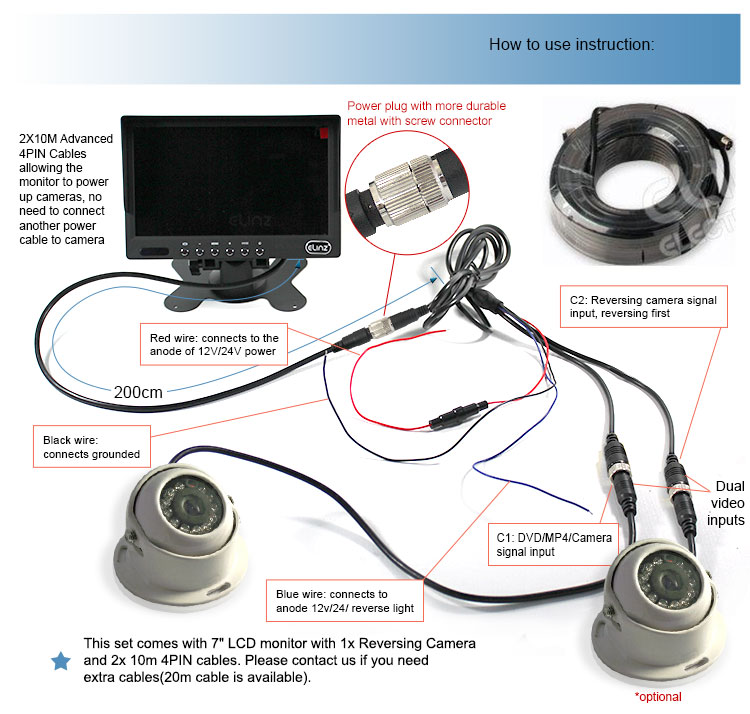

Installation Diagram
- Connect and disconnect the cable between your trailer/caravan easily.
- Easy to install. You can D.I.Y. as long as you can locate your vehicle's 12V/24V power source.

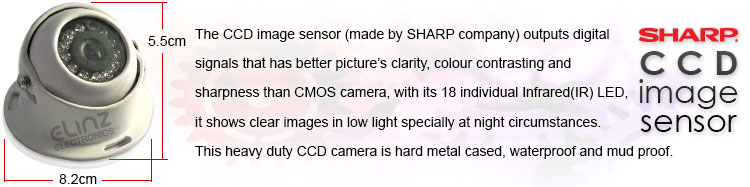

Camera Dimensions

Product Dimensions and Labels

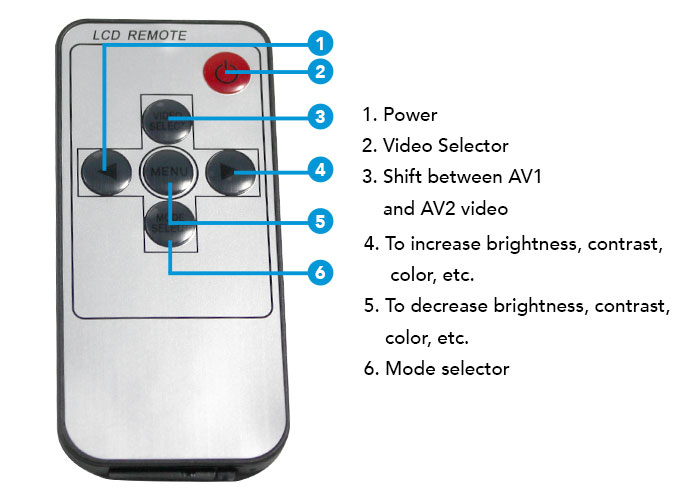

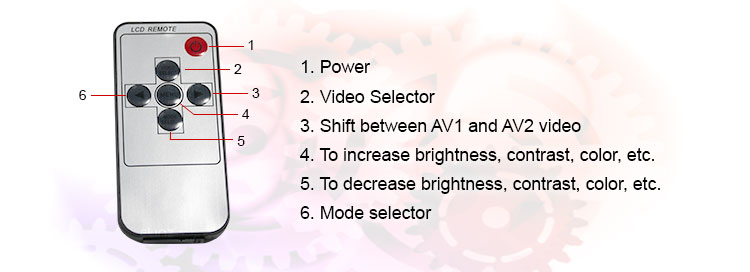

Remote
- * No Batteries included
MORE INFORMATION
7" TFT LCD COLOR MONITOR Heavy Duty CCD Eyeball Reversing Camera
7" TFT LCD HD monitor that can be connected up 2 cameras. The image can be rotated up and down, left and right. This monitor can be used with Trucks / Caravans / Cars. Two video inputs, reversing first connect two cameras (Only 1 Reversing Camera is included) to the monitor. You can view one camera while driving and the 2nd camera will turn on automatically when reversing.
PRODUCT HIGHLIGHTS
- 7" TFT LCD Monitor
- 800x480 Digital Screen, Crystal Clear Image
- 16:9/4:3 switch freely
- The image supports to be rotated up and down, left and right
- Can connect to DVD / MP4 / Camera, etc.
- Two Video Inputs, Reversing First
- The image can be rotated up and down, left and right
- Two video inputs, reversing first connect two cameras (cameras are optional and sold seperately) to the monitor. You can view one camera while driving and the 2nd camera will turn on automatically when reversing.
- Compatible to 12V/24V
- This monitor can be used with Trucks / Caravans / Cars
ITEM DESCRIPTION
- 800*480 Digital Screen, Crystal Clear Image
- Sunshade design
- Two way video input
- Suitable for 12V/24V vehicle
- The image can be rotated up and down, left and right
- Can connect to DVD/MP4/Camera etc
- Camera sensor: Sharp 1/4" CCD image sensor
- Resolution: 480TV lines
- Waterproof rating:IP67- IP68
- TV System : PAL/NSTC

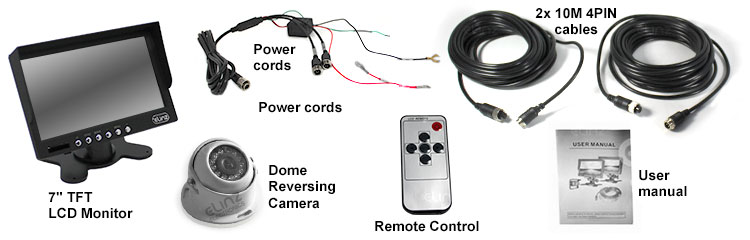

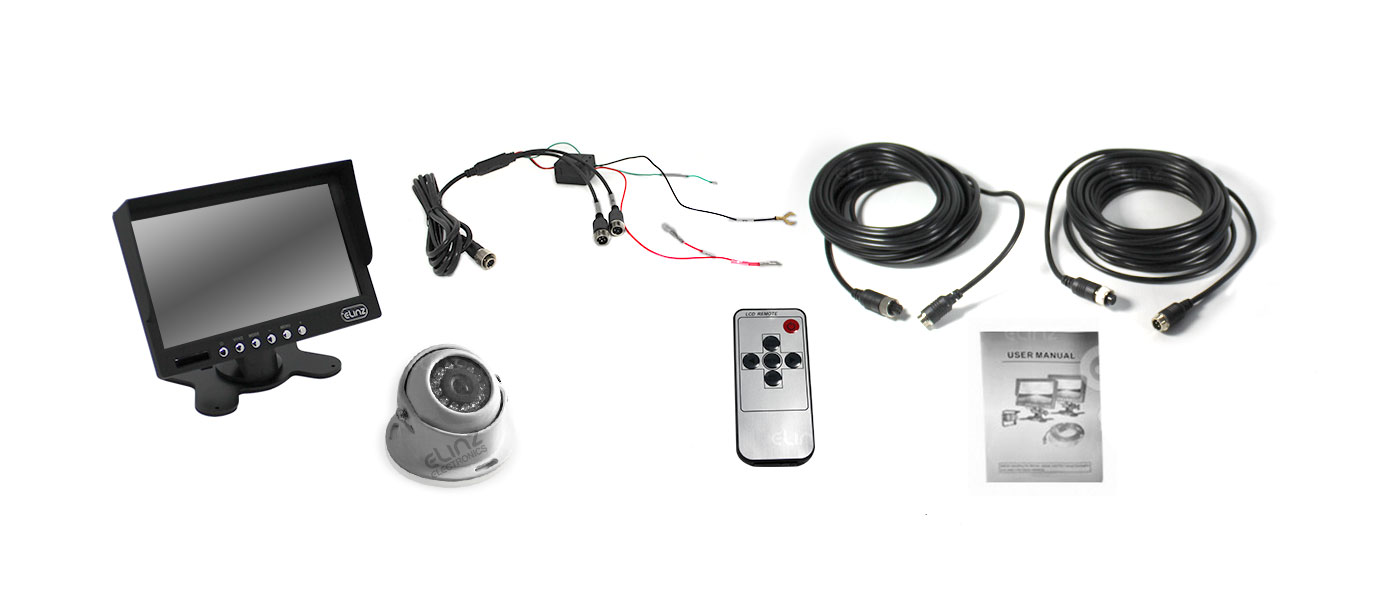

WHAT'S INCLUDED
1. 1x 7" TFT LCD Monitor
2. Power Cords
3. 1x Dome Reversing Camera
4. 2x 10M 4PIN Cables
5. User Manual
6. Remote * No Batteries included
*Product on the video may differ from the actual product. Video is displayed to show the importance and use of the product.
