Elinz 7" TFT LCD Quadscreen Monitor 2x Reversing Camera 4PIN System

Enhance vehicle visibility and improve driving safety with the Elinz 7" TFT LCD Quadscreen Monitor and 2-Camera Reversing System. Featuring a 7-inch colour display, built-in quad control box and four camera inputs, this system lets you monitor multiple viewing angles to help reduce blind spots when driving or reversing.

The system includes two reversing cameras: a heavy-duty CCD eyeball camera with 12 infrared LEDs for low-light visibility and a CMOS camera with a 150° wide-angle lens. Compatible with 12V and 24V vehicle electrical systems, it is suitable for cars, vans, trucks and other compatible vehicles.

Note: The monitor supports up to four cameras, but this package includes only two cameras..

PRODUCT SPECIFICATIONS

MONITOR

  • 7" Colour TFT-LCD Display: Wide-screen display with a sunshade design to help reduce sunlight glare and improve visibility.
  • Quad-Screen Display: Supports single, dual, triple and quad-screen viewing modes.
  • Built-In Quad Control Box: Supports up to four camera inputs.
  • Four Camera Inputs: Connect front, rear, left-side and right-side cameras for a wider view around the vehicle.

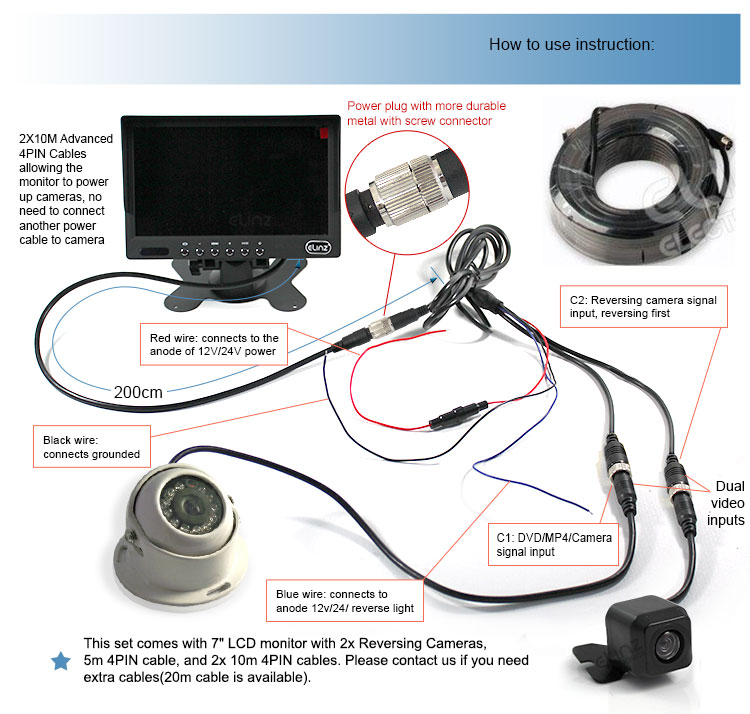

  • Automatic Reverse Switching: Automatically switches to the designated reversing camera when reverse gear is engaged, subject to correct installation and wiring.
  • Built-In Speaker: Supports audio output from compatible DVD, MP3 and MP4 sources.
  • 12V/24V Power Compatibility: Suitable for compatible 12V cars and 24V heavy-duty vehicles.

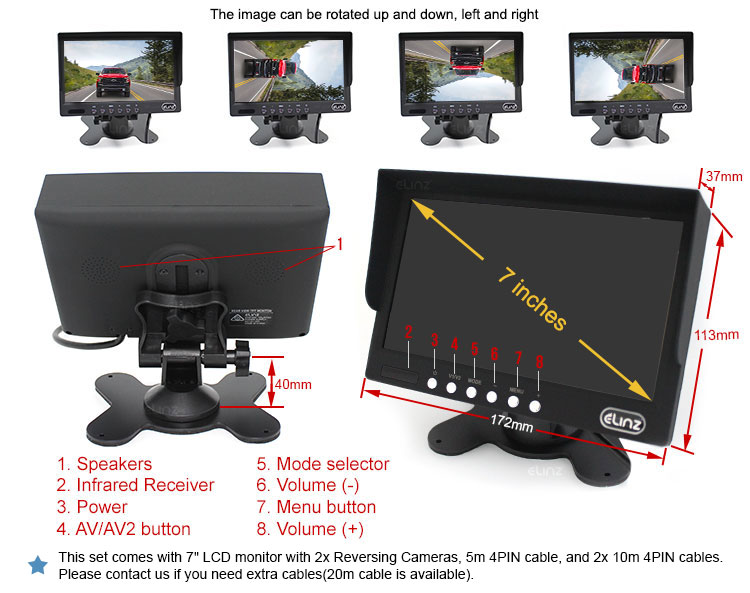

  • Adjustable Image Orientation: Adjust image orientation up, down, left or right.
  • Wireless Remote Control: Conveniently adjust monitor settings remotely.
  • On-Screen Display (OSD): Access monitor settings and display controls through the on-screen menu.

CAMERA

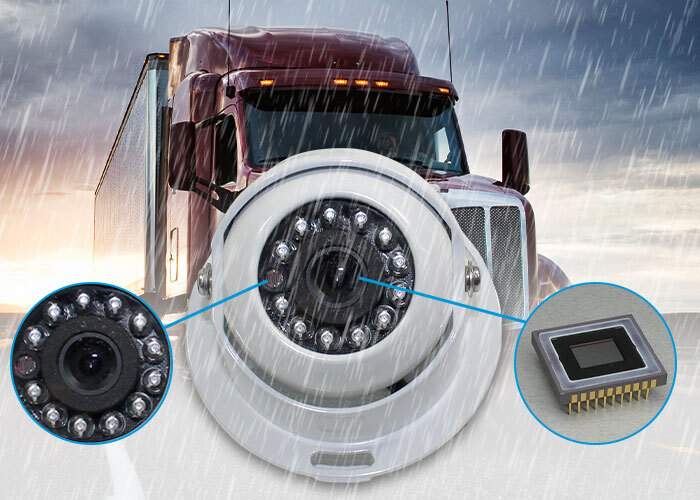

Camera 1: CCD Eyeball Reversing Camera
  • Image Sensor: CCD image sensor manufactured by Sharp.
  • Infrared Night Vision: Equipped with 12 individual infrared (IR) LEDs to assist visibility in low-light conditions and at night.
  • Heavy-Duty Construction: Hard metal casing for added durability.
  • Weather Protection: Designed to resist water and mud.
  • Application: Suitable for reversing and vehicle monitoring in demanding environments.
Camera 2: CMOS Reversing Camera
  • Image Sensor: CMOS.
  • Wide-Angle Lens: 150° viewing angle for a broader field of view.
  • Sharp Lens: Designed to provide a clear view of the surrounding area.
  • Weather Protection: Waterproof and dust-resistant design.
  • Application: Suitable for reversing and general vehicle monitoring.

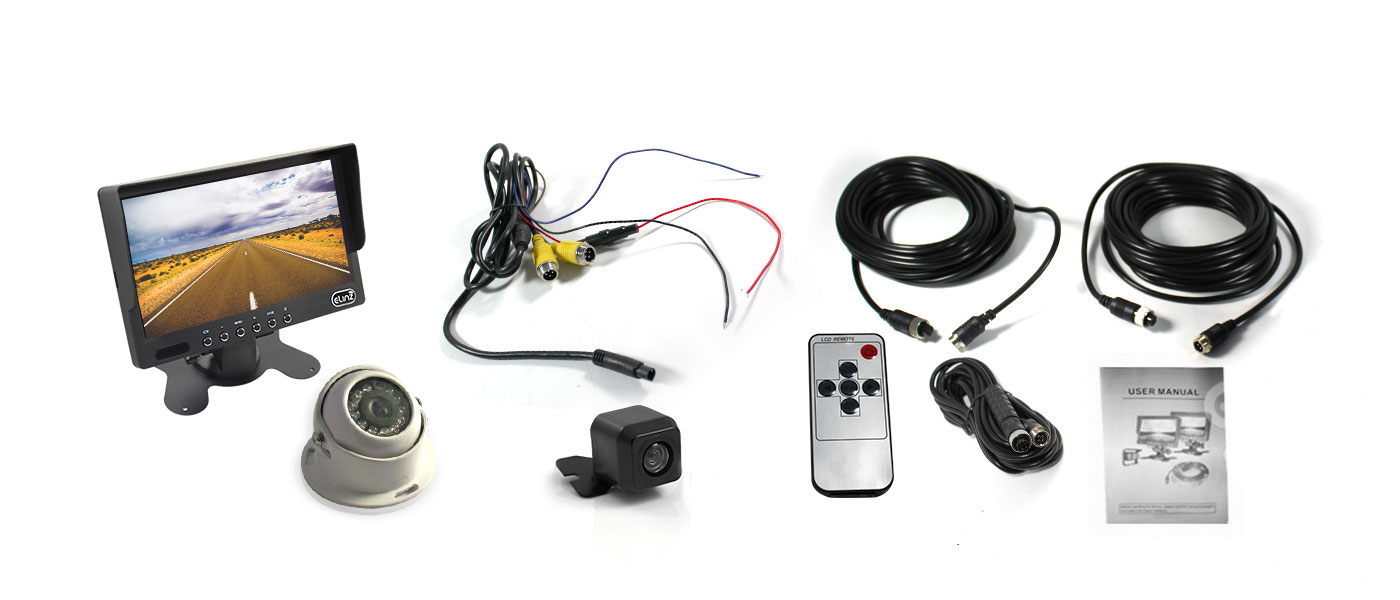

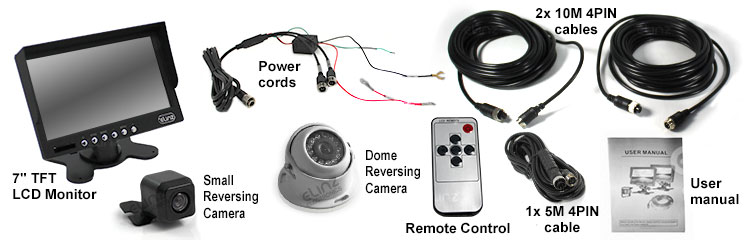

What’s Included

1. 1x 7" Quadscreen Monitor

2. 1x Power Cord

3. 1x Dome Reversing Camera

4. 1x Small Reversing Camera

5. 2x 10m 4-Pin Cables

6. 1x 5M 4PIN Cable

7. 1x User Manual

8. 1x Remote (Batteries not included)

  • Video

*Product on the video may differ from the actual product. Video is displayed to show the importance and use of the product.
