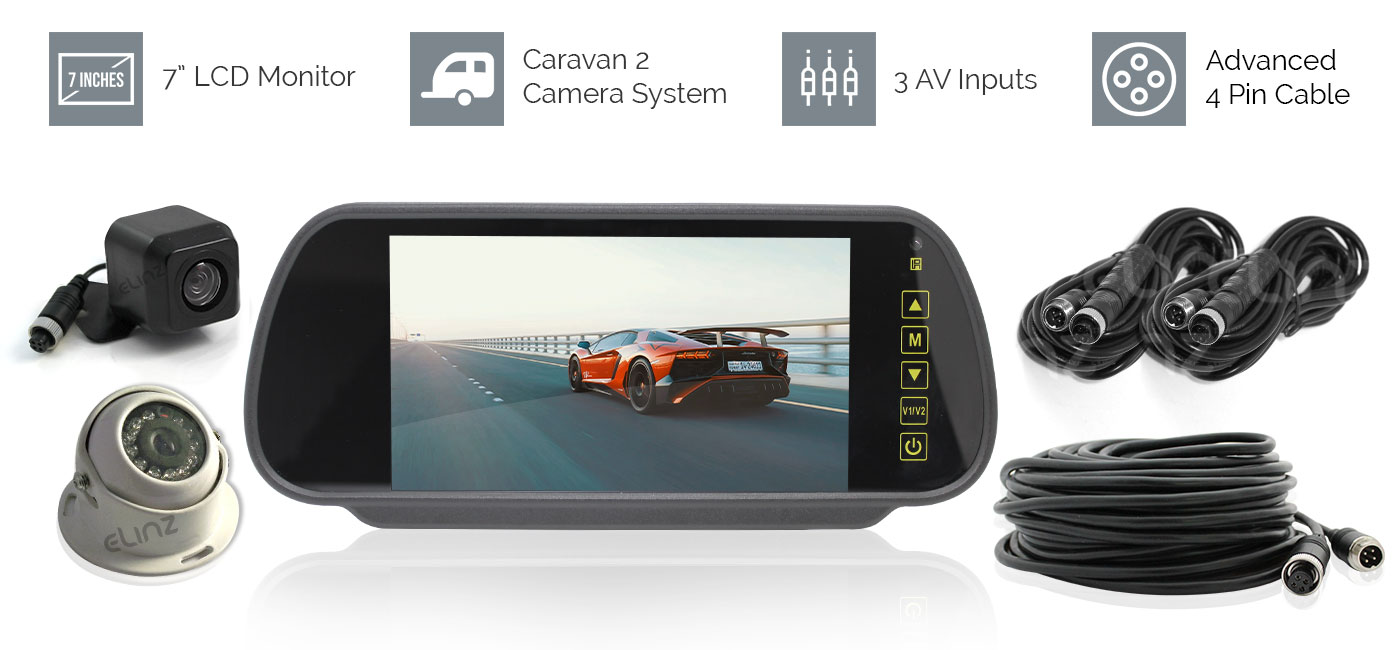

Elinz 7" Rearview Mirror Monitor Caravan 2 Reversing Camera 4PIN System Kit CCD

Replace the Existing Rearview Mirror~3AV INPUTS~4PIN

(SKU: R7MI-BUDGCARAVAN)
WAS From AUD $245.00
NOW AUD $199.00
Sale Ends in
12:00 pm, 5 November 2020
In Stock


Payment made easy


Share:


Elinz 7" Rearview Mirror Monitor Caravan 2 Reversing Camera 4PIN System Kit CCD

SKU: R7MI-BUDGCARAVAN

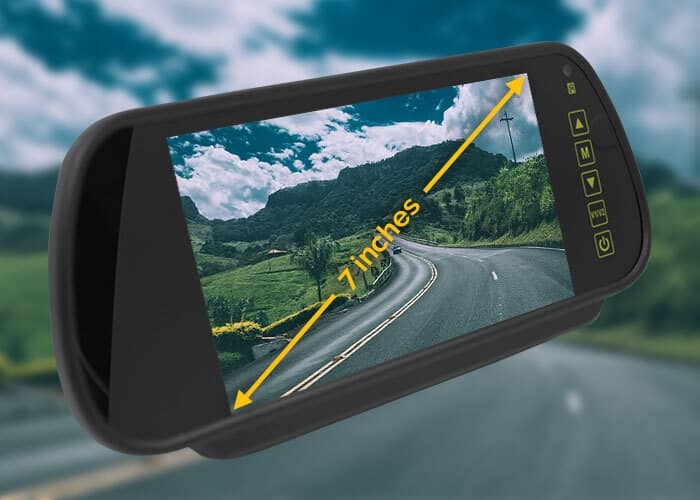

7 inches Rearview Mirror Monitor
7 inches LCD monitor Rearview Mirror Monitor

7" LCD Monitor

  • Anti-reflective clear vision rear view mirror
  • Automatically shows rear view when reversing
  • Rearview image can also be shown on screen at all times
  • Resolution degree 800 x 3 (RGB) x 480
  • Rearview mirror monitor will serve as your rearview mirror, you can view the back of your car clearly just like before
3AV Inputs Monitor

3AV Inputs

  • Can be connected up to 3 reversing cameras
Suitable for 12V and 24V

Advanced 4 PIN Cable

  • Allows the monitor to power up cameras. No need to connect another power cable.
  • It comes with 2x 5 meters and 1x 10 meters 4PIN connecting cable.
Adjustable Mounting Bracket

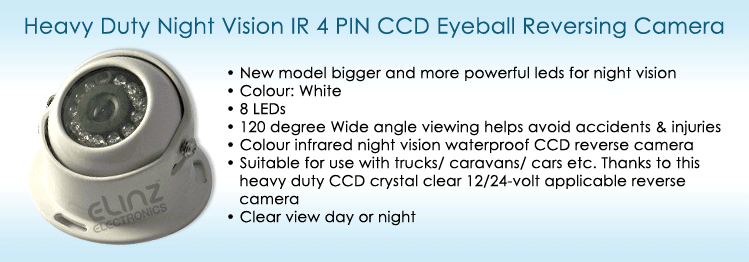

Heavy Duty 600TVL 4PIN Eyeball Reversing Camera

  • Powerful 12 LEDs for night vision.
  • Colour: White
  • 120 degree wide vide angle
  • Clear view day or night
  • Colour infrared night vision waterproof CCD reverse camera
Suitable for 12V and 24V

Mini CMOS 4PIN Camera

  • 150 degreee wide angle view
  • It has built-in photosensitive chip and infrared night vision
  • Small colour mini camera which can be mounted easily on vehicle's bumper
Adjustable Mounting Bracket

Suitable for use with Trucks, Caravans, Cars and More

Suitable for 12V and 24V

Adjustable Mounting Bracket

  • The mounting bracket at the back, you can adjust the height
  • It comes with T-slot that allows your rearview to fit on on your windscreen nicely
Adjustable Mounting Bracket

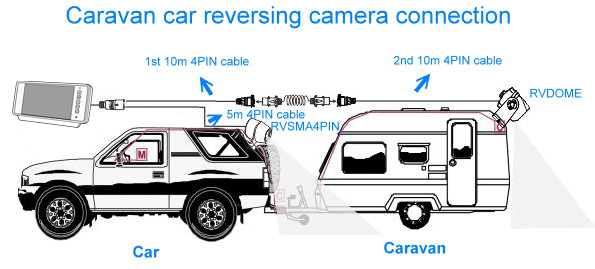

Caravan Car Reversing Camera Connection

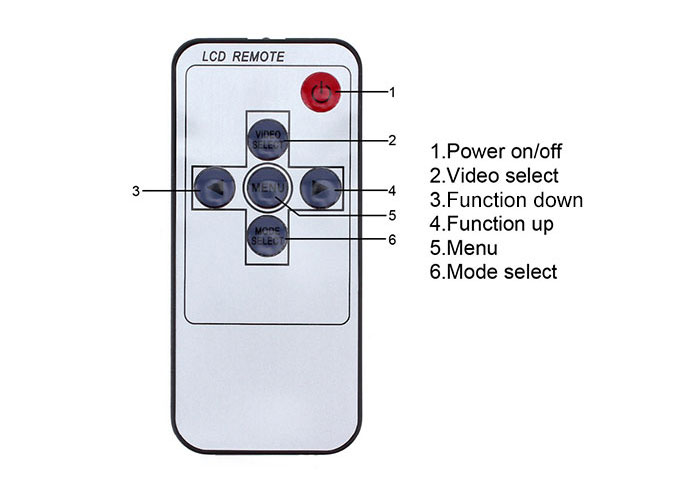

Remote Control Label

Remote Control Labels

Wiring Labels

Wiring Labels

Rearview Mirror Monitor Label

Monitor Labels

Monitor Dimensions

Product Dimensions

Product views rearview monitor

Product Views



MORE INFORMATION

7" Rearview Mirror Monitor Caravan 2 Reversing Camera 4PIN System Kit CCD

This 7" Rearview Mirror Monitor Reversing Camera kit, you can reduce blind spots , maneuver easily and park like a piece of cake. Reverse camera monitor has 3 AV inputs that allow you to connect up to 3 cameras. This package comes with 1x Eyeball CCD image sensor reversing camera with 120 degree wide angle view helps avoid accidents & injuries, providing safe driving day and night. The CCD image sensor outputs digital signals that has better picture clarity, Colour contrasting and sharpness.

Aniother camera included is a Mini CMOS 4PIN Camera with 150 degreee wide angle view. It has built-in photosensitive chip and infrared night vision. Small colour mini camera which can be mounted easily on vehicle's bumper.

The rearview mirror monitor has an anti-reflective clear vision. This camera is suitable for use with Trucks, Caravans, Cars and more. Package comes with Advanced 4 PIN cable which allows the monitor to power up cameras. No need to connect another power cable.

Start installing a reverse camera now and get it from Elinz, your trusted and reliable partner in the road.

PRODUCT HIGHLIGHTS

  • 7" LCD Monitor
    • Anti-reflective clear vision rear view mirror
    • Automatically shows rear view when reversing
    • Rearview image can also be shown on screen at all times
    • Resolution degree 800 x 3 (RGB) x 480
    • Rearview mirror monitor will serve as your rearview mirror, you can view the back of your car clearly just like before
  • 3AV Inputs
    • Can be connected up to 3 reversing cameras
  • Advanced 4 PIN Cable
    • Allows the monitor to power up cameras. No need to connect another power cable.
    • It comes with 2x 5 meters and 1x 10 meters 4PIN connecting cable.
  • Heavy Duty 600TVL 4PIN Eyeball Reversing Camera
    • Powerful 12 LEDs for night vision.
    • Colour: White
    • 120 degree wide vide angle
    • Clear view day or night
    • Colour infrared night vision waterproof CCD reverse camera
  • Mini CMOS 4PIN Camera
    • 150 degreee wide angle view
    • It has built-in photosensitive chip and infrared night vision
    • Small colour mini camera which can be mounted easily on vehicle's bumper
  • Suitable for use with Trucks, Caravans, Cars and more
  • Adjustable Mounting Bracket
    • The mounting bracket at the back, you can adjust the height
    • With T- Slot that allows your rearview to fit on on your windscreen nicely

ITEM DESCRIPTION

  • Rearview Mirror Monitor
    • Screen size: 7" LCD monitor (LED digital panel)
    • Resolution degree: 800 X 3 (RGB) X480
    • Contrast: 500:1
    • System: PAL/NTSC
    • Power supply: 10VDC to 32VDC
    • Power: About 5W
    • Working temperature: +0°C-+60°C
    • Storage temperature: -20°C-+70°C
    • Dot pitch:0.192 ( H) X 0.1805 (V )
    • Viewing angle U:50/D:60 L/R:70
    • Video: Three-way video inputs
    • Anti-reflective rearview mirror
    • Shock resistant
    • 20G force for vibration an 100G for shock
    • Respond time: 30ms
    • Picture display format: 4:3/16:9
    • Five languages OSD menu: Chinese, English, Russian, German and French
    • The display with two video frequency input Automatic/manual switcher
    • Front panel controls with on-screen menu
    • Operation temperature:- 30 ℃ ~+70 ℃
  • Eyeball Reversing Camera
    • Colour CCD reversing camera
    • Resolution: 600 TV lines
    • LEDs: 18 IR LEDs night vision
    • View of angle: 120 degree
    • Colour: White
  • Mini CMOS 4PIN Camera
    • 150 degreee wied angle view
    • It has built-in photosensitive chip and infrared night vision
    • Small colour mini camera which can be mounted easily on vehicle's bumper

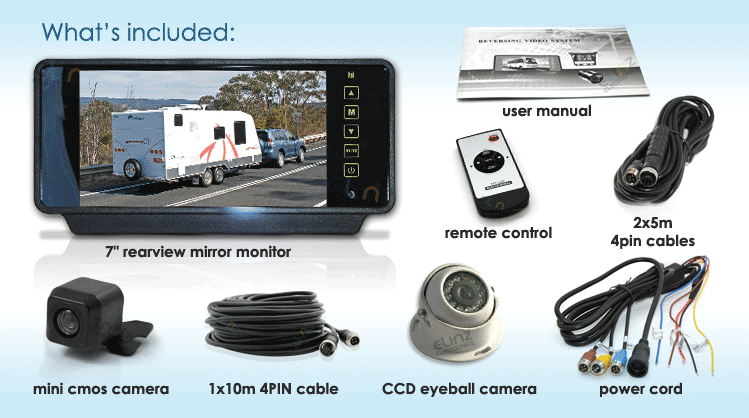

WHAT'S INCLUDED

1. 1x 7" LCD Rearview Mirror Monitor

2. 1x CCD Eyeball Camera

3. 1x Mini CMOS Camera

4. 2x 5m 4PIN Cables

5. 1x 10m 4PIN Cable

6. 1x Power Cord

7. 1x Remote Controller

8. Screws

9. 1x T-Slot

10. 1x User Manual

Rearview Mirror Monitor with adjustable bracket

Frequently Asked Questions

A. Do I have to connect the camera to a power source?

No, you don't have to. This camera kit is a 4PIN system, meaning, the monitor can power up the camera on its own.

B. Can you add another camera to the system?

Yes, you can. This camera system has 3 AV inputs, allowing you to connect up to three reversing cameras to the monitor.

C. Is it compatible with other types of vehicles?

The unit runs on 10v to 32v so it can be connected to all types of vehicle.
