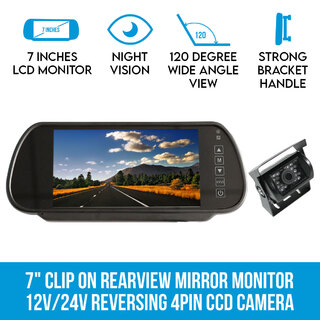

7" Clip on Rearview Mirror Monitor 12V/24V Reversing 4PIN CCD Camera Car Caravan

Advanced 4 PIN~2 AV Inputs~Easy to Install~120 degree

(SKU: RCLIP7-RVS4PIN10M)
AUD $129.00
In Stock


Payment made easy

7" Clip on Rearview Mirror Monitor 12V/24V Reversing 4PIN CCD Camera Car Caravan

7 inch Clip on Rearview Monitor Reversing Camera
Rearview Mirror Monitor Reversing Camera

7" LCD monitor (LED digital panel)

  • Anti-reflective clear vision rear view mirror
  • Automatically shows rear view when reversing
  • Rearview image can also be shown on screen at all times
  • Resolution degree 800 x 3 (RGB) x 480
  • Rearview mirror monitor will serve as your reaview mirror, you can view the back of your car clearly just like before
Night Vision Reverse Camera

Night Vision

  • The CCD image sensor (made by SONY company) outputs digital signals that has better picture clarity, Color contrasting and sharpness better than CMOS Camera.
  • With 18 IR LED it shows clear images in low light especially at night circumstances.
120 degree reversing camera

120 Degree Wide Angle View

  • Helps avoid accidents & injuries, providing safe driving day and night
  • Heavy Duty CCD Rear Camera
  • Shock resistant, designed specifically for heavy duty vehicle use
2 AV Inputs Reverse Monitor

2 AV Inputs

  • Can be connected up to 2 reversing cameras
4PIN Cable to Power up Car Camera

Advanced 4 PIN cable

  • One cable solution deals with both power and signal transmission.
  • No power cable is needed to connect cameras.
600TVL Reversing Cam

More than 600 TV line

  • High resolution image and video
  • Clear view day or night
Reversing Camera Compatibility

Suitable for use with Trucks, Caravans, Cars and more

Clip on 7 inch Rearview mirror monitor

Easy to Install

  • No need to replace your vehicles factory rearview mirror, upgrade it with this Clip on 7 inch Rearview mirror monitor.
  • Rearview image can also be shown on screen at all times.
Rearview Monitor Remote Control

Remote Control Label

Rearview Mirror Monitor Label

Rearview Mirror Monitor Label

  • Rearview mirror monitor has easy touch buttons to operate.
Strong Grip Rearview Monitor

Strong Bracket Handle

  • Safely secure your rearview monitor with strong grip on your existing rearview mirror.
  • It prevents the monitor to fall off easily.

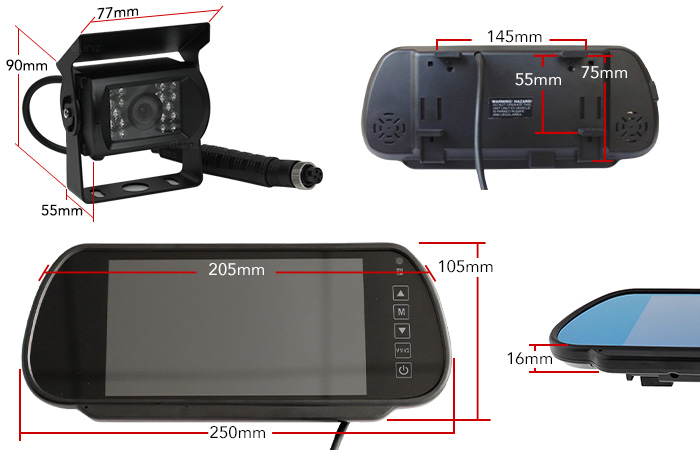

Rearview Monitor Camera Dimensions

Product Dimensions

MORE INFORMATION

Installing a reversing camera on your vehicle is a good decision to make to keep you safer and more secure on the road. With this NEW 7" Clip-on Rearview Mirror Monitor Reversing Camera kit, you can easily install it to your car.

Reverse camera monitor has 2 AV inputs that allows you to connect up to 2 cameras. This package comes with 1 4PIN CCD image sensor reversing camera. This camera package helps you in parking, maneuvering and backing up. With 120 degree wide angle view helps avoid accidents & injuries, providing safe driving day and night. The CCD image sensor (made by SONY company) outputs digital signals that has better picture clarity, Color contrasting and sharpness better than CMOS Camera.

Start installing a reverse camera now and get it from Elinz. Your trusted and reliable partner in the road.

PRODUCT HIGHLIGHTS

  • Screen size: 7 LCD monitor (LED digital panel)
    • Image behind vehicle will show on the screen automatically when the reverse gear is induced.
    • With grid line distance graph on/off.
    • Anti-reflective clear vision rear view mirror.
    • Rearview image can also be shown on screen at all times
    • Resolution degree 800 X 3 (RGB) X 480
  • Easy to Install
    • No need to replace your vehicles factory rearview mirror, upgrade it with this Clip on 7 inch Rearview mirror monitor.
  • 2 AV inputs
    • Can be connected up to 2 reversing cameras
  • 120 degree wide angle view
    • Helps avoid accidents & injuries, providing safe driving day and night
    • Heavy Duty CCD Rear Camera
    • Shock resistant, designed specifically for heavy duty vehicle use
  • Night Vision
    • The CCD image sensor (made by SONY company) outputs digital signals that has better picture clarity, Color contrasting and sharpness better than CMOS Camera.
    • With Its 18 IR LED it shows clear images in low light especially at night circumstances.
    • This Heavy Duty CCD Camera is hard metal cased, waterproof and mudproof that can last longer without heating up so you can show the rearview at all time.
    • Clear view day or night
  • Advanced 4 PIN cable
    • One cable solution deals with both power and signal transmission.
    • No power cable is needed to connect cameras.
    • Special thick hard wire that can shield vehicle's circuit interference better than normal AV cable.
  • Suitable for use with trucks/ caravans/ cars etc.
  • It does not have a built-in speaker

ITEM DESCRIPTION

Clip-on Rearview Mirror Monitor Specifications

  • Screen dimensions: 7inch TFT LCD
  • Resolution: 800x480
  • System: PAL&NTSC
  • Power: DC12V-24V
  • Consumption: 5W
  • Video: Two way video input
  • Operate mode: Key operation and remote control

Camera Specifications

  • 1/3 color Sony CCD camera
  • System: 656X492
  • Minimum illumination:0.5 LUX
  • Electron shutter:1/60s-1/20US
  • Resolution: More than 600 TV line
  • S/n ratio: More than 48dB
  • Voltage: DC12V(+/-10%)
  • Waterproof: IP67
  • View of angle:120 degree

WHAT'S INCLUDED

  1. 1x 7inch Clip on Rearview Monitor
  2. 1x 10M 4Pin Cable
  3. 1x CCD Rear Camera
  4. 1x Remote Control
  1. 1x Power Harness
  2. 1x RCA24PIN Cable
  3. Screws

7 inch Clip-on Rearview Mirror Monitor Reversing Camera

(RCLIP7-RVS4PIN10M)

SKU RCLIP7-RVS4PIN10M
Barcode # 0606015374879
Shipping Weight 1.5000kg
Shipping Width 0.020m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000030m3
