The Elinz 7" TFT LCD Quadscreen Monitor with 4PIN IR LED CCD Reversing Camera is designed to improve vehicle visibility and assist with safer manoeuvring. Featuring a quad-screen display, support for up to four camera inputs and infrared night vision, this system allows drivers to monitor multiple areas around their vehicle. Its 12V/24V power compatibility makes it suitable for a range of compatible vehicles, including cars, vans, trucks and other heavy-duty vehicles.



PRODUCT SPECIFICATIONS

MONITOR

  • 7" Colour TFT-LCD Display: Features a wide-screen display with a sunshade design to help reduce sunlight glare and improve visibility.
  • Quad-Screen Display: Supports single, dual, triple and quad-screen viewing modes for flexible camera monitoring.
  • Built-In Quad Control Box: Supports up to four camera inputs for comprehensive vehicle monitoring.
  • Four Camera Inputs: Allows connection of front, rear, left-side and right-side cameras to improve visibility around the vehicle.
  • Automatic Reverse Switching: Automatically switches to the designated reversing camera when reverse gear is engaged, subject to correct installation and wiring.
  • Built-In Speaker: Supports audio output from compatible DVD, MP3 and MP4 sources.
  • 12V/24V Power Compatibility: Suitable for compatible 12V vehicles and 24V heavy-duty vehicles.

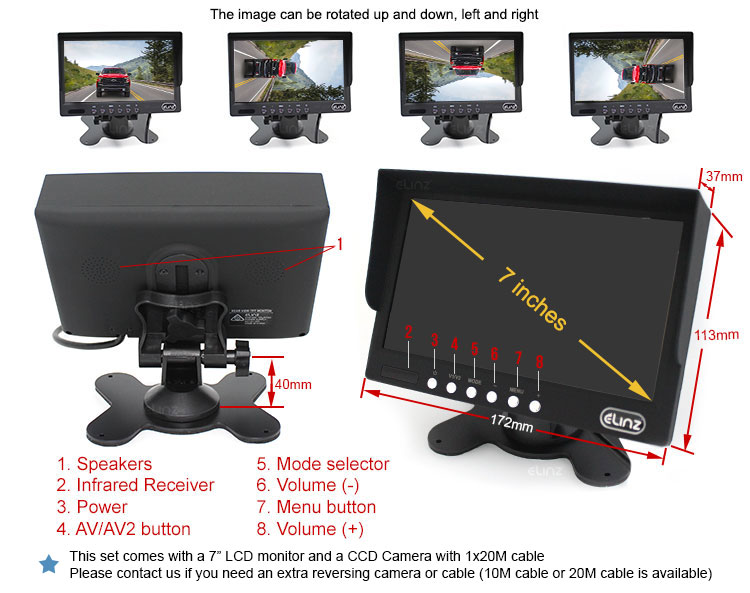

  • Adjustable Image Orientation: Allows image adjustment in up, down, left and right directions to suit installation requirements.
  • Wireless Remote Control: Provides convenient access to monitor settings and controls.
  • On-Screen Display (OSD): Features an on-screen menu for adjusting monitor settings and display options.

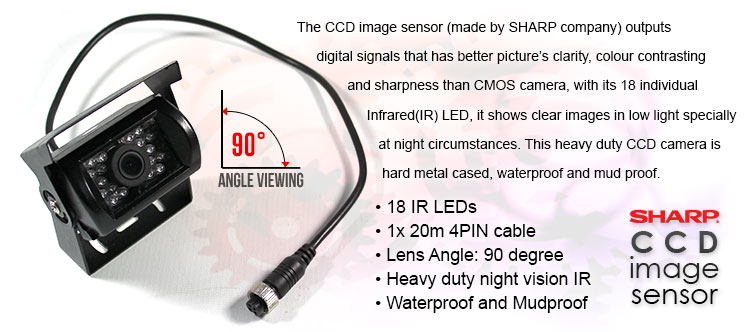

CAMERA

  • Sharp CCD Image Sensor: Uses a CCD image sensor from Sharp to deliver clear images with improved colour contrast and sharpness.
  • 18 Infrared (IR) LEDs: Provides infrared illumination to assist with visibility in low-light conditions.
  • 90-Degree Lens Angle: Offers a focused viewing angle to assist with reversing and vehicle monitoring.
  • 600 TVL Resolution: Delivers 600 TV lines of image resolution for monitoring purposes.
  • Waterproof and Mudproof Design: Built to withstand exposure to water and mud in suitable vehicle operating environments.
  • Heavy-Duty Night Vision: Designed to assist drivers with visibility during nighttime driving and reversing.

What’s Included

1. 1x 7" Quadscreen Monitor

2. 1x CCD Camera

3. 1x Power Cord

4. 2x 20m 4-Pin Cables

5. 1x User Manual

6. 1x Remote (Batteries not included)

  • Video

*Product on the video may differ from the actual product. Video is displayed to show the importance and use of the product.
