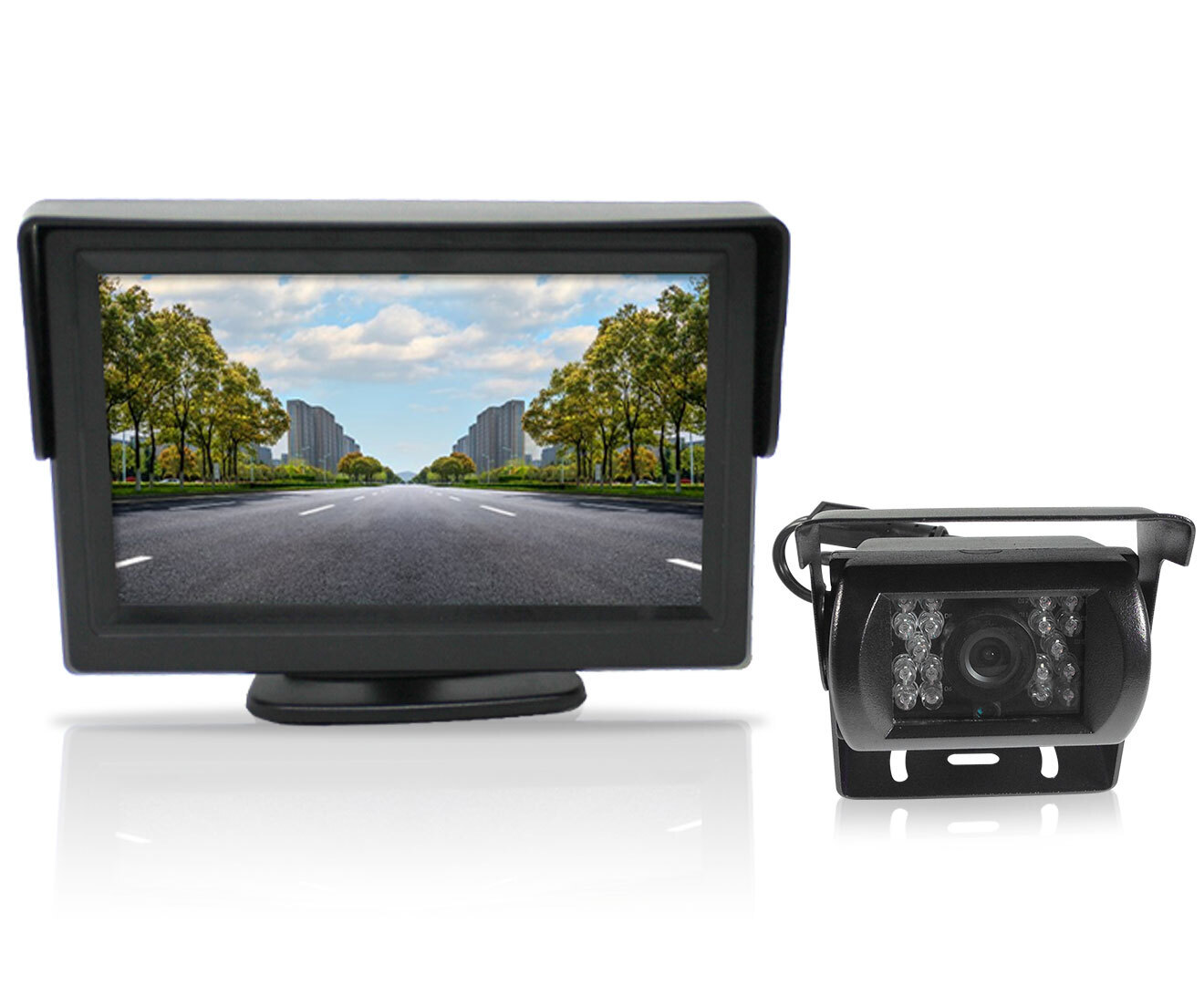

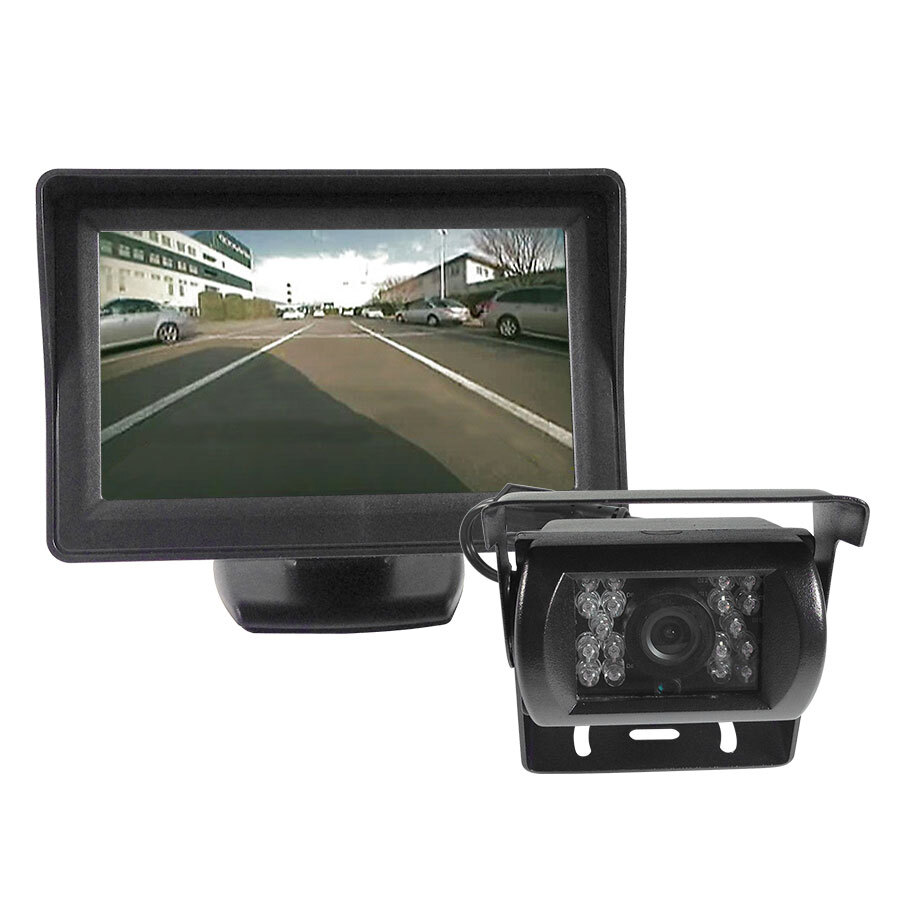

Elinz 4.3" Monitor+24v/12v CCD LED Reversing Camera Car Caravan Truck Night Vision

Suitable Caravan/Truck/Car,Heavy Duty CCD,Clear image

(SKU: M48RVS1)
WAS From AUD $115.00
NOW AUD $75.00
Sale Ends in
12:00 pm, 10 June 2021
In Stock


Payment made easy


Share:

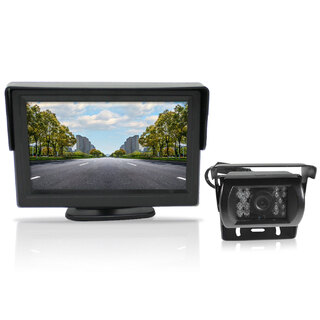

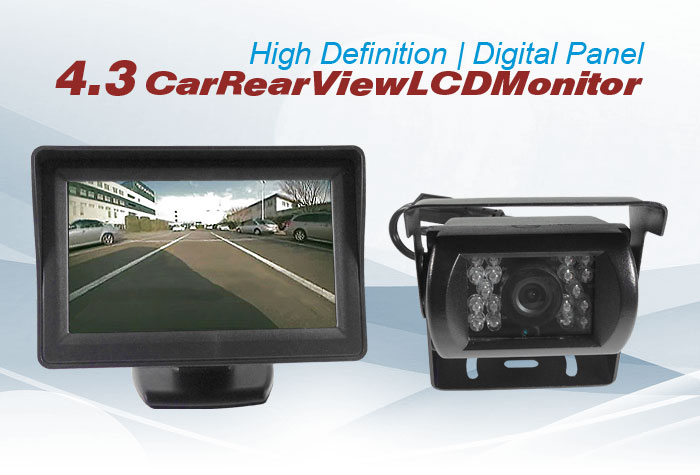

Elinz 4.3" Monitor+24v/12v CCD LED Reversing Camera Car Caravan Truck Night Vision

SKU: M48RVS1

4.3 inches Digital LCD Monitor 12V 24V
4.3 inches Digital LCD Monitor

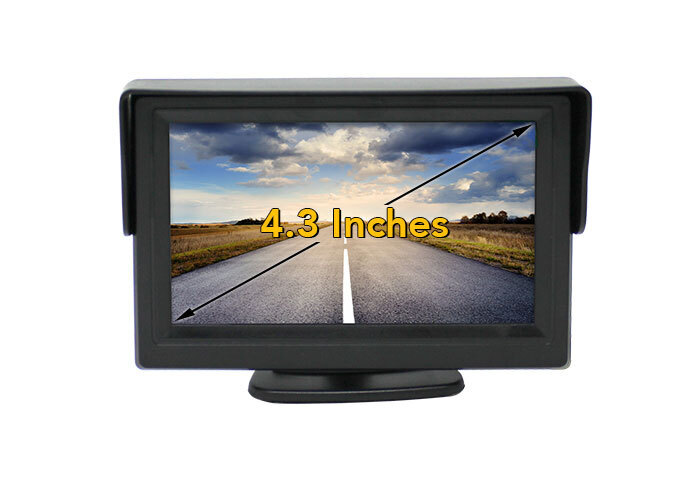

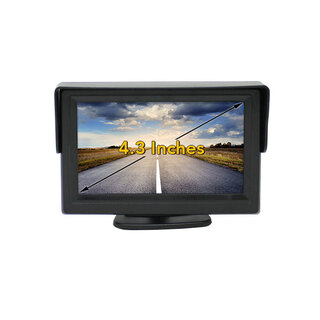

4.3" LCD Monitor

  • High Definition Digital Panel
  • Monitor has Brightness Adjustment
  • It shows the rearview automatically when the reverse signal is induced
2 AV Inputs Reverse 4.3 inches Monitor

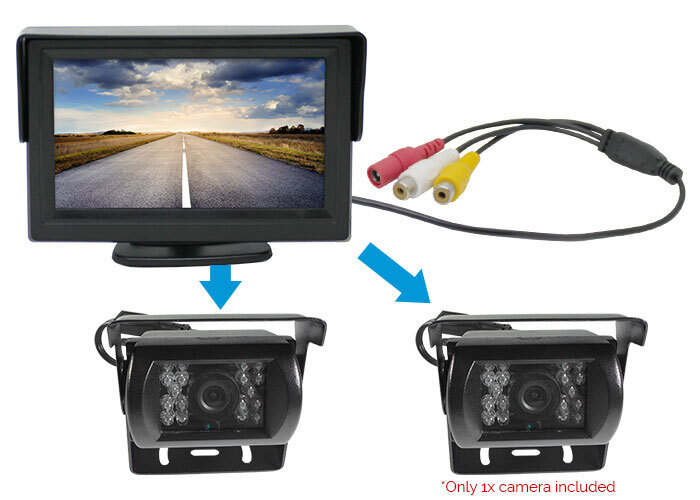

2 AV Inputs

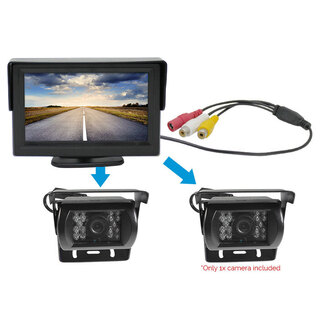

  • Monitor can be connected up to 2 reversing cameras
Monitor Compatibility

Compatible to 12V & 24V

  • Suitable for use with Trucks, Caravans, Cars and more
Easy to Install Monitor

Easy to Install

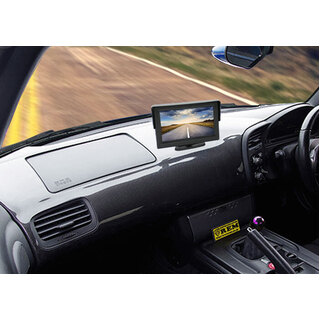

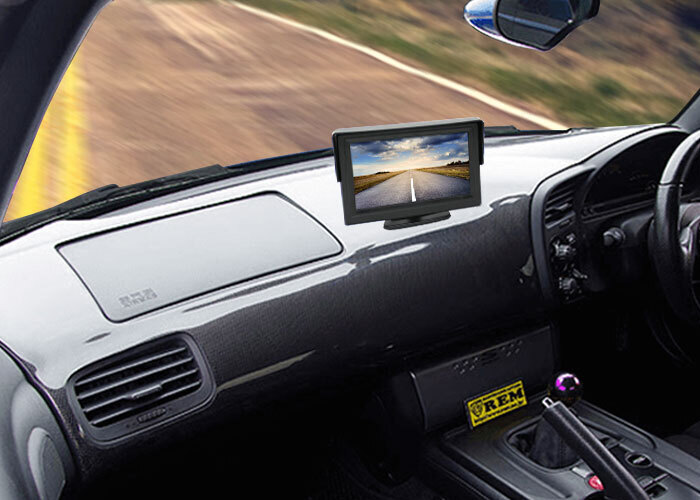

  • Monitor mounts on dash visor or anywhere that you can find suitable
roof mount flip down car dvd player with caption "stylish and modern design

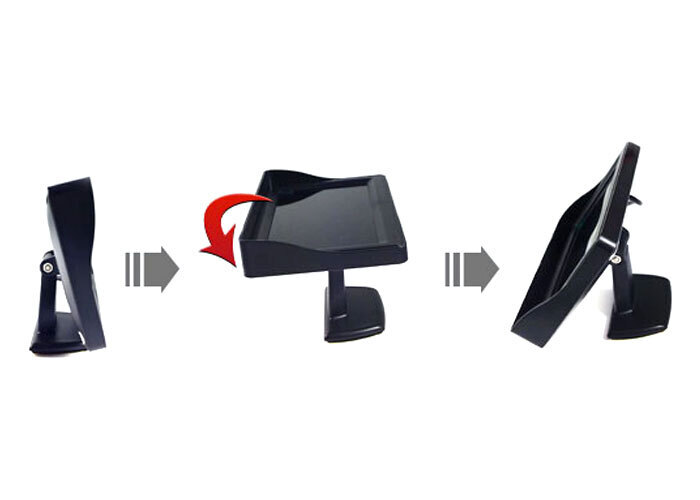

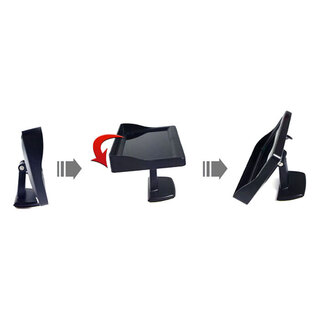

180 Degree Rotational Swivel Stand

roof mount flip down car dvd player with caption "can be opened up to 120° angle

Adjustable Brightness

  • This colour system can give you a clear rear view picture and help prevent an expensive accident while backing or driving. The small cost of adding a rearview system can save you money if an accident is prevented
roof mount flip down car dvd player with caption: region free dvd player

Installation and Connection

  • When input signal automatically boot
  • Menu adjust function: Brightness/ Contrast/ Hue/ Saturation/ Sharpness/ Mode(16:9/4:3)
roof mount flip down car dvd player with usb, sd, hdmi ports

Parking Line

  • Helps and guides you in parking or reversing your vehicle. A more convenient way to park safely
Monitor Compatibility

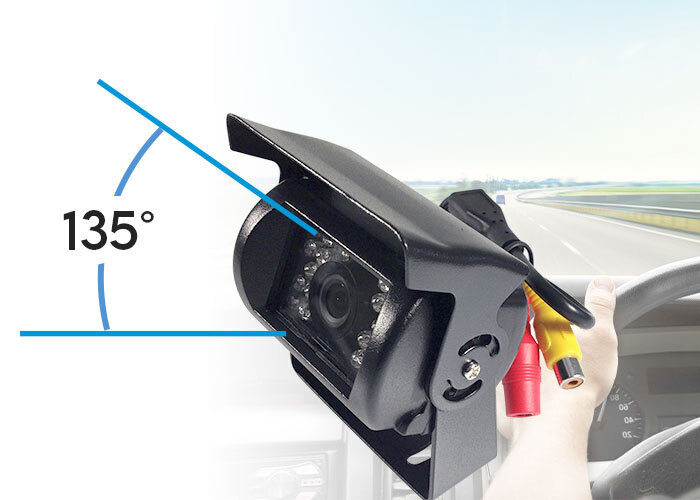

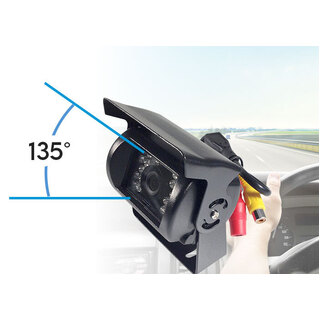

135 Degree Wide Angle Viewing Camera

  • Helps avoids accidents & injuries
Easy to Install Monitor

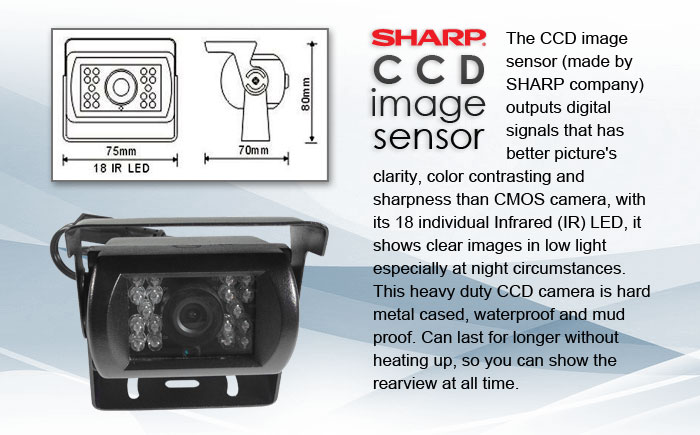

Sharp CCD Image Sensor

  • The CCD image sensor (made by SHARP company) outputs digital signals that has better picture's clarity, color contrasting and sharpness than CMOS camera, with its 18 individual Infrared (IR) LED, it shows clear images in low light especially at night circumstances. This heavy duty CCD camera is hard metal cased, waterproof and mud proof. Can last for longer without heating up, so you can show the rearview at all time.
Monitor Compatibility

IP67 / IP68 Waterproof

  • Waterproof CCD reverse camera
Easy to Install Monitor

Product Views

Monitor Dimensions

Dimensions

Monitor Label

Monitor Label

MORE INFORMATION

A 4.3" digital LCD monitor that is suitable for 12V and 24V vehicles. This monitor has 2 AV input wherein you can connect up to 2 reversing cameras. The monitor has brightness adjustment and sunshade design to avoid sun's glare and be able to see images clearly.

You can simply mount it to dash visor or depending on your preference. This monitor is compatible to RCA cameras.

Get this monitor and reversing camera kit today.

* You may click here to check RCA cameras available.

PRODUCT HIGHLIGHTS

  • 4.3" LCD Monitor
    • High Definition Digital Panel
    • Monitor has Brightness Adjustment
    • It shows the rearview automatically when the reverse signal is induced
  • 180 degree rotational swivel stand
  • 2 AV Inputs
    • Monitor can be connected up to 2 reversing cameras
  • Parking Line
    • Helps and guides you in parking or reversing your vehicle. A more convenient way to park safely
  • Installation and Connection
    • When input signal automatically boot
    • Menu adjust function: Brightness/ Contrast/ Hue/ Saturation/ Sharpness/ Mode(16:9/4:3)
  • Compatible to 12V & 24V
    • Suitable for use with Trucks, Caravans, Cars and more
  • Easy to Install
    • Monitor mounts on dash visor or anywhere that you can find suitable
  • Monitor can be connected to RCA Cameras
  • 135 Degree Wide Angle Viewing Camera
    • Helps avoids accidents & injuries
  • Sharp CCD Image Sensor
    • The CCD image sensor (made by SHARP company) outputs digital signals that has better picture's clarity, color contrasting and sharpness than CMOS camera, with its 18 individual Infrared (IR) LED, it shows clear images in low light especially at night circumstances. This heavy duty CCD camera is hard metal cased, waterproof and mud proof. Can last for longer without heating up, so you can show the rearview at all time.
  • IP67 / IP68 Waterproof
    • Waterproof CCD reverse camera

ITEM DESCRIPTION

Monitor
  • High Definition
  • Screen Size: 4.3"
  • 2 AV Inputs
  • Adjustable Brightness
  • 180 Degree Rotation Swivel Stand
Camera
  • Image Sensor: Colour CCD
  • TV system: PAL
  • Effective pixels: PAL: 628*586 pixels
  • Horizontal resolution: 480TVL
  • Sensing Area: 1/4: 3.6mm x 2.7mm
  • Shutter Speed: 1/50(PAL) 1/10,000 seconds
  • Minimum illumination: 0.1 Lux/ F-1.2(0 Lux with IR on)
  • Video Output: RCA connector. 1.0v P-P, 75ohm
  • Power Consumption: 110mA max 300mA with IR on
  • Power Supply: 12v/ 24v
  • Operating Temperature: -20 degree celcius to 90 degree celcius RH 95% Max
  • Lens Angle: 135 degree/ 170 degree
  • Waterproof: IP67/ IP68
  • Video cable 6 meter (extra length video cable is available for purchase)
  • Dimension: 75(W)X45(D)X75(H)mm
  • Weight: 300g

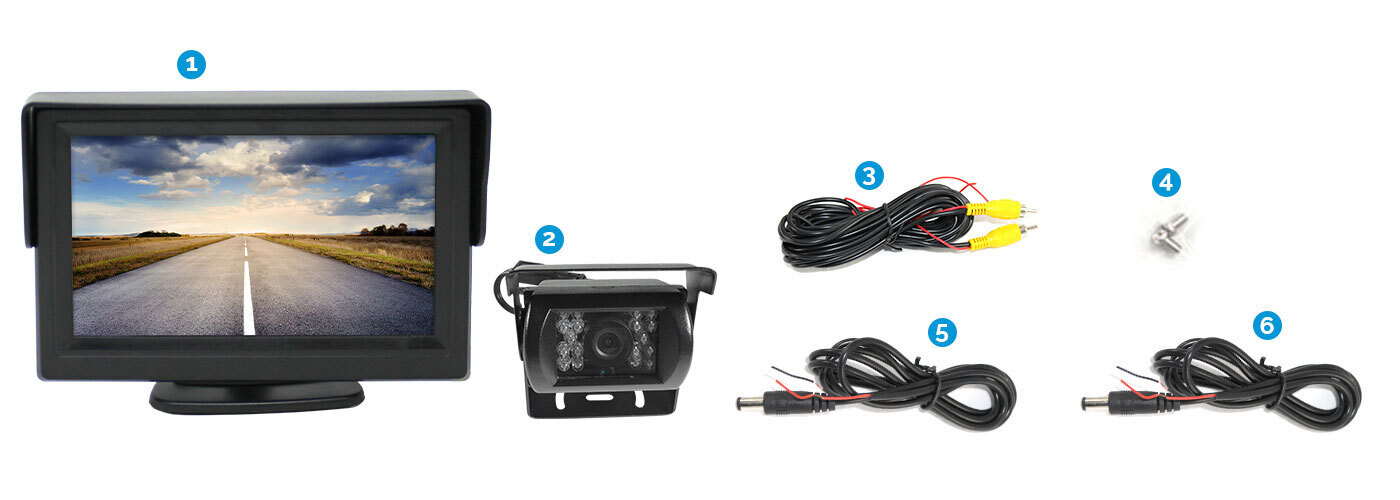

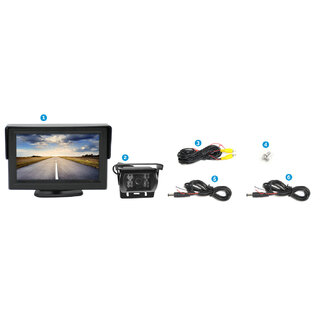

WHAT'S INCLUDED

1. 1x 4.3" Monitor

2. 1x Heavy Duty CCD Reversing Camera

3. 1x 5M Video Cable

4. 1x Screws

5. 1x Monitor Power Cable

6. 1x Camera Power Cable

4.3 inches Digital LCD Monitor with Power Cable

Frequently Asked Questions

No FAQs Available

Troubleshooting Guides

No Troubleshooting Guides Available

*Product on the video may differ from the actual product. Video is displayed to show the importance and use of the product.

Average Customer Rating For Elinz 4.3" Monitor+24v/12v CCD LED Reversing Camera Car Caravan Truck Night Vision:
Rating: 5

Click here to write a product review!

a little bit short

By: on 19 December 2017

The power cable supplied with this Reversing Camera need to be at lest 2meters as it is hard to fit in some vehicle with out a join. The whole product works very well and is a good buy

Rating: 4 out of 5 stars

Great to see

By: on 30 November 2016

Excellent quality and now can see upcoming vehicles

Rating: 5 out of 5 stars

Great camera.

By: on 17 September 2016

My first thoughts where that the camera was too big and the monitor too small, but when installed they worked well together. As a senior parking can be a problem, but I found I coud clearly see the the car behind and the white line markings,Great.

Rating: 5 out of 5 stars

Distant markers

By: on 23 August 2013

Very good Reversing camera But it does not display Distant Markers. Very hard to judge the distant. Graham

Rating: 5 out of 5 stars
