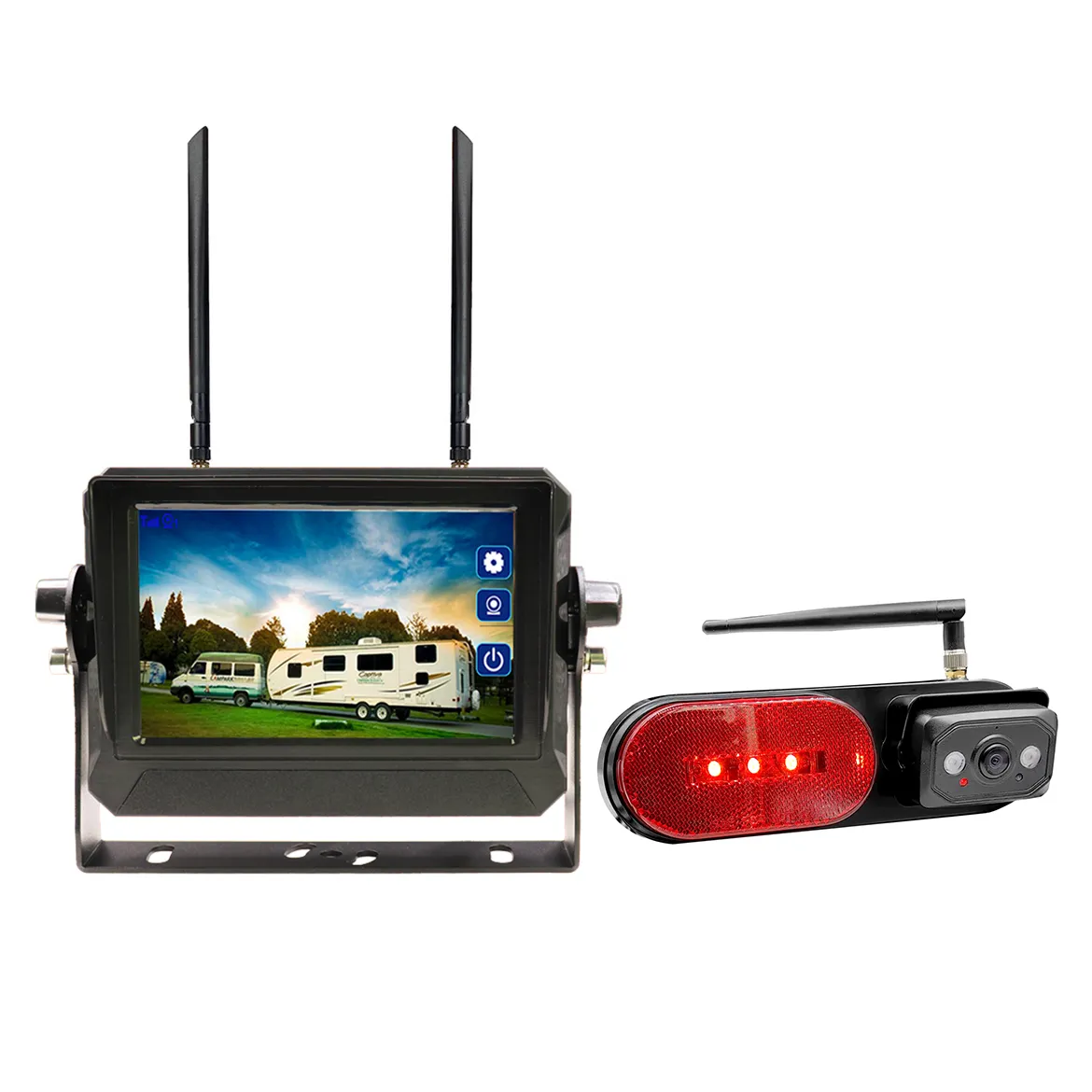

Elinz 5" Touch Screen Digital Wireless AHD Monitor 1080P Rear Marker Reversing Camera

Upgrade your vehicle's safety and visibility with the Elinz 5" Touch Screen Digital Wireless AHD Reversing Camera System, designed for effortless cable-free installation. This compact system features a responsive 5-inch IPS touch-screen monitor with quad-split view capabilities paired with a crisp 1080P waterproof camera. With its ultra-wide 130° viewing angle and rugged IP69K rating, it delivers reliable, high-definition real-time monitoring to eliminate blind spots in any weather condition.

MONITOR SPECIFICATIONS

• 5" Touch Screen Display Monitor: Equipped with an 800×480 resolution IPS panel, this 5-inch touch screen monitor offers clear and vibrant images for rear and reverse viewing in a compact form factor.
• Touch Screen Interface: Intuitive capacitive touch controls for quick menu access, settings adjustments, and seamless operation.
• Quad Split View Function
• Wireless Connectivity: Works on the 2.4 GHz ISM band with 802.11b wireless standard, providing reliable cable-free connectivity.
• Compatibility: Supports digital AHD wireless cameras, enhancing installation flexibility and convenience. Not compatible with RVDWT and RVDWRL cameras.
• Modulation method: Utilises CCK modulation and DSSS spread spectrum to minimise interference and maintain strong signal quality.
• Memory Expansion Support Compatible with Micro SD cards up to 256GB for recording and playback purposes.
• Wide Operating Voltage: Supports DC 12V to 24V input voltage, making it adaptable to various vehicle electrical systems.
• Wireless data rate: 11Mbps
• Spread spectrum: IEEE 802.11b:DSSS(Direct Sequence Spread Spectrum)
• RF output power: 20 dBm ±1 dBm
• Working mode: Ad-Hoc
• Receiver Sensitivity: 11Mbps-86dBm@8%
• SD Card Capacity: Max 256GB (Micro SD Card)

CAMERA SPECIFICATIONS

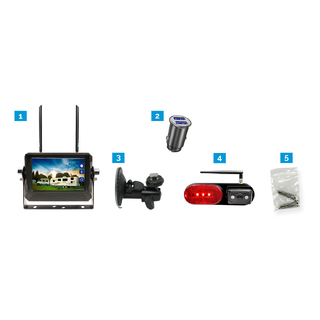

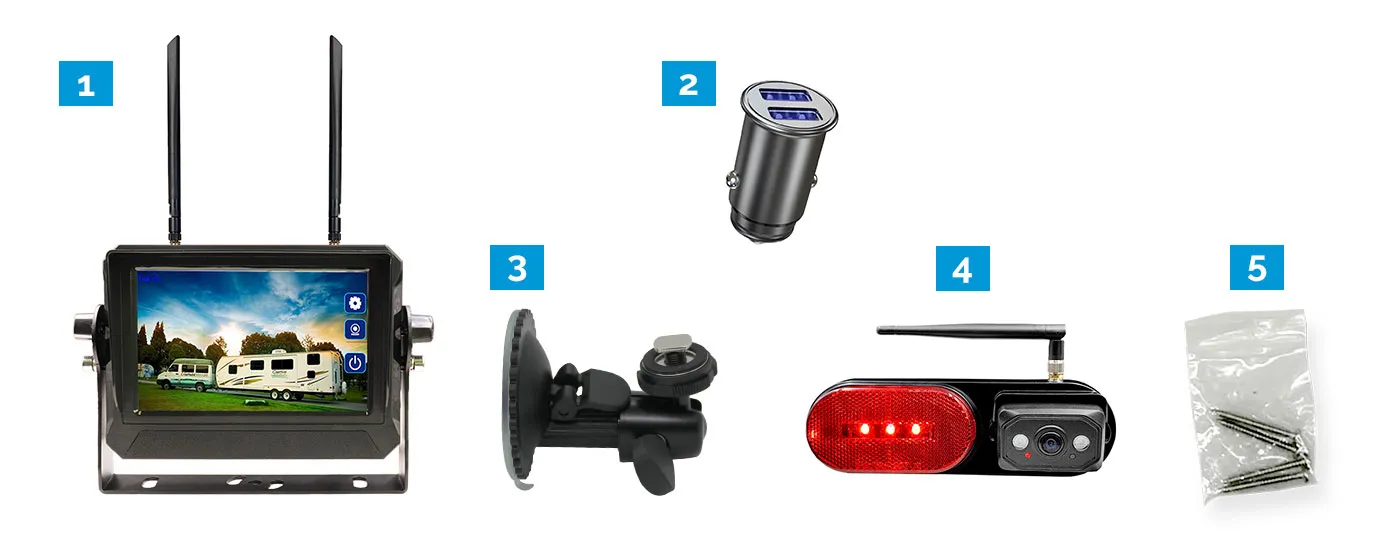

What's Included
