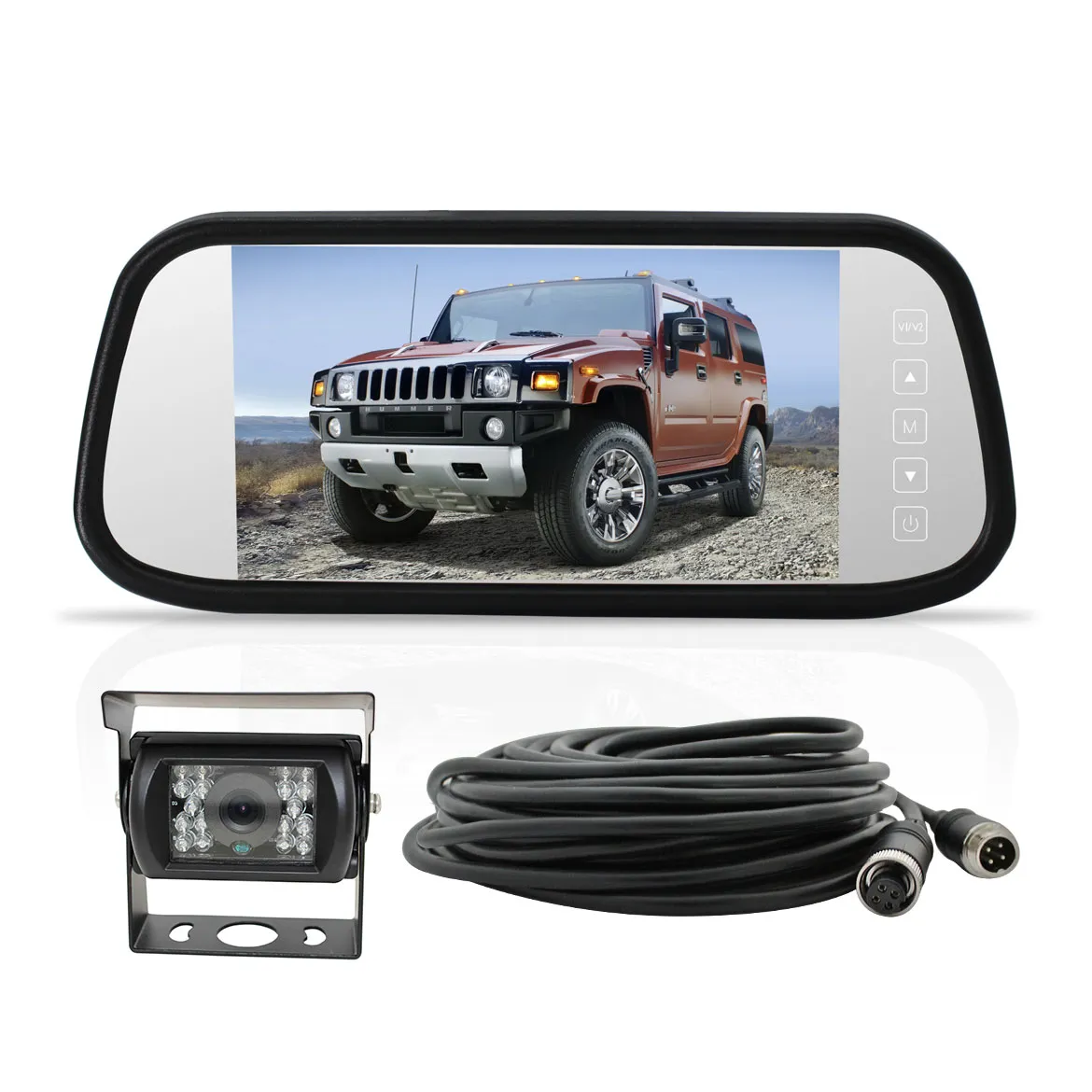

7" Replacement Mirror AHD Monitor 1080P Reversing Camera 10M Cable
4PIN~2CH~Dual View Function~IP69K~120° Horizontal Angle
| SKU | KR7RVM-KRVHD10M |
| Barcode # | 0725806563718 |
| Brand | Elinz |
| Shipping Weight | 1.6500kg |
| Shipping Width | 0.295m |
| Shipping Height | 0.060m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.003009000m3 |
Help other users shop smarter by writing reviews for products you have purchased.

7" Replacement Mirror AHD Monitor Small 1080P Reversing Camera 10M Cable
The Elinz K Series 7" Replacement Mirror AHD Monitor delivers crisp, vibrant visuals with its IPS display, high resolution, and reliable anti-interference design. Built for seamless compatibility with Elinz K Series cameras, it offers dual-view functionality, wide voltage support, and user-friendly controls for dependable performance in any driving condition.
The Elinz K Series Heavy Duty AHD 1080P Reversing Camera delivers crisp Full HD clarity and a wide 120° viewing angle for safer, more confident maneuvering. Built for demanding environments, it features night vision, rapid shutter speed, and an IP69K-rated housing for reliable performance in any condition.
PRODUCT FEATURES
Monitor
- 7 Inch IPS Display - High-quality A+ panel ensures sharp images and vibrant colours for excellent visibility.
- High Resolution and Brightness - 1024×RGB×600 resolution with 600 cdm brightness for clear viewing day or night.
- Dual View Function - Supports standard rear vision view and automatically switches to reverse view when the vehicle is shifted into reverse by using a single camera only.
- Compatibility - Fully compatible with all Elinz K Series AHD Cameras, ensuring seamless plug-and-play connection and optimal video performance.
- Anti-Interference PCB Design - Ensures stable, reliable video signals by reducing interference.
- Wide Operating Voltage and Output - Operates on DC 10-32V input and supplies DC 12V output to connected cameras.
- Low Power Consumption - Working current under 300mA and idle current under 120mA for energy efficiency.
- Temperature Tolerance - Operates reliably from -25°C to +70°C in various environments.
- User-Friendly OSD Menu - Adjustable settings for brightness, contrast, saturation, tint, language, and screen rotation.
- Signal System: PAL/NTSC/AUTO
- Brightness: 600cdm
- Contrast Ratio: 400:1
- Video Inputs: 2 channel AHD, NTSC/PAL/Auto signal systems
- Camera Support: CVBS, 720P@25/30, 1080P@25/30 AHD cameras
- Output Voltage: DC 12V to cameras
- Working Current: <300mA
- Idle Current: <120mA
- Languages(OSD Menu): English, Chinese, Japanese
- Flip Image: Mirror/Normal/Up/Down
- Connector: 4PIN Aviation
- Mounting: Replacement bracket for windshield + 1 over bracket
Camera
- High-Definition Clarity - 1920×1080 resolution for clear and detailed video capture.
- Wide Viewing Angle - 120° horizontal field of view behind the vehicle.
- Night Vision Capability - Equipped with 18 IR LEDs for zero-lux (0 Lux) visibility with F2.0 aperture
- Rapid Shutter Speed - From 1/50-60 up to 1/15000 seconds
- Durability and Protection - Rated IP69K for superior water and dust resistance
- Operating Temperature Range - -20°C and 65°C
- Compatibility - Fully compatible with all Elinz K Series AHD Monitors
- Image Sensor: 1/3" Full HD camera
- Signal System: PAL / NTSC
- SNR: >48dB
- Video Output: 1.0 Vp-p, 75 Ohm
- Power Supply: DC 12-24V
- Current Consumption: <190mA
- Connector: 4PIN Aviation

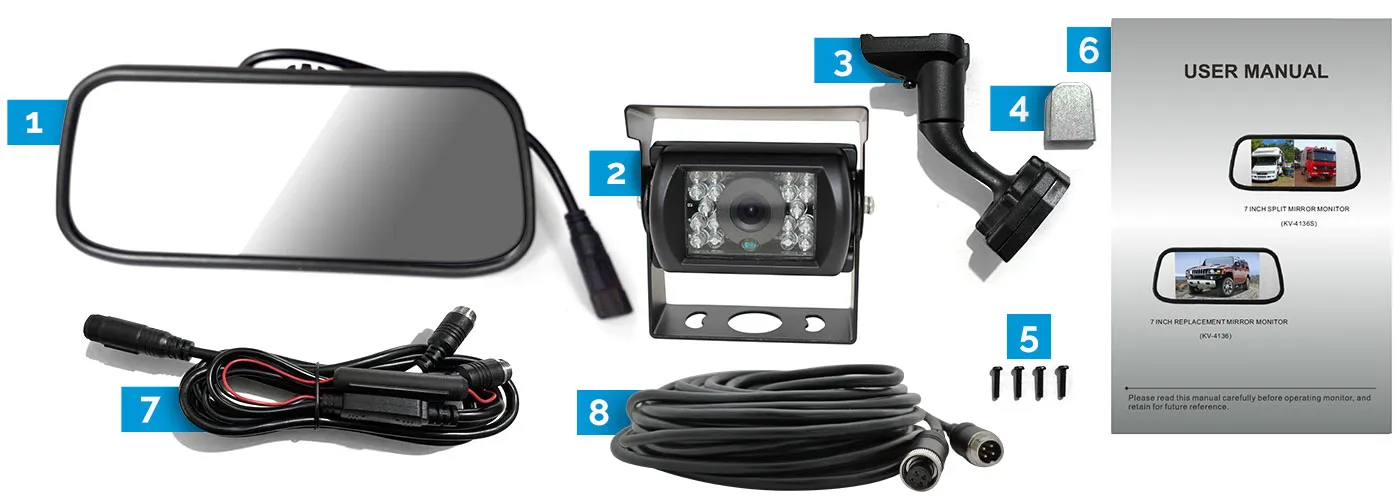

What's Included
1. 1x 7" Car Mirror Monitor
2. 1x Heavy Duty Camera
3. 1x Bracket
4. 1x T-Slot
5. 4x Screws
6. 1x User Manual
7. 1x Power Cable
8. 1x 10M 4PIN Cable
