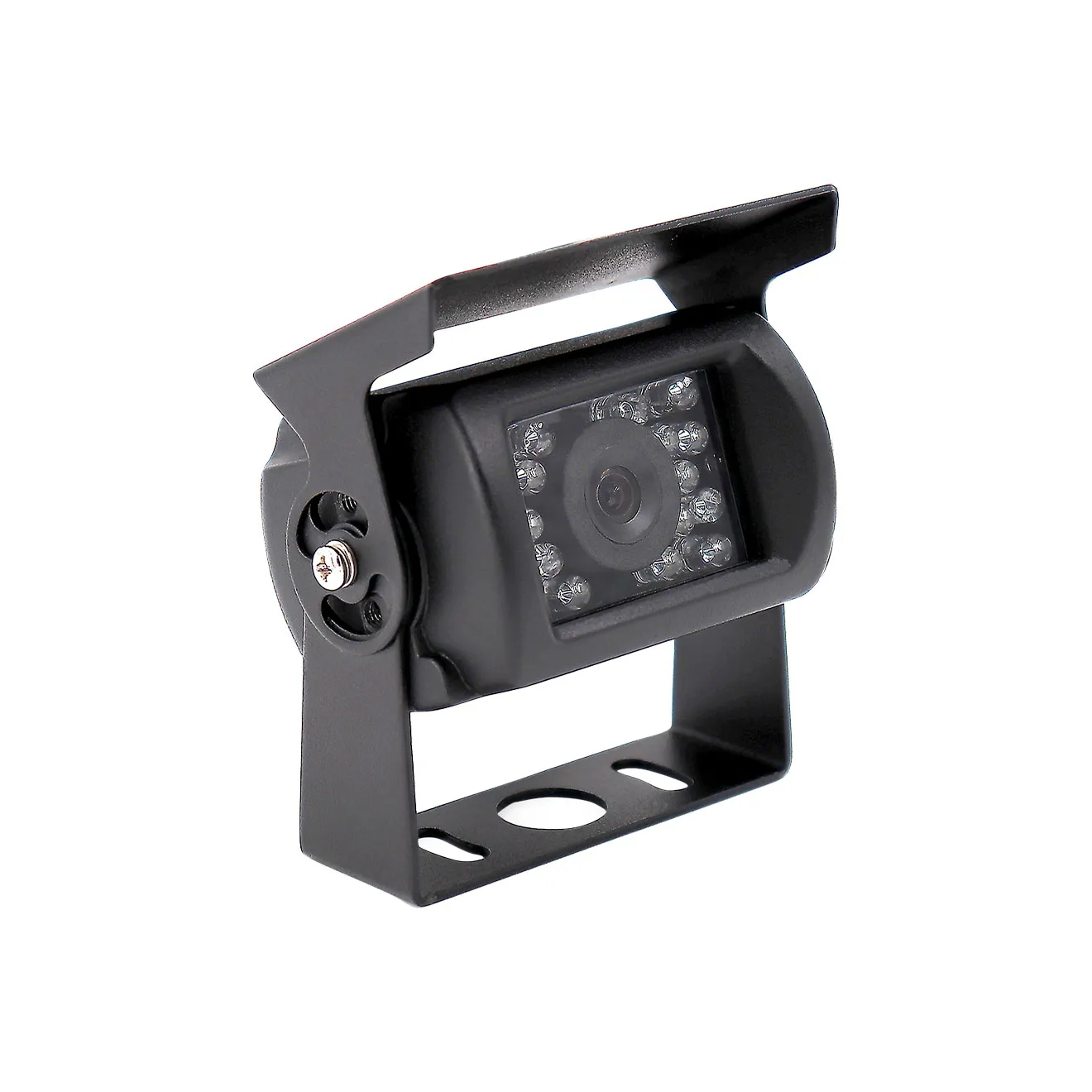

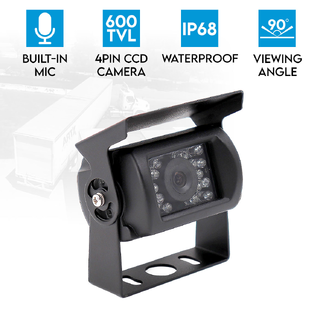

Elinz 4 PIN Reversing Camera CCD IR Night Vision with Mic 600TVL Car Truck Caravan
IP68~90° Viewing Angle
SKU | RVMIC |
Barcode # | 0743966775093 |
Brand | Elinz |
Shipping Weight | 0.6000kg |
Help other users shop smarter by writing reviews for products you have purchased.

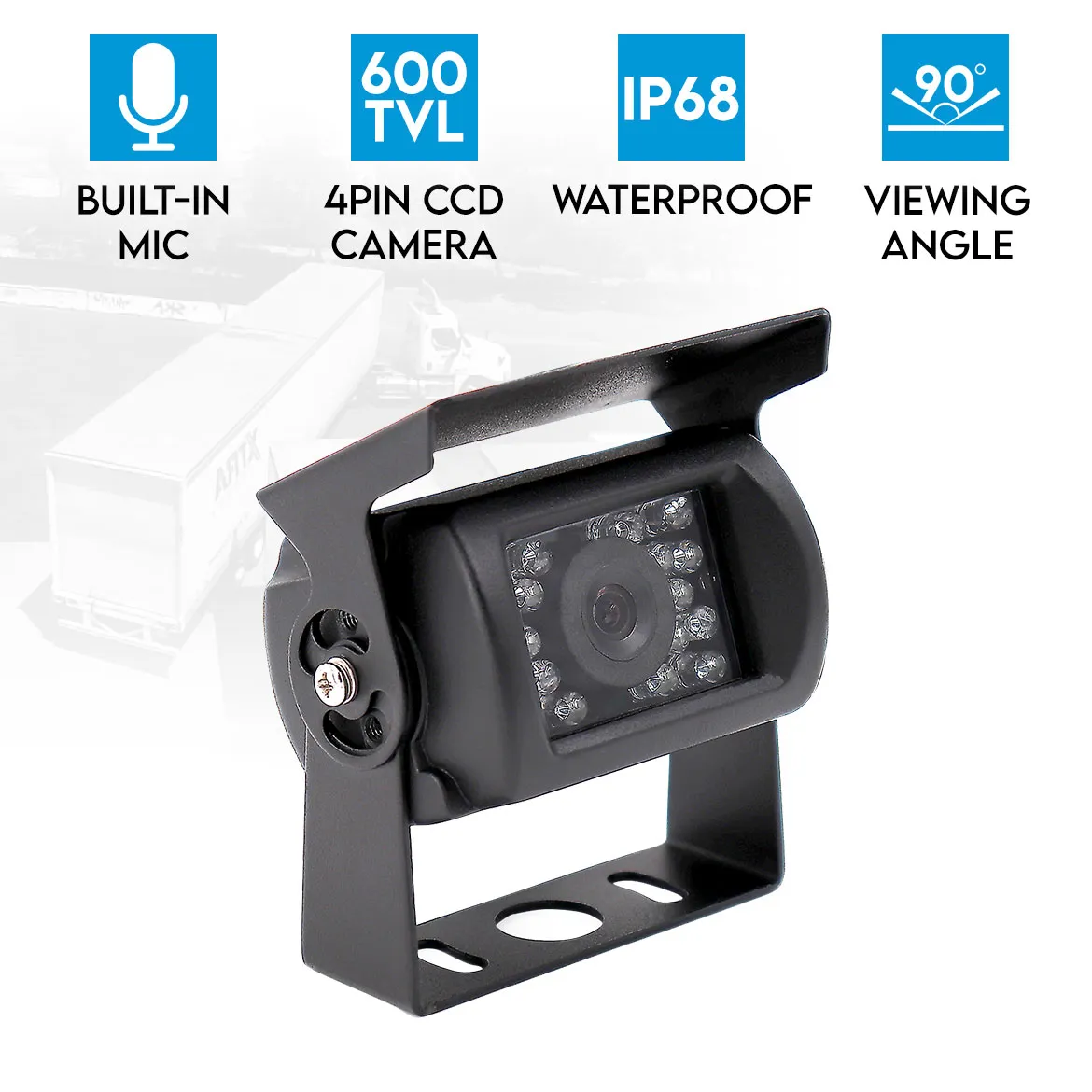

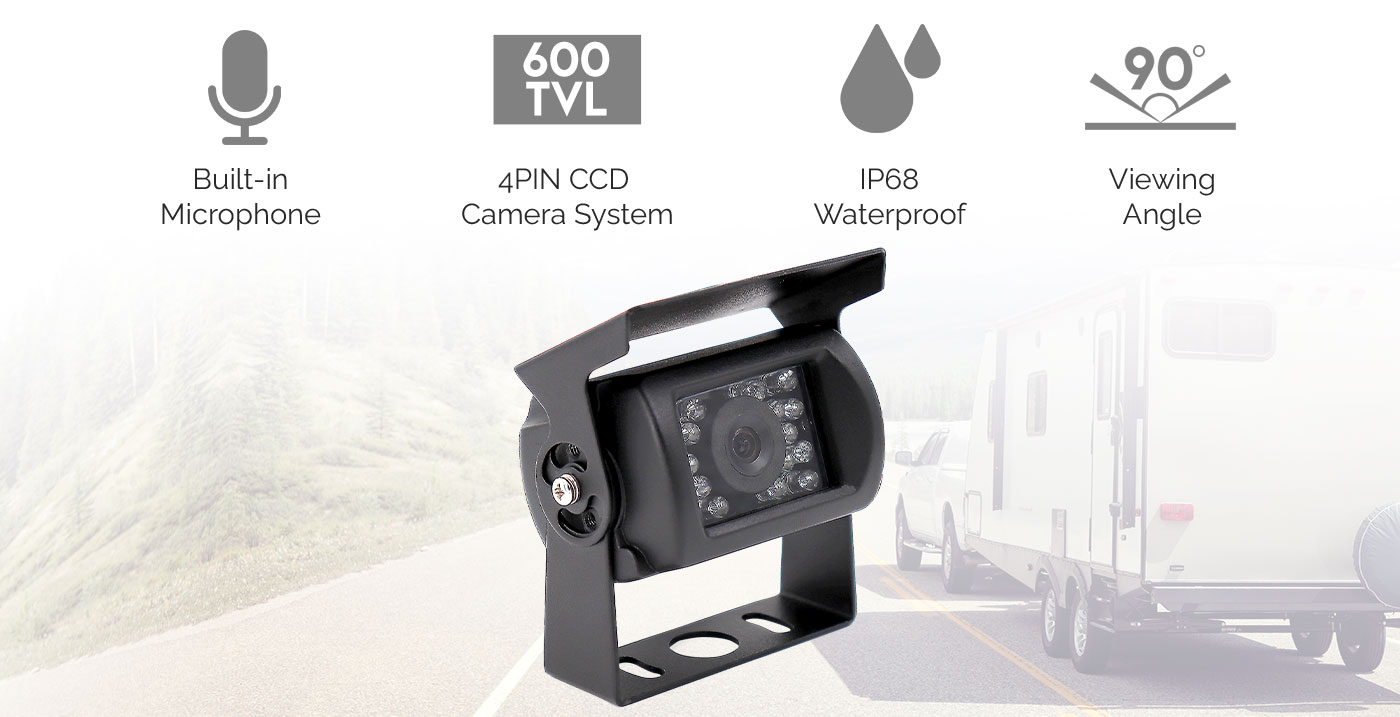

Elinz 4 PIN Reversing Camera CCD IR Night Vision with Mic 600TVL Car Truck Caravan
SKU: RVMIC

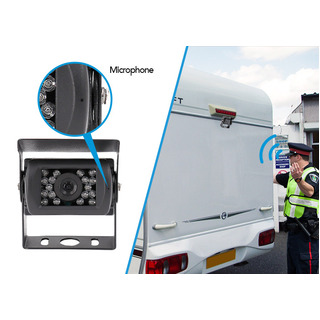

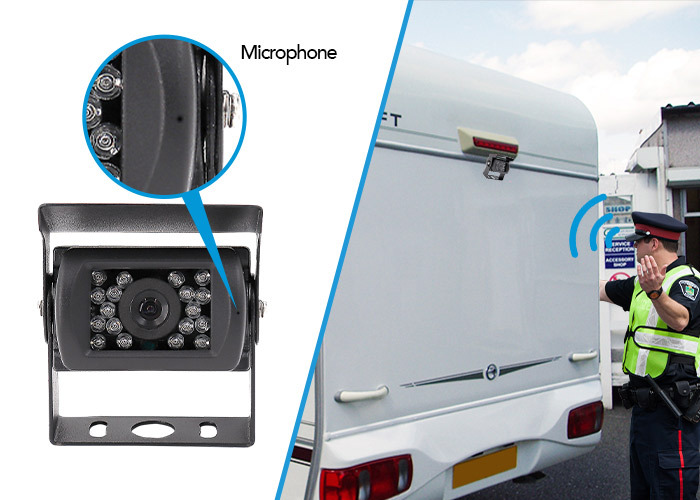

Built-in Microphone
- Allows the driver to hear someone at the back of the caravan giving instructions when reversing

600TVL 4PIN CCD Camera System
- The reversing cameras feature Sony CCD Image sensor for better picture clarity, colour contrast, and sharpness.

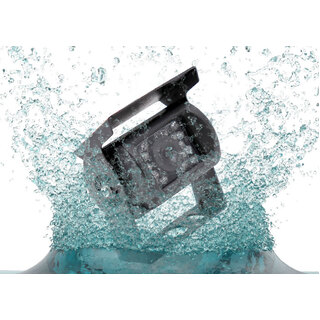

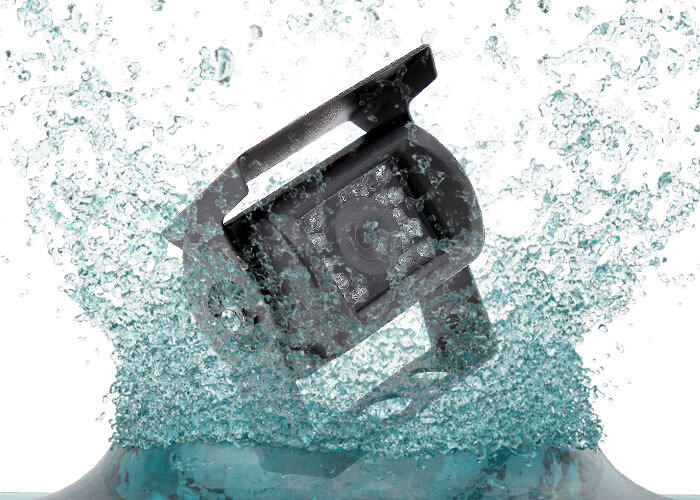

IP68 Waterproof
- IP68 Waterproof and mud proof, it can be exposed to the elements for an extended period of time.

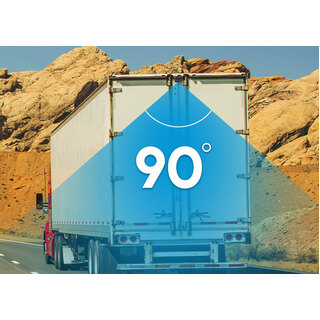

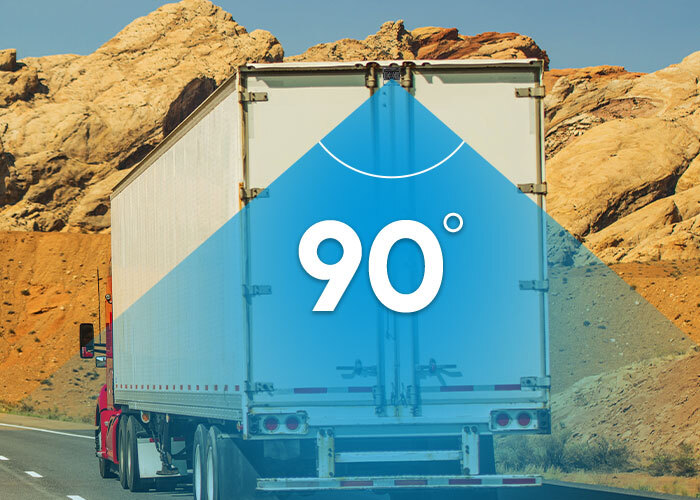

90° Viewing Angle
- This reversing camera features a 90-degree viewing angle so it does not produce fish-eye view.

18 IR LED Night Vision
- This camera comes with 18 individual infrared LED to enable users to see clear images, even at night or in low light conditions.

Compatible with GEAY5RVMIC
- This reverse camera is 12V only, the monitor can power the camera which works with 12V and 24V, enabling it to work with truck, caravan and trailer

Product Dimensions

Product Views
MORE INFORMATION
Elinz 4 PIN Reversing Camera CCD IR Night Vision with Mic 600TVL Car Truck Caravan
This 600TVL 4PIN heavy-duty reversing camera can add to safety and convenience in driving. It has a Sony CCD image sensor made by Sharp Company that outputs a digital signal that has better picture clarity colour contrast and sharpness.
This reversing camera has 18 IR LEDs that support night vision. This reverse camera is 12V only, the monitor can power the camera, which works with 12V and 24V, enabling it to work with trucks, caravans, and trailers.
PRODUCT HIGHLIGHTS
- Built-in Microphone
- Allows the driver to hear someone at the back of the caravan giving instructions when reversing
- 600TVL 4PIN CCD Camera System
- The reversing cameras feature Sony CCD Image sensor for better picture clarity, colour contrast, and sharpness.
- IP68 Waterproof
- IP68 Waterproof and mud proof, it can withstand abuse and be exposed to the elements for an extended period of time.
- 90° Viewing Angle
- This reversing camera features a 90-degree viewing angle so it does not produce fish-eye view.
- When you look at the images being displayed on the monitor, it is as if you're looking at the images being reflected on your vehicle's rear view mirror.
- 18 IR LED Night Vision
- This camera comes with 18 individual infrared LED to enable users to see clear images, even at night or in low light conditions.
- Compatible with GEAY5RVMIC
- This reverse camera is 12V only, the monitor can power the camera which works with 12V and 24V, enabling it to work with truck, caravan and trailer
ITEM DESCRIPTION
- Image sensor:1/3 600TVL SONY CCD
- Video system:PAL
- Pixels:PAL:752(H)*582(V)
- Horizontal resolution:600 TVL
- Min illumination:0.01Lux (0 Lux IR on)
- S/N ratio≥48dB
- Electric shutter:1/50-1/10000(S)
- Video output:1.0V±0.5Vp-p 75Ω
- Built-in mircrophone:Yes
- Video angle:90°
- Working voltage:DC9V-12V±0.5V
- Current:80mA±10%
- Waterproof rate:IP68
WHAT'S INCLUDED

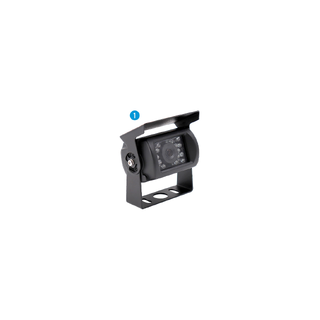

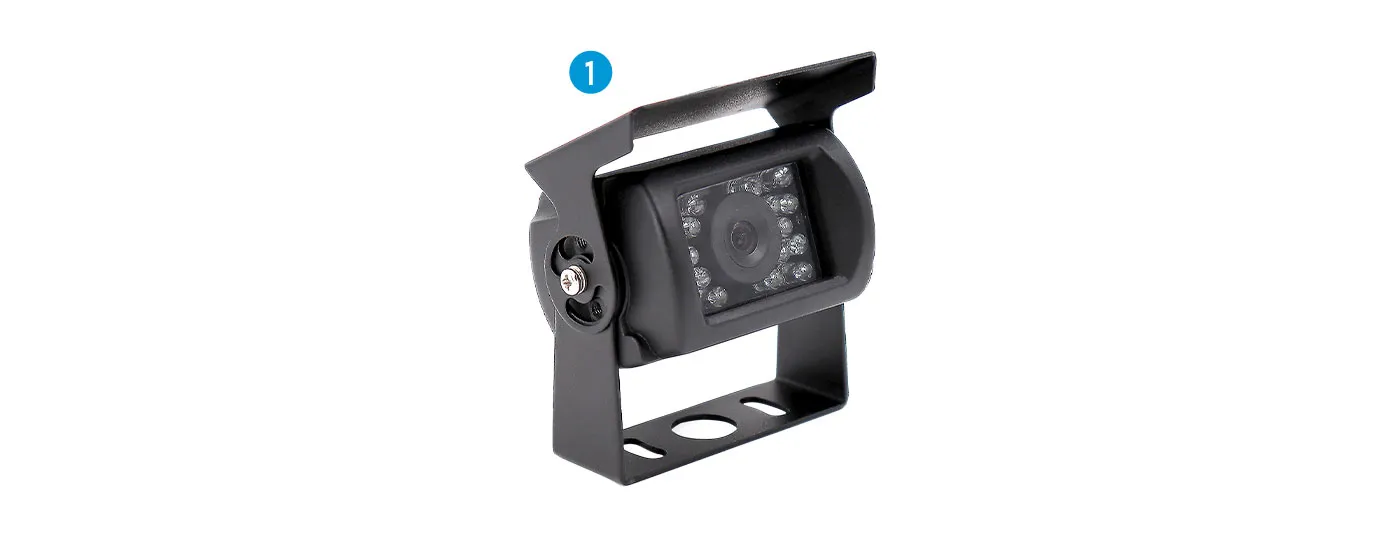

1. 1x Reversing Camera with built-in Mic
