Elinz K Series Heavy Duty AHD 1080P Reversing Camera

The Elinz K Series Heavy Duty AHD 1080P Reversing Camera delivers crisp Full HD clarity and a wide 120° viewing angle for safer, more confident maneuvering. Built for demanding environments, it features night vision, rapid shutter speed, and an IP69K-rated housing for reliable performance in any condition.

PRODUCT FEATURES

  • High-Definition Clarity - 1920×1080 resolution for clear and detailed video capture.
  • Wide Viewing Angle - 120° horizontal field of view behind the vehicle.
  • Night Vision Capability - Equipped with 18 IR LEDs for zero-lux (0 Lux) visibility with F2.0 aperture
  • Rapid Shutter Speed - From 1/50-60 up to 1/15000 seconds
  • Durability and Protection - Rated IP69K for superior water and dust resistance
  • Operating Temperature Range - -20°C and 65°C
  • Compatibility - Fully compatible with all Elinz K Series AHD Monitors
  • Image Sensor: 1/3" Full HD camera
  • Signal System: PAL / NTSC
  • SNR: >48dB
  • Video Output: 1.0 Vp-p, 75 Ohm
  • Power Supply: DC 12-24V
  • Current Consumption: <190mA
  • Connector: 4PIN Aviation

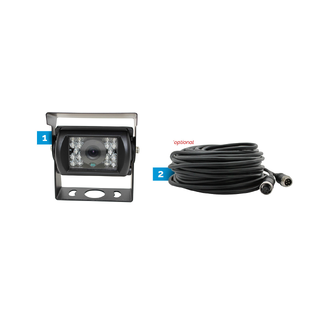

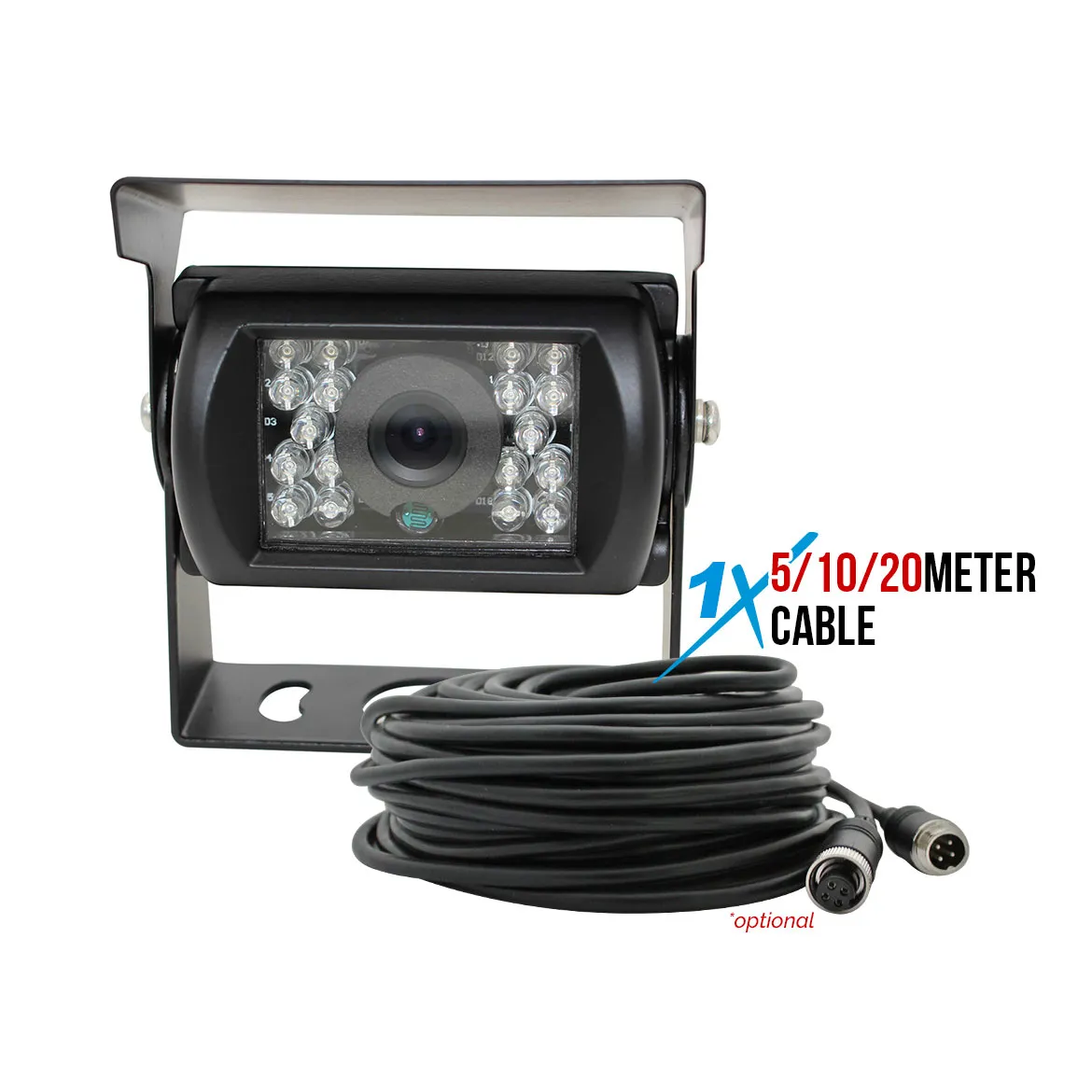

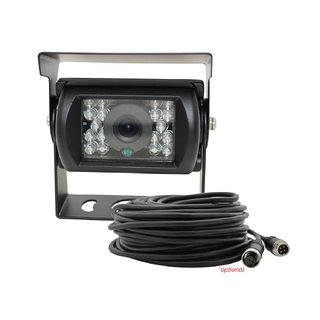

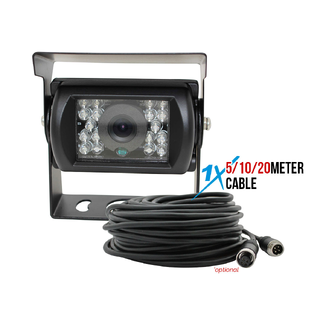

What’s Included

1. 1x Heavy Duty Camera

2. 1x 4PIN Cable (Cable length depends on the option selected)
