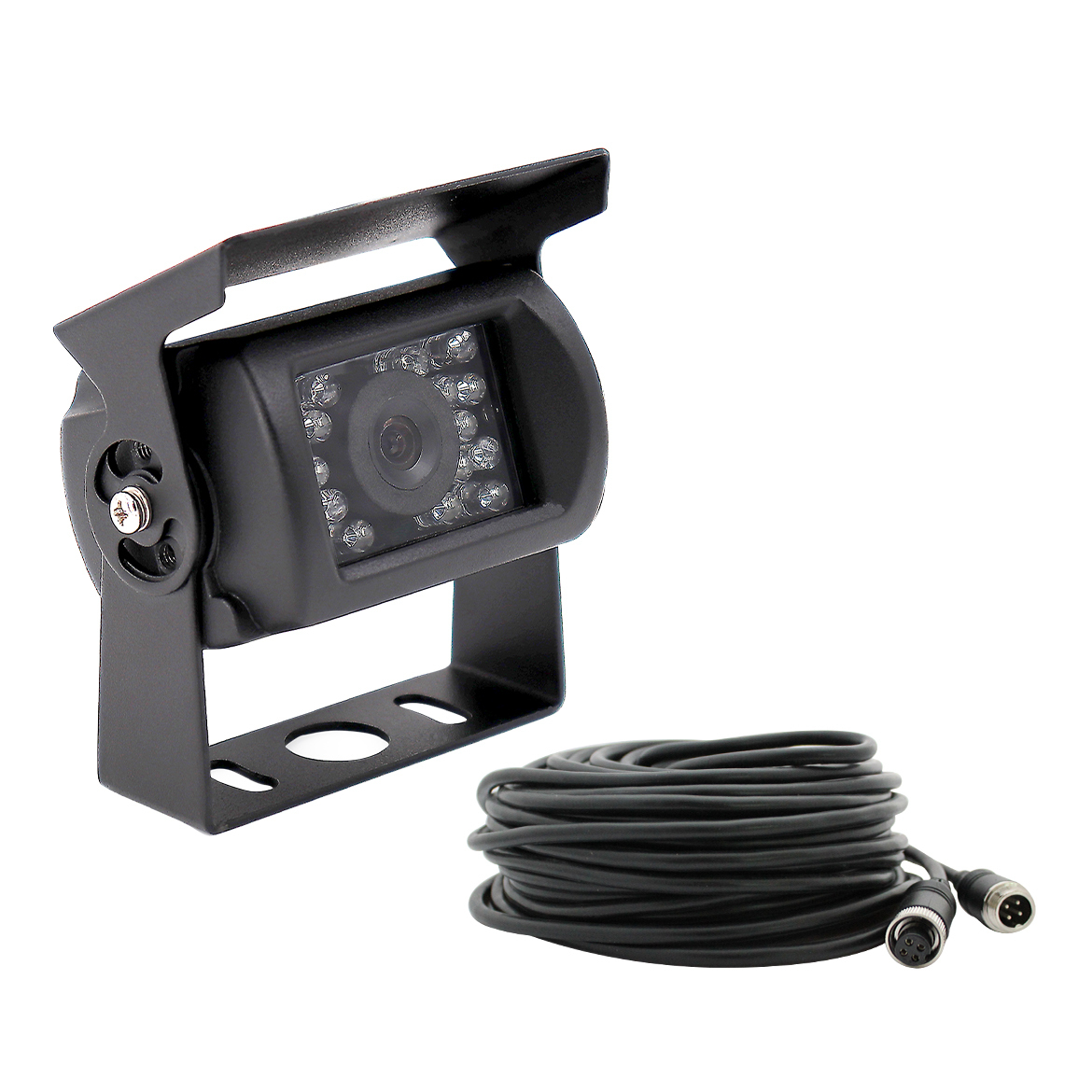

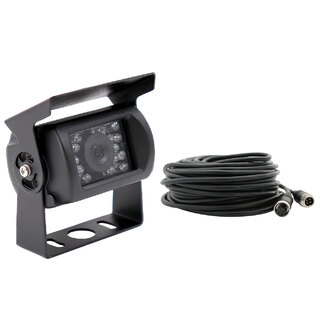

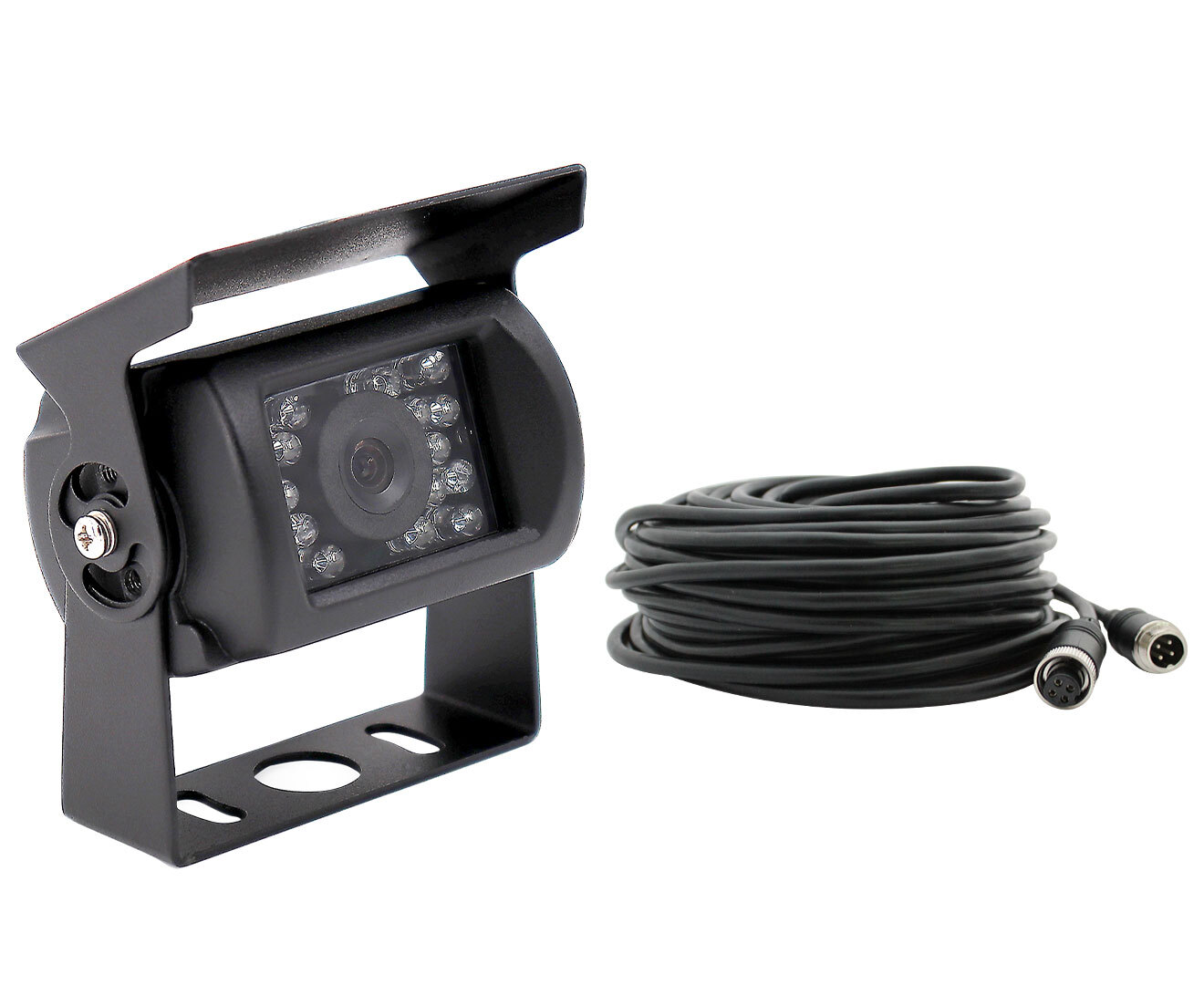

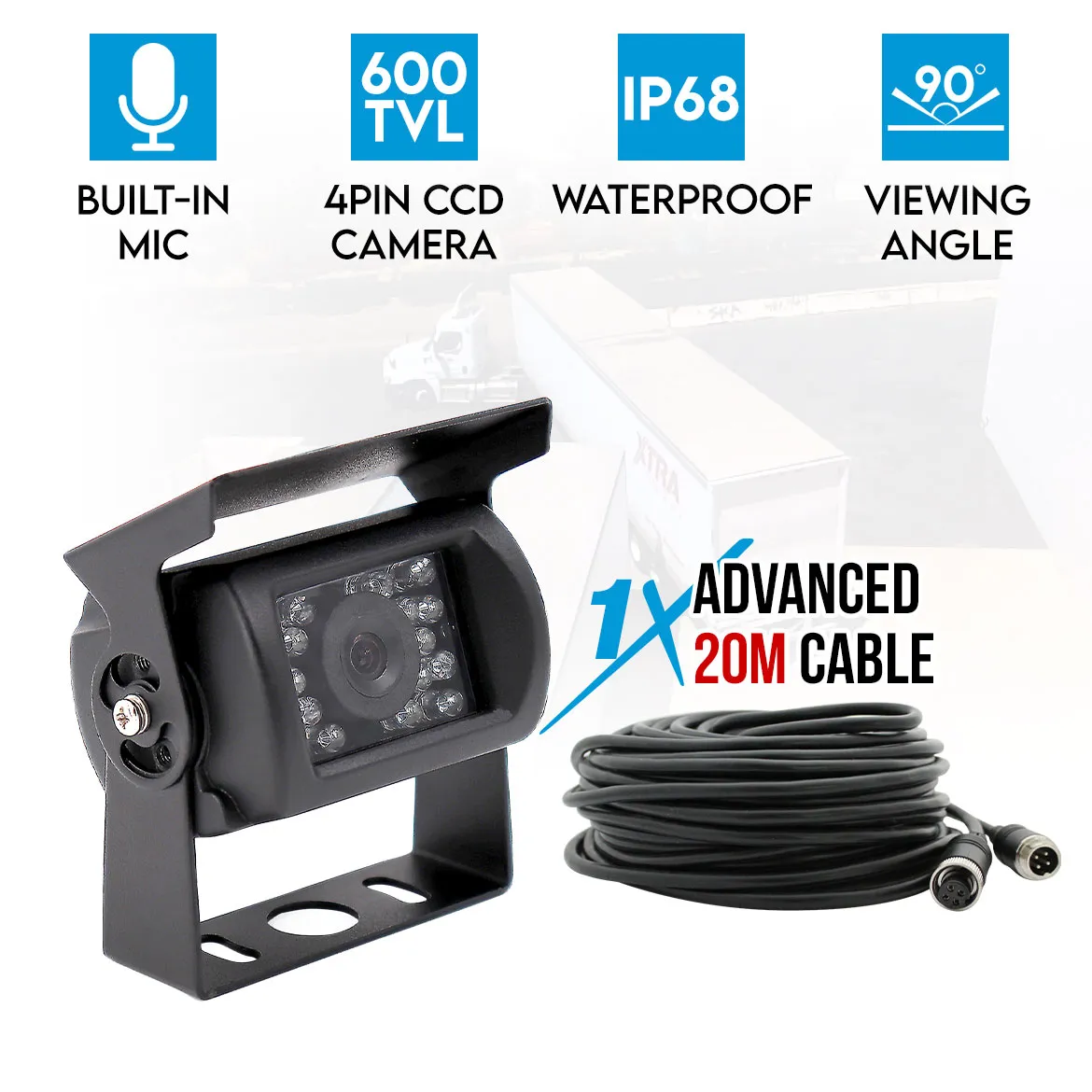

Elinz Reversing Camera Advanced 4PIN 20M Cable CCD Night Vision MIC 600TVL Car Truck Caravan

SKU: RVMIC20M

Reversing Camera with MIC, 4PIN Advanced Cable

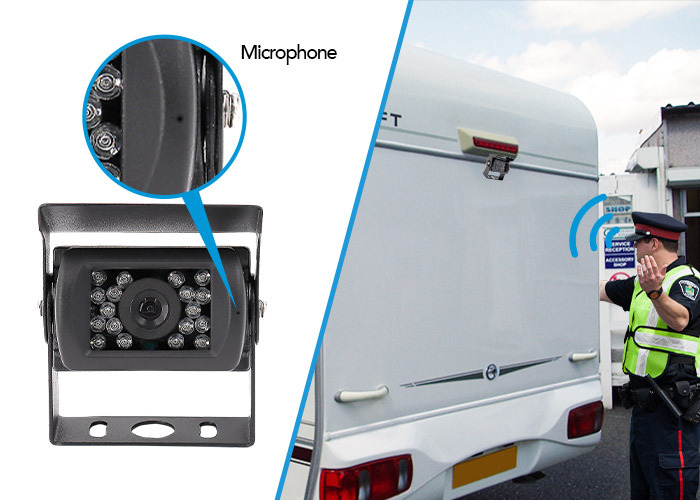

Built-in Microphone Reverse Camera

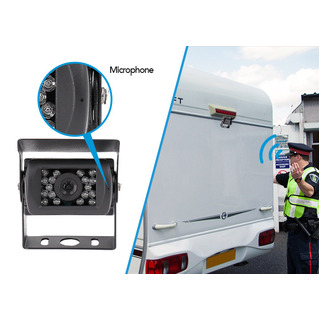

Built-in Microphone

  • Allows the driver to hear someone at the back of the caravan giving instructions when reversing

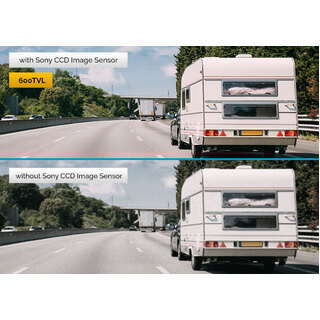

600 TVL 4PIN CCD Camera System

600TVL 4PIN CCD Camera System

  • The reversing cameras feature Sony CCD Image sensor for better picture clarity, colour contrast, and sharpness.

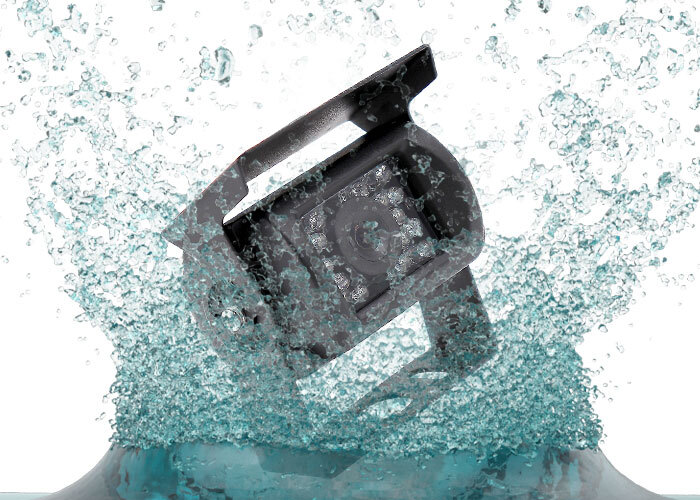

IP68 Waterproof Camera

IP68 Waterproof

  • IP68 Waterproof and mud proof, it can be exposed to the elements for an extended period of time.
Camera Suitable for 12V Vehicles

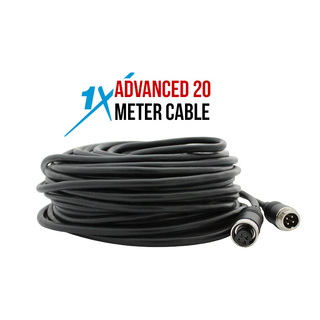

Advanced 4 PIN Cable

  • This camera comes with a 4PIN cable that enables the monitor to power up the device by itself. In addition, It has with audio transmission capability to support the camera microphone feature.

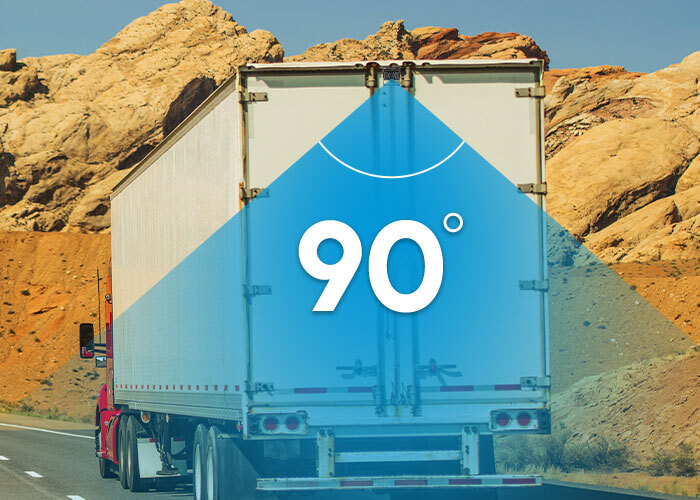

90° Wide Angle Viewing Reverse Camera

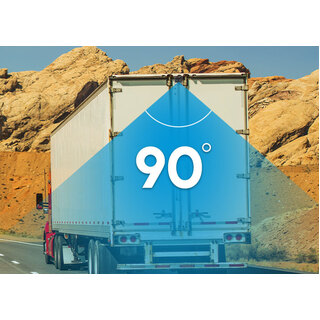

90° Viewing Angle

  • This reversing camera features a 90-degree viewing angle so it does not produce fish-eye view.
18 IR LED Night Vision Camera

18 IR LED Night Vision

  • This camera comes with 18 individual infrared LED to enable users to see clear images, even at night or in low light conditions.
Compatible with GEAY5RVMIC

Compatible with GEAY5RVMIC

  • This reverse camera is 12V only, the monitor can power the camera which works with 12V and 24V, enabling it to work with truck, caravan and trailer
Reversing Camera Dimensions

Product Dimensions

Reversing camera views

Product Views



MORE INFORMATION

Elinz Reversing Camera Advanced 4PIN Cable CCD Night Vision MIC 600TVL Car Truck Caravan

This 600TVL 4PIN heavy duty reversing camera can add up safety and convenience in driving. It has a Sony CCD image sensor made by Sharp Company that output digital signal that has better picture clarity, color contrast, and sharpness. This camera comes with a 4PIN cable that enables the monitor to power up the device by itself. In addition, the camera will stay switched on for as long as your vehicle is running.

This reversing camera has 18 IR LEDs that support night vision. This reverse camera is 12V only, the monitor can power the camera which works with 12V and 24V, enabling it to work with truck, caravan and trailer.

PRODUCT HIGHLIGHTS

  • Built-in Microphone
    • Allows the driver to hear someone at the back of the caravan giving instructions when reversing
  • 600TVL 4PIN CCD Camera System
    • The reversing cameras feature Sony CCD Image sensor for better picture clarity, colour contrast, and sharpness.
  • IP68 Waterproof
    • IP68 Waterproof and mud proof, it can withstand abuse and be exposed to the elements for an extended period of time.
  • Advanced 4 PIN Cable
    • This camera comes with a 4PIN cable that enables the monitor to power up the device by itself. In addition, It has with audio transmission capability to support the camera microphone feature.
  • 90° Viewing Angle
    • This reversing camera features a 90-degree viewing angle so it does not produce fish-eye view.
    • When you look at the images being displayed on the monitor, it is as if you're looking at the images being reflected on your vehicle's rear view mirror.
  • 18 IR LED Night Vision
    • This camera comes with 18 individual infrared LED to enable users to see clear images, even at night or in low light conditions.
  • Compatible with GEAY5RVMIC
    • This reverse camera is 12V only, the monitor can power the camera which works with 12V and 24V, enabling it to work with truck, caravan and trailer

ITEM DESCRIPTION

  • Image sensor:1/3 600TVL SONY CCD
  • Video system:PAL
  • Pixels:PAL:752(H)*582(V)
  • Horizontal resolution:600 TVL
  • Min illumination:0.01Lux (0 Lux IR on)
  • S/N ratio≥48dB
  • Electric shutter:1/50-1/10000(S)
  • Video output:1.0V±0.5Vp-p 75Ω
  • Built-in mircrophone:Yes
  • Video angle:90°
  • Working voltage:DC9V-12V±0.5V
  • Current:80mA±10%
  • Waterproof rate:IP68

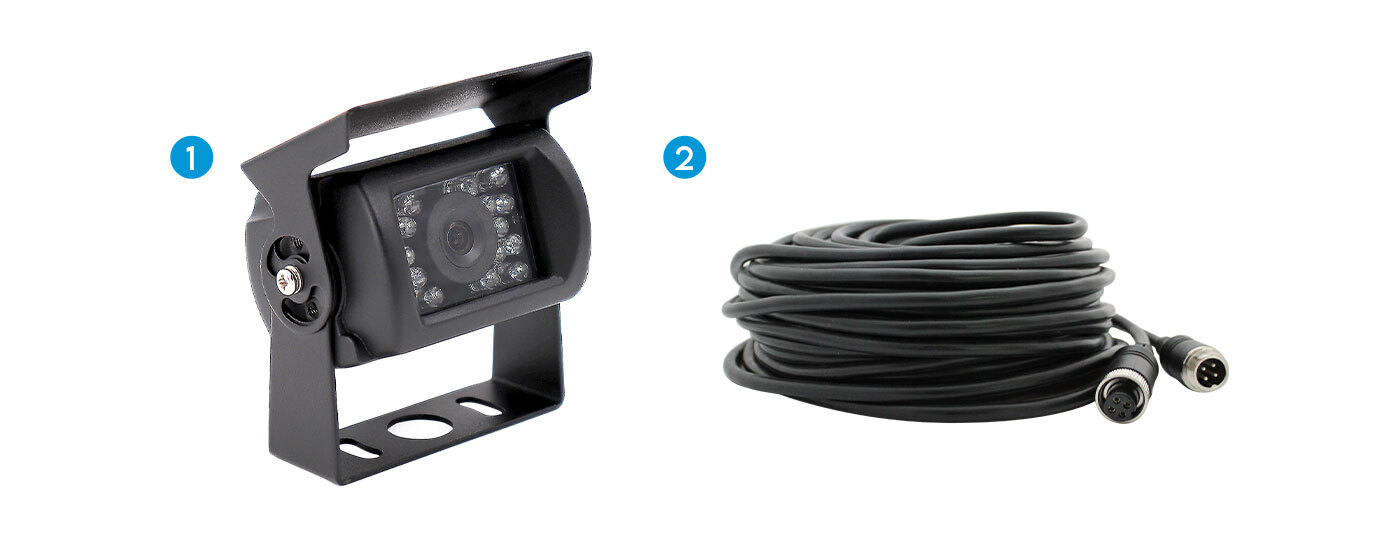

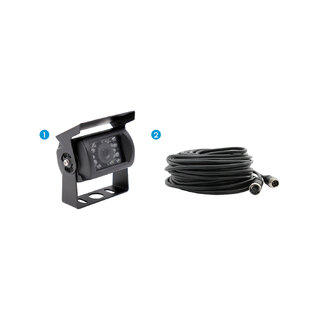

WHAT'S INCLUDED

1. 1x Reversing Camera

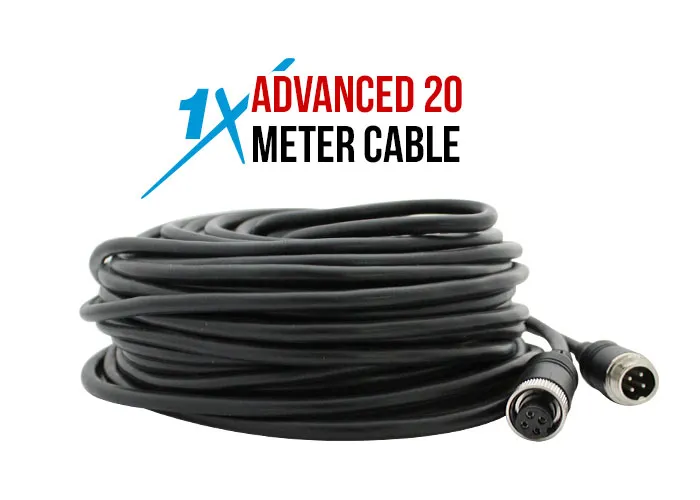

2. 1x 20M 4PIN Cable

Reversing Camera with MIC, 4PIN Advanced Cable
