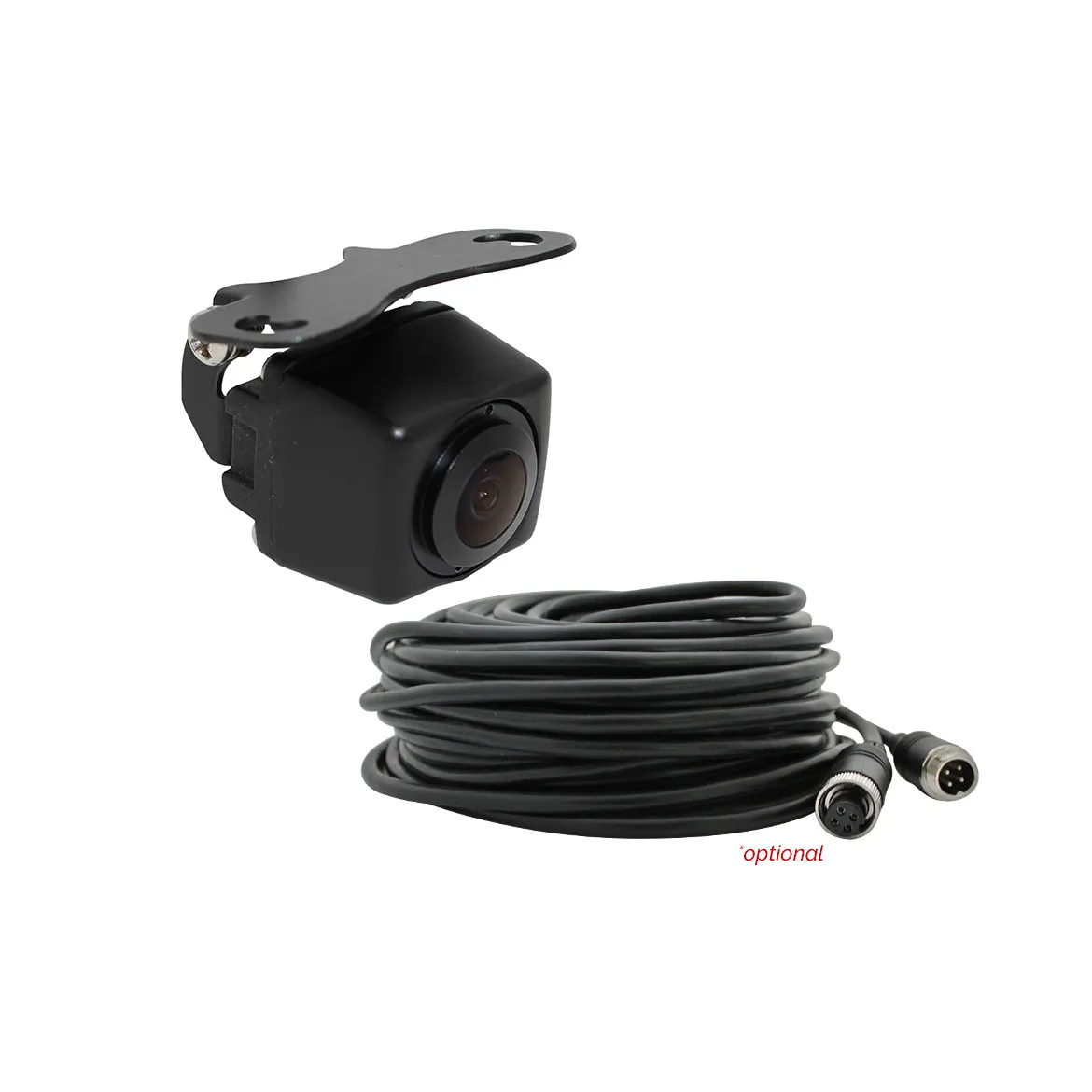

Elinz K Series Car Reversing AHD 1080P Reversing Camera

The Elinz K Series Car Reversing AHD 1080P Camera delivers exceptionally clear, wide-angle visibility with its 180° field of view and full HD resolution. Built for reliability, it performs confidently in low light, harsh weather, and demanding vehicle environments.

PRODUCT FEATURES

  • High-Resolution Imaging - 1920×1080 resolution delivers crystal-clear video.
  • Ultra-Wide Viewing Angle - 180° horizontal field of view captures a broad area behind the vehicle.
  • Low-Light Capability - 1/3" Full HD image sensor with 0.2 Lux minimum illumination (F2.0 aperture) ensures visibility in low light.
  • Fast Shutter Speed - Shutter speed range 1/50-60 to 1/15000 seconds.
  • Water Resistance - IP69K-rated for water and dust resistance.
  • Wide Voltage Operation - Powered by DC 6-24V with inverse polarity protection for flexible vehicle compatibility.
  • Energy Efficient - Consumes less than 40mA current for low power usage.
  • Compatibility - Fully compatible with all Elinz K Series AHD Monitors, ensuring seamless plug-and-play connection and optimal video performance.
  • Minimum Illumination: 0.2 Lux / F2.0 aperture
  • Signal System: PAL / NTSC
  • Shutter Speed: 1/50-60 to 1/15000 seconds
  • Connector: Mini 4PIN to Aviation 4PIN
  • Image Switch: Mirror/Normal
  • Guideline: On/Off
  • Operating Temperature: -20°C to 65°C

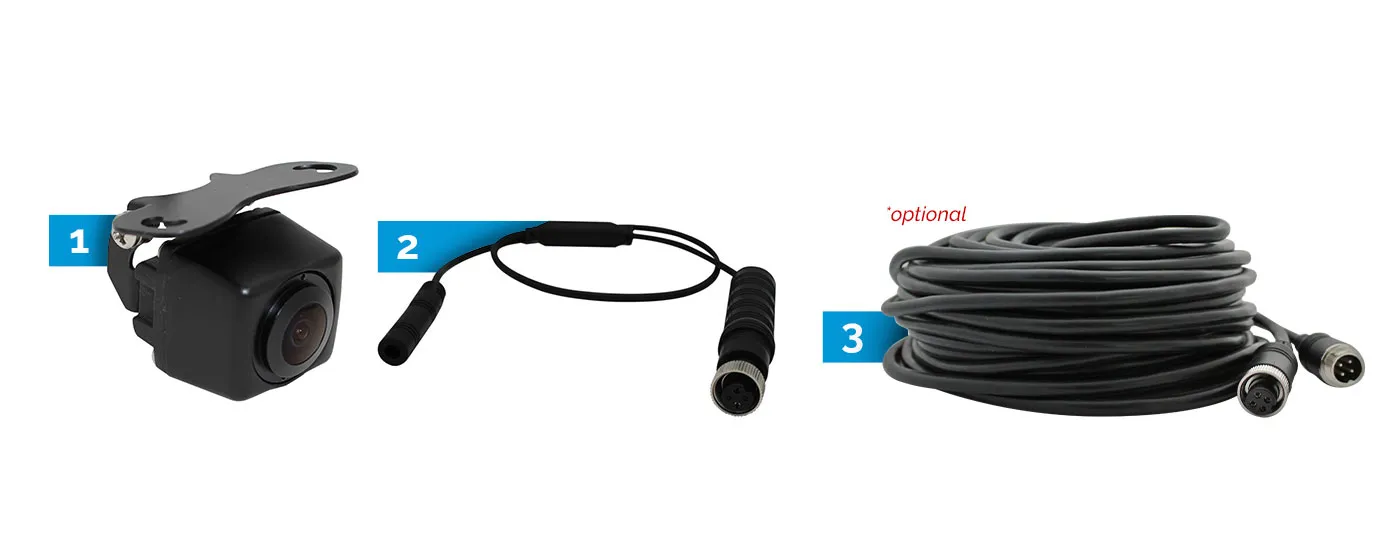

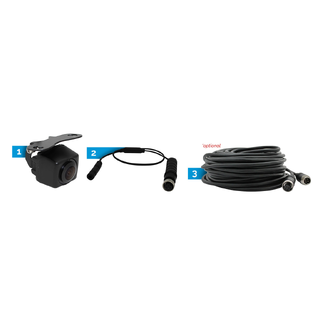

What’s Included

1. 1x Reversing Camera

2. 1x Adapter

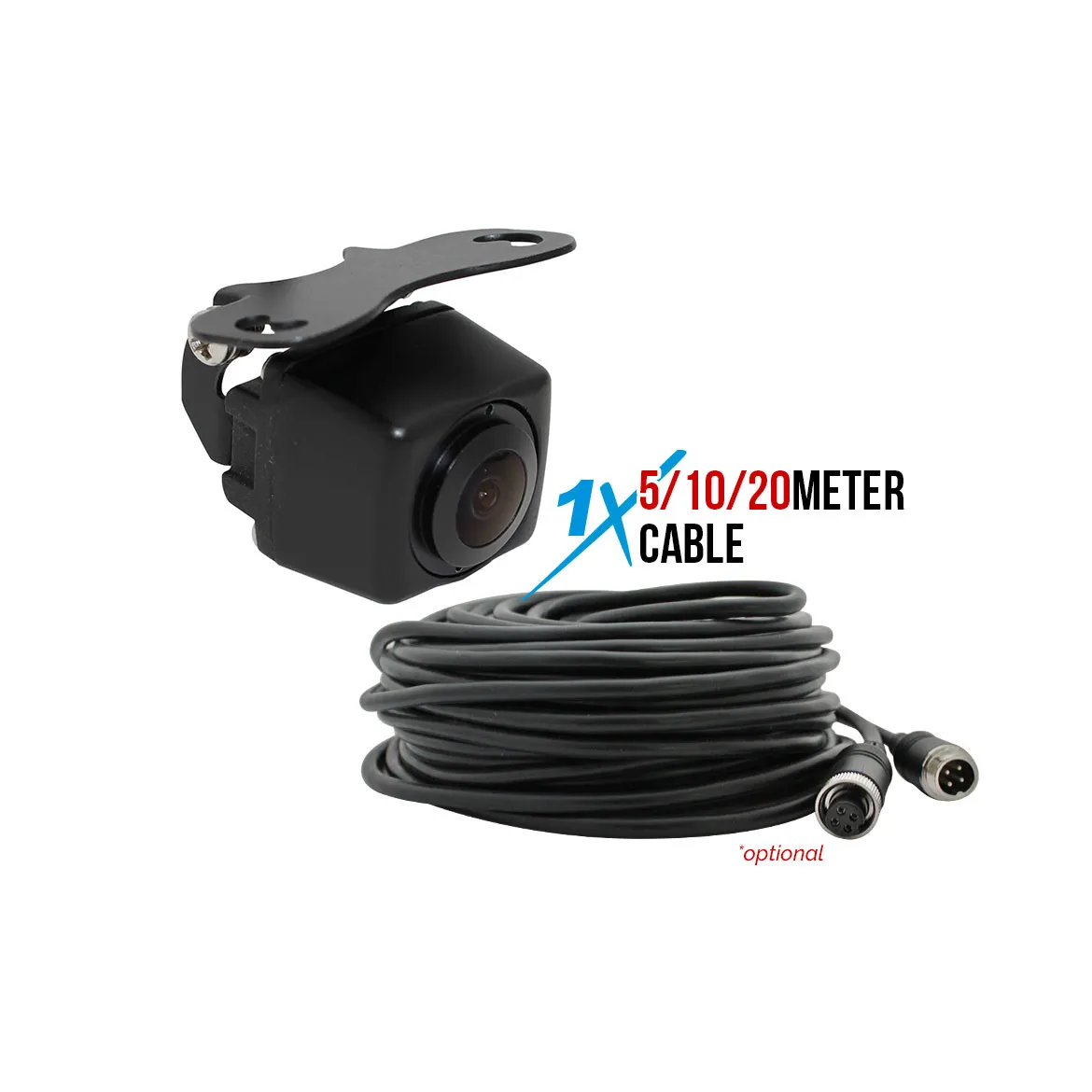

3. 1x 4PIN Cable (Cable length varies from the option selected)
