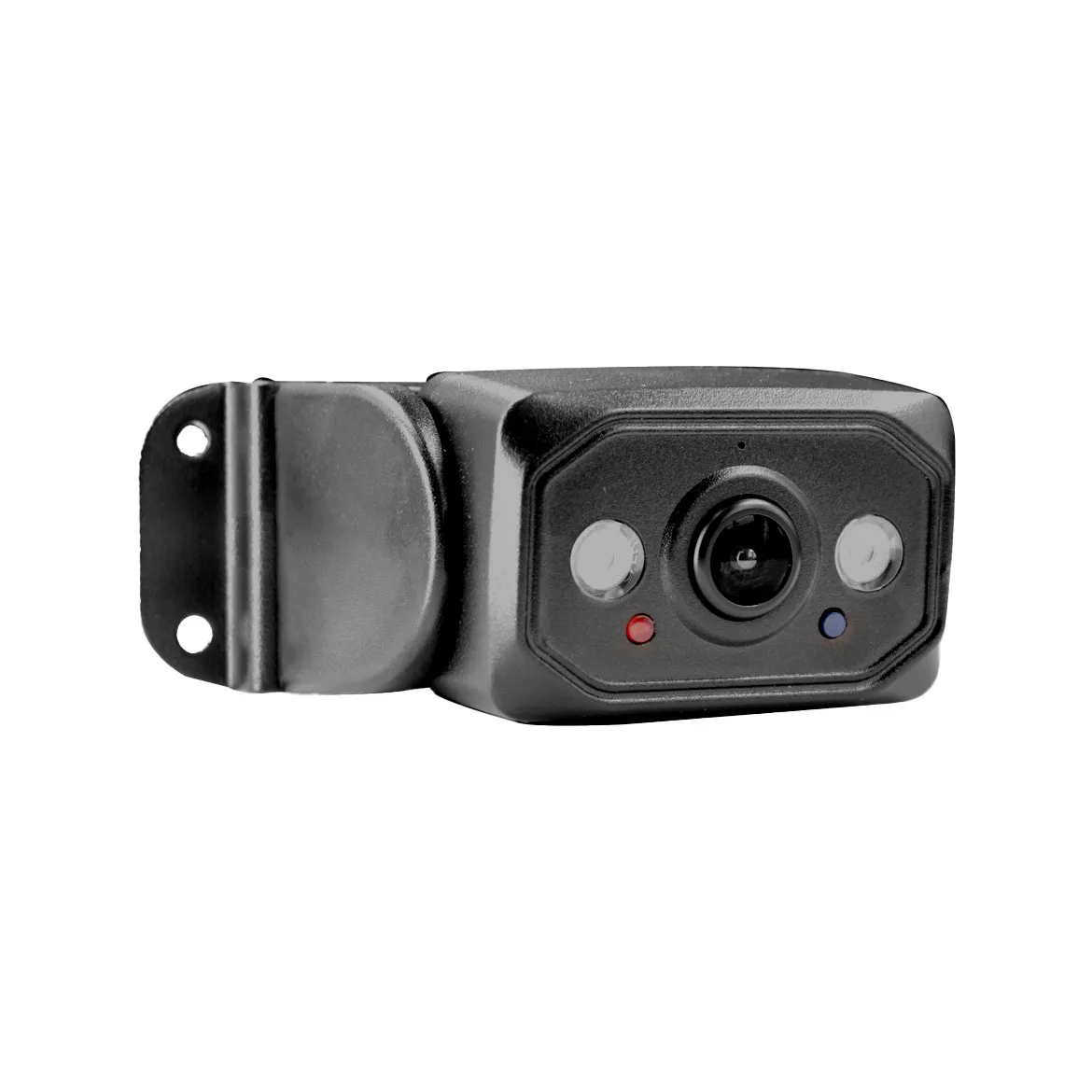

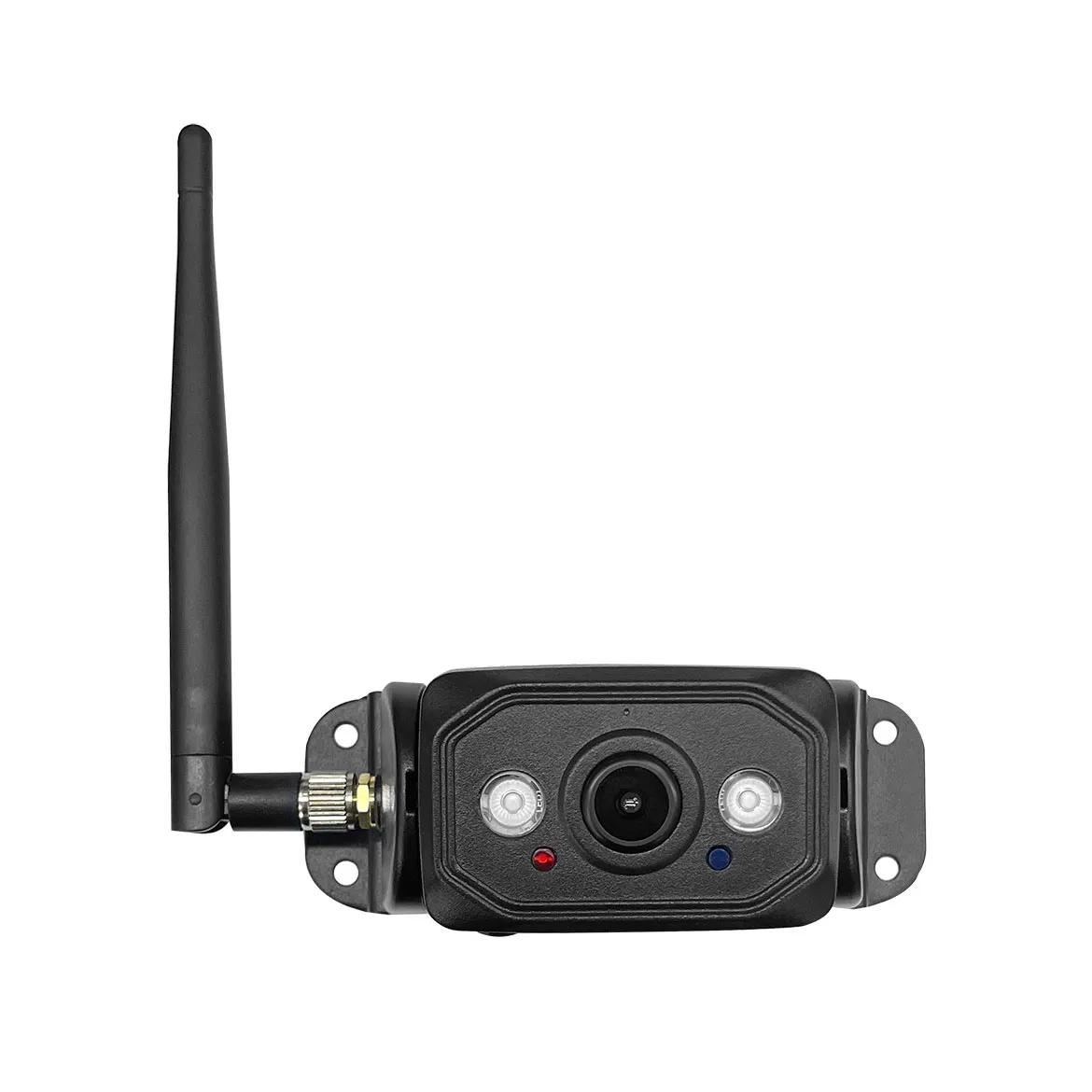

Elinz 1080P Wireless AHD Reversing Camera

UThe Elinz 1080P Wireless AHD Reversing Camera delivers sharp, high-definition visuals with stable wireless performance for safer reversing. Featuring a 130° wide view, CMOS sensor, and enhanced IR night vision, it provides clear and reliable images in all lighting conditions. Built tough with an IP69K waterproof rating and 12V–24V compatibility, it’s ideal for caravans, trailers, and commercial vehicles.

User Manual Download Icon

PRODUCT FEATURES

  • AHD Wireless Camera
    • This new AHD Analog High Definition wireless reversing camera has a higher image resolution than the standard CVBS cameras.
  • 1080P Full HD
    • This camera offers you a more vivid colour and a clearer view of what's behind your vehicle in 1080P High Definition.
  • CMOS Sensor
    • CMOS sensor provides a higher sensitivity to recognize colours that delivers sharper, clearer, and more detailed images in both bright and dark conditions.
  • 130° Field of View
    • Allows you to see activity behind the vehicle while maintaining a natural, undistorted perspective.
  • IR Night Vision
    • The night vision effect is enhanced with 2 pcs. IR LEDs that help you see black and white images at night using infrared technology.
  • Compatibility
    • This Wireless AHD reversing camera is designed for M10DWA, M7DWA, and M5DWA Wireless AHD monitors.
      Note: This is NOT compatible with M9DG, M92CH, M72CH, M7DG, or any other standard resolution monitors using a wireless receiver.
  • IP69K Waterproof Rating
    • Ensures complete dust protection and is capable of withstanding intense, high-pressure water jets.
  • DC 12V–24V
    • Best for caravans, RVs, trailers, and other vehicles with DC 12V–24V battery systems.

ITEM DESCRIPTION

  • Image sensor: 1/2.9" Colour CMOS
  • Resolution: 1920×1080
  • Video Format: AHD
  • View angle: 130° (Horizontal)
  • Wireless Frequency: 2.412–2.4835 GHz
  • Output power: 20dBm ±1dBm
  • Working voltage: DC 12V–24V
  • Waterproof Rating: IP69K
  • Compatible Monitors: M10DWA, M7DWA, M5DWA

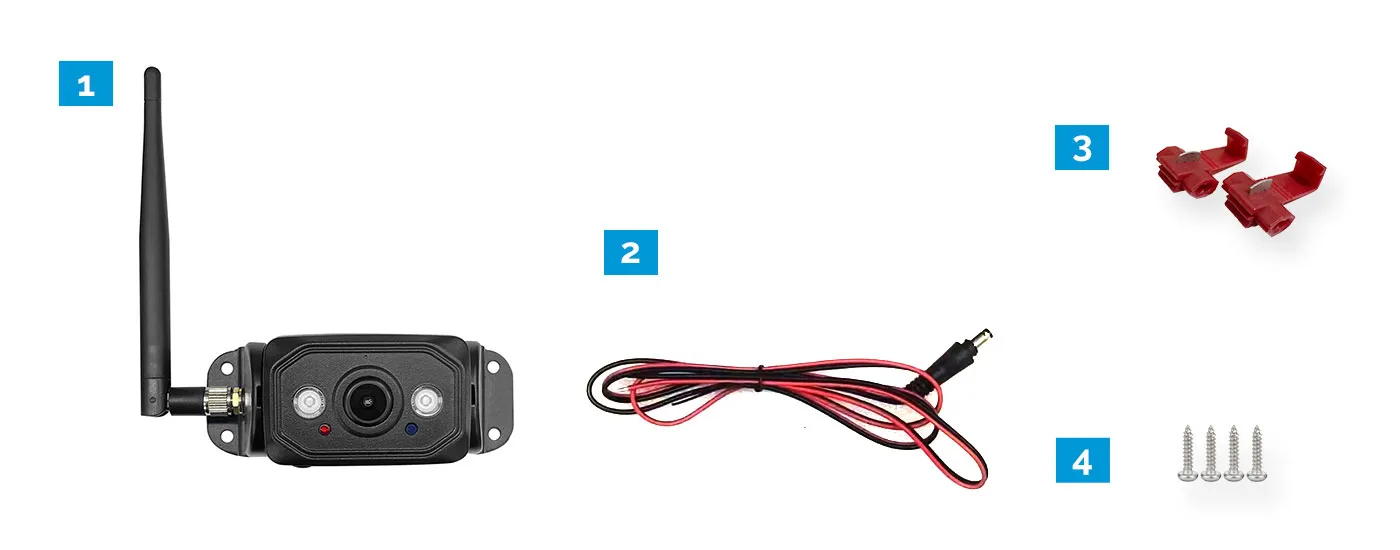

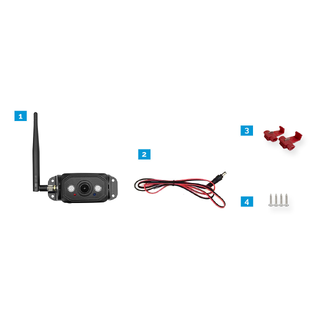

What's Included

1. 1x Camera

2. 1x Power Cable

3. 2x Wire Tap Connectors

4. 4x Screws
