Elinz 7" 1080P AHD Monitor Car 4PIN Reversing Camera DVR 12V 24V Recording Truck Caravan Splitscreen

2 CH Video Input~IP68~Split screen~PIP~Night Vision~Loop

(SKU: M7AHDRV108010M)
AUD $198.00
In Stock


Payment made easy


Share:


Elinz 7" 1080P AHD Monitor Car 4PIN Reversing Camera DVR 12V 24V Recording Truck Caravan Splitscreen

SKU: M7AHDRV108010M

7 inches 1080P HD AHD reversing Camera Monitor Kit

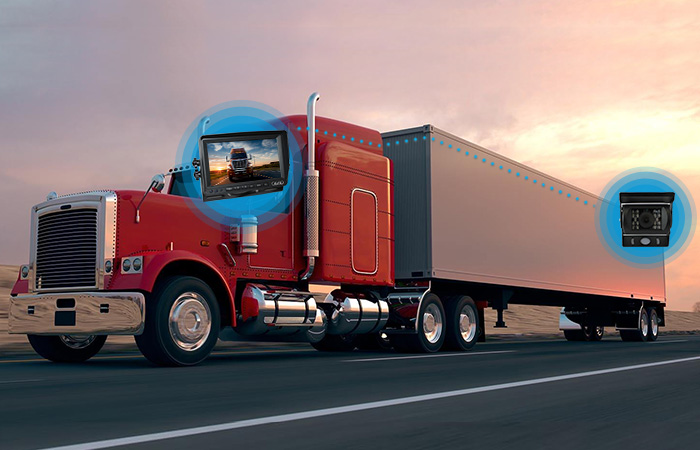

AHD Technology Reverse Camera Kit

AHD Technology

  • AHD (Analog High Definition) addresses the primary issues that remain unresolved when it comes to the HD camera types. It utilises a 4-pin cable in order to transmit the HD quality video from an AHD Camera to an AHD monitor with a much better non-distorted and anti-interference transferring of signal for bigger or larger vehicles such as trailers, buses, trucks, campers and RVs, among others. This kind of technology supports various video resolutions.
7 inches 1080P HD Monitor

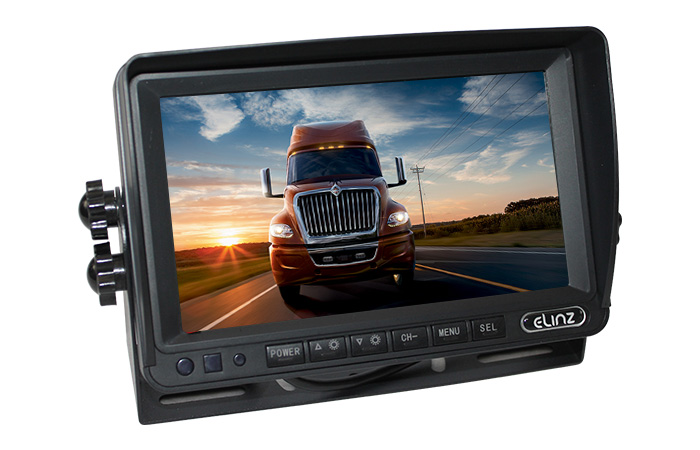

7" 1080P HD Monitor

  • The 7" AHD Monitor is features-filled. Its screen has a size enough for one to see very clearly, images and videos. This monitor offers 1920*1080 high resolution screen, that promotes more convenient viewing experience. The best thing about it is that, it typically produces a digital high resolution picture. This then means whatever is captured or recorded can be seen or viewed crystal clear.
Built-in DVR

Built-in DVR

  • With DVR feature this monitor can record up to 2 camera at the same time and loop recording. It supports up to 128GB SD card and loop recording function to overwrite the oldest recording with he new ones.
Reversing Camera Guideline

Reversing Guideline

  • This system has on-screen reverse guidelines which can be turned ON/OFF.
Camera Monitor Kit Record Video and Audio

Record Video and Audio

  • This monitor can record video and audio if you want to use camera with microphone.
  • AHD Camera included in this kit does not have microphone.

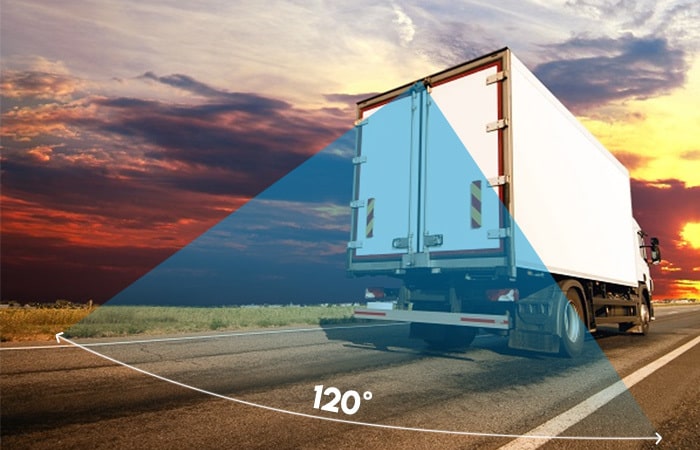

120 Degree Wide Angle Viewing Camera

120 Degree Wide Angle Viewing

  • With 120 degree 6-layered all-glass lens this device allows any driver to clearly see wide angle view without any distortion unlike other products with much wider view that makes the videos fairly unusable.

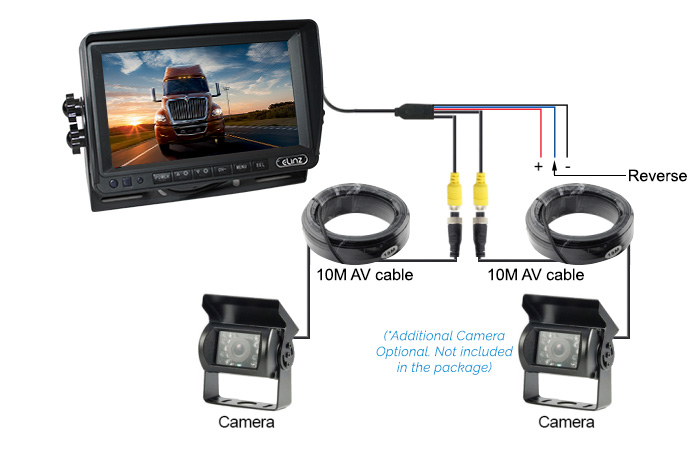

2 CH High Definition Video Input Monitor

2 CH High Definition Video Input

  • This product features 2 Channel High Definition Video Input. Meaning, it can support up to two AHD cameras
Split Screen and Picture-in-picture (PiP) Display

Split Screen and Picture-in-picture (PiP) Display

  • With split-screen functionality this provides you maximum awareness of your surroundings making your driving 100% safe as can view 2 cameras at once. You can also set video in a small window pinned to a corner of the screen.
Heavy-duty AHD Camera

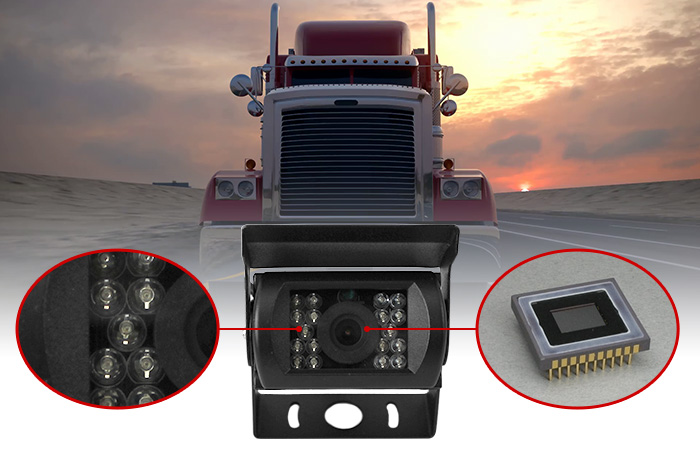

Heavy-Duty AHD Camera

  • This heavy-duty AHD camera has CCD Sensor and equipped with 18 pieces of Infrared (IR) LED lights to provide excellent night vision.
  • IP68 grade waterproof so never worry about water inside the camera and functions in all Australian weather conditions.

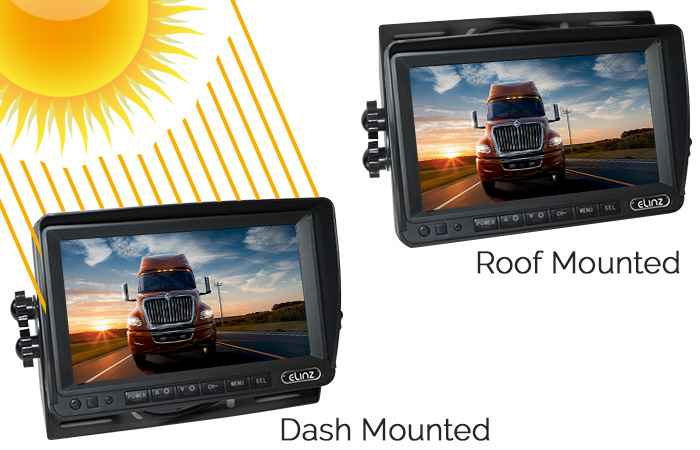

U Shape Bracket for Monitor

U Shape Bracket

  • U Shape bracket allows you to tilt or rotate the monitor on the desired position to have a better view of the displayed image.
  • It allows monitor to be mounted on the dash or roof of truck/caravan/car or anywhere that you find suitable.
Detachable Sunshade Design

Detachable Sunshade Design

  • With a detachable sunshade or sun visor to keep the sun off the monitor and avoid sun light to glare on the image or video display. It gives you a clearer vision on the monitor during daytime. You can easily detach the sunshade if desired.
Reversing Camera Monitor Kit Compatible to all 12V-36V Vehicles

Compatible to all 12V-36V Vehicles

  • Compatible to all 12V-36V vehicles like buses, cars, Utes, trucks, and other heavy vehicles
7 inches 1080P HD AHD Monitor 4PIN Reversing Camera Views

Monitor Views

7 inches 1080P HD AHD Monitor 4PIN Reversing Camera Dimensions

Camera Views

Camera, Monitor and Remote labels

Monitor Labels

Camera, Monitor and Remote labels

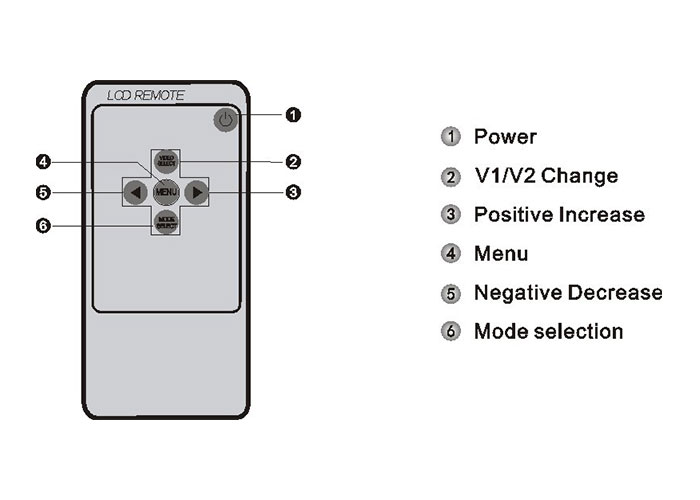

Remote Labels

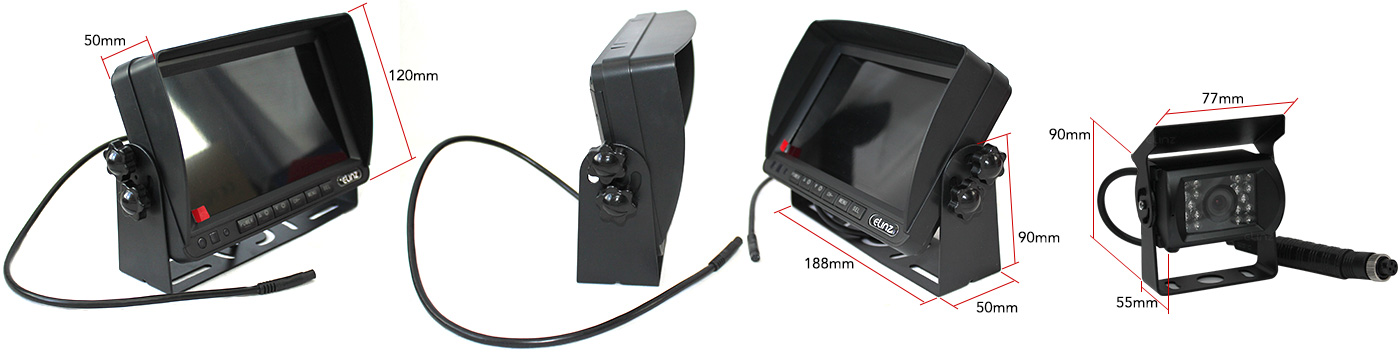

7 inches 1080P HD AHD Monitor 4PIN Reversing Camera Dimensions

Product Dimensions



MORE INFORMATION

7" 1080P HD AHD Monitor Car CCD 4PIN Reversing Camera DVR 12V 24V Recording Truck Caravan Splitscreen

Safety and security not just for drivers but also for pedestrians and people around, that is what a reversing camera monitor kit can provide you. Introducing the NEW 7” AHD monitor that uses 4PIN cable to transmit HD video from AHD camera to a AHD monitor with anti-interference and non-distorted images.

A reverse camera system can help you reduce blind spots and have a safer driving. You can conveniently install the monitor with the U-shape bracket aside from that it comes with a detachable sunshade design.

There’s more that makes this on top in the market, with 120 degree wide viewing angle, CCD sensor that provides a perfect view even day and night and IP68 waterproof & shockproof. With 2 channel video input, you can add up another AHD camera.

Analog High Definition(AHD) crystal clear screen that can provide more vivid, sharper and brighter display. The advanced algorithms detect even the subtlest shades providing the best vibrant color possible. This AHD Monitor kit and camera system supports 1080P HD video resolutions. AHD Camera features CCD Sensor with 18pcs IR LED lights providing a perfect view when the light is low or even on darkest night (black and white) to guarantee safe driving.

With DVR recording, it supports up to 128GB SD card (SD card not included) and automatically saves video recordings. With DVR you can be sure that all of your recordings are automatically saved for playbacks later on. Reversing camera system aims to give you a better view when driving and provides a safer driving experience.

PRODUCT HIGHLIGHTS

  • AHD Technology
    • AHD (Analog High Definition) addresses the primary issues that remain unresolved when it comes to the HD camera types. It utilises a 4-pin cable in order to transmit the HD quality video from an AHD Camera to an AHD monitor with a much better non-distorted and anti-interference transferring of signal for bigger or larger vehicles such as trailers, buses, trucks, campers and RVs, among others. This kind of technology supports various video resolutions.
  • 7" 1080P HD Monitor
    • The 7" AHD Monitor is features-filled. Its screen has a size enough for one to see very clearly, images and videos. This monitor offers 1920*1080 high resolution screen, that promotes more convenient viewing experience. The best thing about it is that, it typically produces a digital high resolution picture. This then means whatever is captured or recorded can be seen or viewed crystal clear.
  • Built-in DVR
    • With DVR feature this monitor can record up to 2 camera at the same time and loop recording. It supports up to 128GB SD card and loop recording function to overwrite the oldest recording with he new ones.
  • Reversing Guideline
    • This system has on-screen reverse guidelines which can be turned ON/OFF.
  • Record Video and Audio
    • This monitor can record video and audio if you want to use camera with microphone.
    • AHD Camera included in this kit does not have microphone.
  • 120 Degree Wide Angle Viewing
    • With 120 degree 6-layered all-glass lens this device allows any driver to clearly see wide angle view without any distortion unlike other products with much wider view that makes the videos fairly unusable.
  • 2 CH High Definition Video Input
    • This product features 2 Channel High Definition Video Input. Meaning, it can support up to two AHD cameras
  • Split Screen and Picture-in-picture (PiP) Display
    • With split-screen functionality this provides you maximum awareness of your surroundings making your driving 100% safe as can view 2 cameras at once. You can also set video in a small window pinned to a corner of the screen.
  • Heavy-Duty AHD Camera
    • This heavy-duty AHD camera has CCD Sensor and equipped with 18 pieces of Infrared (IR) LED lights to provide excellent night vision.
    • IP68 grade waterproof so never worry about water inside the camera and functions in all Australian weather conditions.
  • U Shape Bracket
    • U Shape bracket allows you to tilt or rotate the monitor on the desired position to have a better view of the displayed image.
    • It allows monitor to be mounted on the dash or roof of truck/caravan/car or anywhere that you find suitable.
  • Detachable Sunshade Design
    • With a detachable sunshade or sun visor to keep the sun off the monitor and avoid sun light to glare on the image or video display. It gives you a clearer vision on the monitor during daytime. You can easily detach the sunshade if desired.
  • Compatible to all 12V-36V Vehicles
    • Compatible to all 12V-36V vehicles like buses, cars, Utes, trucks, and other heavy vehicles

ITEM DESCRIPTION

  • AHD Monitor Specification
    • LCD Dimensions: 7"
    • System Language: Chinese, English
    • Video Compression Format: H.264
    • OSD: Support time and date, channel characters, split borders
    • Video input: 2 channels of 1080P, 960P, 720P, 960H AHD or any CVBS video inputs;
    • Compatible with CVBS and AHD signal mixing inputs;
    • Compatible with PAL and NTSC mixed input;
    • Resolution: NTSC/PAL 1280(H)*720(V) 130W
    • Video resolution: NTSC/PAL 1280(H)*720(V) 130W
    • Video quality: Ultra-clear
    • Video mode: Boot automatic recording
    • Storage card: Support 128G memory card, full disk automatic deletion, loop record
    • Video playback
    • Video search: 1 Channel , 2 Channel
    • Playback: Single Channel Playback
    • Power management:Adaptive wide-format power input with protection functions such as low voltage, over voltage, and reverse short circuit;
    • Input voltage: DC: +12V ~ +36V (with camera operation requires input voltage of 13V or more)
    • Output voltage: +12V
    • Power consumption: Normal working status <5W (without display and camera)
    • Working Temperature: -30℃ ~ +70℃
    • Humidity: 20% ~ 80%
  • AHD Camera Specification
    • Image sensor: 1/3" 1.3MP CCD Sensor
    • Effective Pixel: NTSC/PAL 1290(H)*720(V)
    • Illuminance: 0.1 Lux, Infrared night vision
    • CDS Night Vision: Change to black and white image automatically in the night
    • Resolution: 1/3Megapixel/720P
    • Image: Mirror image
    • System: PAL/NTSC
    • Waterproof Rating: IP68
    • Power Requirements: DC 12V-24V

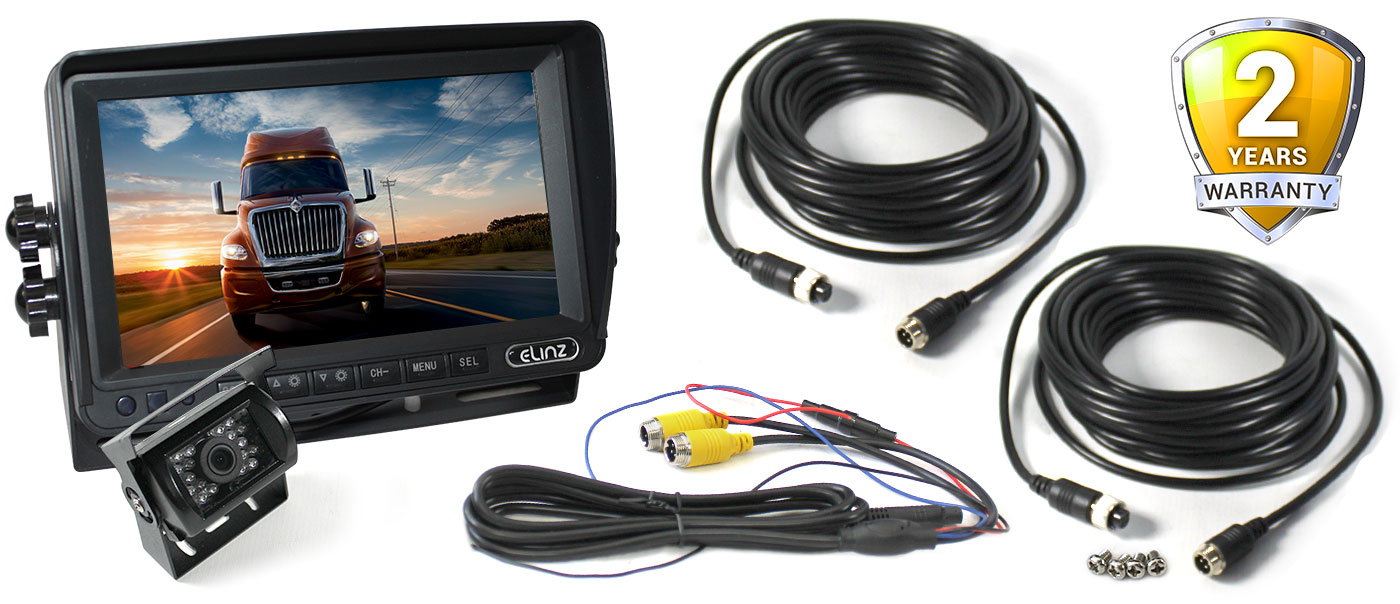

WHAT'S INCLUDED

1. 1x 7 inches AHD Monitor w/ U Shape Bracket

2. 1x Removable Sunshade

3. 1x AHD CCD Camera

4. 1x Remote Control

5. 1x Power Cord

6. 2x 4PIN 10M Cable

7. 4x Screws

7 inches 1080P HD AHD Monitor, reversing Camera, cables, Remote Control
