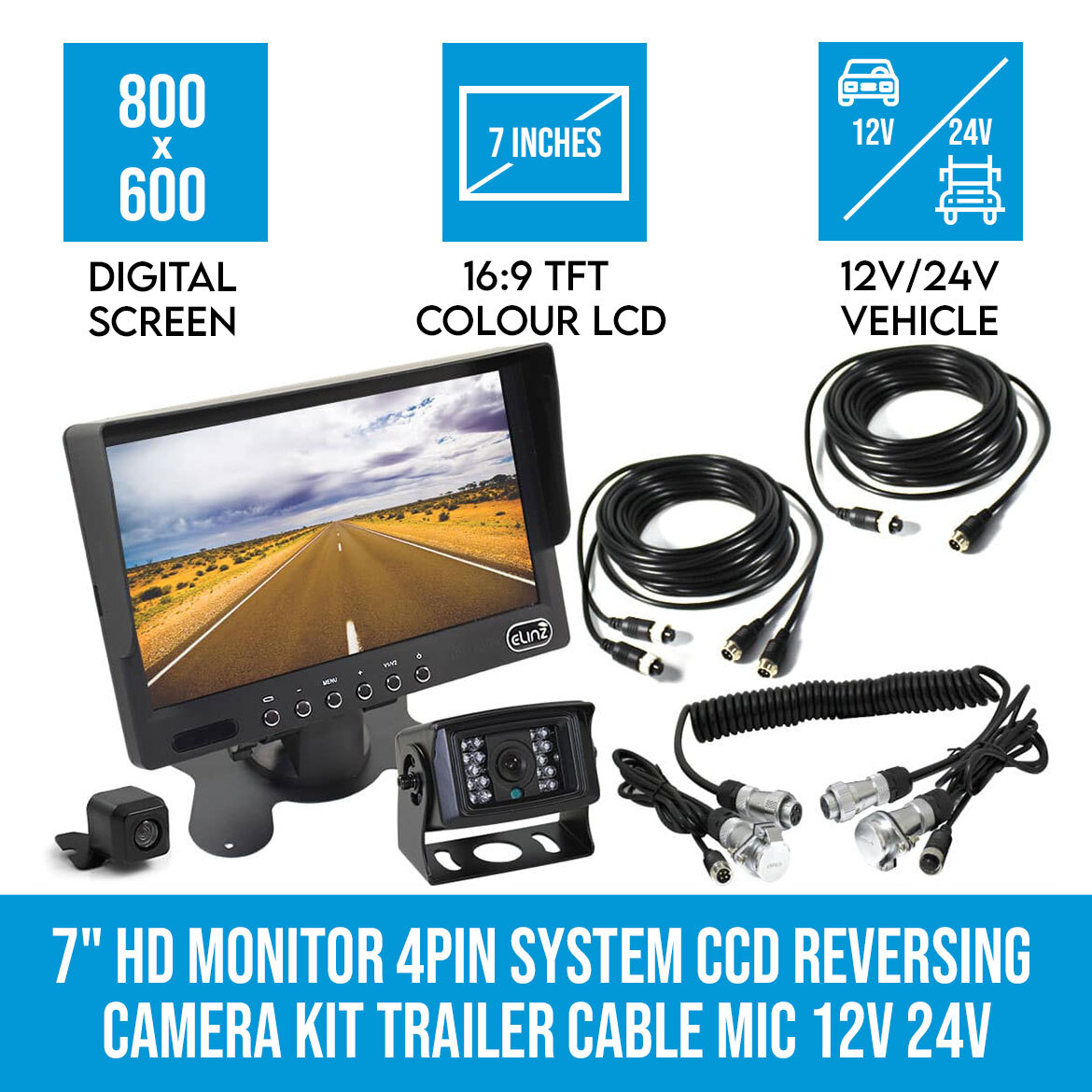

Elinz 7" HD Monitor 4PIN System CCD Reversing Camera Kit Trailer Cable MIC 12V 24V

Premium Package Trailer 4PIN Monitor can PowerUp Camera

From AUD $289.95
Elinz 7" HD Monitor 4PIN System CCD Reversing Camera Kit Trailer Cable MIC BLACK
Elinz 7" HD Monitor 4PIN System CCD Reversing Camera Kit Trailer Cable MIC BLACK
AUD $289.95
In stock
Elinz 7" HD Monitor 4PIN System CCD Reversing Camera Kit Trailer Cable MIC WHITE
Elinz 7" HD Monitor 4PIN System CCD Reversing Camera Kit Trailer Cable MIC WHITE
AUD $289.95
In stock

Payment made easy


Elinz 7" HD Monitor 4PIN System CCD Reversing Camera Kit Trailer Cable MIC 12V 24V


7 inch HD Monitor Reversing Camera Trailer Cable

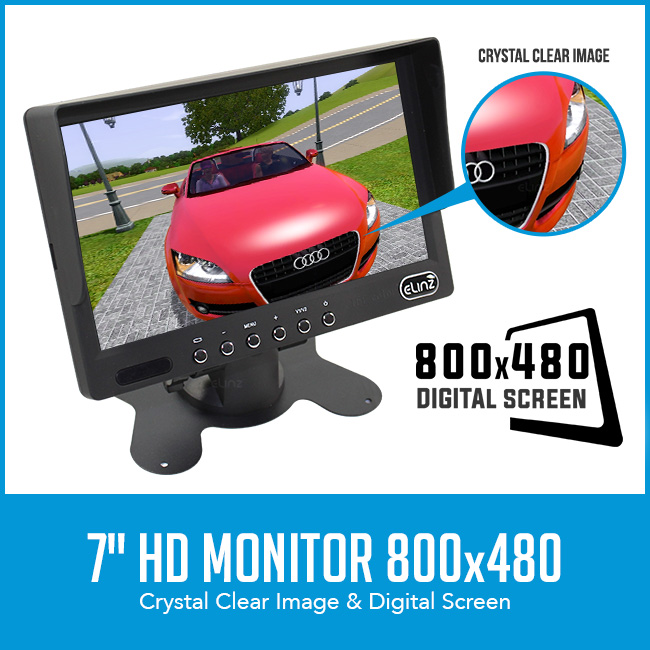

7 inch HD Monitor 800x480 Digital Screen

7" HD Monitor 800x480

  • Crystal Clear Image & Digital Screen
https://www.elinz.com.au/assets/images Can Be Rotated HD Monitor

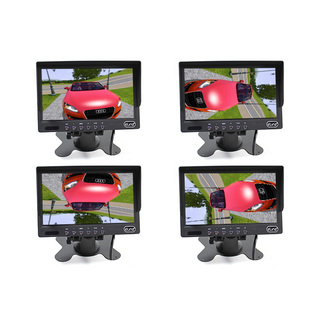

Images Can Be Rotated

  • Up, Down and Left , Right.
Built-in MIC Reversing Camera

Built-in MIC

  • Easy communication with the driver and the person behind the vehicle.
Suitable for 12V & 24V Vehicles

Suitable for 12V & 24V Vehicles

4PIN ccd Reverse Cam with MIC

4PIN ccd Reverse Cam with MIC

  • CCD Image Sensor by Sharp Company & 120° Wide View Angle.

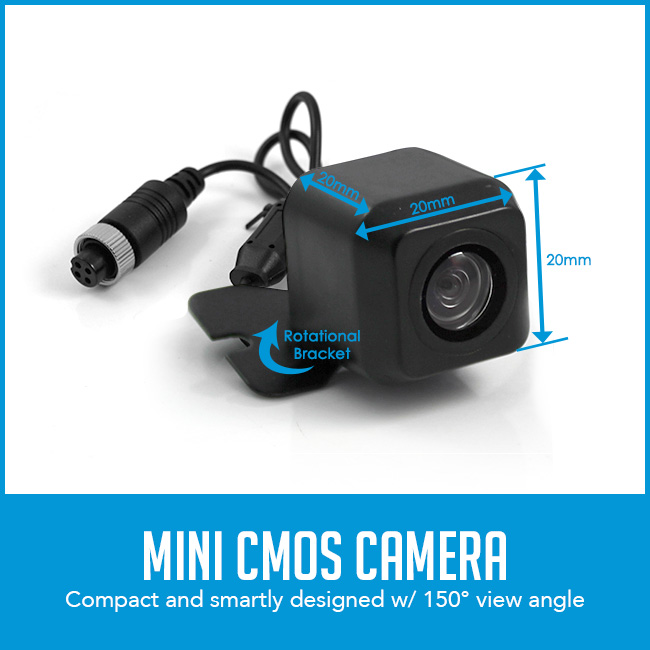

Mini CMOS Camera

Mini CMOS Camera

  • Compact and smartly designed w/ 150° view angle.

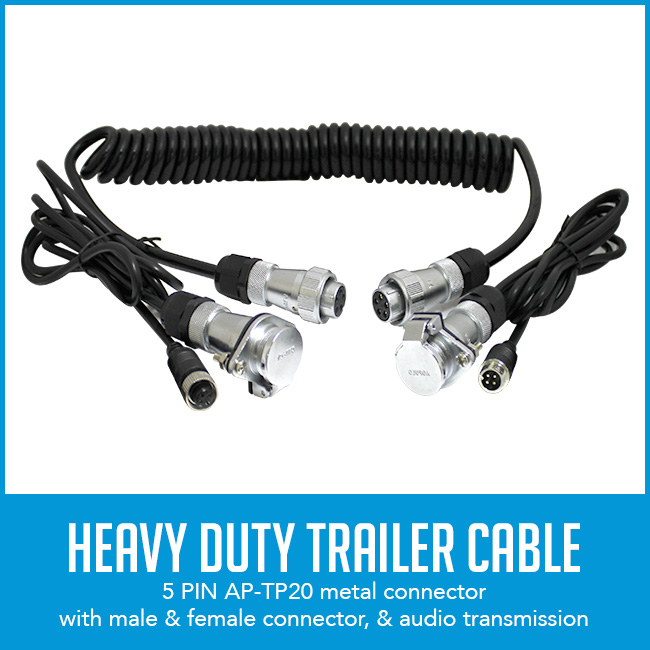

Heavy Duty Trailer Cable

Heavy Duty Trailer Cable

  • 5 PIN AP-TP20 metal connector with male & female connector, & audio transmission.

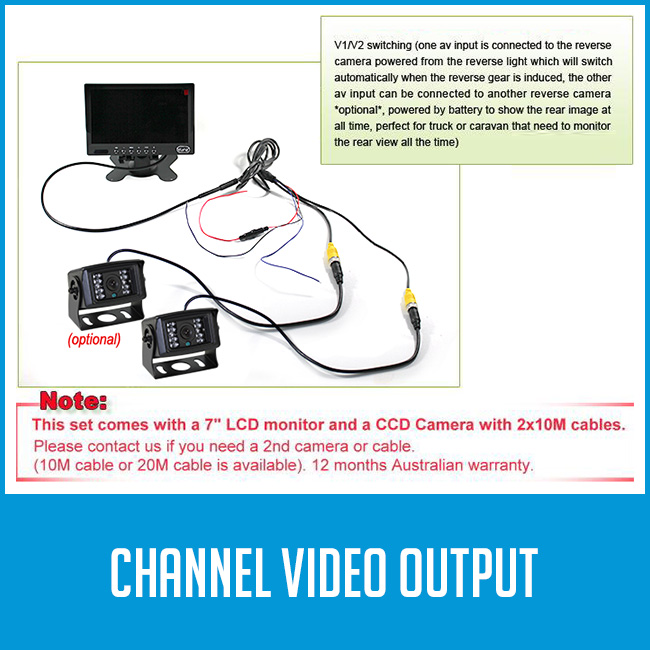

7 inch HD Monitor Channel Video Output

Channel Video Output

7 inch HD Monitor Installation Diagram

Installation Diagram

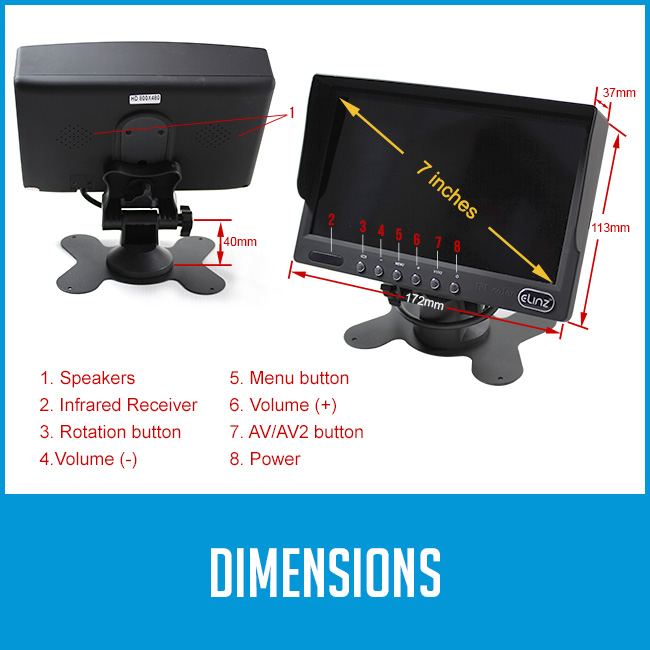

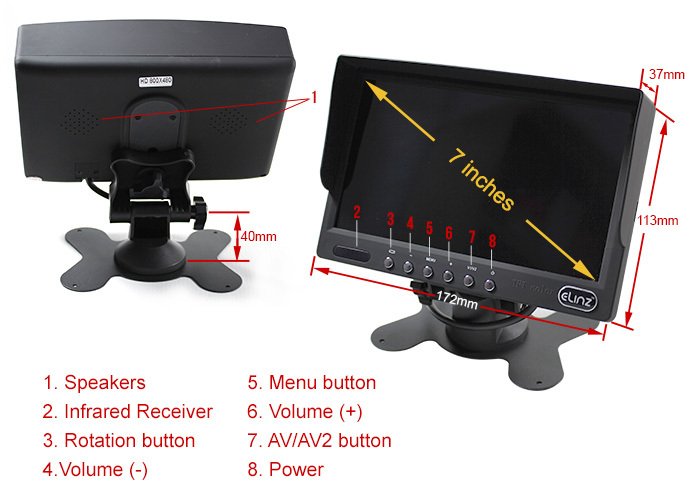

7 inch HD Monitor Product Dimensions

Product Dimensions

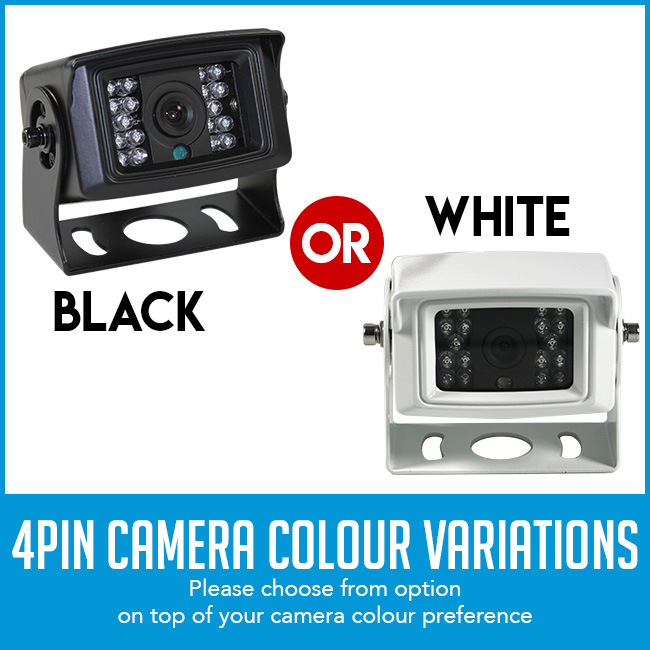

4PIN Camera Colour Variations

4PIN Camera Colour Variations

  • Please choose from option on top of your camera colour preference.


A smart way to add safety and convenience in driving specially on larger vehicles like trucks trailers and Caravans is installing a remarkable reversing camera system. It doesn't just make you safe but it also help you avoid accidents concerning others and helps you save money.

This reversing camera kit comes with 2 cameras, the 1st camera is a 4PIN camera with 120° view angle, CCD image sensor made by Sharp Company and with built-in MIC. The 2nd camera is a CMOS reversing camera with 150° view angle.

Not just that, it comes with trailer cable that can help you hitching your caravan easily with this heavy duty permanent fitting connector.

This will be very useful for large vehicle drivers so better install one now and drive confidently.



  • 7" 16:9 TFT Colour LCD
    • 800*480 Digital screen, Crystal clear image
    • Sunshade design
    • 16:9/4:3 switch freely
    • Contrast, Colour, Brightness adjustable
  • Two way video inputs - Two video inputs, reversing first Connect 2 cameras to the monitor(2nd camera - optional). You can view one camera while driving and the 2nd camera will turn on automatically when reversing .
  • One way audio input
  • Built-in Speaker
  • Can connect to DVD/MP4/Camera etc
  • 2x 10m advanced 4PIN cables - it allows the monitor to power up cameras, no need to connect to another power cable.
  • Easy to install. You can D.I.Y. as long as you can locate your vehicle's 12V/24V power source.

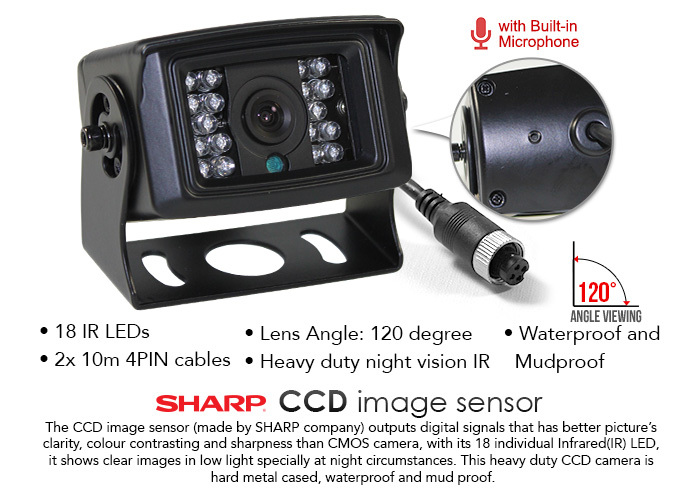

4PIN Camera

  • 120 degree Wide angle viewing helps avoid accidents & injuries
  • System: PAL:752(H)*582(V) and NTSC:768(H)*494(V)
  • Camera with built-in MIC
  • Colour infrared night vision waterproof CCD reverse camera
  • Heavy duty CCD crystal clear 12/24-volt applicable reverse camera
  • Clear view day or night - The CCD image sensor (made by SHARP company) outputs digital signals that has better picture's clarity color contrasting and sharpness
  • This heavy duty CCD camera is hard metal cased waterproof and mud proof
  • Can last for longer without heating up so you can show the rearview at all time

CMOS, PAL Colour reversing camera

  • 150 degree wide angle, Sharp lens
  • 12V / 24V
  • Water-proof & protection against dust
  • Automatic while balance, AGC and BLC
  • Video supply : 1.0VP-0.75 ohm

Heavy Duty Trailer Cable Coil and 4PIN Connectors

  • 5 PIN AP-TP20 metal connector with male and female connector
  • Waterproof function
  • 4 PIN metal connector for CCD Camera
  • Length selectable
  • With elasticity length from 2000mm to 4000mm
  • Very tight connection durable and reliable
  • Connecting and disconnecting when hitching your caravan is easy with this heavy duty permanent fitting connector
  • Cast alloy connector can be mounted adjacent on same bracket

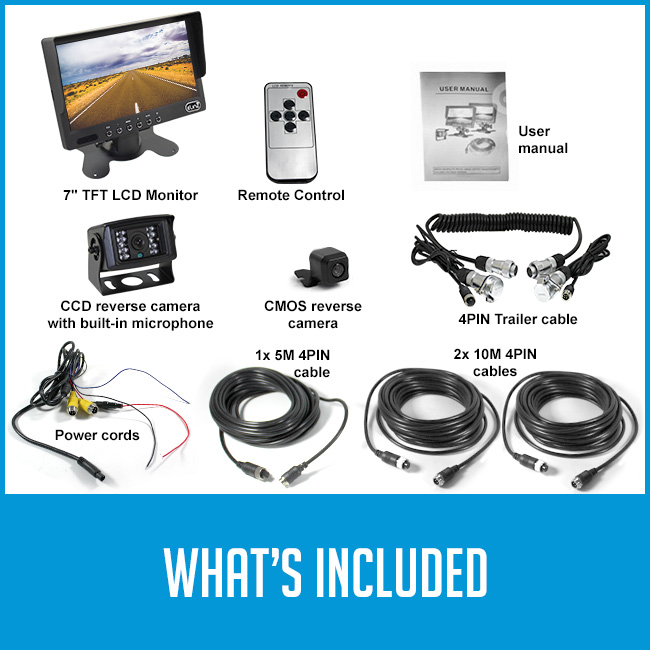

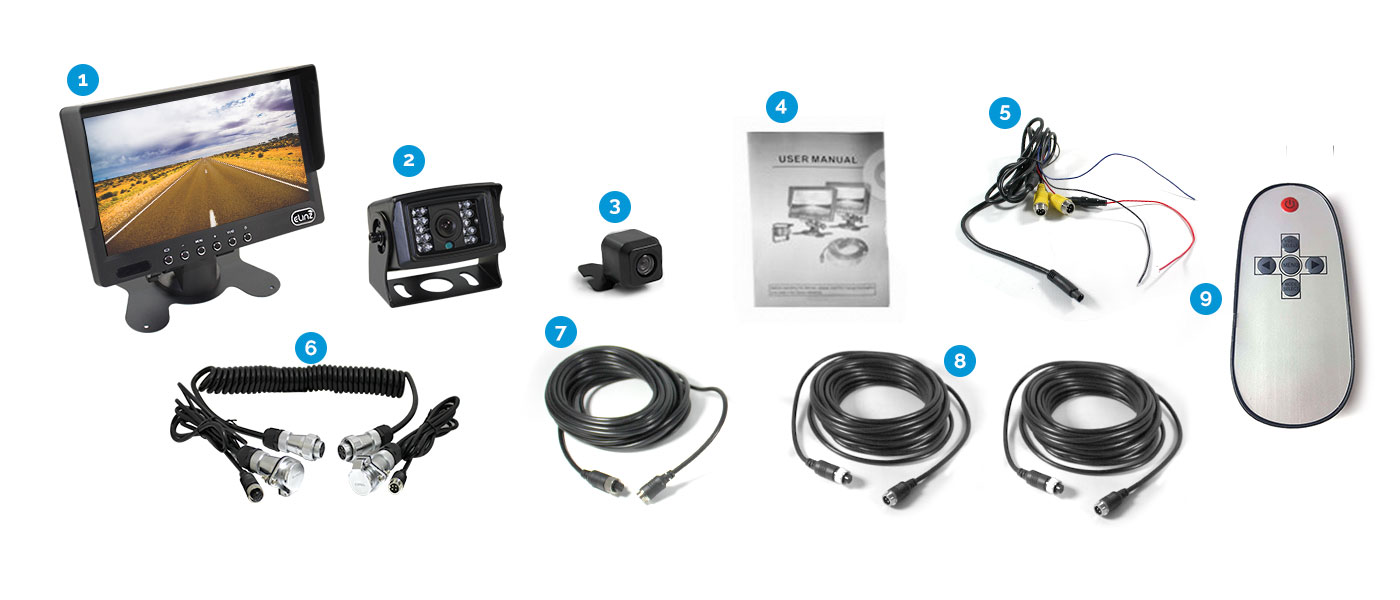

1. 1x 7" TFT LCD Monitor

2. 1x CCD reverse camera with built-in microphone

3. 1x CMOS reverse camera

4. 1x User Manual

5. 1x Power cords

6. 1x 4PIN Trailer cable

7. 1x 5M 4PIN cable

8. 2x 10M 4PIN cables

7 inch HD Monitor whats included

Frequently Asked Questions

No FAQs Available

Troubleshooting Guides

No Troubleshooting Guides Available

*Product on the video may differ from the actual product. Video is displayed to show the importance and use of the product.

Average Customer Rating For Elinz 7" HD Monitor 4PIN System CCD Reversing Camera Kit Trailer Cable MIC 12V 24V:
Rating: 5

Click here to write a product review!

Great Product

By: on 25 December 2020

I bought this for my son for Christmas and managed to fit it into my sons Subaru in the dash and looks factory fitted and install the other camera to the back of the camper trailer, Got all this done in 2 days without him knowing and he is absolutely thrilled with the quality and the fitment. We are going to purchase more of these kits for myself and friends. Great product and good quality.

Rating: 5 out of 5 stars
