Elinz 7" Monitor HD 12V 24V CCD 4PIN CCD 3 AV Inputs 600TVL Eyeball Reversing Camera Mini CMOS Trailer Cable Truck Caravan

SKU: GEAR7ERV4PIN80010-CARAVAN

7" Digital Screen w/ Sun Visor

  • High definition 800x480 with Sunshade design to avoid sun glare

CCD Image Sensor

  • Capture clear audio and sharp image or video footage with 120° wide view angle

3x10M Advanced 4 PIN Cables

  • Allows the monitor to power up the camerasno need to connect another power cable

New Upgraded Model

  • 600TVL camera that provide high quality and clear images

3 AV Inputs

  • Can be connected up to 3 reversing cameras

IR Night Vision Camera

  • It comes with 18 IR LEDS to provide better night vision 120 degree wide field if view CCD camera
Adjustable Mounting Bracket

Heavy Duty 600TVL 4PIN Eyeball Reversing Camera

  • Powerful 12 LEDs for night vision.
  • Colour: White
  • 120 degree wide vide angle
  • Clear view day or night
  • Colour infrared night vision waterproof CCD reverse camera
Suitable for 12V and 24V

Mini CMOS 4PIN Camera

  • 150 degreee wide angle view
  • Small colour mini camera which can be mounted easily on vehicle's bumper
Suitable for 12V and 24V

Advanced 4 PIN Cable

  • Allows the monitor to power up cameras. No need to connect another power cable.
  • It comes with 2x 5 meters and 3x 10 meters 4PIN connecting cable.
Adjustable Mounting Bracket

Caravan Car Reversing Camera Connection

Adjustable Mounting Bracket

Heavy Duty Trailer Cable & Connectors

  • 5PIN AP-TP20 metal connector with male and female connector
  • Waterproof function
  • 4PIN metal connector for CCD camera
  • With elasticity length from 2000mm to 4000mm
  • Very tight connection, durable and reliable

For Buses, Trucks Heavy Vehicles

  • Reduce blind spots for larger vehicles and added safety

Built-in Light Sensor

  • The monitor will dim itself automatically at night to avoid glare

4 Angle Viewing Switch

Removable Sun Visor

Rotational Bracket

Built-in Loud Speakers

Monitor Parts & Labels

Wiring Labels

Product Dimensions

Remote

  • * No Batteries included


MORE INFORMATION

This 7” colour TFT monitor uses a high-definition colour LCD panel that offers almost four times more pixels than the other standard 7” screens. It has 3 AV inputs, 2 of which are sound enabled, which means that you can hook up the monitor to a DVD player, MP4 player, etc., to play video or hook it up to a reverse camera with microphone for better security.

It uses standard 4PIN connectors to connect to the cameras, which will provide power to each attached camera. Trigger wires with adjustable time delays on the inputs enable indicators to trigger an AV channel.

This 7” monitor reverse camera kit is suitable for 12V or 24V vehicles. It has voltage overload protection and reverse polarity protection to ensure the monitor and cameras are not damaged by fitting errors. It is mounted by a substantial U-bracket and sunshade to keep the sun off the monitor.

It has a stylish touch button control on the front panel of the monitor. It has a built-in light sensor with automatic adjustment, the monitor will dim itself automatically at night to avoid glare.

PRODUCT HIGHLIGHTS

  • High definition 800x480
    • Pixels screen (2400Hx480V). Beware of other sellers claiming to sell 1440Hx234V screens. 1440Hx234V = 480x234 pixels = lower resolution screen.
  • Built in fusebox (No more messy box dangling on the dash)
  • 3 AV inputs
    • Can be connected up to 3 reversing cameras
  • Light sensor automatic adjustment
    • Monitor will dim itself automatically at night no more manual adjustment when the screen gets too bright at night
  • Rotational bracket- Allow monitor to be mount on the dash roof of truck/caravan/car or anywhere that you find suitable
  • Monitor with 4 Angle viewing Switch
    • Image can be adjusted for horizontal vertical mirror and normal viewing
  • This monitor reverse camera kit can be used with truck/caravan/bus/car
  • 16:9/ 4:3 switch freely
  • Heavy duty night vision IR CCD Reversing camera
  • 3x10M advanced 4 PIN cables
    • Allows the monitor to power up the cameras no need to connect another power cable to camera (connect and disconnect the cables between your caravan/trailer easily)
  • Built-in loud speaker with AV-IN
  • 3 ways video input and 2 ways audio input
  • Show rearview automatically when the reverse gear is engaged
  • Easy to install- You can DIY as long as you can locate your vehicle's 12V/24V power source
  • Industrial grade CCD camera
    • High resolution wide field of view camera with in-built infrared LED night vision capability. Camera sun shade and base are constructed from a metal alloy shell to withstand vehicle shock and vibration
  • Heavy duty CCD camera
    • Made to be powered on at all times ideal for viewing the rear image while in forward drive
    • 600TVL Camera to show clear and sharp images
    • 120 degree wide angle view
    • IP67 waterproof withstands tough conditions (eg. bush travel)
    • CCD image sensor (made by Sharp Company) – outputs digital signals that has better picture clarity, colour contrasting and sharpness.
    • With 18 individual Infrared(IR) LED - it shows clear images in low light especially at night circumstances
    • Hard metal cased waterproof and mudproof
    • We are so confident with our reversing camera that we will provide 12 months replacement warranty if the reversing camera becomes faulty within the 12 months period
  • Heavy Duty 600TVL 4PIN Eyeball Reversing Camera
    • Powerful 12 LEDs for night vision.
    • Colour: White
    • 120-degree wide video angle
    • Clear view day or night
    • Colour infrared night vision waterproof CCD reverse camera
  • Advanced 4 PIN Cable
    • Allows the monitor to power up cameras. No need to connect another power cable.
    • It comes with 2x 5-meter and 3x 10-meter 4PIN connecting cables.
  • Mini CMOS 4PIN Camera
    • 150° wide angle view
    • A small colour mini camera that can be mounted easily on the vehicle's bumper
  • Video : 3 Channel video input
    • V1/V2/V3 - 1 AV input is connected to the reverse camera powered from the reverse light which will switch automatically when reverse gear is induced, the other AV input can be connected to another reverse camera *optional, powered by battery to show the rear image at all time, perfect for truck or caravan that need to monitor the rear al the time
  • Recommended for Buses, trucks, Heavy Equipment Vehicles
    • This camera is a necessity. Mount at the recommended place and enjoy reversing without worries
  • Auto camera switch
    • This system also comes with 3 trigger wires for cameras. Once a trigger wire is activated e.g. when the reverse gear is induced it will show the rearview automatically or when the vehicle is put on the turn Right signal the monitor will switch to the Right camera automatically to give clear view on the right side of vehicle before making a turn
  • Heavy Duty Trailer Cable & Connectors
    • 5PIN AP-TP20 metal connector with male and female connector
    • Waterproof function
    • 4PIN metal connector for CCD camera
    • With elasticity length from 2000mm to 4000mm
    • Very tight connection, durable and reliable

ITEM DESCRIPTION

  • Screen Size: 7" Digital TFT panel with Sunvisor
  • Resolution: 800x480
  • Aspect Ratio: 16:9 image
  • Video Input: 3 way video input- 2 way audio input, with AV-IN
  • Power Supply: DC9V-32V
  • Recording time: 70 Min
  • System: PAL/NTSC Auto –Switching
  • Menu: OSD
  • Speaker: Built-in Loud speaker
  • Varying languages display
  • Bracket: with stand and U-shape bracket
  • Light Sensor: Automatic adjustment
  • Reverse Camera: CCD Camera18 IR LEDs, Night vision supported, Eyeball Reversing Camera 12 LEDs
  • Camera angle: 120° wide-angle view, Mini CMOS 4PIN Camera 150° wide-angle view
  • Resolution: 600TVL
  • IP67 waterproof
  • Hard metal cased waterproof
  • CCD image sensor (made by Sharp Company)

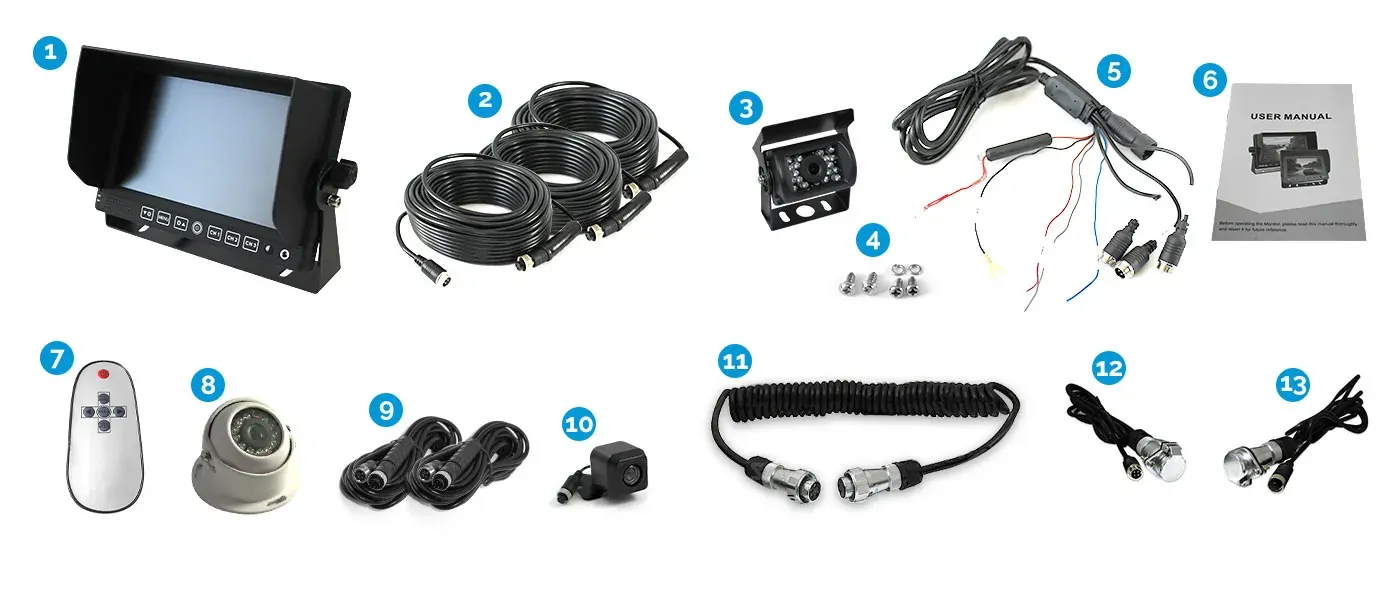

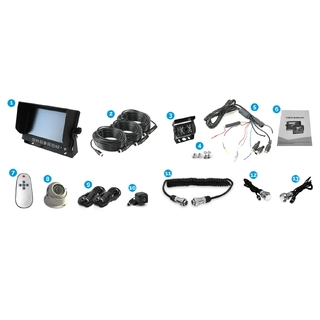

WHAT'S INCLUDED

1. 1x 7inch Digital Monitor

2. 3x 10M 4PIN Cable

3. 1x Reversing Camera

4. Set of Screws

5. 1x Power Harness

6. 1x User Manual

7. 1x Remote * No Batteries included

8. 1x Dome Camera

9. 2x 5M 4PIN Cables

10. 1x Mini CMOS Camera

11. 1x Trailer Cable Suzy Coil

12. 1x 5PIN to 4PIN Male Connector

13. 1x 5PIN to 4PIN Female Connector
