5" Car Reversing Camera | TFT LCD 12/24V 4PIN 2 AN

Elinz 5" Monitor TFT LCD 12V/24V 4PIN 2AV Inputs 800x480 HD NTSC/PAL

Description
FAQs & Troubleshooting Guide

5" TFT Monitor with features such as gridline, 800x480 resolution, ntsc/pal and speakers

5" Monitor TFT LCD 12V/24V 4PIN 2AV Inputs 800x480 HD NTSC/PAL

SKU: GEAY5

Product Details

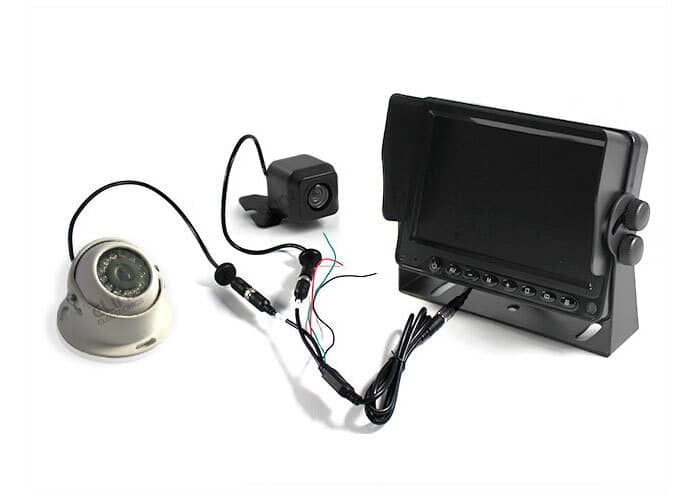

monitor hooked up to two reversing cameras with caption "2 AV input"

construction vehicle with caption "compatibale with 12v & 24v vehicles"

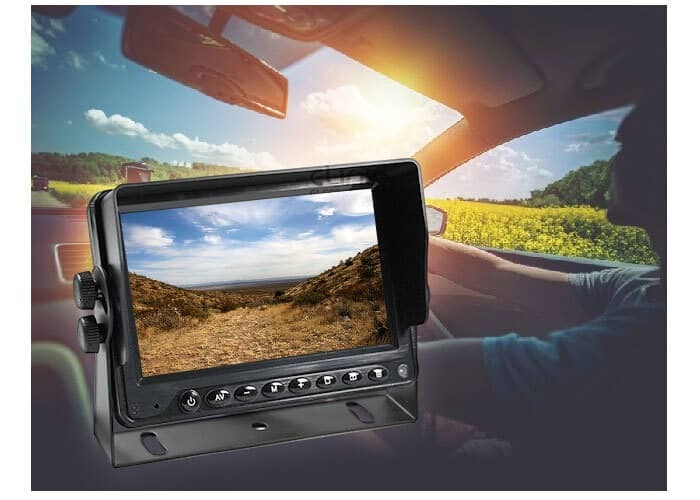

reversing camera monitor with caption "sunshade design"

button label for reversing camera monitor

reversing camera monitor dimensions, 135mm wide, 93mm tall

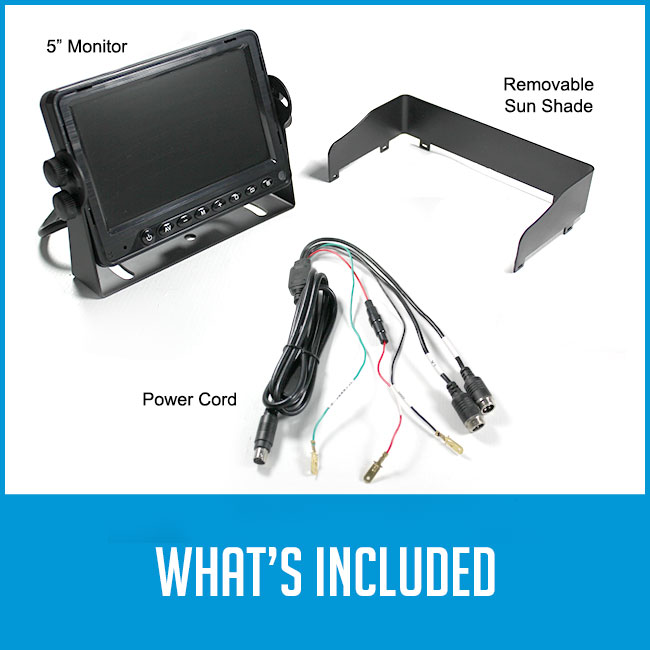

monitor, remote, power cord, sunshade with caption "what's included"

More Information

This 5 inch LCD TFT monitor provides you with high resolution of 800x480 that is compatible to both 12V and 24v vehicles.

It provides you a convenient way to view rear and a safer driving, backing and parking experience. This Reversing camera monitor comes with a removable sunshade to clearly view monitor when sun is shining directly to it.

This monitor can be used with 4PIN cameras and have 2 AV inputs, so 2 cameras can be connected at the same time.

*This listing is only for one 5" monitor. camera and cable are not included.

Product Highlights

5" TFT Monitor
- 800x480 High Resolution
Suitable for 12v/24v vehicles
2AV Inputs
- Connect up to 2 cameras
- Rearview will show on the screen automatically when reverse gear is induced
Distance gridline on/off function
Built-in Speakers
Removable Sunshade
- Clearly view monitor when sun is shining directly to it.
NTSC/PAL

Product Specifications

5" LCD screen display picture behind vehicle
Reverse image will show on the screen automatically when the reverse gear is induced
Rearview image can also be shown on screen at all times
Input power: 10VDC to 32VDC
With grid line distance graph on/off
2 AV inputs, can be connected up to 2 reversing cameras

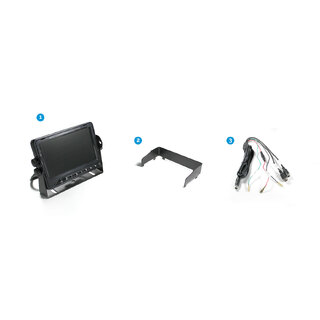

What's Included

1x 5" Monitor
1x Removable Sun Shade
1x Remote Controller
1x Power Cord

Frequently Asked Questions

No FAQs Available

Troubleshooting Guides

No image
1. Check power lead of monitor if connected properly to source 12 or 24v
2. Check channel camera is assigned. Be sure the same.toggle channels
3. If different camera available, try using on same channel
4. Call or email customer support if all TS fails.
Flickering image, distorted image
1. Make sure Power being used is stable for camera
2. Test power flowing on screen
3. If different camera is available, try using
4. Call or email customer support if all TS fails.
Blue screen only/no signal
1. Make sure camera is connected on selected channel
2. Check if camera is connected secured.
3. Transfer camera to different channel
4. Call or email Customer support if all TS fails.
