7" LCD Monitor HD 12V 24V 2AV inputs for 4PIN Reversing Camera Rear view

SKU: M7S

Hand Stick Foldable Vacuum Cleaner Cordless

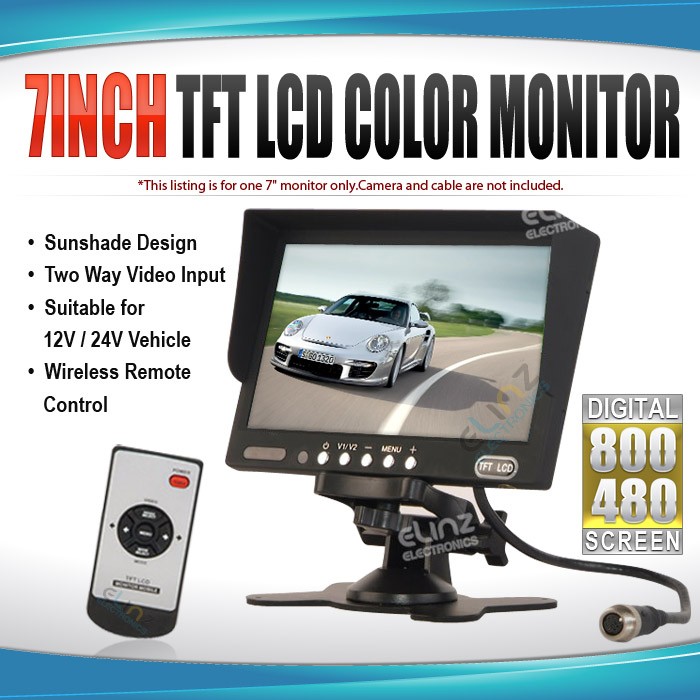

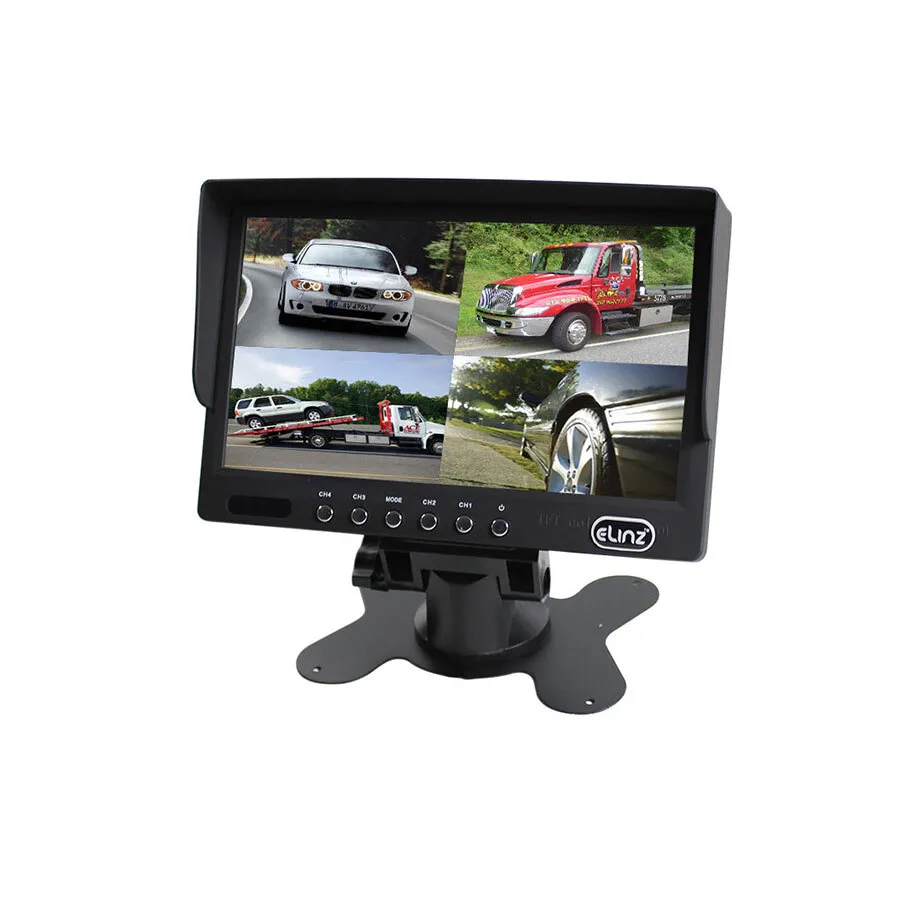

7" TFT LCD Monitor

800x480 Digital Screen, Crystal Clear Image
16:9/4:3 switch freely
The image supports to be rotated up and down, left and right
Can connect to DVD / MP4 / Camera, etc.

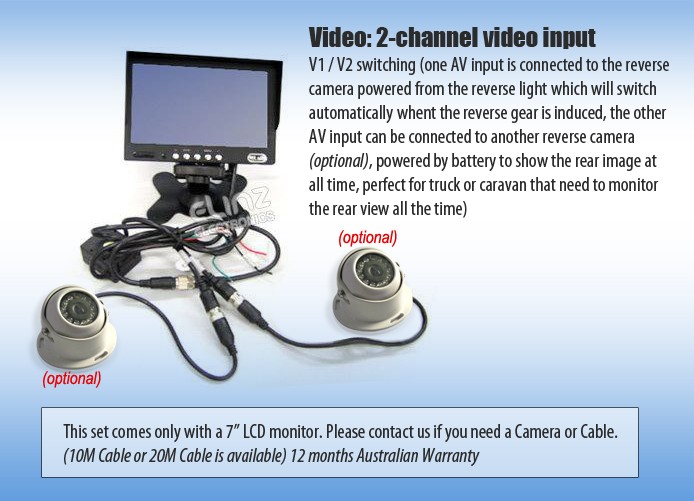

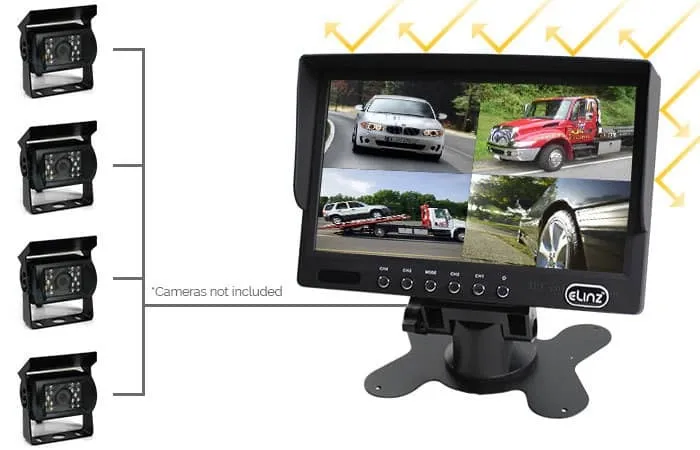

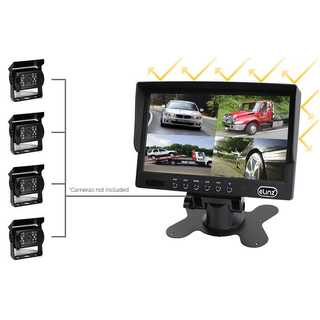

Two Video Inputs, Reversing First

The image can be rotated up and down, left and right
Two video inputs, reversing first connect two cameras (cameras are optional and sold seperately) to the monitor. You can view one camera while driving and the 2nd camera will turn on automatically when reversing.

Compatible to 12V/24V

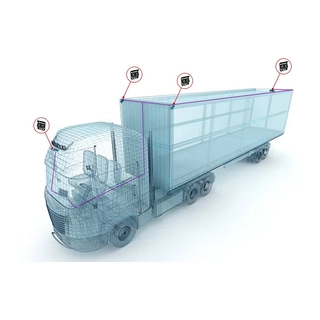

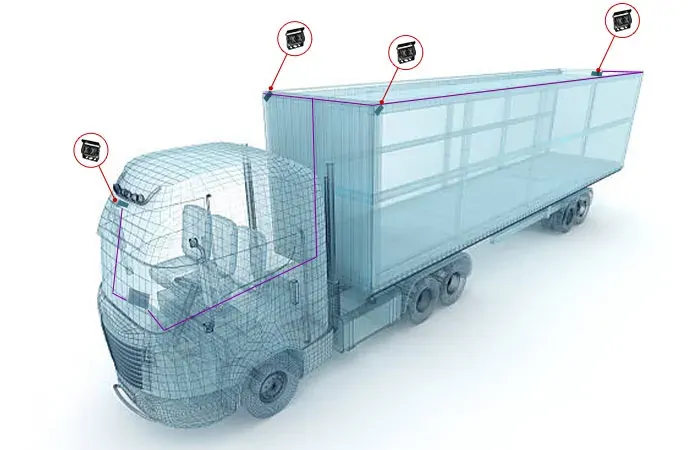

This monitor can be used with Trucks / Caravans / Cars

Wireless Remote Control

Easy to operate, with complete functions

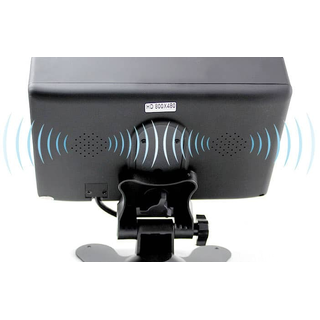

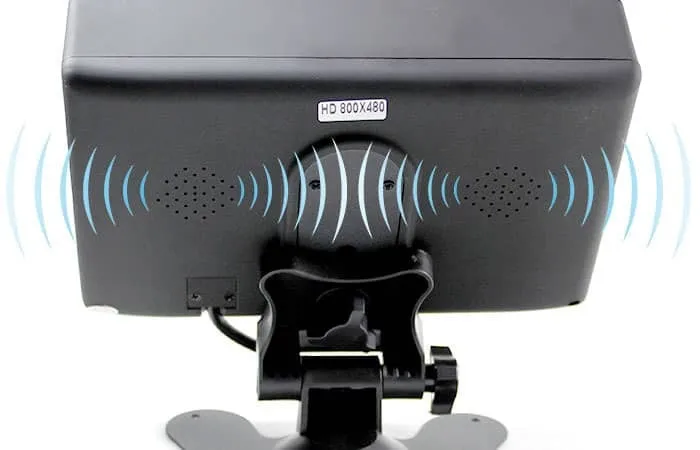

Built-in Speaker

How to Use Instruction

Product Labels

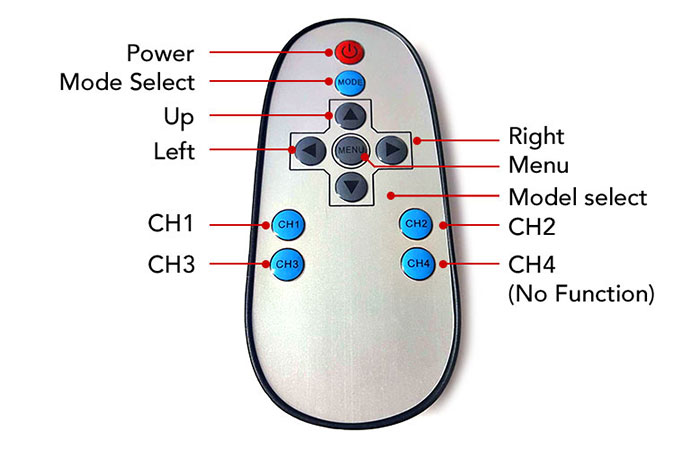

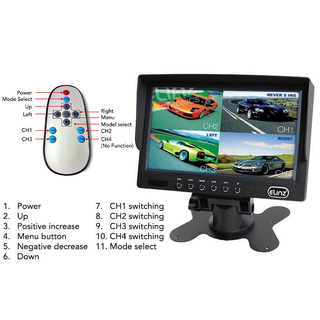

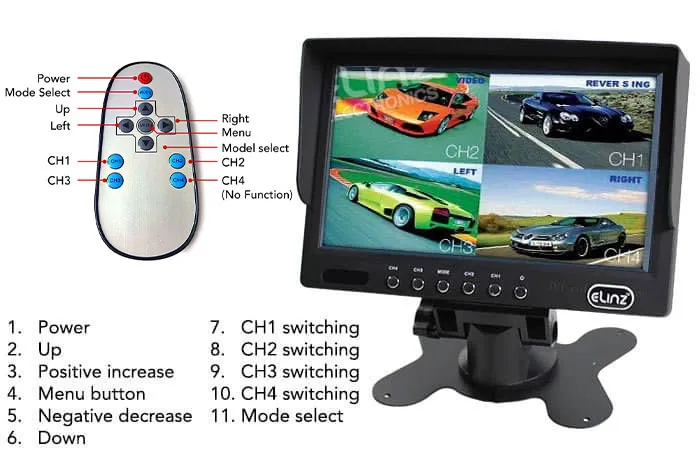

Remote Labels

Product Dimensions

MORE INFORMATION

7" Monitor HD 12V/24V with 2 AV inputs 4PIN Advanced Sunshade Design

7" TFT LCD HD monitor that can be connected up 2 cameras. The image can be rotated up and down, left and right. This monitor can be used with Trucks / Caravans / Cars. Two video inputs, reversing first connect two cameras (cameras are optional and sold seperately) to the monitor. You can view one camera while driving and the 2nd camera will turn on automatically when reversing.

PRODUCT HIGHLIGHTS

7" TFT LCD Monitor
- 800x480 Digital Screen, Crystal Clear Image
- 16:9/4:3 switch freely
- The image supports to be rotated up and down, left and right
- Can connect to DVD / MP4 / Camera, etc.
Two Video Inputs, Reversing First
- The image can be rotated up and down, left and right
- Two video inputs, reversing first connect two cameras (cameras are optional and sold seperately) to the monitor. You can view one camera while driving and the 2nd camera will turn on automatically when reversing.
Compatible to 12V/24V
- This monitor can be used with Trucks / Caravans / Cars
Wireless remote control
- Easy to operate with complete functions

ITEM DESCRIPTION

7" TFT LCD monitor
16:9/4:3 switch freely
2 video inputs
Resolution 800x480
Resolution 800x480
Power supply 12V/24V compatible

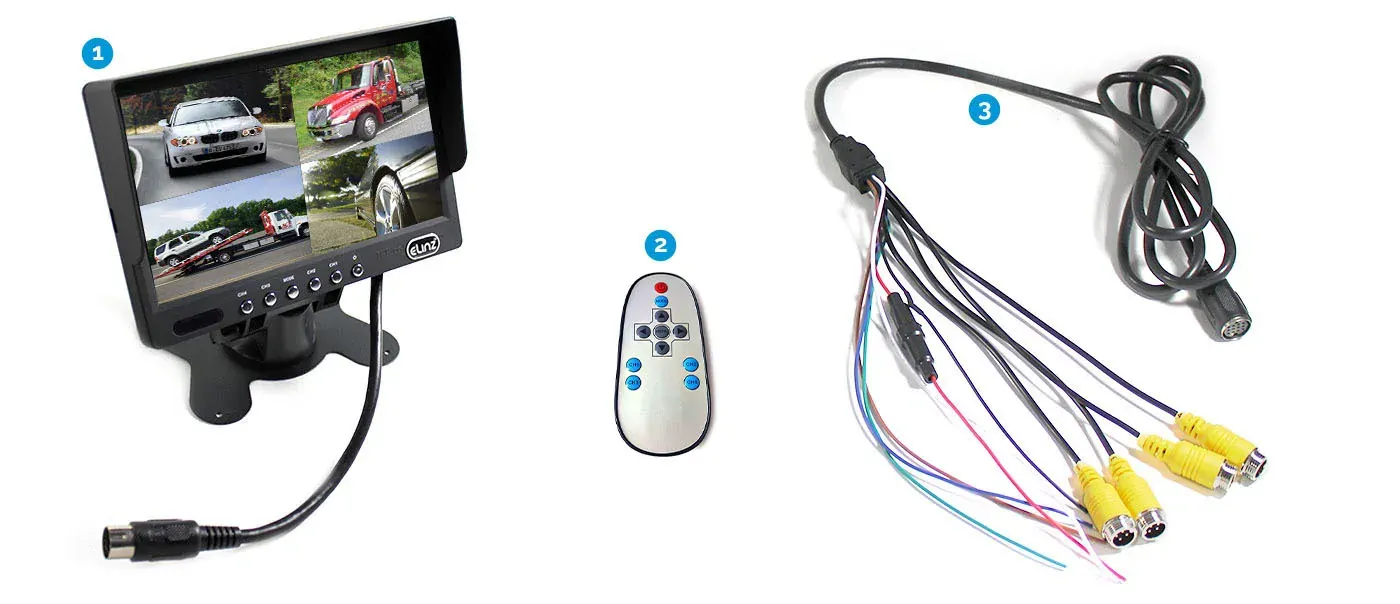

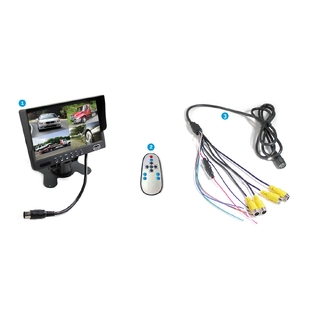

WHAT'S INCLUDED

1. 1x 7" TFT LCD Monitor

2. Remote Control

3. Power Cords

4. User Manual

Hand Stick Foldable Vacuum Cleaner

Frequently Asked Questions

No FAQs Available

Troubleshooting Guides

A. No image

Check power lead of monitor if connected properly to source 12 or 24v
Check channel camera is assigned. Be sure the same.toggle channels
If different camera available, try using on same channel
Call or email customer support if all TS fails.

B. Flickering image, distorted image

Make sure Power being used is stable for camera
Test power flowing on screen
If different camera is available, try using
Call or email customer support if all TS fails.

C. Blue screen only/no signal

Make sure camera is connected on selected channel
Check if camera is connected secured.
Transfer camera to different channel
Call or email Customer support if all TS fails.
