Elinz 7" DVR Splitscreen Monitor 12V 24V 4 AV Inputs 800x480 Bus Truck Caravan

Sunshade~PAL & NTSC~Adjustable Mounting Bracket

(SKU: DVR7N)
WAS From AUD $250.00
NOW AUD $229.00
Sale Ends in
00:00 am, 2 December 2021
In Stock


Payment made easy


Share:


7" DVR Splitscreen Monitor 12V 24V 4AV Inputs 800x480

SKU: DVR7N

7 inch DVR 4CH  Reversing Camera Kit

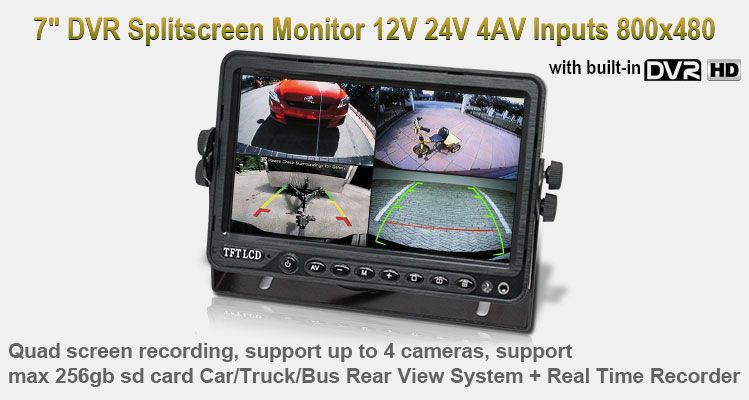

7 Inch Quadscreen Digital TFT Panel Monitor

7 Inch Quadscreen Digital TFT Panel

  • 7 inch quadscreen digital panel with resolution 800*R.G.B*480. Monitor has 4 Channels that can simultaneously record live full time.
DVR 4CH Monitor Real Time Recording

Real Time Recording

  • It allows you to record real time and can see objects on their original places or position.

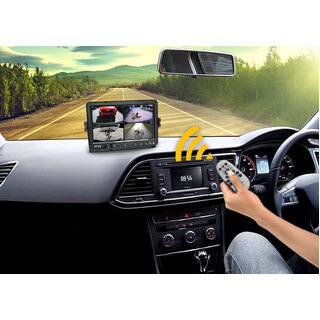

  • You may easily control DVR using the remote control.
4 Input 1 Output Reverse Camera Monitor

4 ways video input, 4 ways audio input, 1 way video output, 1 way Audio output

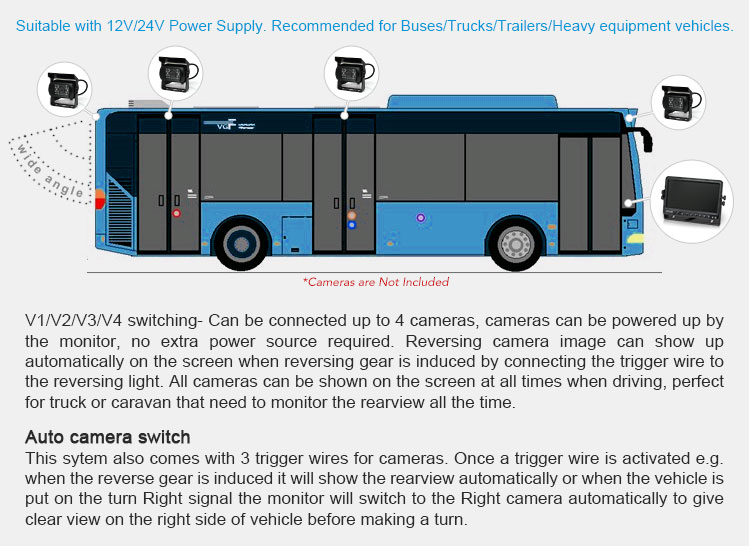

  • V1/V2/V3/V4 switching - Can be connected up to 4 cameras, cameras can be powered up by the monitor, no extra power source required. Reversing camera image can show up automatically on the screen when reversing gear is induced by connecting the trigger wire to the reversing light. All cameras can be shown on the screen at all times when driving, perfect for truck or caravan that need to monitor the rearview all the time.
  • *Only has 1 audio output, should be plugged to Ch1 for audio output to work
Local Playback DVR Monitor

Local Playback

  • Locally playback in channel 1 or 4 channels
SD Card Slot

SD Card Slot

  • It can now support up to 256GB SD card.
  • SD card not included.
Monitor Bracket Screw Lock

Bracket Screw Lock

  • With the bracket screw lock, it can hold the monitor in placed
Monitor Rotational Angle Adjustment

Rotational Angle Adjustment

  • You can adjust monitor view depending on your preference
Remote Control

Remote Control

Monitor Button Labels

Button Panel Labels

Reversing Camera and Monitor Wiring Diagram

Wiring Diagram

Monitor Image Modes

Image Modes

Menu Operation Instruction

Menu Operation Instruction

Product Dimensions

Product Dimensions



MORE INFORMATION

This 7” DVR reversing camera monitor is ideal for large vehicle where viewing for more than one camera at the same time is essential. It is recommended for buses, trucks, caravans and heavy equipment vehicles

This monitor offers the ability to show the images of four cameras at once on the screen. This can be used on both 12V or 24V vehicles.

*This system includes Monitor only. Reversing cameras, SD card and cables are sold separately.

PRODUCT HIGHLIGHTS

  • 7 Inch Quadscreen Digital TFT Panel
    • 7 inch quadscreen digital panel with resolution 800*R.G.B*480. Monitor has 4 Channels that can simultaneously record live full time.
  • Real Time Recording
    • It allows you to ecord real time and can see objects on their original places or position
    • You may easily control DVR using the remote control.
  • 4 ways video input, 4 ways audio input, 1 way video output, 1 way Audio output
    • V1/V2/V3/V4 switching - Can be connected up to 4 cameras, cameras can be powered up by the monitor, no extra power source required. Reversing camera image can show up automatically on the screen when reversing gear is induced by connecting the trigger wire to the reversing light. All cameras can be shown on the screen at all times when driving, perfect for truck or caravan that need to monitor the rearview all the time.
    • *Only has 1 audio output, should be plugged to Ch1 for audio output to work
  • Local Playback
    • Locally playback in channel 1 or 4 channels.
  • SD Card Slot
    • It can now support up to 256GB SD card.
    • SD card not included.
  • Bracket Screw Lock
    • With the bracket screw lock, it can hold the monitor in placed.
  • Rotational Angle Adjustment
    • You can adjust monitor view depending on your preference.
  • Monitor Button Panel Labels
  • Wiring Diagram
  • Image Modes
  • Menu Operation Instruction

ITEM DESCRIPTION

  • 7 inch digital TFT panel
  • Aspect ratio:16:9 image
  • Resolution:800*R.G.B*480
  • Monitor controlled by buttons on panel
  • DVR controlled by the remote
  • 4 Channels simultaneously to full time live record
  • System: PAL & NTSC Auto-switching
  • Video decode H.264
  • Audio decode ADPCM
  • Recording by manually: time setting, alarm and moving detect
  • Video search: time retrieval, fact retrieval, channel retrieval
  • 4 ways video input, 4 ways audio input, 1 way video output, 1 way Audio output
  • Full image/4 images adjustable
  • Picture adjust with single and quad pictures
  • Recording saved to SD card (support up to max 256gb sd card, sd card not included, to be purchased separately)
  • Recording speed PAL:25 FPS NTSC:30 FPS
  • Local playback in channel 1 or 4 channels
  • Alarm in:4 switching value (Optional)
  • Interface for saving:1 SD card slot
  • One way ignition signal
  • 8V/35V power supply

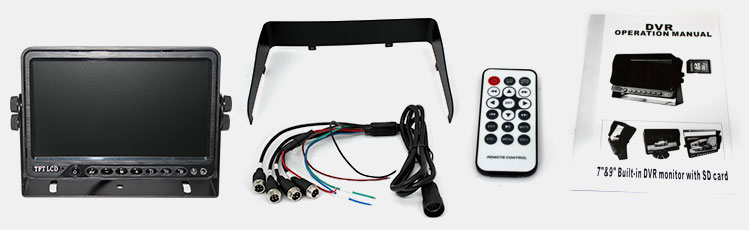

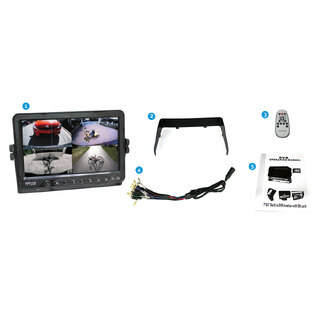

WHAT'S INCLUDED

1. 1x 7" Quadscreen Digital Monitor

2. 1x Sun Shade

3. 1x Remote Control

4. 1x Power Cable

5. 1x User Manual

7 inch DVR monitor with reversing camera and 4PIN Cable
