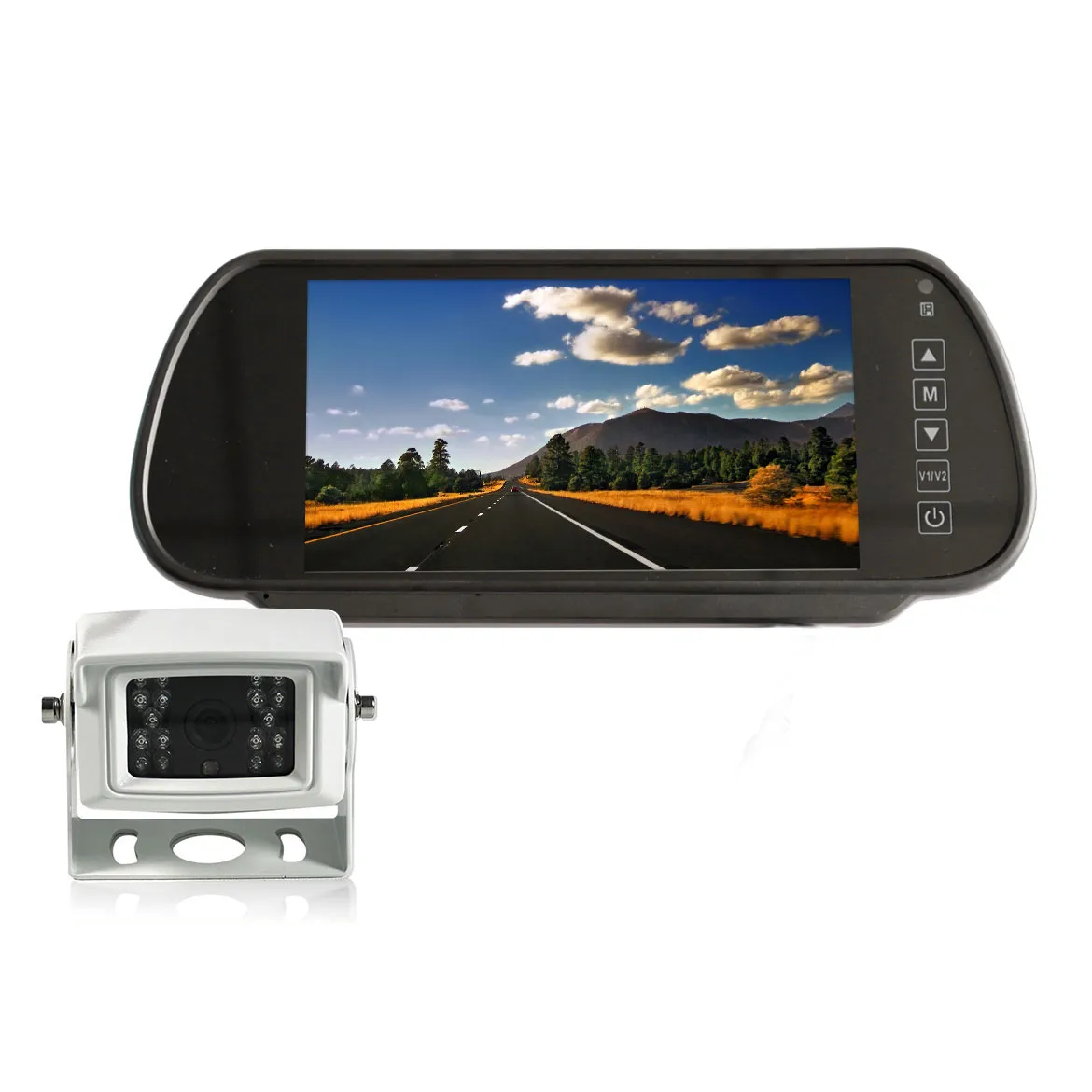

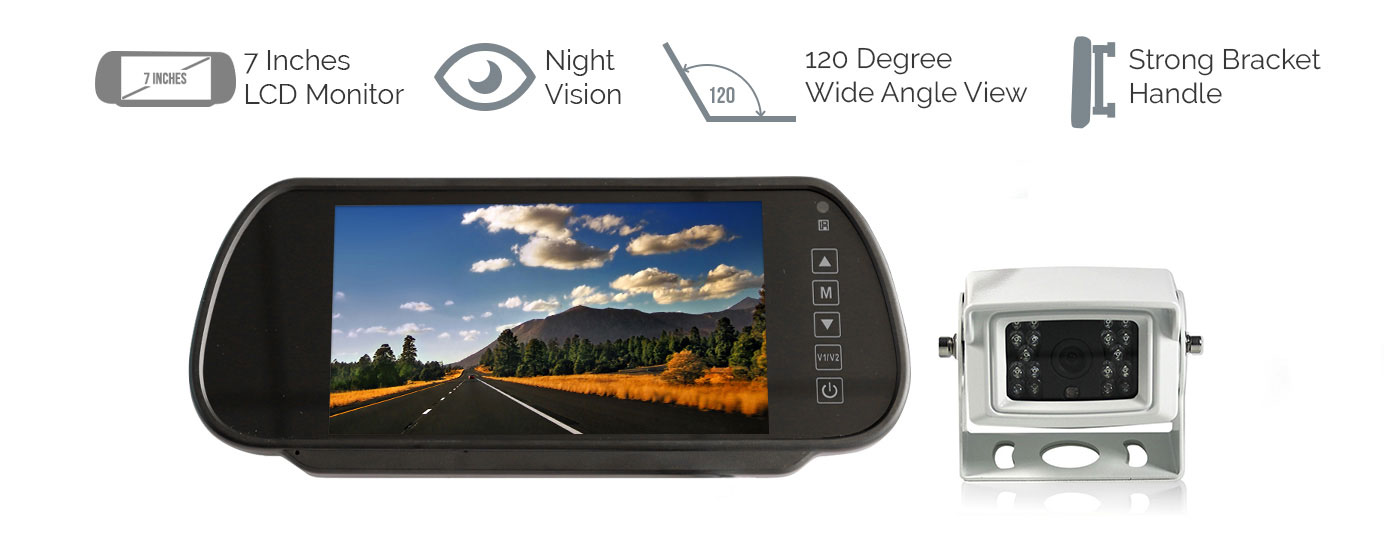

Elinz 7" Clip on Rearview Mirror Monitor 12V 24V 4 PIN Heavy Duty White IR Reversing Camera with Built-in Mic
Metal cased Waterproof~Night vision~120°angle
SKU | RCLIP7-RVQWH10M |
Barcode # | 0743966017735 |
Shipping Weight | 1.6200kg |
Shipping Width | 0.315m |
Shipping Height | 0.095m |
Shipping Length | 0.230m |
Shipping Cubic | 0.006882750m3 |
Help other users shop smarter by writing reviews for products you have purchased.
Elinz 7" Clip on Rearview Mirror Monitor 12V 24V 4 PIN Heavy Duty White IR Reversing Camera with Built-in Mic
SKU: RCLIP7-RVQWH10M


7" LCD monitor (LED digital panel)
- Anti-reflective clear vision rear view mirror
- Automatically shows rear view when reversing
- Rearview image can also be shown on screen at all times
- Resolution degree 800 x 3 (RGB) x 480
- Rearview mirror monitor will serve as your reaview mirror, you can view the back of your car clearly just like before

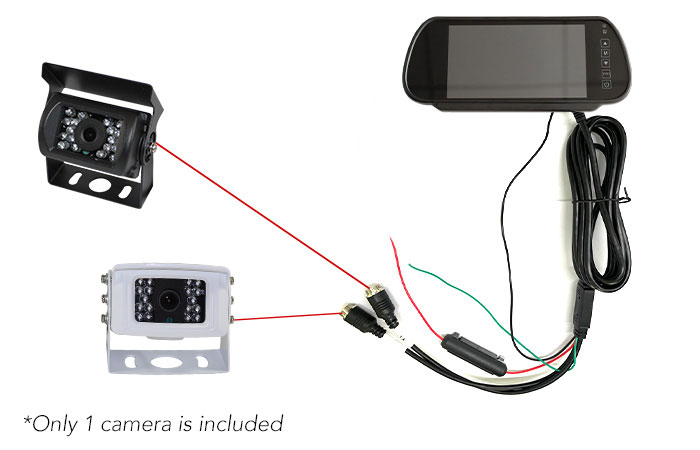

2 Video Inputs
- Can be connected up to 2 reversing cameras

Suitable for use with Trucks, Caravans, Cars and more

Easy to Install
- No need to replace your vehicles factory rearview mirror, upgrade it with this Clip on 7 inch Rearview mirror monitor.
- Rearview image can also be shown on screen at all times.

Rearview Mirror Monitor Label
- Rearview mirror monitor has easy touch buttons to operate.

Strong Bracket Handle
- Safely secure your rearview monitor with strong grip on your existing rearview mirror.
- It prevents the monitor to fall off easily.

Product Dimensions

Remote
- * No Batteries included

IR CCD Reversing Camera
- 120° wide-angle viewing helps avoid accidents & injuries
- White camera with built-in mic
- 18pcs IR LEDs – night vision
- Heavy-duty CCD, crystal-clear 12/24-volt applicable reverse camera
- CCD image sensor (by SHARP) outputs digital signals for better clarity, color contrast, and sharpness.
MORE INFORMATION
This 7-inch LCD Rearview Mirror Monitor and IR CCD Reversing Camera Kit. Designed for effortless installation and packed with advanced features, this system provides crystal-clear rearview images whether you're reversing or driving. With dual video inputs, night vision, and a heavy-duty waterproof camera, it’s the perfect solution for cars, trucks, caravans, and more, making parking and maneuvering safer and easier than ever.

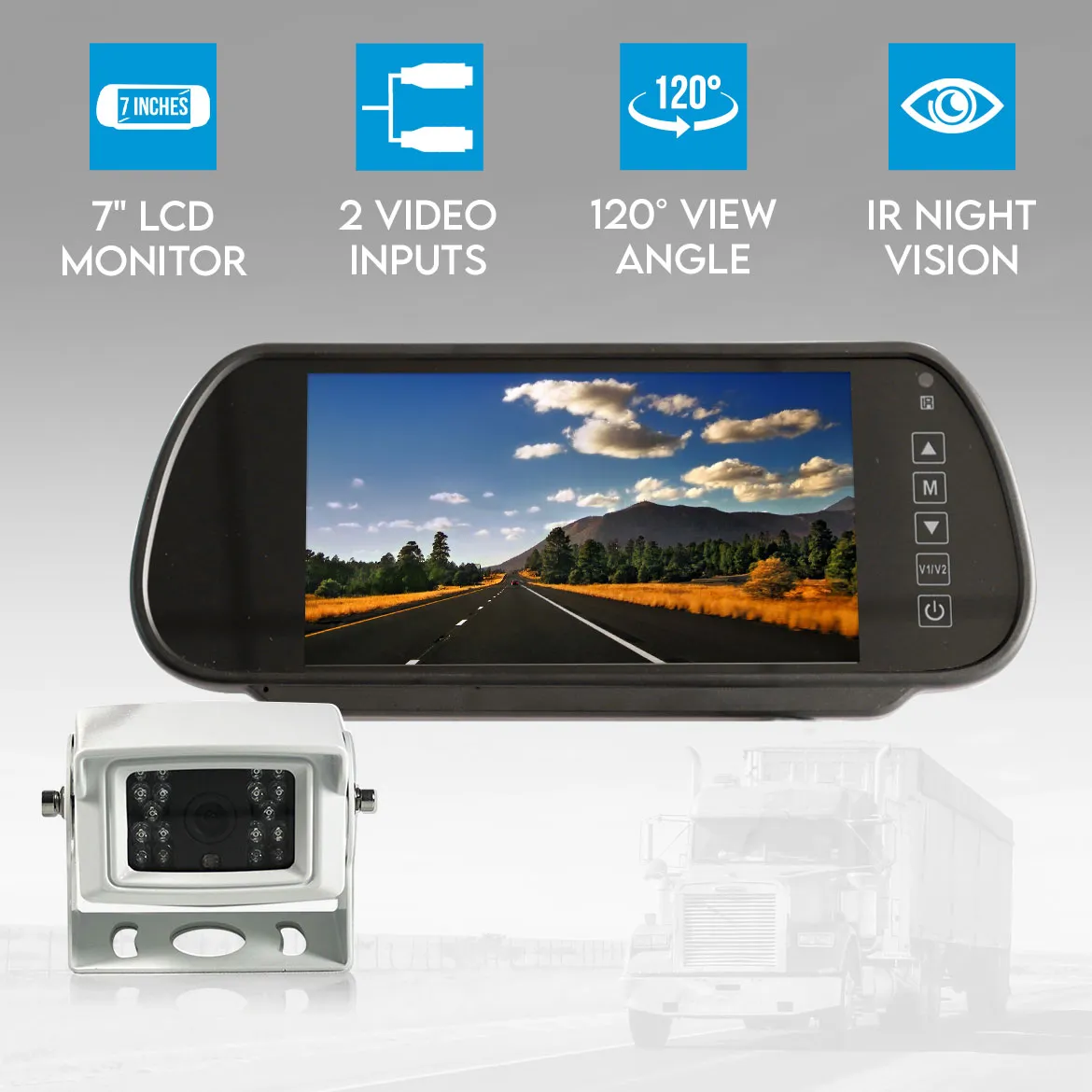

PRODUCT HIGHLIGHTS
- Screen size: 7 LCD monitor (LED digital panel)
- The image behind the vehicle will show on the screen automatically when the reverse gear is engaged.
- Anti-reflective clear vision rear view mirror.
- Rearview image can also be shown on screen at all times
- Resolution degree 800 X 3 (RGB) X 480
- Easy to Install
- No need to replace your vehicle's factory rearview mirror; upgrade it with this clip-on 7-inch Rearview mirror monitor.
- 2 Video inputs
- Can be connected up to 2 reversing cameras
- IR CCD Reversing Camera
- 120° wide-angle viewing helps avoid accidents & injuries
- White camera with built-in mic
- 18pcs IR LEDs – night vision
- Heavy-duty CCD, crystal-clear 12/24-volt applicable reverse camera
- CCD image sensor (by SHARP) outputs digital signals for better clarity, color contrast, and sharpness
- Heavy-duty metal case, waterproof and mud-proof
- This durable reversing camera features a tough metal casing that’s waterproof, mud-proof, and shock-resistant—built to withstand harsh conditions and vibrations without compromising picture quality.
- Suitable for use with trucks/ caravans/ cars etc.
ITEM DESCRIPTION
Clip-on Rearview Mirror Monitor Specifications
- Screen dimensions: 7inch TFT LCD
- Resolution: 800x480
- System: PAL&NTSC
- Power: DC12V-24V
- Consumption: 5W
- Video: Two way video input
- Operate mode: Key operation
CCD Reversing Camera
- IR LED: 18pcs
- 1x 10m 4PIN cable
- Usable Illumination: 0LUX (LED ON)
- S/N Ratio: ≥48dB
- Gamma Characteristic: 0.45
- Video Output: 1Vp-p,75ohm
- Operation Temperature: -20°C~+70°C RH95% Max
- Built-in microphone
- 600 TVL
- Lens: f = 2.5mm
- Lens Angle: 120°
- N.W: 350g
- Connector Port: 4-PIN Aviation

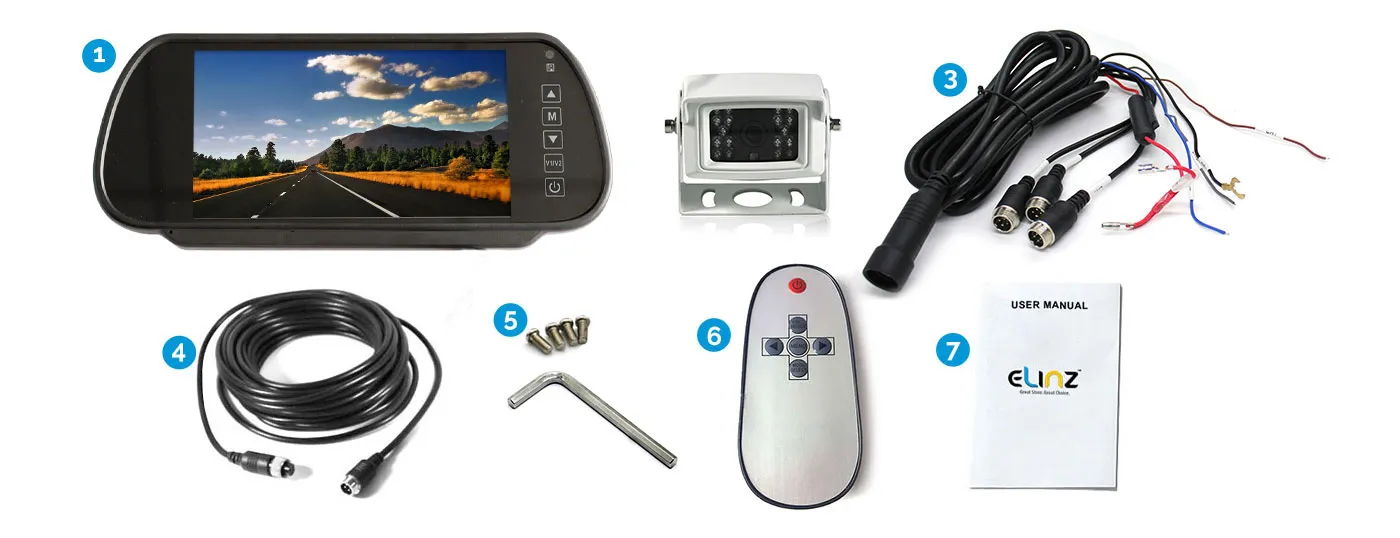

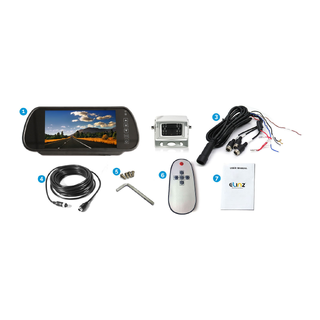

WHAT'S INCLUDED
1. 1x 7inch Clip on Rearview Monitor
2. 1x Heavy Duty 4PIN CCD 12V/24V Reverse Camera
3. 1x Power Harness
4. 1x 10m 4PIN Cable
5. Allen Wrench and Screws
6. Remote * No Batteries included
7. 1x User Manual
