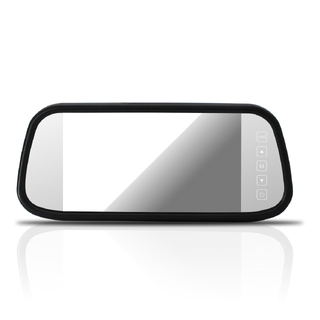

Elinz K Series 7" Replacement Mirror AHD Monitor

The Elinz K Series 7" Replacement Mirror AHD Monitor delivers crisp, vibrant visuals with its IPS display, high resolution, and reliable anti-interference design. Built for seamless compatibility with Elinz K Series cameras, it offers dual-view functionality, wide voltage support, and user-friendly controls for dependable performance in any driving condition.

PRODUCT FEATURES

• 7 Inch IPS Display - High-quality A+ panel ensures sharp images and vibrant colours for excellent visibility.
• High Resolution and Brightness - 1024×RGB×600 resolution with 600 cdm brightness for clear viewing day or night.

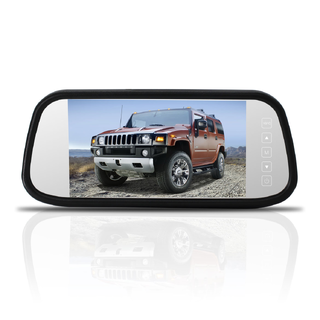

• Dual View Function - Supports standard rear vision view and automatically switches to reverse view when the vehicle is shifted into reverse by using a single camera only.
• Compatibility - Fully compatible with all Elinz K Series AHD Cameras, ensuring seamless plug-and-play connection and optimal video performance.
• Anti-Interference PCB Design - Ensures stable, reliable video signals by reducing interference.
• Wide Operating Voltage and Output - Operates on DC 10-32V input and supplies DC 12V output to connected cameras.
• Low Power Consumption - Working current under 300mA and idle current under 120mA for energy efficiency.
• Temperature Tolerance - Operates reliably from -25°C to +70°C in various environments.
• User-Friendly OSD Menu - Adjustable settings for brightness, contrast, saturation, tint, language, and screen rotation.
• Signal System: PAL/NTSC/AUTO
• Brightness: 600cdm
• Contrast Ratio: 400:1
• Video Inputs: 2 channel AHD, NTSC/PAL/Auto signal systems
• Camera Support: CVBS, 720P@25/30, 1080P@25/30 AHD cameras
• Output Voltage: DC 12V to cameras
• Working Current: <300mA
• Idle Current: <120mA
• Languages(OSD Menu): English, Chinese, Japanese
• Flip Image: Mirror/Normal/Up/Down
• Connector: 4PIN Aviation
• Mounting: Replacement bracket for windshield + 1 over bracket

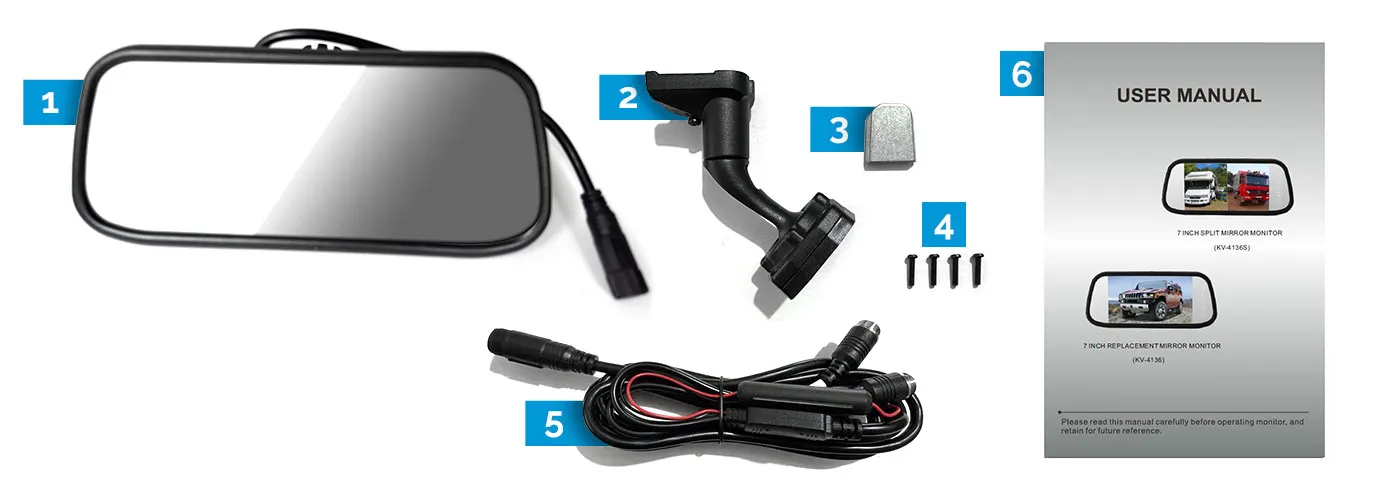

What’s Included
