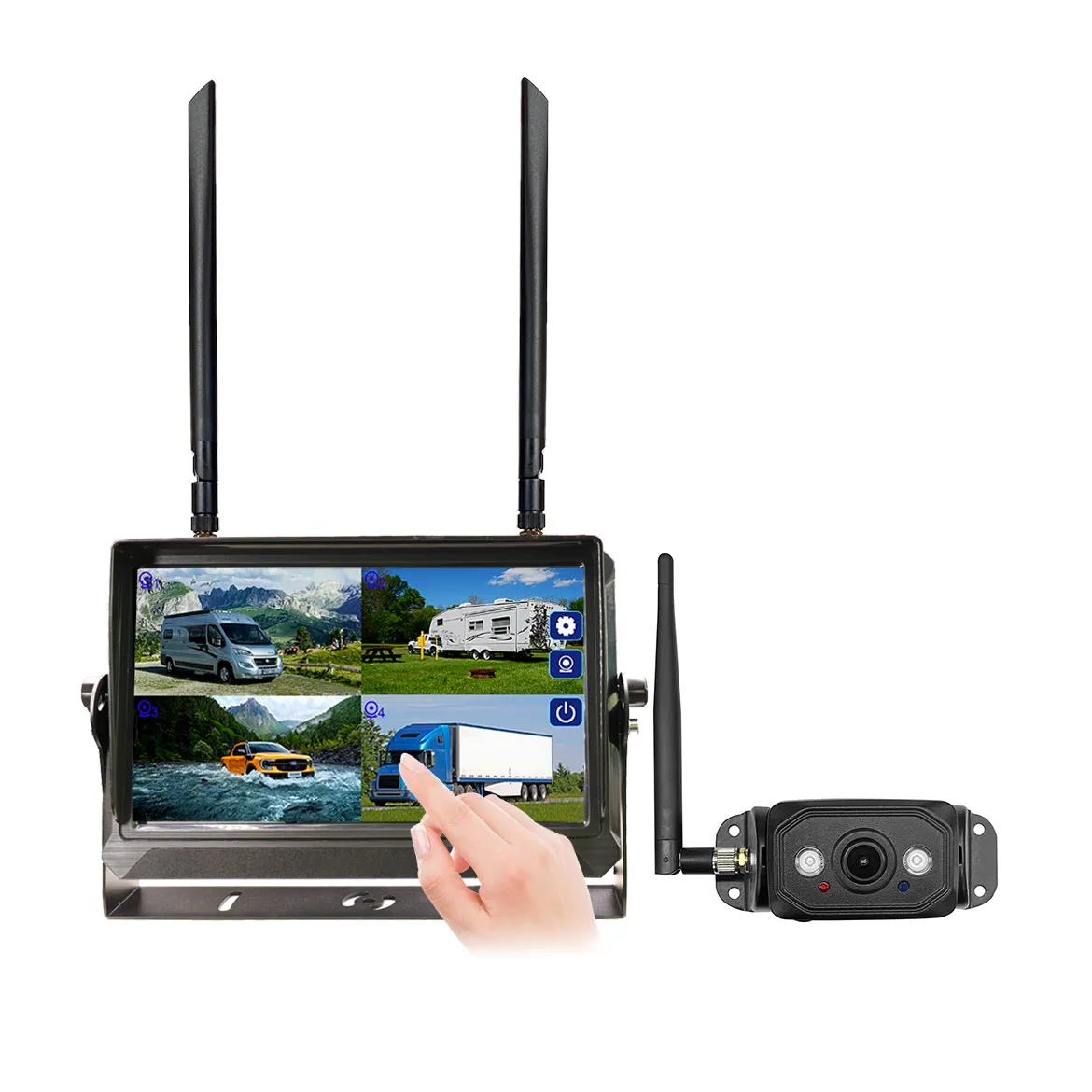

Elinz 10" Touch Screen Digital Wireless AHD Monitor 1080P Rear Marker Reversing Camera

Eliminate blind spots and drive with absolute confidence using the ultimate heavy-duty wireless safety solution from Elinz. By pairing the Elinz 10" Touchscreen Digital Wireless AHD 4-Channel Monitor with the ultra-rugged Elinz 1080P Wireless AHD Reversing Camera , you get an elite, cable-free surveillance system tailored for large vehicles. Engineered specifically to meet the demanding needs of caravans, motorhomes, trailers, and commercial trucks, this combination delivers crystal-clear, real-time video transmission without the hassle of running complex wiring through your vehicle.

PRODUCT FEATURES

Monitor

  • 10" HD Display Touch Screen Monitor: High-resolution 1024×600 screen provides sharp, detailed images for superior rear and reverse viewing clarity.
  • Touch Screen Interface: Intuitive capacitive touch controls for quick menu access, settings adjustments, and seamless operation.
  • Quad Split View Function
  • Wireless Connectivity: Operates on 2.4GHz ISM band using 802.11b wireless standard for reliable, cable-free video transmission.
  • Compatibility: Supports digital AHD wireless cameras, enhancing installation flexibility and convenience. Not compatible with RVDWT and RVDWRL cameras.
  • Wireless Performance: CCK modulation and IEEE 802.11b:DSSS (Direct Sequence Spread Spectrum) spread spectrum for stable signal and minimal interference.
  • Expandable Storage: Supports Micro SD cards up to 256GB for video recording and playback functionality.
  • Wide Operating Voltage: DC 12V to 24V input, compatible with various vehicle electric systems.
  • Wireless frequency : 2.412~2.4835 GHz ISM Band
  • Wireless date rate: 11Mbps
  • RF output power: 20dBm ±1dBm
  • Working mode: Ad-Hoc
  • Receiver Sensitivity: 11Mbps-86dBm@8%
  • SD Card Capacity: Max 256GB (Micro SD Card)

Camera

  • Image sensor: 1/2.9" Colour CMOS
  • Resolution: 1920×1080 Full HD
  • Video Format: AHD Wireless
  • View angle: 130° (Horizontal)
  • Wireless Frequency: 2.412–2.4835 GHz
  • Output power: 20dBm ±1dBm
  • Working voltage: DC 12V–24V
  • Waterproof Rating: IP69K
  • Night Vision: 2 pcs. IR LEDs

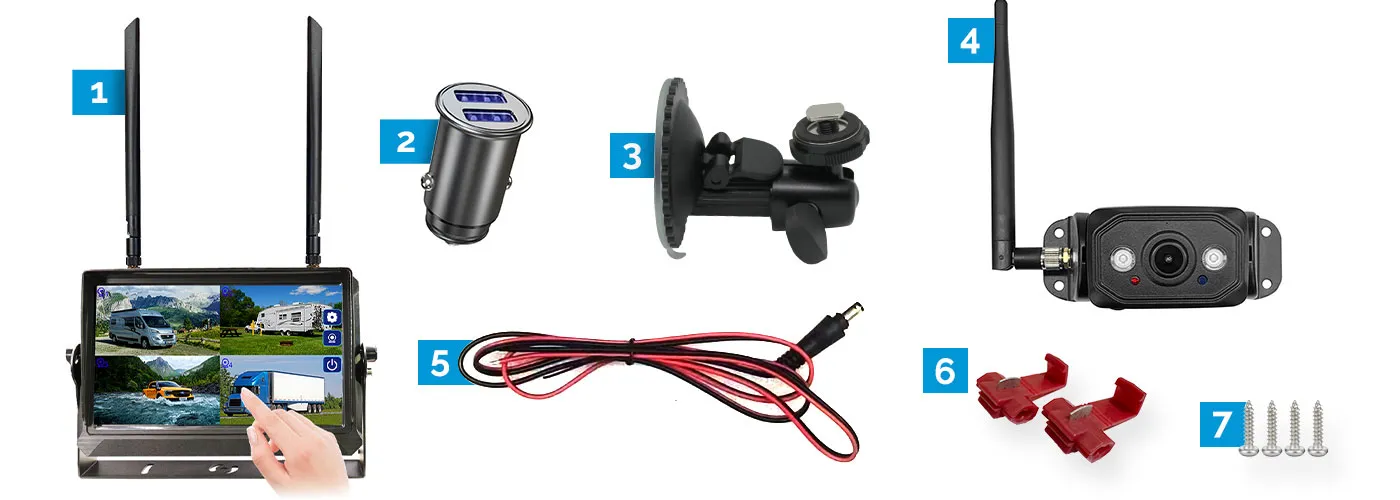

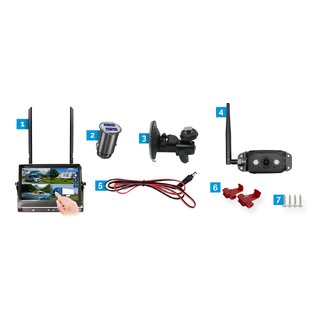

What's Included

1. 1x 10" Monitor

2. 1x Car USB Charger

3. 1x Suction Cup Mount

4. 1x AHD Camera

5. 1x Power Cable

6. 2x Wire Tap Connectors

7. 4x Screws
