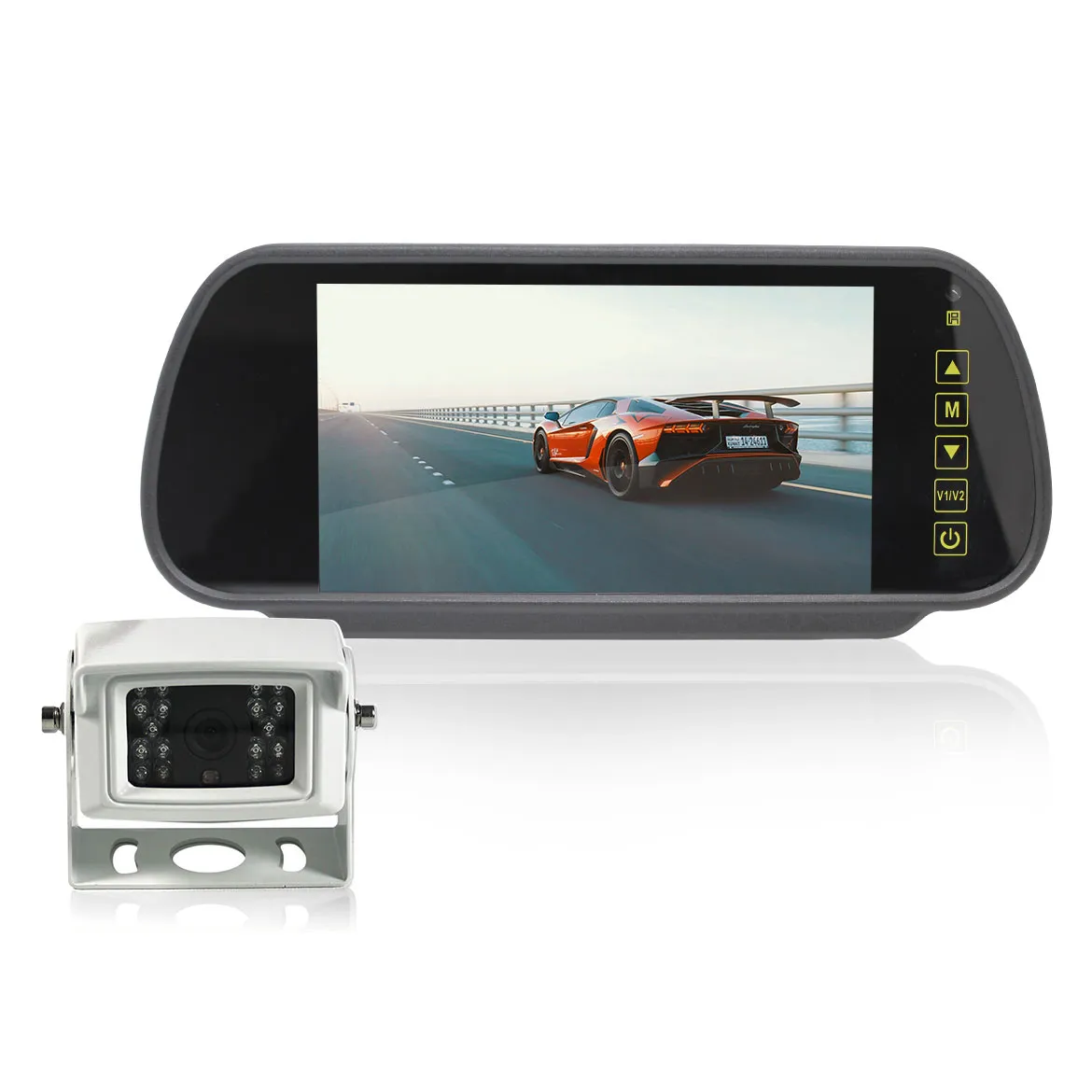

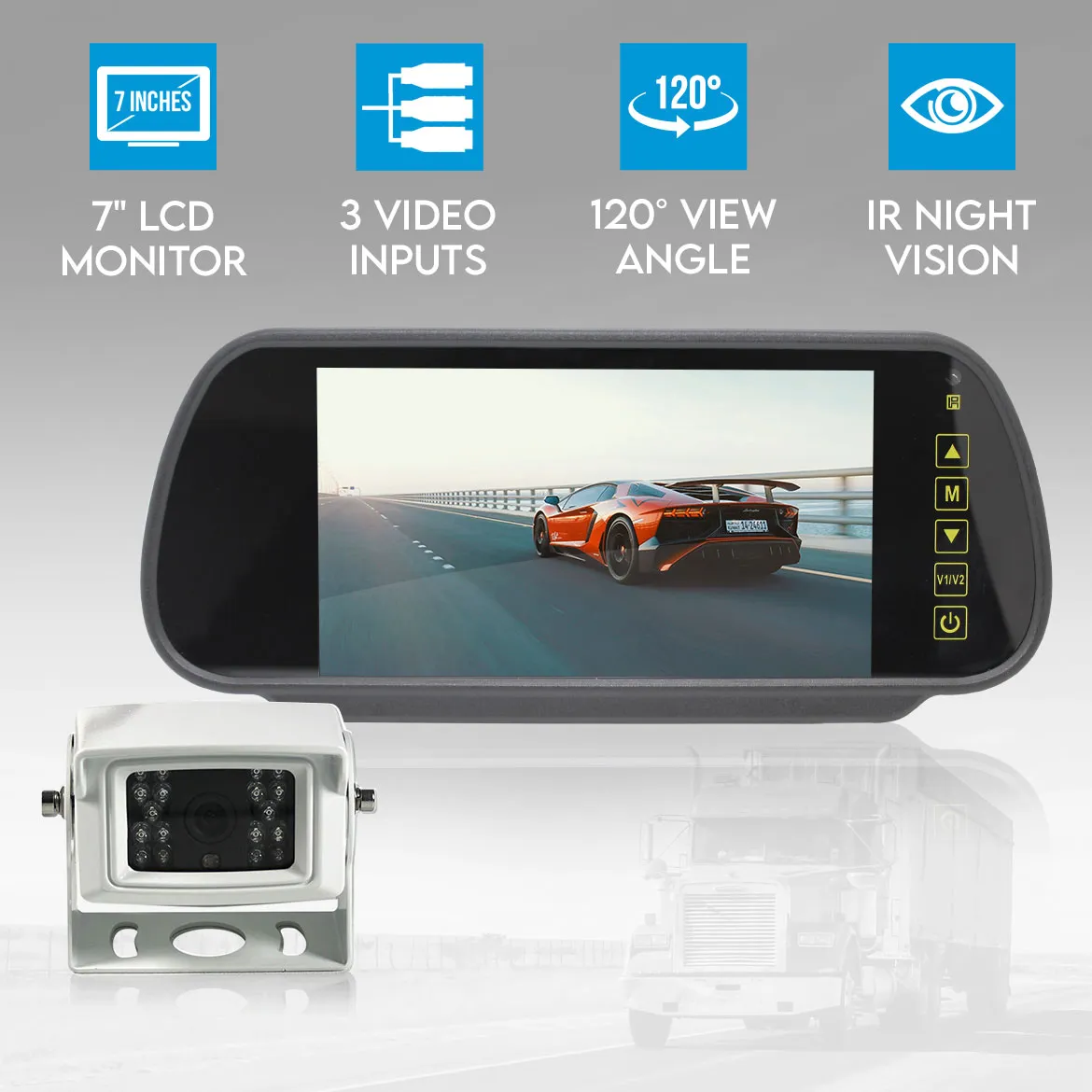

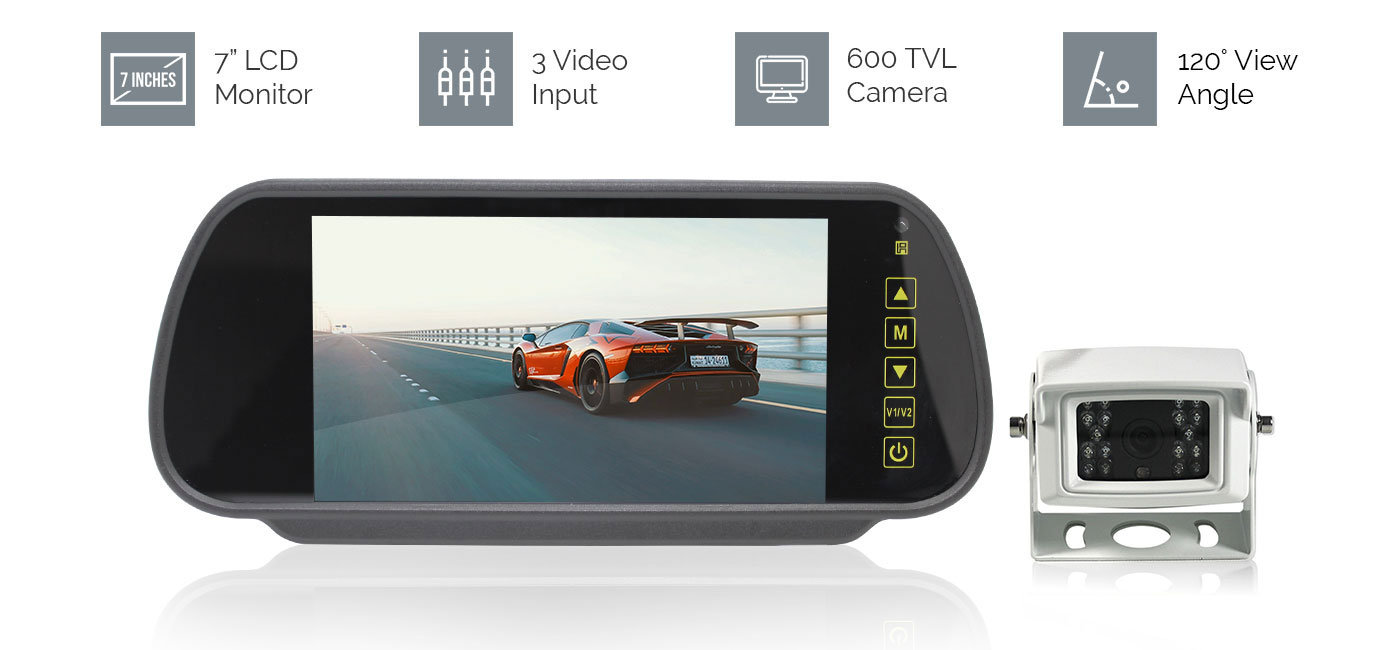

Elinz 7" Rearview Mirror Monitor 12V 24V 3 Video Inputs 4 PIN Heavy Duty White IR Reversing Camera with Built-in Mic

SKU: R7MI-RVQWH10M

7 inches Rearview Mirror Monitor
7 inches LCD monitor Rearview Mirror Monitor

7" LCD Monitor

  • Anti-reflective clear vision rear view mirror
  • Automatically shows rear view when reversing
  • Rearview image can also be shown on screen at all times
  • Resolution degree 800 x 3 (RGB) x 480
  • Rearview mirror monitor will serve as your rearview mirror, you can view the back of your car clearly just like before

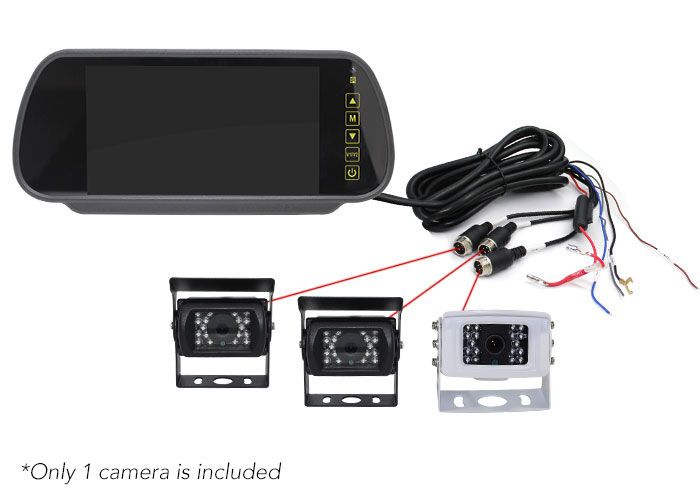

3 Video Inputs Monitor

3 Video Inputs

  • Can be connected up to 3 reversing cameras
Adjustable Mounting Bracket

Adjustable Mounting Bracket

  • The mounting bracket at the back, you can adjust the height
  • It comes with T-slot that allows your rearview to fit on on your windscreen nicely

IR CCD Reversing Camera

  • 120° wide-angle viewing helps avoid accidents & injuries
  • White camera with built-in mic
  • 18pcs IR LEDs – night vision
  • Heavy-duty CCD, crystal-clear 12/24-volt applicable reverse camera
  • CCD image sensor (by SHARP) outputs digital signals for better clarity, color contrast, and sharpness.
Wiring Labels

Wiring Labels

Rearview Mirror Monitor Label

Monitor Labels

Monitor Dimensions

Product Dimensions

Product views rearview monitor

Product Views

Remote

  • * No Batteries included
Suitable for 12V and 24V

Suitable for use with Trucks, Caravans, Cars and more

MORE INFORMATION

Elinz 7" Rearview Mirror Monitor 12V 24V 3 Video Inputs 4 PIN Heavy Duty White IR Reversing Camera with Built-in Mic

Enhance your driving safety with this 7" Rearview Mirror Monitor and CCD Reverse Camera. The monitor supports up to 3 cameras with clear 800 x 480 resolution and an anti-reflective display. Paired with a 120° wide-angle CCD camera featuring night vision, waterproof casing, and a built-in mic, it's perfect for trucks, caravans, and cars. Compatible with 12V/24V systems for reliable performance anytime.

PRODUCT HIGHLIGHTS

  • 7" LCD monitor
    • Anti-reflective clear vision rear view mirror
    • Automatically shows rear view when reversing
    • Rearview image can also be shown on screen at all times
    • Resolution degree 800 x 3 (RGB) x 480
    • Rearview mirror monitor will serve as your rearview mirror, you can view the back of your car clearly just like before
  • 3 Video Inputs
    • Can be connected up to 3 reversing cameras
  • Adjustable Mounting Bracket
    • The mounting bracket at the back, you can adjust the height
    • It comes with T-slot that allows your rearview to fit on on your windscreen nicely
  • IR CCD Reversing Camera
    • 120° wide-angle viewing helps avoid accidents & injuries
    • White camera with built-in mic
    • 18pcs IR LEDs – night vision
    • Heavy-duty CCD, crystal-clear 12/24-volt applicable reverse camera
    • CCD image sensor (by SHARP) outputs digital signals for better clarity, color contrast, and sharpness
  • Heavy-duty metal case, waterproof and mud-proof
    • This durable reversing camera features a tough metal casing that’s waterproof, mud-proof, and shock-resistant—built to withstand harsh conditions and vibrations without compromising picture quality
  • Suitable for use with Trucks, Caravans, Cars and more

ITEM DESCRIPTION

Rearview Mirror Monitor

  • Screen size: 7" LCD monitor (LED digital panel)
  • Resolution degree: 800 X 3 (RGB) X480
  • Contrast: 500:1
  • System: PAL/NTSC
  • Power supply: 10VDC to 32VDC
  • Power: About 5W
  • Working temperature: +0°C-+60°C
  • Storage temperature: -20°C-+70°C
  • Dot pitch:0.192 ( H) X 0.1805 (V )
  • Viewing angle U:50/D:60 L/R:70
  • Video: Three-way video inputs
  • Anti-reflective rearview mirror
  • Shock resistant
  • 20G force for vibration an 100G for shock
  • Respond time: 30ms
  • Picture display format: 4:3/16:9
  • Five languages OSD menu: Chinese, English, Russian, German and French
  • The display with two video frequency input Automatic/manual switcher
  • Front panel controls with on-screen menu
  • Operation temperature:- 30 ℃ ~+70 ℃

CCD Reversing Camera

  • IR LED: 18pcs
  • 1x 10m 4PIN cable
  • Usable lllumination: 0LUX(LED ON)
  • S/N Ratio: ≥48dB
  • Gamma Characteristic: 0.45
  • Video Output: 1Vp-p,75ohm
  • Operation Temperature: -20°C~+70°C RH95% Max
  • Built-in microphone
  • 600 TVL
  • Lens: f = 2.5mm
  • Lens Angle: 120°
  • N.W: 350g
  • Connector Port: 4-pin aviation

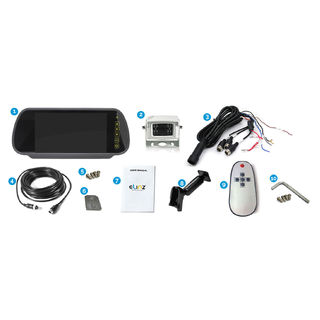

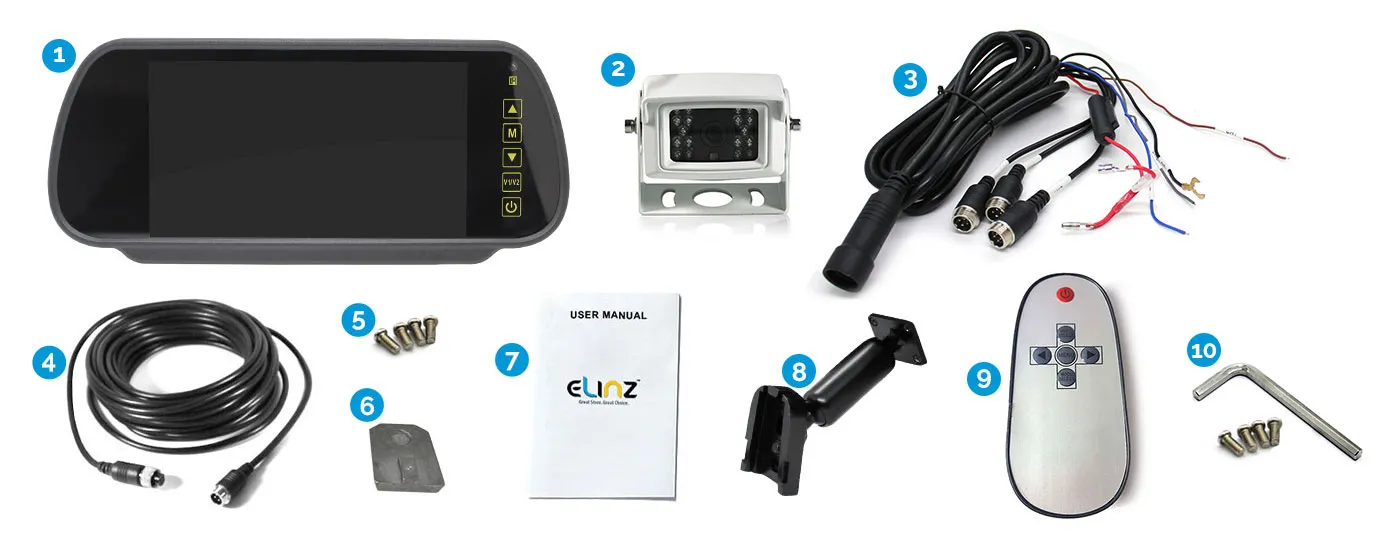

WHAT'S INCLUDED

1. 1x 7" LCD Rearview Mirror Monitor

2. 1x Heavy Duty 4PIN CCD 12V/24V Reverse Camera

3. 1x Power Cord

4. 1x 10m 4PIN Cable

5. Screws for Monitor

6. 1x T-Slot

7. 1x User Manual

8. 1x Monitor Bracket

9. Remote * No Batteries included

10. Allen Wrench and Screws

Rearview Mirror Monitor with adjustable bracket
