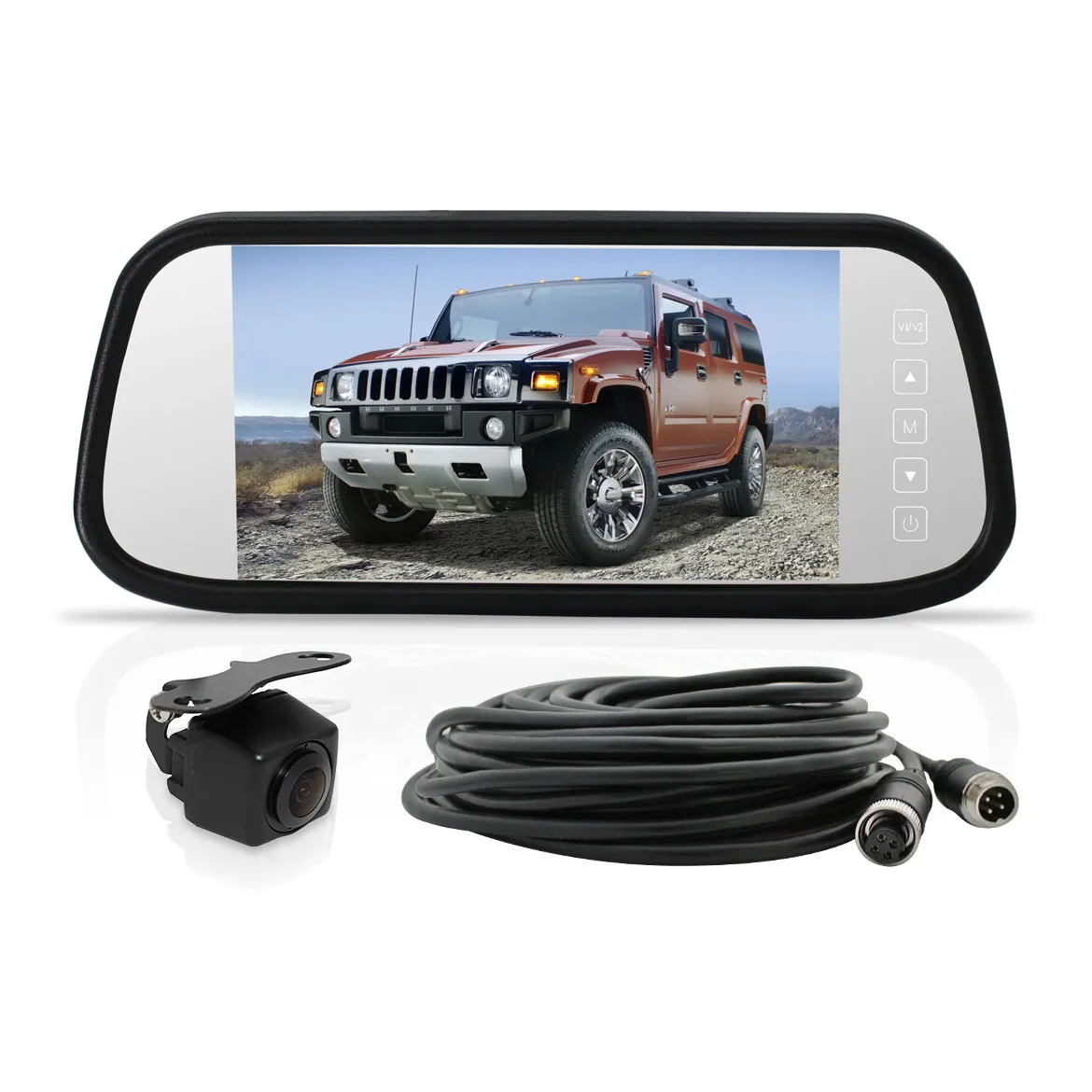

7" Replacement Mirror AHD Monitor 1080P Reversing Camera 10M Cable

The Elinz K Series 7" Replacement Mirror AHD Monitor delivers crisp, vibrant visuals with its IPS display, high resolution, and reliable anti-interference design. Built for seamless compatibility with Elinz K Series cameras, it offers dual-view functionality, wide voltage support, and user-friendly controls for dependable performance in any driving condition.

The Elinz K Series Car Reversing AHD 1080P Camera delivers exceptionally clear, wide-angle visibility with its 180° field of view and full HD resolution. Built for reliability, it performs confidently in low light, harsh weather, and demanding vehicle environments.

PRODUCT FEATURES

Monitor

  • 7 Inch IPS Display - High-quality A+ panel ensures sharp images and vibrant colours for excellent visibility.
  • High Resolution and Brightness - 1024×RGB×600 resolution with 600 cdm brightness for clear viewing day or night.
  • Dual View Function - Supports standard rear vision view and automatically switches to reverse view when the vehicle is shifted into reverse by using a single camera only.
  • Compatibility - Fully compatible with all Elinz K Series AHD Cameras, ensuring seamless plug-and-play connection and optimal video performance.
  • Anti-Interference PCB Design - Ensures stable, reliable video signals by reducing interference.
  • Wide Operating Voltage and Output - Operates on DC 10-32V input and supplies DC 12V output to connected cameras.
  • Low Power Consumption - Working current under 300mA and idle current under 120mA for energy efficiency.
  • Temperature Tolerance - Operates reliably from -25°C to +70°C in various environments.
  • User-Friendly OSD Menu - Adjustable settings for brightness, contrast, saturation, tint, language, and screen rotation.
  • Signal System: PAL/NTSC/AUTO
  • Brightness: 600cdm
  • Contrast Ratio: 400:1
  • Video Inputs: 2 channel AHD, NTSC/PAL/Auto signal systems
  • Camera Support: CVBS, 720P@25/30, 1080P@25/30 AHD cameras
  • Output Voltage: DC 12V to cameras
  • Working Current: <300mA
  • Idle Current: <120mA
  • Languages(OSD Menu): English, Chinese, Japanese
  • Flip Image: Mirror/Normal/Up/Down
  • Connector: 4P Activation
  • Mounting: Replacement bracket for windshield + 1 over bracket

Camera

  • High-Resolution Imaging - 1920×1080 resolution delivers crystal-clear video.
  • Ultra-Wide Viewing Angle - 180° horizontal field of view captures a broad area behind the vehicle.
  • Low-Light Capability - 1/3" Full HD image sensor with 0.2 Lux minimum illumination (F2.0 aperture) ensures visibility in low light.
  • Fast Shutter Speed - Shutter speed range 1/50-60 to 1/15000 seconds.
  • Water Resistance - IP69K-rated for water and dust resistance.
  • Wide Voltage Operation - Powered by DC 6-24V with inverse polarity protection for flexible vehicle compatibility.
  • Energy Efficient - Consumes less than 40mA current for low power usage.
  • Compatibility - Fully compatible with all Elinz K Series AHD Monitors, ensuring seamless plug-and-play connection and optimal video performance.
  • Minimum Illumination: 0.2 Lux / F2.0 aperture
  • Signal System: PAL / NTSC
  • Shutter Speed: 1/50-60 to 1/15000 seconds
  • Connector: Mini 4PIN to Aviation 4PIN
  • Image Switch: Mirror/Normal
  • Guideline: On/Off
  • Operating Temperature: -20°C to 65°C

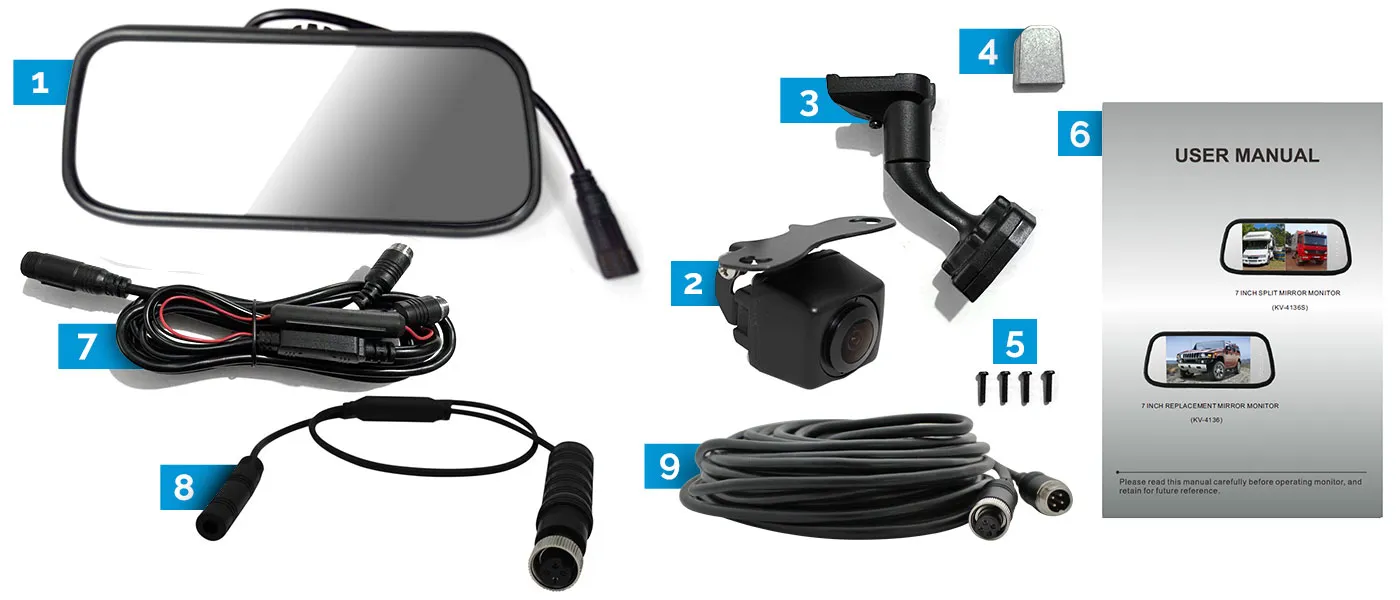

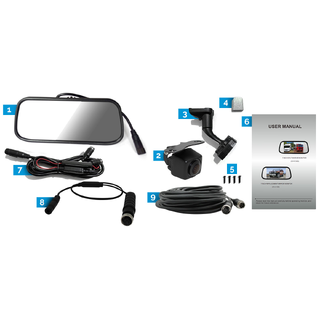

What's Included

1. 1x 7" Car Mirror Monitor

2. 1x Reversing Camera

3. 1x Bracket

4. 1x T-Slot

5. 4x Screws

6. 1x User Manual

7. 1x Power Cable

8. 1x Adapter

9. 1x 10M 4PIN Cable
