Elinz 9" Splitscreen Monitor 4PIN Rearview 12V/24V Sunshade 4 AV Inputs 800x480
Built-in Speaker~PAL & NTSC~Adjustable Mounting Bracket
SKU | M9N |
Barcode # | 0606015375197 |
Brand | Elinz |
Monitor Size | 9.0" |
Shipping Weight | 1.4400kg |
Shipping Width | 0.270m |
Shipping Height | 0.110m |
Shipping Length | 0.200m |
Shipping Cubic | 0.005940000m3 |
As expected from ELINZ a first class product. Replaced a tired 7" screen bought about 13years old from ELINZ used to monitor functions on a Hay Baler. Cameras still working OK. Well done.
Elinz 9" Splitscreen Monitor 4PIN Rearview 12V/24V Sunshade 4 AV Inputs 800x480
SKU: M9N

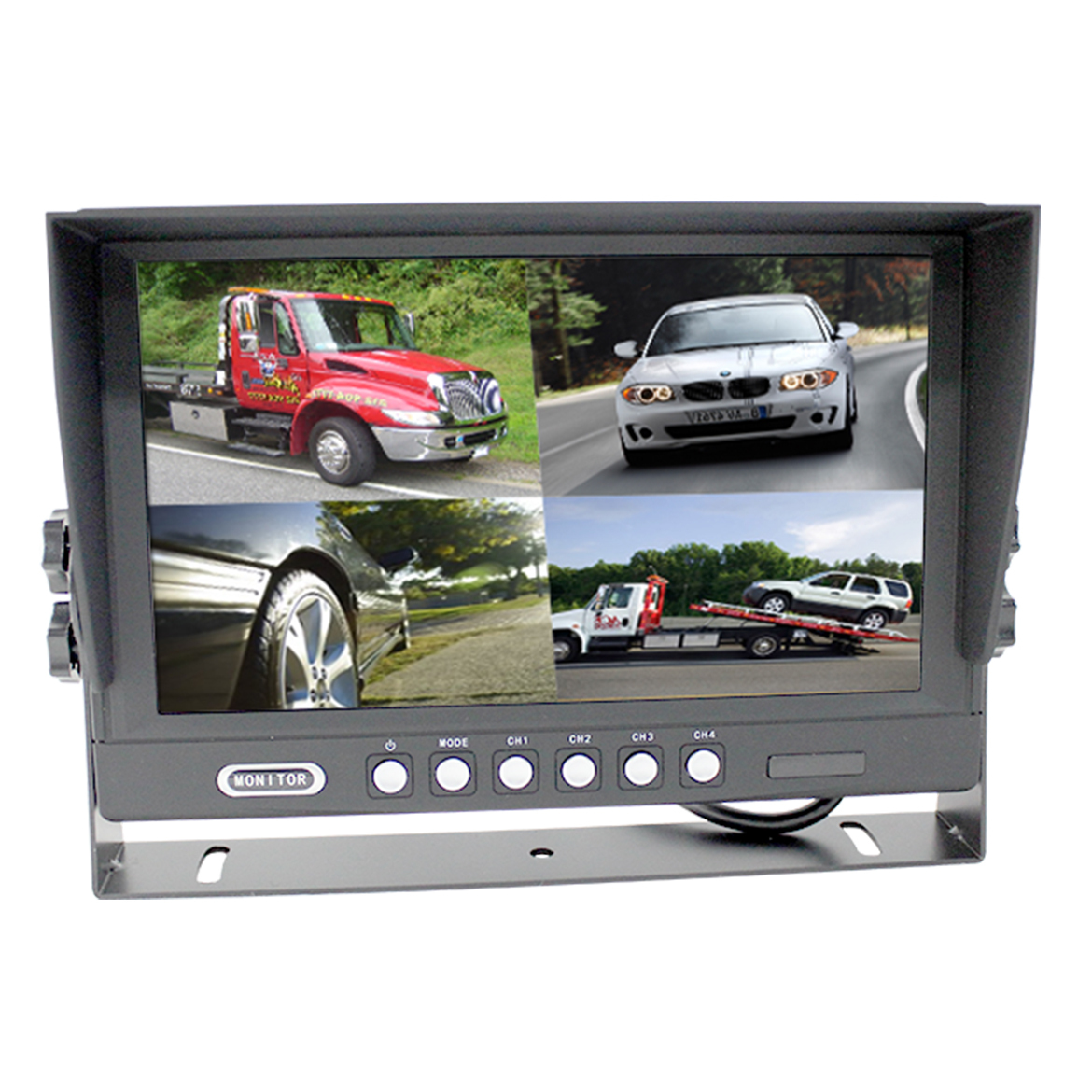

Large Quad Screen Monitor
- 9" Quad screen that can be divided into 1, 2 or 4 demo screen

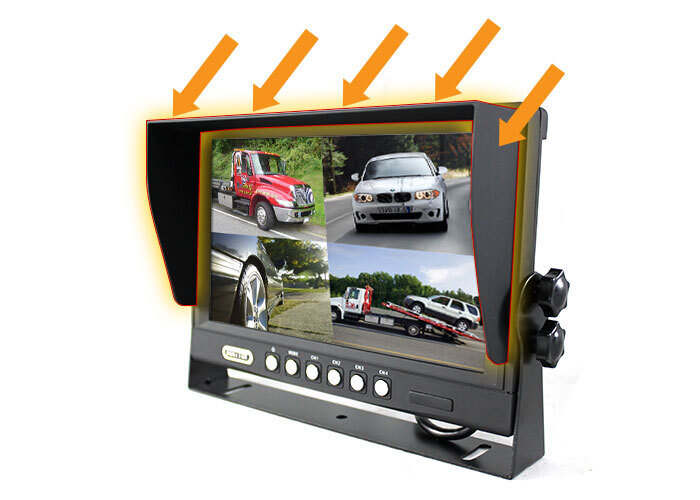

Sunshade Design Splitscreen Monitor
- Protection from sun raises to be able to view video clearly.

Built in Speaker
- Audio can be heard on monitor speaker

Quad or Splitscreen
- Different demo screens can be displayed at the same time

Wiring Labels

Product Dimensions
MORE INFORMATION
This 9" splitscreen colour rearview monitor is ideal for large vehicle where viewing for more than one camera at the same time is essential. It is recommended for buses, trucks and heavy equipment vehicles
This monitor offers the ability to show the images of four cameras at once on the screen. Power to the cameras is provided directly from the monitor. These can be used on both 12V or 24V vehicles.
*This system includes Monitor only. Reversing cameras and cables are sold separately.
PRODUCT HIGHLIGHTS
- Built-in quad control box function, support up to four cameras (this package si for Monitor only)
- 4 Ways AV input
- The display with 4 video frequency input (CH1, CH2, CH3, CH4)
- Can be divided into 1, 2, 3 or 4 demo screen
- 1 way audio input for V1
- 4 video display for reversing (front, rear,left, right)
- 9" Colour TFT-LCD wide screen
- Resolution: 800x480 pixels high definition
- Built-in speaker
- Can hear sound from DVD/MP3/MP4
- Suitable with 12V/24V power supply
- Ideal for regular 12V car battery or heavy duty 24V truck
- High rating making it very durable and suitable in all environments
- This is very handy so you can mount monitor up side and down or even sideways and still see the image the right way around.
- Sunshade design around
ITEM DESCRIPTION
- 9 inch TFT LCD monitor
- 16:9 wide screen display
- System: PAL & NTSC auto-switching
- Power supply : 12V/24V compatible
- Operating voltage : 12-24V using power supply box
- Automatic switching with trigger/manual switcher
WHAT'S INCLUDED
1. 1x 9" Monitor with Sunshade
2. 1x User Manual
3. 1x Power Harness
4. 1x Remote Controller
