5" Monitor LCD 12V/24V Car Reversing Rearview Camera with Mic System Kit 4PIN
ADVANCED 4PIN★2 AV inputs★Built in microphone
Notify me when back in stock

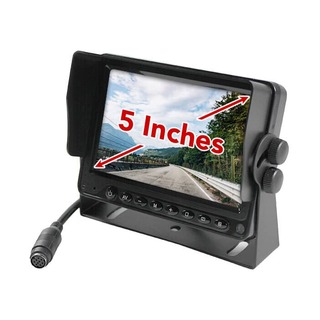

5" TFT LCD 12V/24V Reversing Camera System
with Built-in Mic

Key Features
- 5" TFT Monitor 800x480 High Resolution
- Suitable for 12v/24v vehicles
- Reversing camera with built-in microphone for easy communication
- Rearview will show on the screen automatically when reverse gear is induced
- Distance gridline on/off function

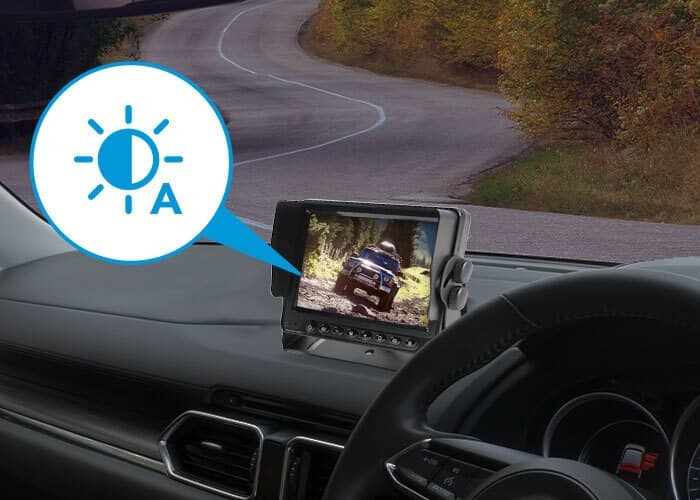

- Light sensor automatic adjustment (Monitor will dim itself automatically at night no more manual adjustment when the screen gets too bright at night)
Item Description:
- 5" LCD screen display picture behind vehicle
- Reverse image will show on the screen automatically when the reverse gear is induced
- Rearview image can also be shown on screen at all times
- Infrared IR Night vision and waterproof camera
- 120 degree wide angle Heavy Duty CCD camera
- Shock resistant, designed specifically for heavy duty vehicle use
- Input power: 10VDC to 32VDC
- With grid line distance graph on/off
- Built-in microphone reversing camera, for easy communication
- 2 AV inputs, can be connected up to 2 reversing cameras
Installation

Demo Sample

Dimensions

What's included

(GEAY5RVMIC)
Monitor | : 5" car monitor |
Ratio | : 16:9 |
Resolution | : 800*480 R.G.B |
Contrast | : 400:1 |
RANGE | : 155 x 86mm |
Pixel pitch | : 0.135(H) x 0.135(V) |
Viewing angle | U:45° D:65° L/R:60° |
POWER SUPPLY | : DC12V~DC32V |
WATT | : 5W |
WORK TEMPERATURE | : -20℃~70℃ |
STORAGE TEPMERATURE | : -30℃~80℃ |
System | : PAL and NTSC |
Respond time | : 30ms |
VIDEO | : 2 WAYS VIDEO INPUT, AV2 with trigger wire |
AUDIO | : 2 WAYS AUDIO INPUT |
Picture display format | : 15:9 |
Operation temperature | : -30°C ~ +70°C |
• Light sensor automatic adjustment (Monitor will dim itself automatically at night no more manual adjustment when the screen gets too bright at night) | |
• Reverse image will show on the screen automatically when the reverse gear is induced | |
• Shock resistant, specifically designed for mobile use | |
• Eight languages OSD menu: Chinese, English, Russian, German, French, Italian, Portuguese and Spanish | |
• The display with two video frequency input, automatic/manual switcher | |
• Front panel controls with on-screen menu |

SKU | GEAY5RVMIC |
Barcode # | 0686494500600 |
Shipping Weight | 1.5000kg |
Shipping Width | 0.420m |
Shipping Height | 0.100m |
Shipping Length | 0.260m |
Shipping Cubic | 0.000008m3 |
Unit Of Measure | ea |
Second attempt to post a review
By: Rodger on 16 May 2016Will be interesting to see if Elinz will allow this negative review to be posted. It is not possible to select any other option than 5 stars which makes this process a sham. The monitor and camera produce a good picture but the operation of it is hopeless. No rotation of image possible, continuous blue screen when not showing an image. 1 Star.
(5)
120 degree wide angle
1 December 2015Convenient to use. Very helpful in driving. Thumbs up .
(5)
Review on 5 inch monitor
By: Iro on 13 March 2014Great little monitor for the price. A bit chunkie, but very clear. The operating handbook is useless. Nothing on how to use the functions like reversing an image. Really only good for installing the wiring. Then I would throw it away. The camera it comes with is excellent. Robust and easy to connect up. Plenty of wiring length (maybe a bit too much, 10 meters). All in all, pretty good.
(4)
The camera kit is sold with only one (1) reversing camera with mic included. However, you can purchase an extra reversing camera in case you need it.
2. Do you need to another power cable for the reversing camera?
There's no need to connect the camera to another power cable. The 4PIN cable that comes with the camera kit allows the monitor to automatically power up the reversing camera on its own.
3. Will using the camera kit with larger vehicles be a problem?
No. The camera system is designed for both 12v and 24v vehicles. In addition, the reversing camera itself is shock resistant so you can install it in larger vehicles used for heavy duty applications.
