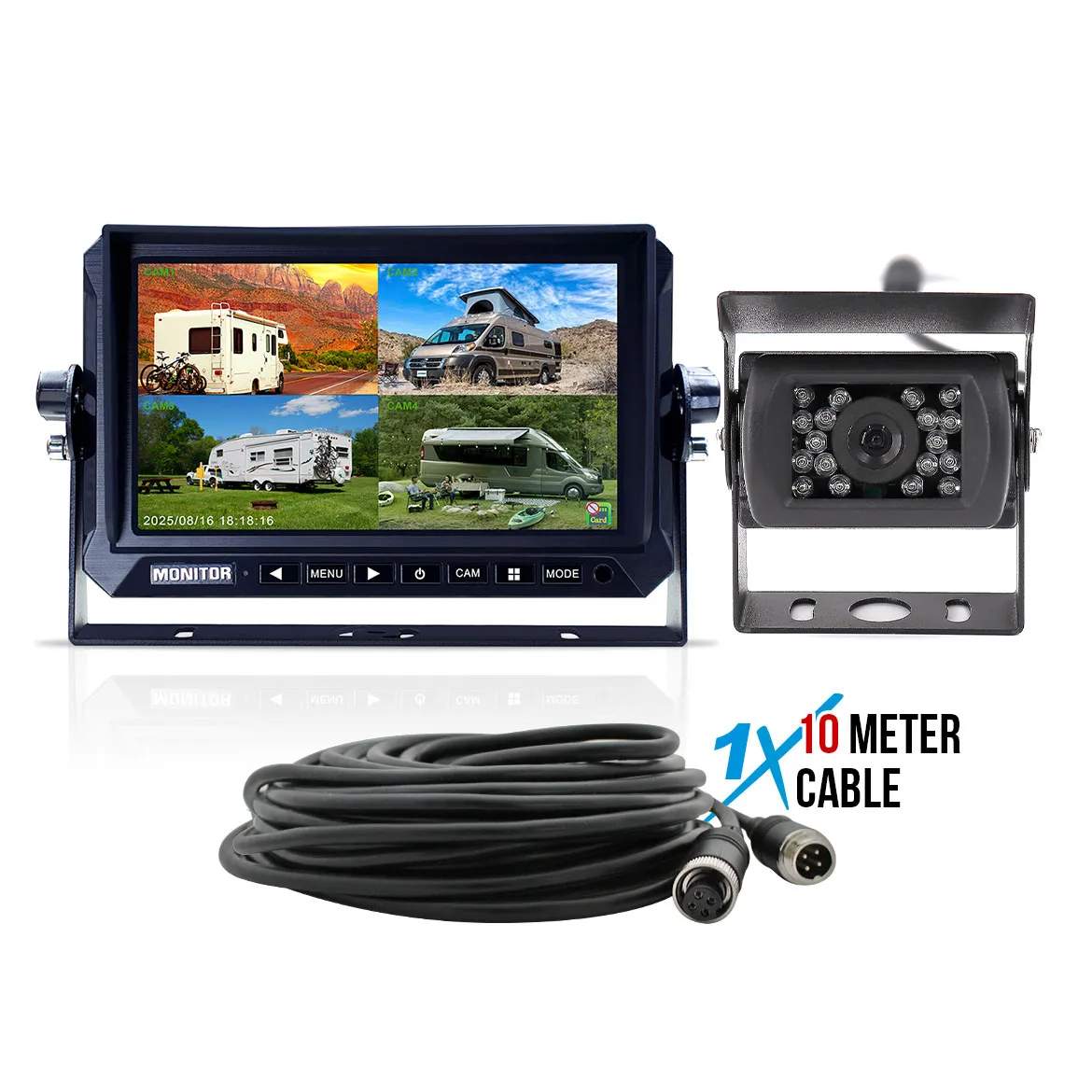

Elinz 7" AHD Quad Split Screen DVR Monitor 1080P Reversing Camera Kit

The Elinz 7" AHD Quad Split Screen DVR Monitor Kit delivers a compact yet powerful solution for safer reversing and full vehicle monitoring. With support for up to four 1080P cameras, real-time recording, and flexible single, split, or quad display modes, it gives you complete visibility at all times. Built with durable, waterproof cameras and night vision capability, it performs reliably in all driving conditions.

PRODUCT SPECIFICATIONS

MONITOR

  • Screen Size: 7 inch
  • Screen Resolution: 1024 x 600
  • Video Signal: AHD
  • Video Channels: Supports up to 4 cameras
  • Video System: PAL
  • DVR Function: Yes
  • Recording: Real‑Time
  • Storage Capacity: Supports up to 256GB SD Card
  • Display Modes: Single, Split, Quad Screen
  • Connection: 4-Pin
  • Speakers: n/a

CAMERA

  • Video Signal: AHD
  • Image Sensor: CMOS
  • Effective Pixels: 1920(H)*1080(V)
  • Resolution: 1080P
  • Video System: PAL
  • Viewing Angle: 120°
  • Viewing Type: Reverse
  • Night Vision: IR
  • Microphone: No
  • Connection: 4-Pin
  • Working Voltage: DC 12V
  • Waterproof Rating: IP68

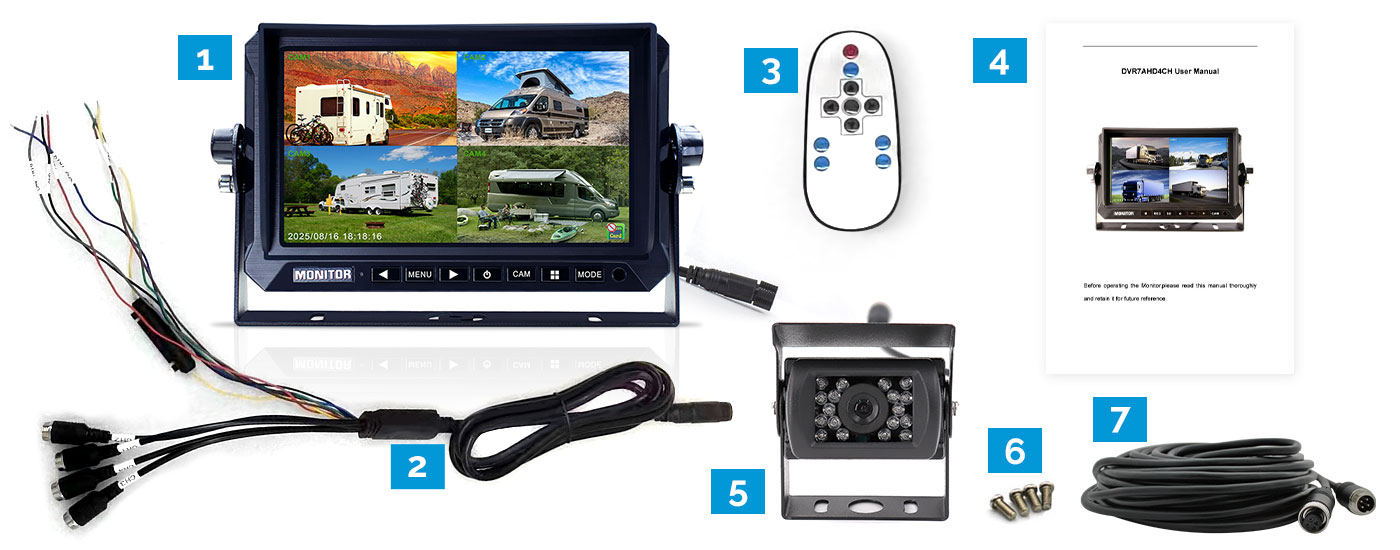

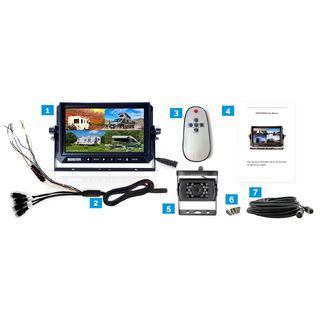

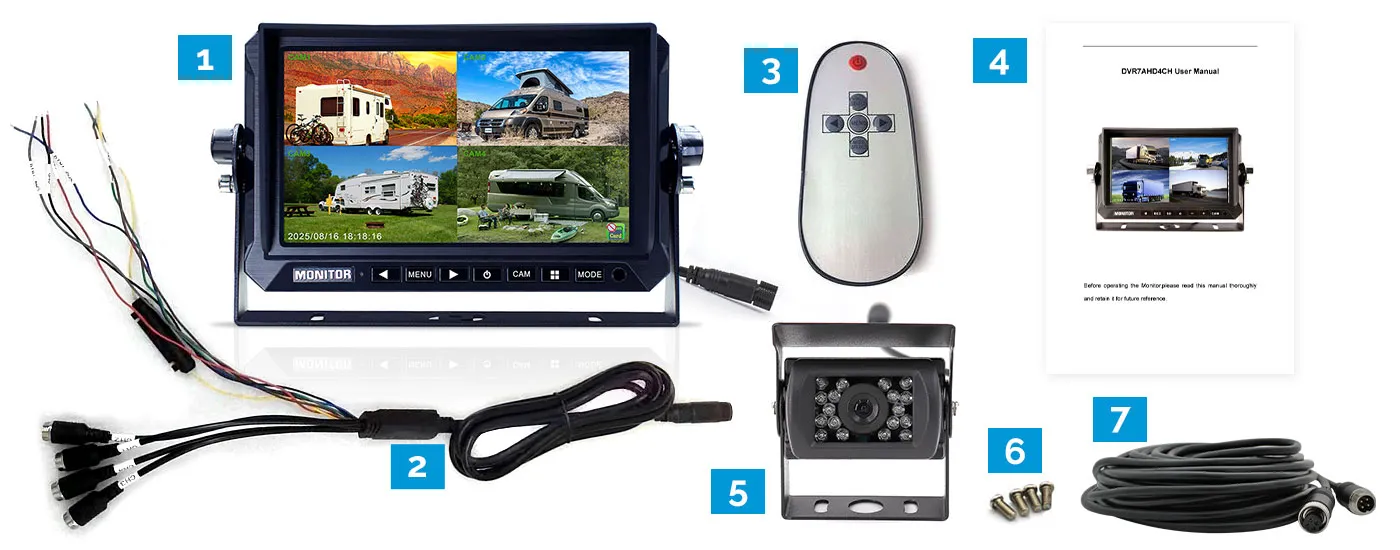

What’s Included

1. 1x Monitor

2. 1x Power Cord

3. 1x Remote (Batteries not included)

4. 1x User Manual

5. 1x Reversing Camera

6. 1x Screw Pack

7. 1x 10m 4-Pin Cable
