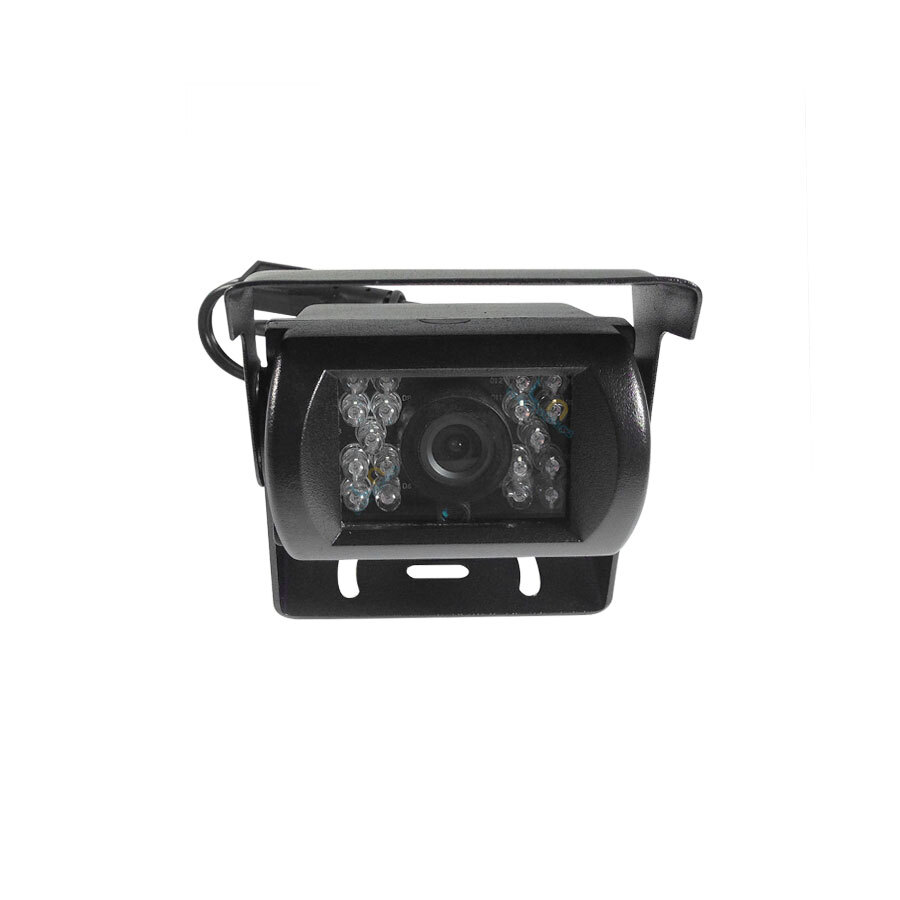

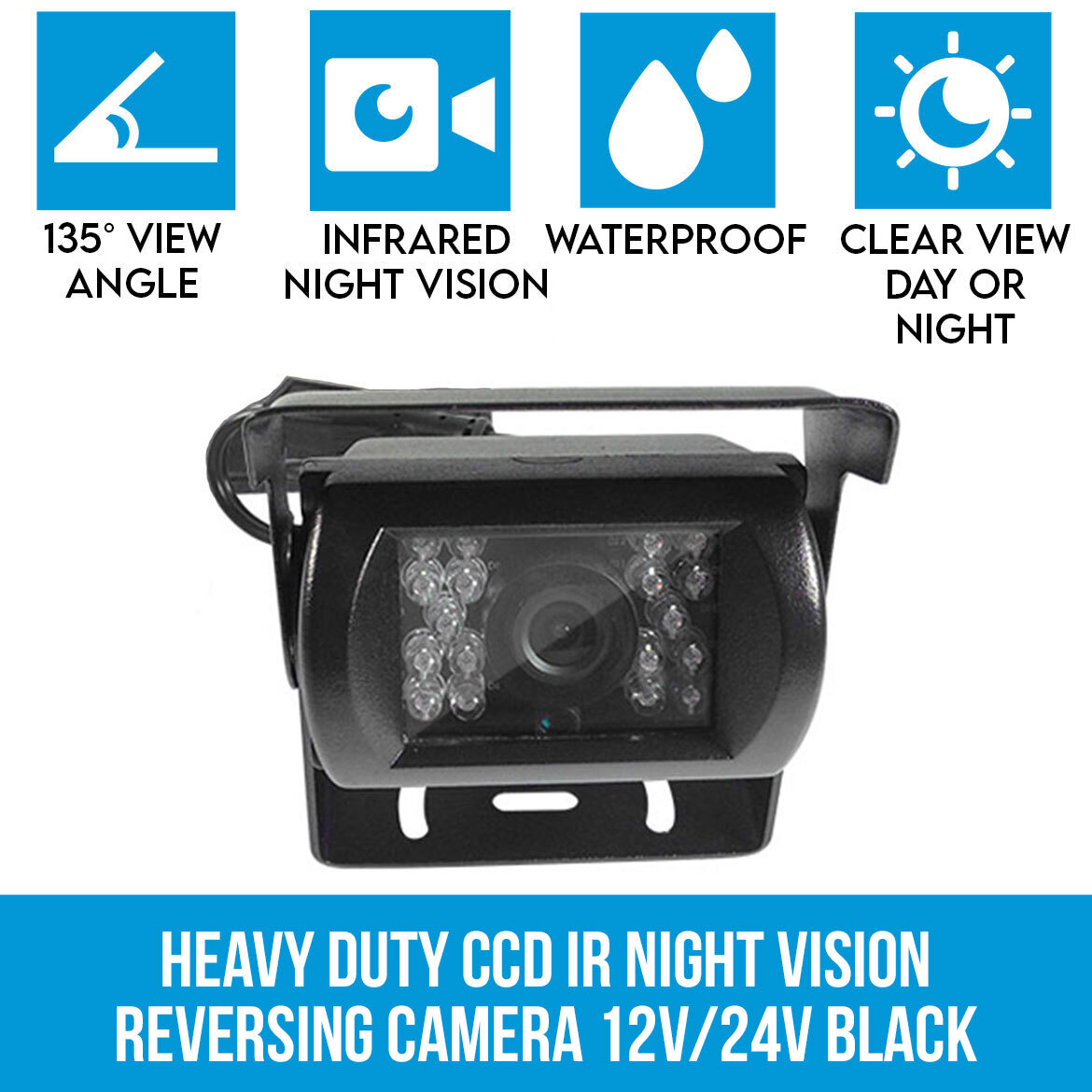

Elinz Heavy Duty CCD IR 12V/24V Colour reversing camera BLACK
PAL Heavy Duty CCD Camera=Can be turned on at all times
SKU | RVS1 |
Barcode # | 0686494501638 |
Brand | Elinz |
Wired or Wireless Transmission | Wired Transmission |
Cable Length | 10m cable |
Camera Type | CCD Camera |
Camera Resolution | 480TVL |
Camera System | RCA System |
Camera Viewing Angle | 135 degree |
Shipping Weight | 0.4000kg |
Shipping Width | 0.002m |
Shipping Height | 0.002m |
Shipping Length | 0.002m |
Shipping Cubic | 0.000010000m3 |
Unit Of Measure | ea |
I have been looking for a better quality CCD camera for my Motorhome as a continuous rear monitor camera and this camera is fantastic and fill the bill very well. Very well housed in a waterproof surround and works very well at a great price. Elinz were fantastic to deal with and kept me informed and I got my cameras quickly and well packed. I will be back.. Thankyou.
I purchased two of these cameras some time ago , and they are invaluable when driving as well as parking. Both are installed on my motorhome and have lasted well over the years.The colour quality has not changed. They are as good as new.Great value , quality and a great company to deal with. . Alan
![](/assets/images/mainRV1-min.jpg)
![](https://www.elinz.com.au/assets/images/2-year-warranty-icon.jpg)
SKU: RVS1
Key Features
- 135 degree Wide angle viewing helps avoid accidents & injuries
- Colour infrared night vision waterproof CCD reverse camera
- Suitable for use with trucks/ caravans/ cars etc. Thanks to this heavy duty CCD crystal clear 12/24-volt applicable reverse camera
- Clear view day or night
![Reversing camera parking line](https://www.elinz.com.au/assets/images/parking-line.jpg)
Reverse Camera Specification:
- Image Sensor: Colour CCD
- TV system : PAL
- Effective pixels: PAL: 628*586 pixels
- Horizontal resolution : 480TVL
- Sensing Area: 1/4: 3.6mm x 2.7mm
- Shutter Speed: 1/50(PAL)
1/10,000 seconds - Minimum illumination: 0.1 Lux/ F-1.2
(0 Lux with IR on) - Video Output: RCA connector. 1.0v P-P, 75ohm
- Power Consumption: 110mA
max 300mA with IR on - Power Supply: 12v/ 24v
- Operating Temperature: -20 degree celcius to 90 degree celcius
RH 95% Max - Lens Angle: 90 degree/ 135 degree
- Waterproof: IP67/ IP68
- Video cable 6 meter (extra length video cable is available for purchase)
- Dimension: 75(W)X45(D)X75(H)mm
- Weight: 300g
*Please note that a 6 meter video cable is included in the sale extra length video cable is available for purchase please contact us for details.
![RV1 Specifications of reversing camera](/assets/images/dimensionRV1.jpg)
![](/assets/images/angleRV1.jpg)
What's Included
![RV1 Car reversing cameras accessories](/assets/images/includedRV1-2.jpg)
- 1x Heavy Duty Night Vision Reversing Camera
- 1x 6M Video Cable
- 1x Power Cable
- Screws
