Elinz Waterproof 7" Monitor HD 12V/24V Reversing CCD Camera Mining Vehicle Truck Caravan Boat


WAS From AUD $699.00
NOW AUD $249.00
Sale Ends in
00:00 am, 29 April 2021
In Stock

Payment made easy

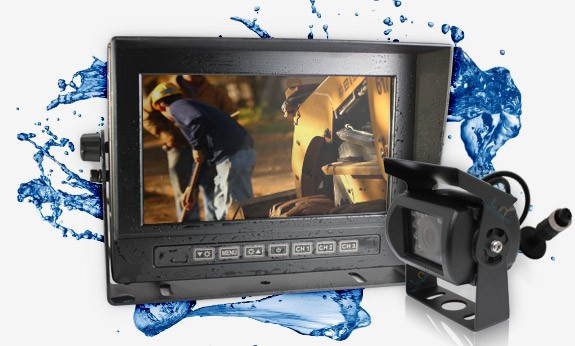

Waterproof 7 inch Monitor Reversing Camera Kit


Elinz Electronics™ has introduced the lowest cost completely waterproof 7" LCD Monitor in the industry. Other waterproof monitors we have seen are as much as $1200 higher than this unit. This monitor kit features a wide temperature range and will withstand heated water high pressure wash-down.

600TVL Reversing Camera Upgrade
Reversing camera Monitor LabelsReliable and Durable Reverse Camera System

Buy from legitimate company, Elinz Electronics Pty Ltd is a Registered Australian Business ABN 98 135 817 819


  • All Prices are GST inclusive, tax invoice will be provided upon request.
  • 12 months Local Australian Warranty.
  • We ship via Australia Post using registered post as a standard. Items are insured by registered post and must be signed upon delivery.
Reversing Camera Kit Certification

Main Features


  • 7" Digital Color LCD TFT Monitor
  • 3 Channel model with waterproof IP69K monitor image switcher
  • Totally sealed aluminum alloy case with steel bracket and plastic visor
  • Waterproof
  • Dustproof
  • Explosion Proof
  • Hydrochloric Acid Resistant
  • IP69K Rated
    (better than IP69K – can handle high-pressure heated wash-down water and chemicals)
  • Each channel can be switched from normal to "Reverse" mirror images
  • Front panel controls and remote control included
  • Trigger wires included for call-up of any channel automatically
    (by switch or connect to back-up, blinkers, etc.) Can set delay time for camera call-up as well.
  • Standby mode can also power up only when triggered
  • 3 Channel Model (3 BNC Inputs)
  • Menu can be changed from English to: Dutch, Spanish, Portuguese, French, German, Italian and   Russian.
  • Wide Voltage Range: 12-32 Volts DC
  • Wide Temperature Range: -22°F to 175°F (-30°C to 80°C)
  • Wide Viewing Angles: 120 degree angle

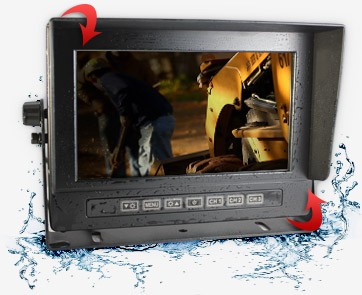

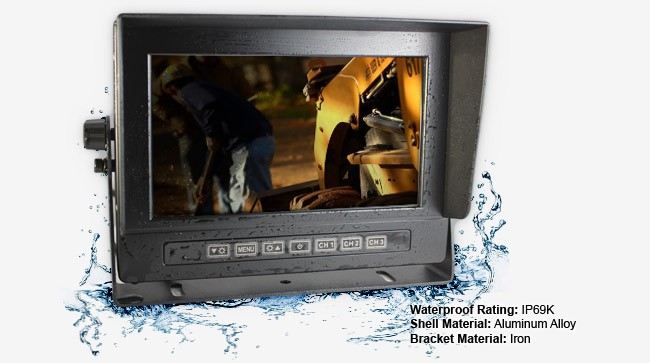

IP69K Waterproof Reversing Camera Monitor

It is designed to meet the demands of environment application where the monitor is exposed to water elements.

Suited for dusty or wet conditions found in industrial and outdoor environments, provide protection from direct or windblown dust and rain, splashing water, snow, ice formation and even temporary submersible, such as deserts, ships, simply constant exposure to changing weather conditions. Can apply to truck, boat, harvester, mining truck, forklift, caravan, crane, or even grapple tractor!

That's not all, all our units come with ONE YEAR WARRANTY!




  • Screen Size: 7 inches
  • Aspect Ratio: 16:9
  • Luminance: 250cd/m²
  • Resolution: 800*R.G.B.*480
  • Audio/Video: 3 ways video input
  • System: PAL & NTSC automatically
  • Voltage: 12V - 24V
  • OSD Menu: Display menu, Brightness, Color, Contrast adjustable
  • Bracket Accessories: U-type bracket(stand bracket)

The CCD image sensor (made by SHARP company) outputs digital signals that has better picture's clarity, color contrasting and sharpness than CMOS camera, with it's 18 individual Infrared (IR) LED, it shows clear images in low light especially at night circumstances.

This heavy duty CCD camera is hard metal cased, waterproof and mudproof.

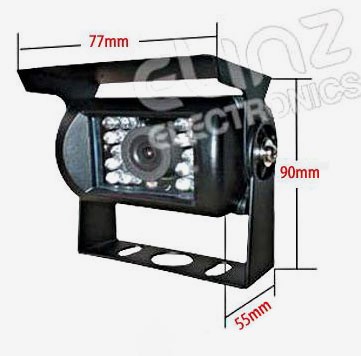

CCD Reversing Camera Dimensions

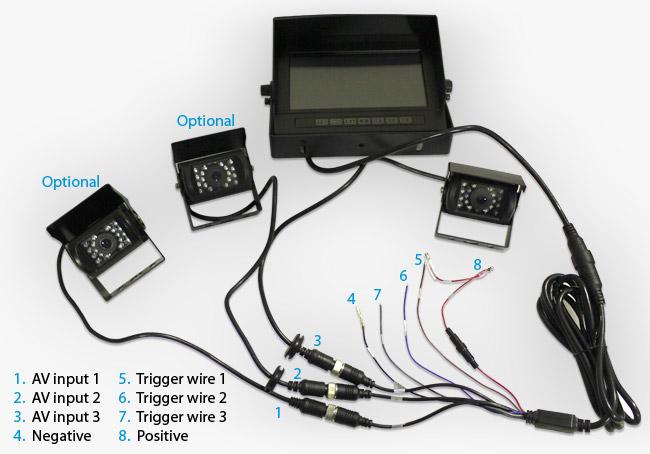

Reversing Camera Monitor Kit Set up
  • 3 Ways Video Inputs
  • Suitable for 12V/24V Vehicles
  • Waterproof Rating: IP69K
    • Suitable for boat, harvester, mining truck, crane.
  • Fixed Sunshade Design
  • Wireless Remote Control

Trigger Wire - Show the camera image on the screen automatically when the trigger wire for that particular camera is triggered - when there is power going to the trigger wire.

Advance 4PIN Cable - Allows the monitor to power up the reversing camera too, no need to connect another power cable to camera

PLEASE NOTE: This kit comes with one Waterproof 7" Monitor and one CCD Reverse Camera with one 20M 4PIN cable only, please contact us if you need extra camera or cable, with 12 months warranty.

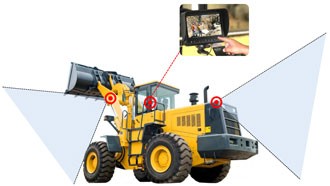

Reversing CCD Camera Mining Vehicle Truck Caravan Boat Application
CCD Reverse Camera Uses

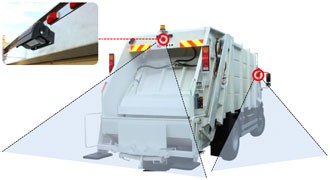

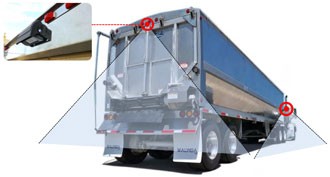

Truck  Reverse Camera System
Large vehicle reversing camera monitor kit

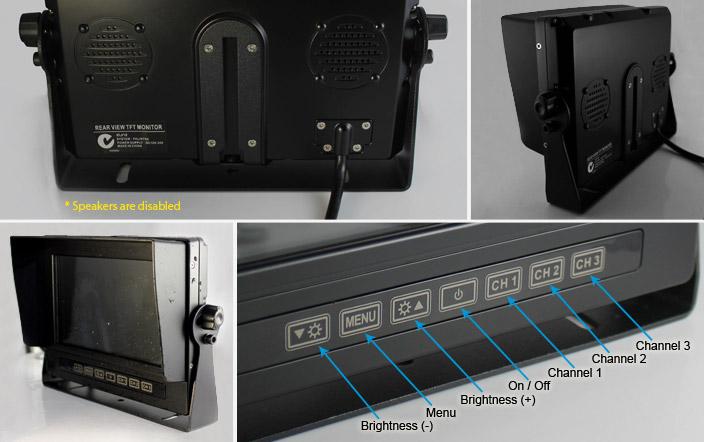

Monitor with four angle viewing switch

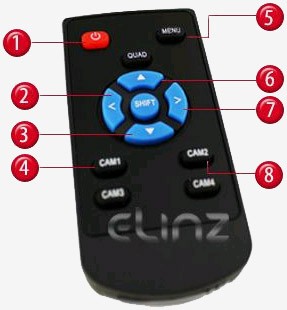

Remote Control

Reversing camera monitor remote control


  • Power On/Off
  • Decrease button - For adjusting of Volume, Brightness, Contrast, Language, Rotation, Etc.
  • Downward Select
  • Select channel 1 full display
  • Menu - access Brightness, Contrast, Language, Rotation, Etc.
  • Upward select
  • Increase Button - for adjusting of Volume, Brightness, Contrast, Language, Rotation etc.
  • Select channel 2 full display



  • Please align the remote control with the infrared-receiving window to operate.
  • Never disassemble the remote contril or allow it to drop, or become wet.
  • Press the control buttons firmly. Allow 2 seconds for the picture to change.

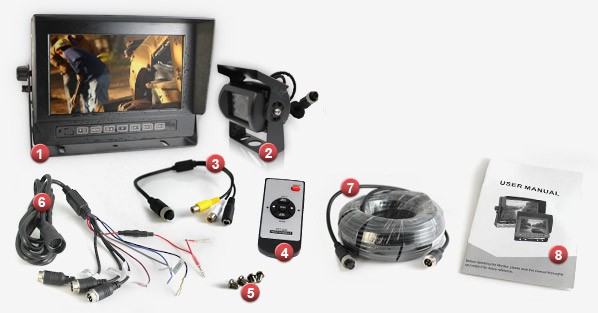

What's Included

Waterproof 7inch Monitor HD 12V 24V Reversing CCD Camera Package
  • Waterproof 7" Monitor
  • Waterproof Reversing Camera
  • RCA to 4PIN adaptor
  • Wireless Remote Control
  • Screws
  • Harness
  • 20M 4PIN Cable
  • User's Manual

Click-here-reversing-camera kit options

Frequently Asked Questions

No FAQs Available

Troubleshooting Guides

A. No image

  1. Check power lead of monitor if connected properly to source 12 or 24v
  2. Check channel camera is assigned. Be sure the same.toggle channels
  3. If different camera available, try using on same channel
  4. Call or email customer support if all TS fails.

B. Flickering image, distorted image

  1. Make sure Power being used is stable for camera
  2. Test power flowing on screen
  3. If different camera is available, try using
  4. Call or email customer support if all TS fails.

C. Blue screen only/no signal

  1. Make sure camera is connected on selected channel
  2. Check if camera is connected secured.
  3. Transfer camera to different channel
  4. Call or email Customer support if all TS fails.
