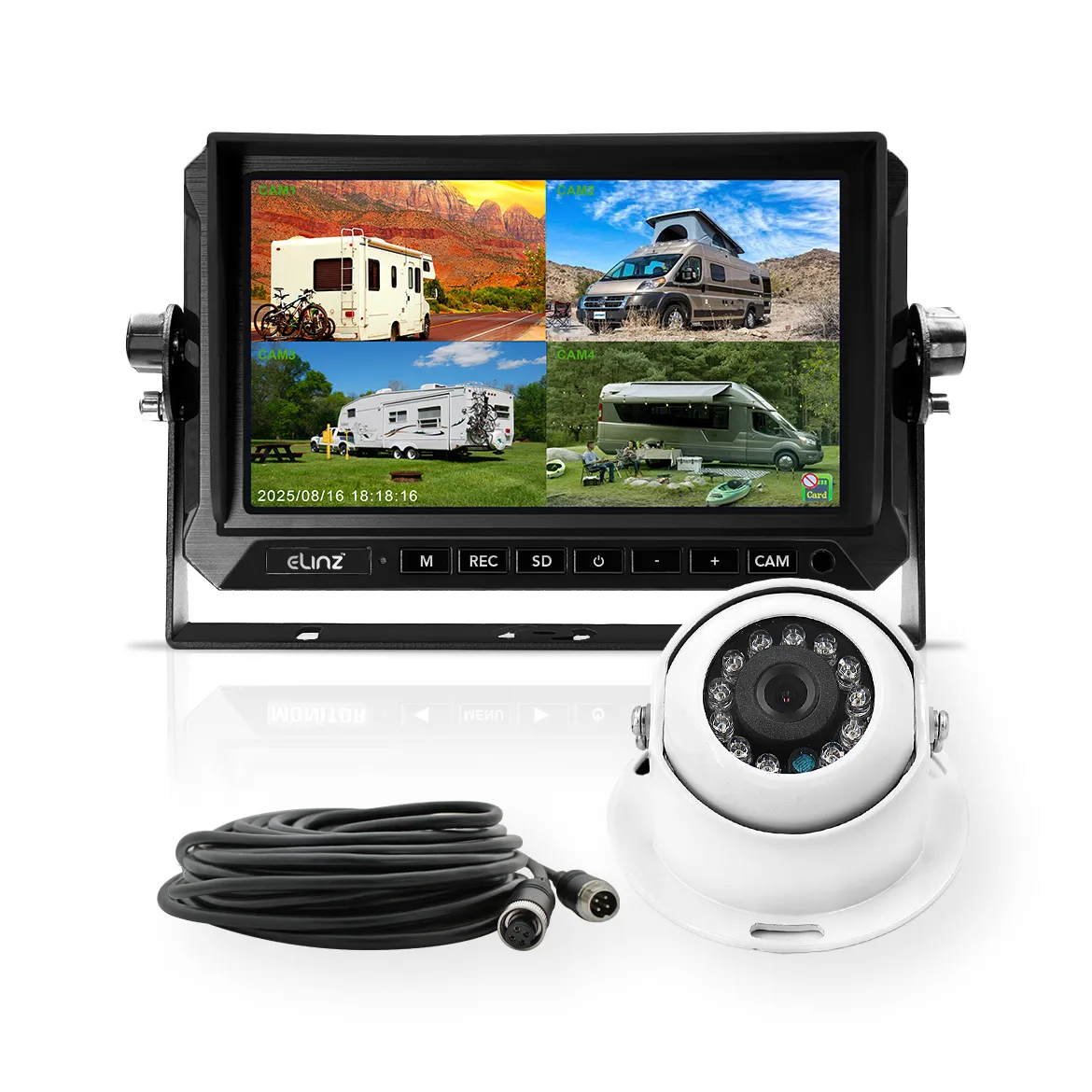

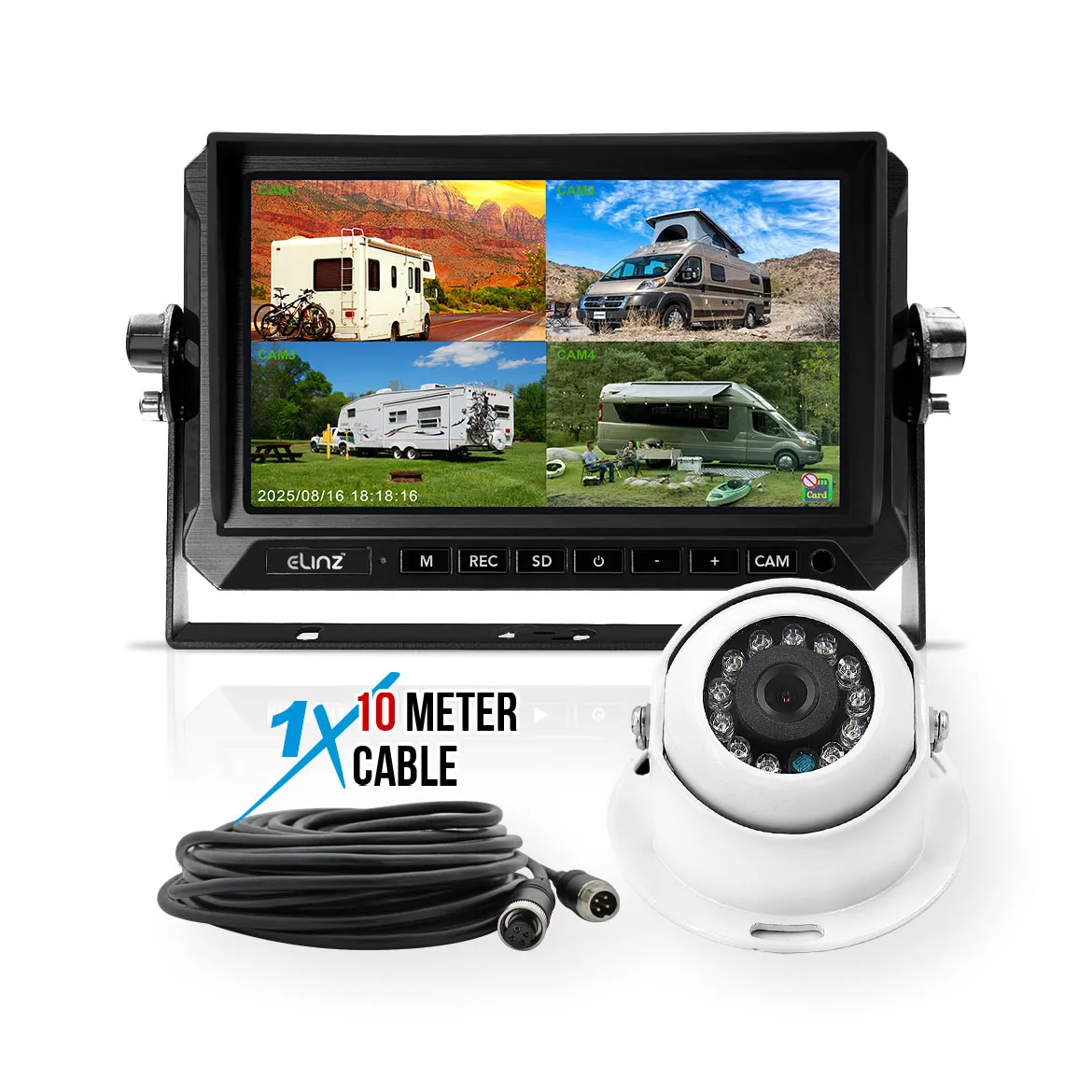

Elinz 7" AHD Monitor 4 Channel DVR 1080P Dome Reversing Camera 10M Cable

The Elinz 7" AHD Monitor 4 Channel DVR Kit is a reliable surveillance and reversing solution designed for trucks, buses, caravans, and commercial vehicles. Featuring a high-resolution 7-inch AHD monitor with built-in DVR recording, quad-screen display capability, and support for up to four cameras, it provides comprehensive vehicle monitoring and enhanced safety. Paired with a heavy-duty 1080P AHD dome camera offering a wide 120° viewing angle, infrared night vision, and IP68 waterproof protection, this kit delivers clear visibility and dependable performance in all conditions.

User Manual Download Icon

PRODUCT FEATURES

MONITOR SPECIFICATIONS

  • Screen Size: 7 inch
  • Screen Resolution: 1024 x 600
  • Video Signal: AHD
  • Video Channels: Supports up to 4 cameras
  • Video System: PAL
  • DVR Function: Yes
  • Recording: Real‑Time
  • Storage Capacity: Supports up to 256GB SD Card
  • Display Modes: Single, Split, Quad Screen
  • Connection: 4-Pin
  • Speakers: n/a
  • Operating Voltage: DC12V-24V

CAMERA SPECIFICATION

  • Heavy Duty Dome Camera
  • Video Signal: AHD (Analog High Definition)
  • Resolution: 1080P
  • Effective Pixels: 1920(H)*1080(V)
  • Eliminate Blind Spots
  • 120° Field of View Angle
  • Night Vision: IR
  • Image Sensor: CMOS
  • Video System: PAL
  • Connection: 4-PIN
  • Metal Case
  • Viewing Type: Reverse
  • Microphone: No
  • Working Voltage: DC 12V
  • Waterproof Rating: IP68

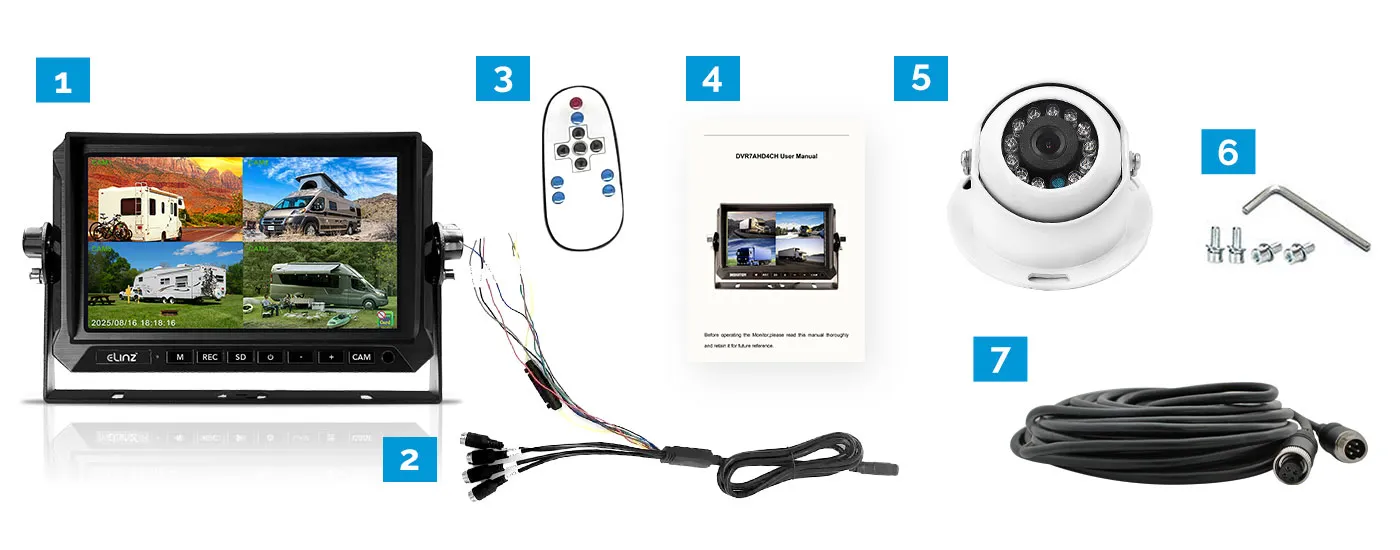

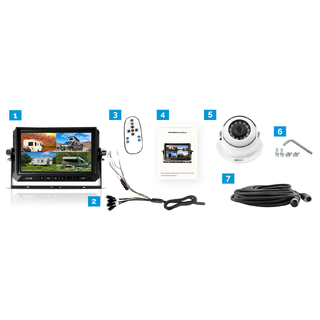

What's Included

1. 1x Monitor

2. 1x Power Cord

3. 1x Remote (Batteries not included)

4. 1x User Manual

5. 1x Dome Reversing Camera

6. 4x Screws

7. 1x 4PIN Cable 10M
