Ultrasonic Fuel Tank Level Sensor Detector Monitoring Management System Elinz

To be purchased together with Elinz MDVR system only

(SKU: FUELSENSOR)
AUD $175.00
In Stock


Payment made easy


Ultrasonic Fuel Tank Level Sensor Detector Monitoring Management System Elinz

SKU: FUELSENSOR

Ultrasonic Fuel Tank Level Sensor Detector Monitoring Management System
Ultrasonic Fuel Tank Level Monitoring System

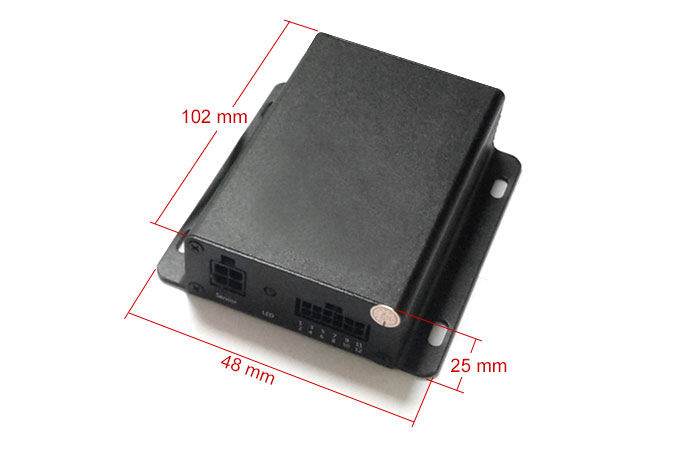

Dimensions



MORE INFORMATION

Judging your fuel tank capacity by the gauge of the vehicle can sometimes prove to be inaccurate. Everything will always start out well but in the long-run, these gauges will eventually start to become less accurate. Sometimes you may see that your gauge is showing you that you have enough fuel to head back to your company.

However, for older vehicles, it may prove otherwise and instead of being able to get back, you may end being stranded. This is why you should aim to avoid these situations and use an effective fuel tank level sensor. This device measures the height level of your fuel using ultrasonic sensors. It doesn’t to be in contact with the level of your fuel and will provide you with accurate readings of your fuel level. This gives you real-time results that are reliable for you to be able to estimate when you will need to refuel the vehicle. It’s always important to have accurate readings of your fuel level so that you can always tell how long you should continue traveling and if you can reach your destination without refueling. It’s always beneficial if you are always in a rush to reach your destination on time and saves your vehicle’s operating cost.

This will help most businesses to avoid delays and to have an effective system management. Ultrasonic sensors could be widely used in various types of vehicles for fuel measuring and monitoring, also could be combined with GPS/GPRS communication technology.

Helps your business maximize and monitor fuel consumption and analytic report management. Increase efficiency by creating identifying fuel-wasting habits like excessive idling or speed. Our MDVR System encourages drivers to develop more efficient driving techniques that help fleet operators to streamline routes for lower total mileage and more efficient unit allocation. Fuel is a heavy expense; Our Vehicle management system allows you to view and export fuel reports. Minimize waste and ensure drivers comply with company fuel policies using real-world data as instant feedback.

**Please allow up to 2 weeks for delivery

This MDVR accessory is to be purchased together with Elinz MDVR system only.

PRODUCT HIGHLIGHTS

  • Helps your business maximize and monitor fuel consumption
  • Analytic report management
  • Increase efficiency by creating identifying fuel-wasting habits
  • Allows you to view and export fuel reports
  • Minimize waste and ensure drivers comply with company fuel policies

ITEM DESCRIPTION

Data Processor

  • Operating Voltage: DC9V-48V
  • Power Supply Ripple: less than 100mV
  • Operating Current: Less than 30mA
  • Measuring Distance: 3cm to 100cm
  • Resolution: 0.1mm
  • Measurement Accuracy: 0.5%
  • Temperature Compensation Range: -40°C -+80°C

Output Mode

  • Voltage Output: 1-5V (corresponding 0-100cm)
  • Current Output: 4-20mA (corresponding 0-100cm)
  • Anti-theft Alarm Output: Need external connection alarming horn to achieve alarm
  • Material Tank/Container: Iron, Aluminum, Stainless Steel

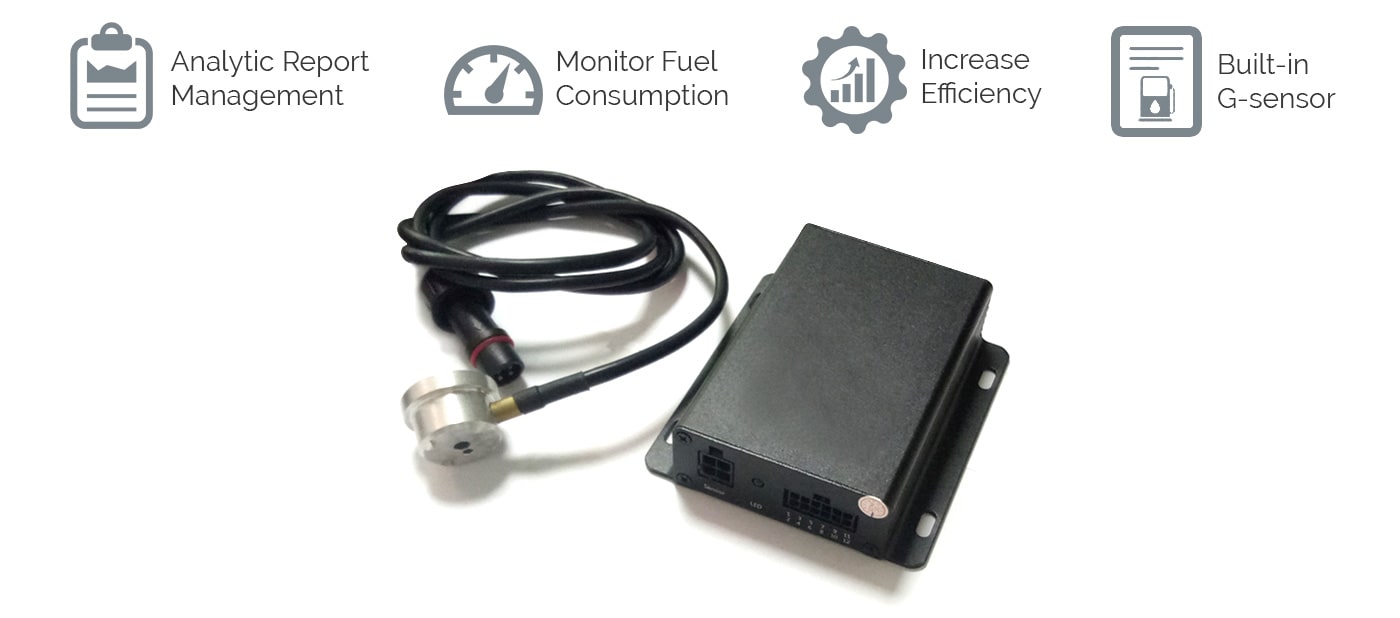

WHAT'S INCLUDED

  1. Host
  2. Ultrasonic sensor
  3. Power harness
  4. Sensor cable
  1. Cable ties
  2. Epoxy adhesive
  3. Sandpaper

Ultrasonic Fuel Tank Level Monitoring System
