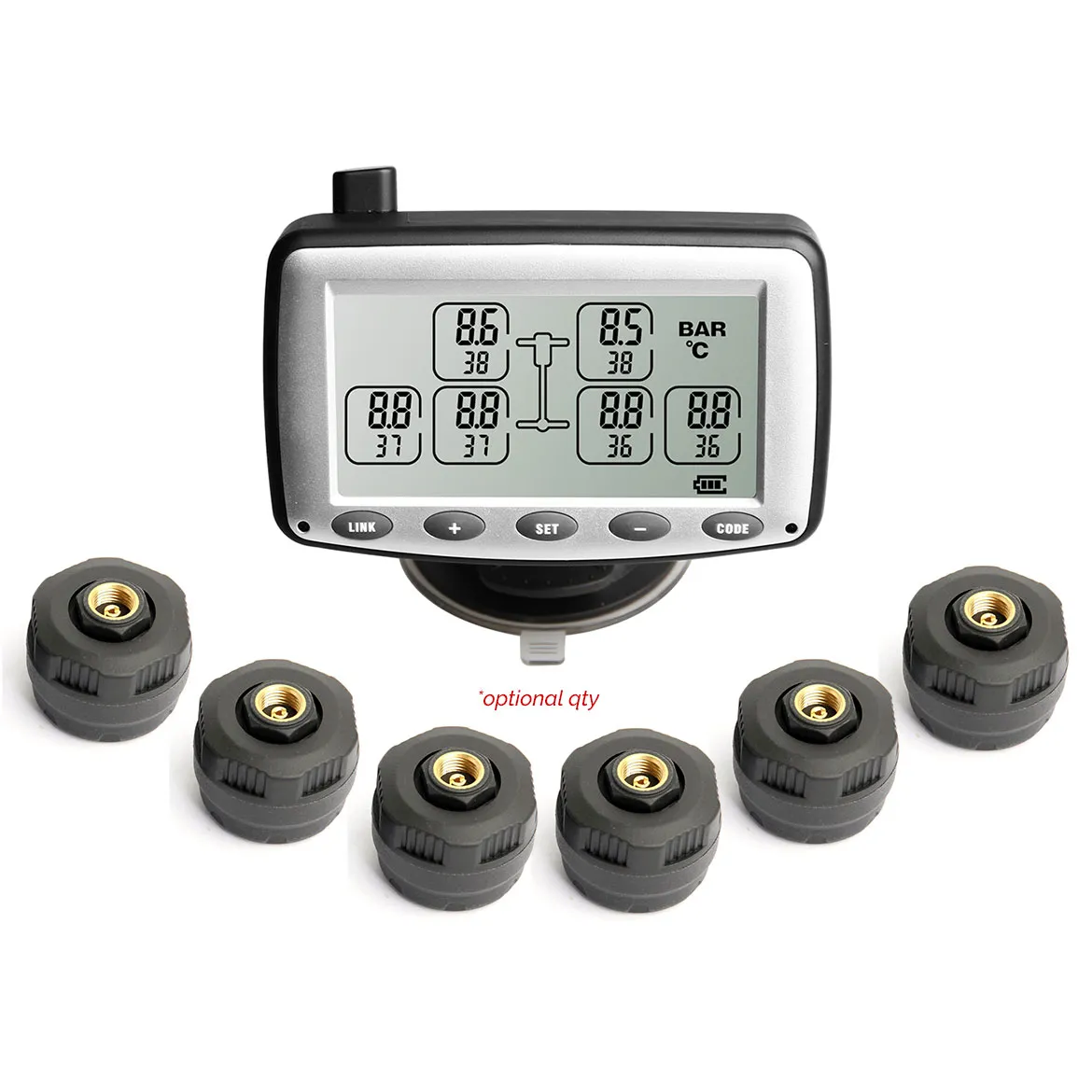

Caravan Trailer TPMS Tyre Pressure Monitoring System with High-Pressure Anti-Theft External Cap Sensors

The Caravan & Trailer TPMS with High Pressure Anti-Theft External Cap Sensors delivers real-time tyre pressure and temperature monitoring to help prevent blowouts, improve fuel efficiency, and extend tyre life. Designed to monitor up to 6 tyres, it features secure anti-theft sensors rated up to 188 PSI, a clear 3.5" LCD display with audible alerts, and multiple safety alarm modes for complete peace of mind on every journey. Reliable, easy to program, and built for caravans, trailers, RVs, and heavy-duty vehicles.

PRODUCT FEATURES

• Real-time Monitoring
  • Provides real-time pressure and temperature readings for each tyre, which prevent dangerous blowouts, improve fuel efficiency, and extend tyre life through even wear. Monitor your tyre pressure accurately from 0 to 189 PSI and temperature data within ±1.5 PSI or ±3°F accuracy.
• Monitors up to 6 Tyres
  • Perfect for RVs, Caravans, Trailers, Dually Utes, etc.
• High-Pressure Anti-Theft External Cap Sensors (0-188 PSI)
  • It comes with High-Pressure Anti-Theft External Cap Sensors, making them difficult to unscrew without a tool. Accurately detects tyre pressures from 0 to 188 PSI. These are designed for RVs, Trailers, or commercial trucks, where pressures might exceed 100 PSI.
• Large LCD Screen
  • With a large 3.5-inch LCD screen, this TPMS tyre pressure monitor system ensures visible and audible warning when abnormal conditions occur.
• Built-in Rechargeable Battery.
  • The monitor has a built-in 850mAh lithium-ion rechargeable battery, which will function for up to 60 hours before requiring a recharge.
• Easy Sensor Programming
  • Programming the sensors is easy, and you can do it even before installing the sensors.
• Power-Saving Mode
  • When your vehicle is parked and stationary for 10 minutes, the monitor goes into power saving mode and will automatically turn on as soon as vibration is detected.
• 5 Alarms Modes for Enhanced Safety
  • High-Pressure Alarm: Triggers if a tyre pressure exceeds a safe, pre-set threshold, which can be caused by heat build-up or overinflation.
  • Low-Pressure Alarm: Alerts the driver when tyre pressure drops below a minimum safe level, which is a key safety feature to prevent underinflation, potential tyre damage, and accidents.
  • High-Temperature Alarm: Warns if the internal temperature of a tyre exceeds a certain limit, often an indication of overwork, underinflation, or a mechanical issue.
  • Fast Leakage Alarm: Provides an immediate warning in the event of a quick loss of air pressure, such as from a puncture.
  • Sensor Low Battery Alarm: Indicates when a specific TPMS sensor's internal battery is running low, ensuring the system remains functional.
• TPMS Sensor ID Learning Steps
  • Step 1: In standby mode, press and hold the "CODE" button for 3 seconds to enter learning ID mode.
  • Step 2: Press the "+"/"-" button to select the desired tyre.
  • Step 3: Place the sensor close to the monitor, then press the "CODE" button.
  • Step 4: After all sensors are programmed to the monitor, press and hold the "CODE" button for 3 seconds to save the settings.
• Wide Sensor Compatibility
  • Designed to work with High-Pressure Flow-Thru TPMS Sensor (TPMS-HPE22), High-Pressure Anti-theft External TPMS Sensor (TPMS-HPSP3), Low-Pressure External TPMS Sensor (TPMS-LPSO) and Low-Pressure Flow-Thru TPMS Sensor (TPMS-LPE01)
• Hardwire Kit
  • Connects the display to your vehicle's fuse box, providing a clean, permanent power source to the TPMS monitor even when the vehicle is parked. Hardwire kit power cable is included.

PRODUCT SPECIFICATIONS

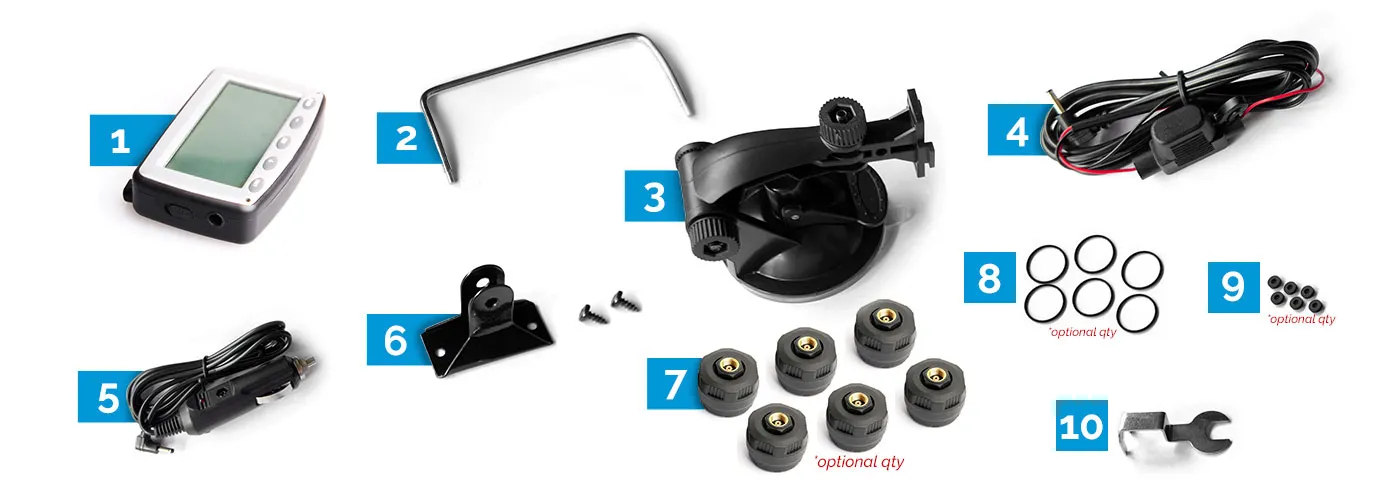

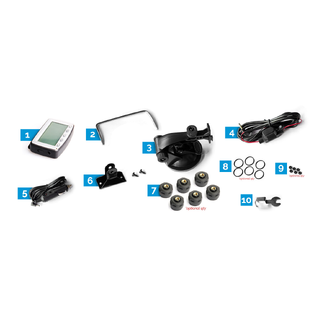

What's Included
