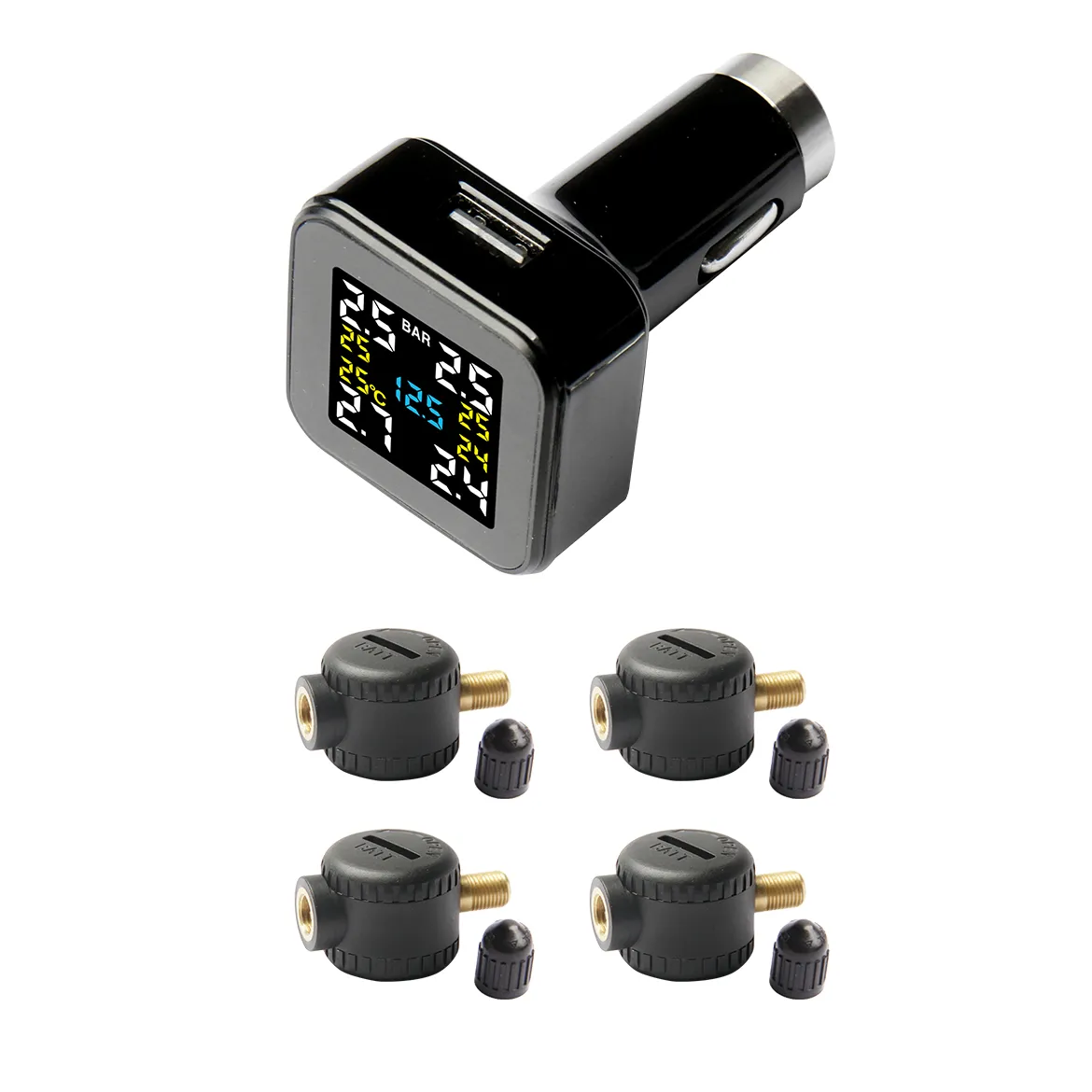

Car TPMS Tyre Pressure Monitoring System with High-Pressure Flow-Thru Sensors 0-188 PSI

This Car TPMS Tyre Pressure Monitoring System provides real-time pressure and temperature monitoring for up to four tyres to help prevent blowouts and maintain optimal performance. Featuring high-pressure flow-thru sensors, it allows easy tyre inflation without sensor removal while delivering accurate readings. Designed for sedans, SUVs, and utes, it offers simple installation and clear safety alerts for everyday driving confidence.

PRODUCT FEATURES

• Real-time Monitoring
  • Provides real-time pressure and temperature for each tyre, which prevents dangerous blowouts, improves fuel efficiency, and extends tyre life through even wear. Monitor your tyre pressure accurately from 0 to 87 PSI and temperature data within ±1.5 PSI or ±3°F accuracy.
• Monitors up to 4 Tyres
  • Monitors up to 4 tyres, designed for Sedan Cars, SUVs and Utes.
• High-Pressure Flow-Thru Sensors (0-188 PSI)
  • It comes with High Pressure Flow-Thru Sensors that helps you add or adjust tire pressure without removing the sensor. Accurately detects tyre pressures from 0 to 188 PSI these are designed for RVs, trailers, or commercial trucks, where pressures might exceed 100 PSI.
• Easy Installation
  • The monitor plugs directly into the 12V auxiliary power outlet; there is no need for complex wiring or professional installation.
• Alarms Modes for Enhanced Safety
  • High-Pressure Alarm: Triggers if a tyre pressure exceeds a safe, pre-set threshold, which can be caused by heat build-up or overinflation.
  • Low-Pressure Alarm: Alerts the driver when tyre pressure drops below a minimum safe level, which is a key safety feature to prevent underinflation, potential tyre damage, and accidents.
  • High-Temperature Alarm: Warns if the internal temperature of a tyre exceeds a certain limit, often an indication of overwork, underinflation, or a mechanical issue.
  • Fast Leakage Alarm: Provides an immediate warning in the event of a quick loss of air pressure, such as from a puncture.
  • Sensor Low Battery Alarm: Indicates when a specific TPMS sensor's internal battery is running low, ensuring the system remains functional.
• TPMS Sensor ID Learning Steps
  • Step 1: In standby mode, press the "SET" button 5 times to enter learning ID mode.
  • Step 2: Short press the "SET" button to select the tyre location and install the sensor to the tyre valve.
  • Step 3: The sensor will automatically send its own ID to the display, wait until you hear six beeps to confirm that the code is received.
  • Step 4: After all sensors are programmed to the monitor, press and hold the "SET" button for 3 seconds to save the settings.

    The middle button represents the tyre location; 0 is for the left front tyre (LF), 1 is for the right front tyre (RF), 2 is for the right rear tyre (RR) and 3 is for the left rear tyre (LR).
• Colour Screen
  • Providing you clear and easy-to-read tyre pressure and temperature data in any light condition.
• Wide Sensor Compatability
  • Designed to work with High-Pressure Flow-Thru TPMS Sensor (TPMS-HPE22), High-Pressure Anti-theft External TPMS Sensor (TPMS-HPSP3), Low-Pressure External TPMS Sensor (TPMS-LPSO) and Low-Pressure Flow-Thru TPMS Sensor (TPMS-LPE01)
• Voltage Monitor Feature
  • With a voltage monitoring feature that helps you stay informed of your vehicle's battery volt
• Safety Hammer Design
  • Features a hardened metal head designed to shatter car windows in emergency situations.
• USB Output Port
  • With a built-in USB-A outlet that allows you to charge mobile devices like smartphones and tablets, etc.

PRODUCT SPECIFICATIONS

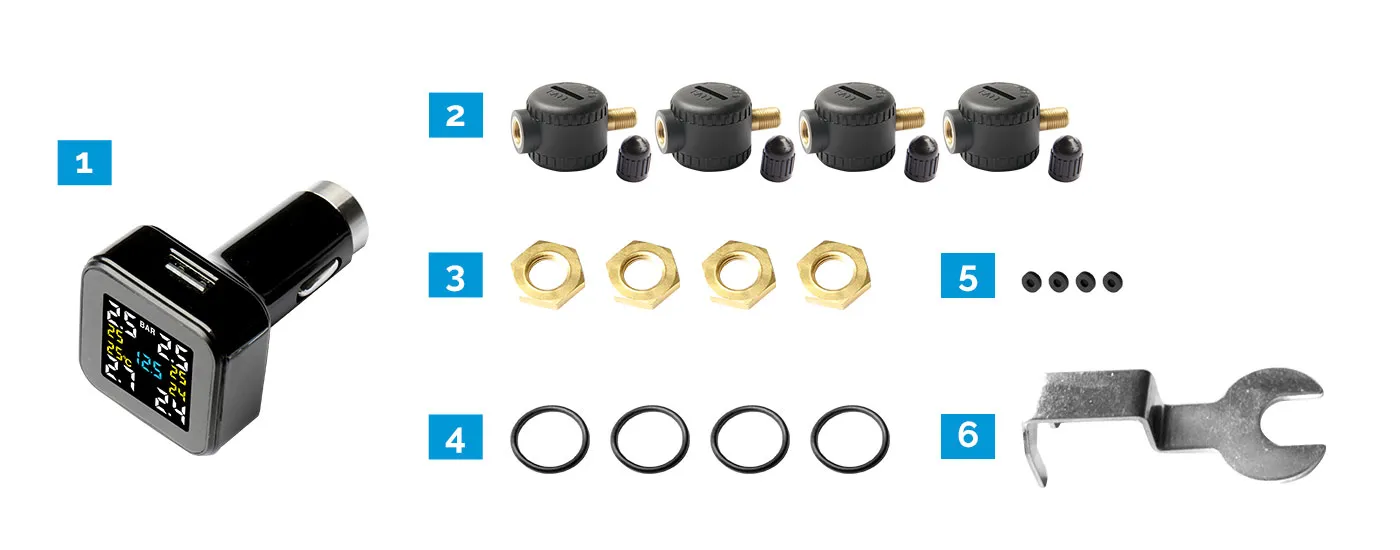

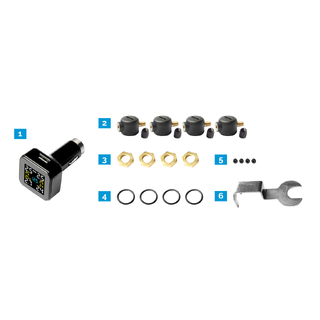

What's Included
