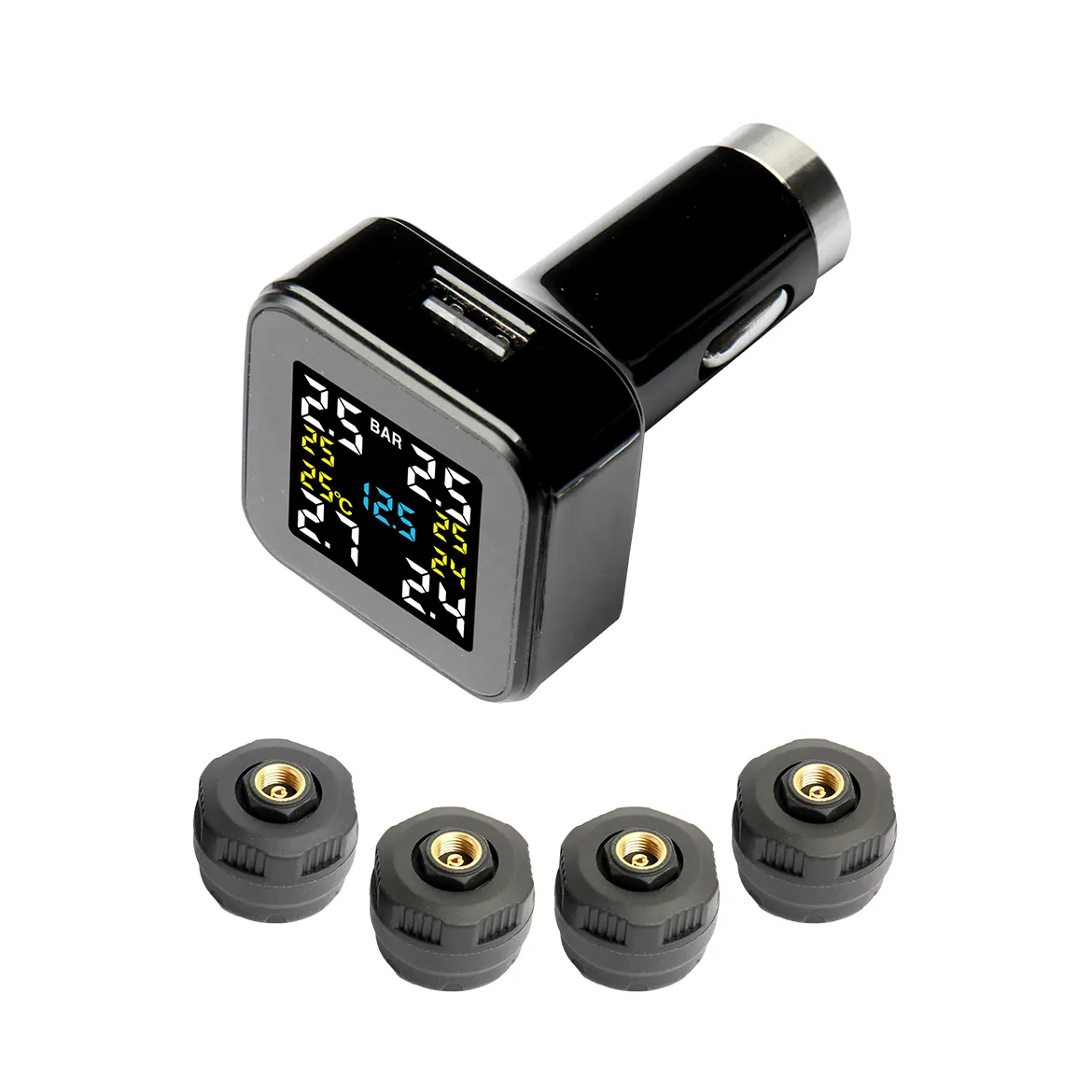

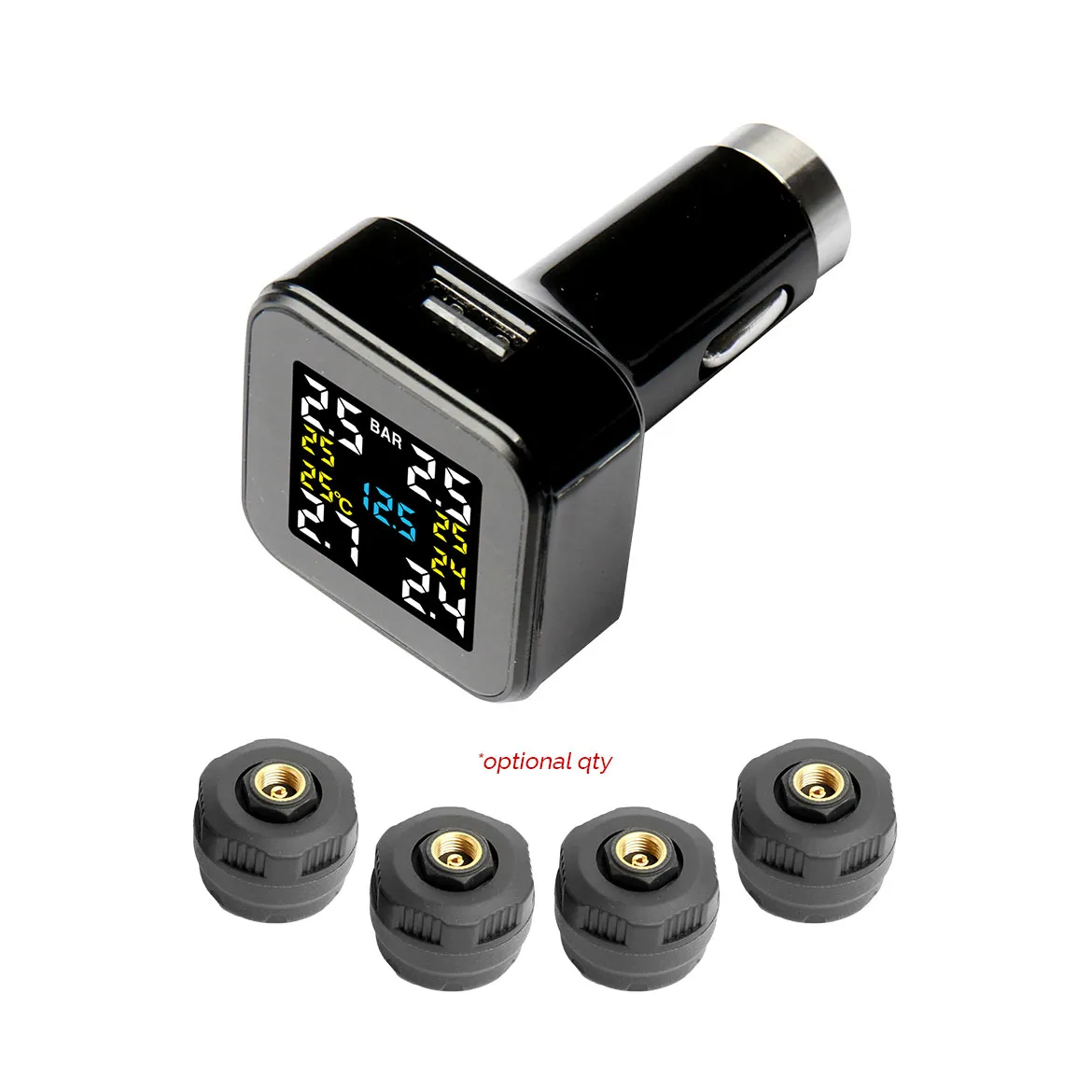

Car TPMS Tyre Pressure Monitoring System with High Anti-Theft Pressure External Cap Sensors

Drive with confidence knowing your tyres are always under control. This Car TPMS delivers real-time tyre pressure and temperature monitoring for up to four tyres, helping prevent blowouts, improve fuel efficiency, and extend tyre life. With high anti-theft external cap sensors and easy plug-and-play installation, it’s a smart safety upgrade for sedans, SUVs, and utes.

PRODUCT FEATURES

• Real-time Monitoring
  • Provides real-time pressure and temperature for each tyre, which prevents dangerous blowouts, improves fuel efficiency, extends tyre life through even wear. Monitor your tyre pressure accurately from 0 to 87 PSI and temperature data within ±1.5 PSI or ±3°F accuracy.
• Monitors up to 4 Tyres
  • Monitors up to 4 tyres, designed for Sedan Cars, SUVs and Utes.
• High Pressure Anti-Theft External Cap Sensors (0-188 PSI)
  • It comes with High Pressure Anti-Theft External Cap Sensors making them difficult to unscrew without the tool. Accurately detects tyre pressures from 0 to 188 PSI these are designed for RVs, Trailers, or commercial trucks, where pressures might exceed 100 PSI.
• Easy Installation
  • The monitor plugs directly into the 12V auxiliary power outlet; there is no need for complex wiring or professional installation.
• 5 Alarms Modes for Enhanced Safety
  • High-Pressure Alarm: Triggers if a tyre pressure exceeds a safe, pre-set threshold, which can be caused by heat build-up or overinflation.
  • Low-Pressure Alarm: Alerts the driver when tyre pressure drops below a minimum safe level, which is a key safety feature to prevent underinflation, potential tyre damage, and accidents.
  • High-Temperature Alarm: Warns if the internal temperature of a tyre exceeds a certain limit, often an indication of overwork, underinflation, or a mechanical issue.
  • Fast Leakage Alarm: Provides an immediate warning in the event of a quick loss of air pressure, such as from a puncture.
  • Sensor Low Battery Alarm: Indicates when a specific TPMS sensor's internal battery is running low, ensuring the system remains functional.
• TPMS Sensor ID Learning Steps
  • Step 1: In standby mode, press the "SET" button 5 times to enter learning ID mode.
  • Step 2: Short press the "SET" button to select the tyre location and install the sensor to the tyre valve.
  • Step 3: The sensor will automatically send its own ID to the display, wait until you hear six beeps to confirm that the code is received.
  • Step 4: After all sensors are programmed to the monitor, press and hold the "SET" button for 3 seconds to save the settings.

    The middle button represents the tyre location; 0 is for the left front tyre (LF), 1 is for the right front tyre (RF), 2 is for the right rear tyre (RR) and 3 is for the left rear tyre (LR).
• Colour Screen
  • Providing you clear and easy-to-read tyre pressure and temperature data in any light condition.
• Wide Sensor Compatability
  • Designed to work with High-Pressure Flow-Thru TPMS Sensor (TPMS-HPE22), High-Pressure Anti-theft External TPMS Sensor (TPMS-HPSP3), Low-Pressure External TPMS Sensor (TPMS-LPSO) and Low-Pressure Flow-Thru TPMS Sensor (TPMS-LPE01)
• Voltage Monitor Feature
  • With a voltage monitoring feature that helps you stay informed of your vehicle's battery volt
• Safety Hammer Design
  • Features a hardened metal head designed to shatter car windows in emergency situations.
• USB Output Port
  • With a built-in USB-A outlet that allows you to charge mobile devices like smartphones and tablets, etc.

PRODUCT SPECIFICATIONS

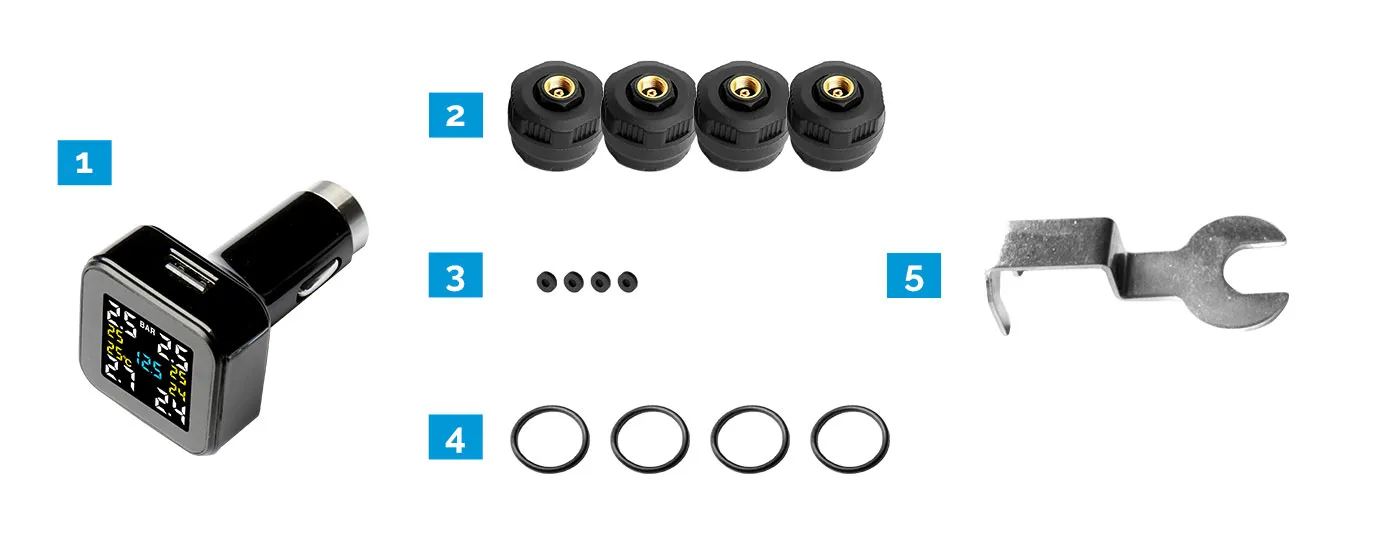

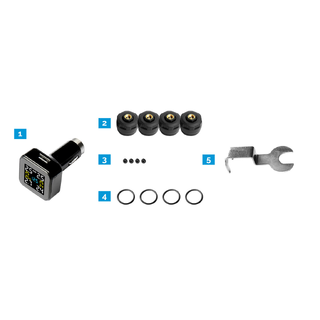

What's Included
