Car TPMS  Bluetooth 5.2 4x External Sensors



Real-time Monitoring TPMS

Real-time Monitoring

It sends visual and audio warning alarms immediately when there is a quick air pressure leakage in 3 seconds.

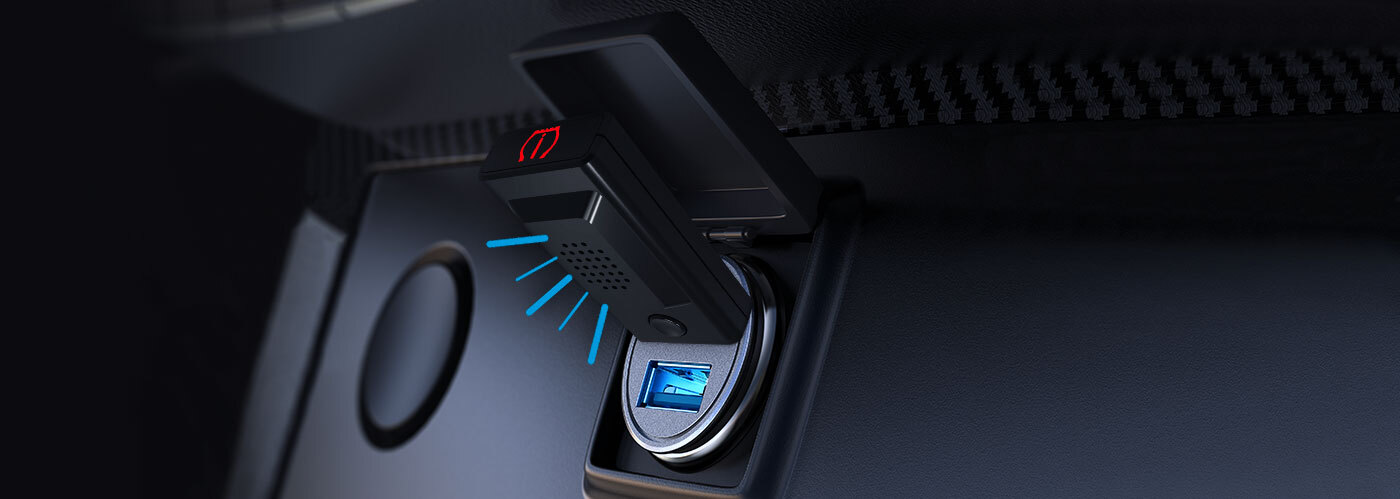

TPMS Voice Alert USB Module

Voice Alert USB Module

This Tyre Pressure Monitoring System comes with a USB module that plugs into your vehicle's USB port and acts as a speaker to inform you of any tire issues. It connects to the Malide TPMS mobile App and to the sensors on the tire valves and communicates tire information and warnings as required.



TPMS Low Power Consumption

Low Power Consumption

  • Equipped with Bluetooth 5.2 external TPMS sensors which are low power consumption and long-lasting battery life for about 2 years.

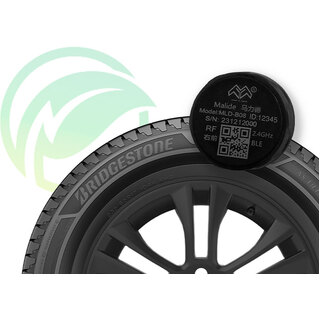

Tyre Pressure Monitoring System Installation

Easy to Install

  • External TPMS sensors can be installed quickly and easily simply by screwing the sensors onto each tyre valve stem.

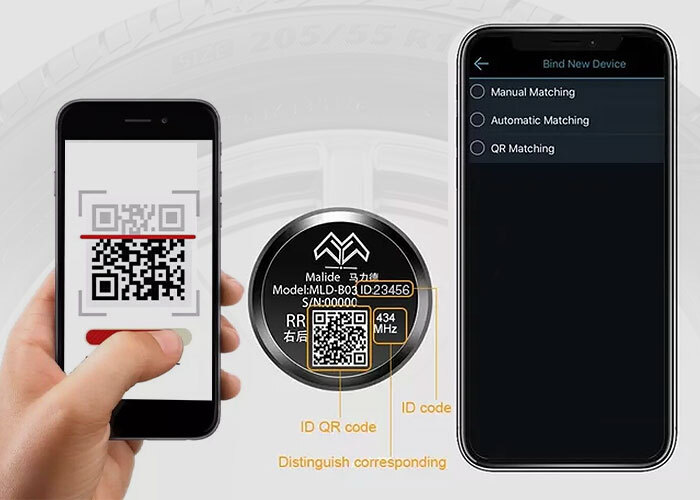

Multiple Sensor Matching Methods TPMS

Multiple Sensor Matching Methods

  • Manual matching by keying the tire sensor ID number
  • Automatic matching
  • By scanning QR code
IP67 Waterproof Tyre Pressure Monitoring System

IP67 Waterproof

  • It comes with IP67 waterproof external sensors to protect against dust and water. It also can withstand harsh environments.



Product Dimensions

Product Dimensions

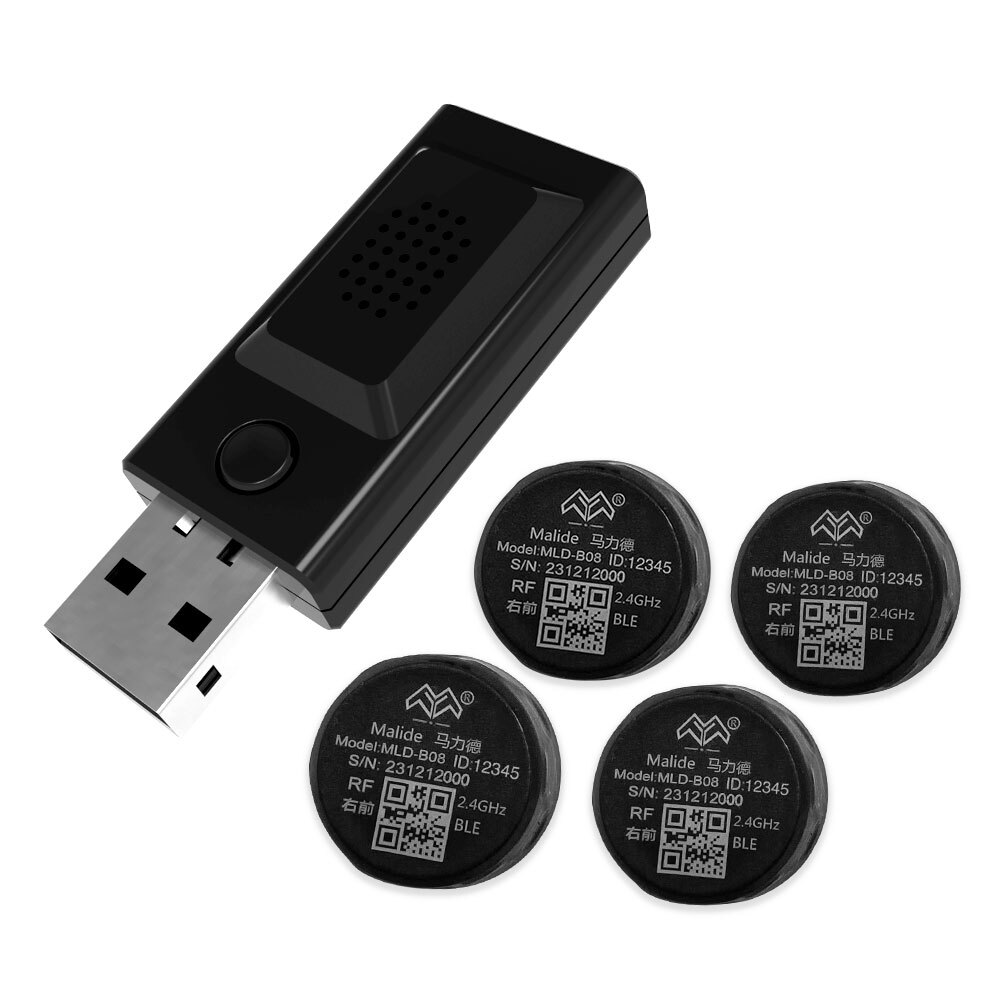

Car TPMS Tyre Pressure Monitoring System Malide BLE Bluetooth 5.2 4x External Sensors

Introducing the Car TPMS Tyre Pressure Monitoring System with Malide BLE Bluetooth 5.2 and 4x External Sensors, a cutting-edge solution for real-time monitoring of tire pressure. With instant visual and audio alarms triggered within 3 seconds of detecting air pressure leaks, coupled with a voice alert USB module that connects to your vehicle's port, this system ensures prompt notification of any tire issues. Featuring Bluetooth 5.2 external sensors for low power consumption and a durable, waterproof design, installation is a breeze with options for manual or automatic sensor matching, making it an indispensable tool for maintaining optimal tire health and safety on the road.



PRODUCT HIGHLIGHTS

  • Real-time Monitoring
    • It sends visual and audio warning alarms immediately when there is a quick air pressure leakage in 3 seconds.
  • Voice Alert USB Module

    Examples:
    "Left front tire pressure is too low"
    "Right front tire pressure is too low"
    "Rear left tire pressure is too low"
    "Rear right tire pressure is too low"
    "Left front tire pressure is too high"
    "Right front tire pressure is too high"
    "Rear left tire pressure is too high"
    "Rear right tire pressure is too high"
    "Left front tire leakage"
    "Right front tire leakage"
    "Rear left leakage"
    "Rear right tire leakage"

    • This Tyre Pressure Monitoring System comes with a USB module that plugs into your vehicle's USB port and acts as a speaker to inform you of any tire issues. It connects to the Malide TPMS mobile App and to the sensors on the tire valves and communicates tire information and warnings as required.
  • Low Power Consumption
    • Equipped with Bluetooth 5.2 external TPMS sensors which are low power consumption and long-lasting battery life for about 2 years.
  • Easy to Install
    • External TPMS sensors can be installed quickly and easily simply by screwing the sensors onto each tyre valve stem.
  • Multiple Sensor Matching Methods
    • Manual matching by keying the tire sensor ID number
    • Automatic matching
    • By scanning QR code
  • IP67 Waterproof
    • It comes with IP67 waterproof external sensors to protect against dust and water. It also can withstand harsh environments.

ITEM DESCRIPTION

Sensor Specifications

  • Frequency: 2.4GZ (BLE 5.2)
  • Voltage: DC 3V
  • Mobile App: Malide TPMS / SAFE TPMS
  • Working Temperature: -40°C - 85°C
  • Sleep Current: <2.0uA DC
  • Working Current: <8.0 mA DC
  • Pressure Monitoring Range: 0-6.4 Bar (0-640kPa)
  • Pressure Monitoring Accuracy: ±2.5kPa
  • Temperature Monitoring Range: -40°C - 80°C
  • Temperature Monitoring Accuracy: ±1°C
  • Battery Capacity: 140mAh
  • Battery Service Life: About 1.5 ~ 2 years
  • Size: 20*17mm
  • IP Rating: IP67
  • Weight: 7.6g per sensor
  • Warranty: 1 YR

USB Module Specifications

  • Frequency: 2.4GZ (BLE 5.2)
  • Voltage: DC 5V
  • Battery Capacity: 350mAh
  • Working Temperature: -40 - 85°C
  • Pressure Monitoring Range: 0-640kPa
  • Pressure Monitoring Accuracy: ±2.5kPa
  • Temperature Monitoring Accuracy: ±1°C
  • Operation Mode: Voice (English/Chinese)
  • Size: 52*19.6*9.8mm
  • Weight: 8.4g



Tyre Pressure Monitoring System, Sensors and Accessories

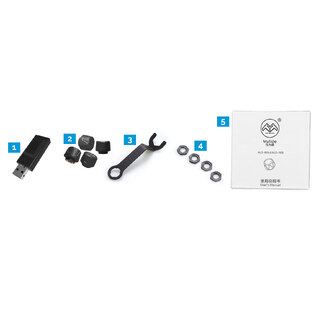

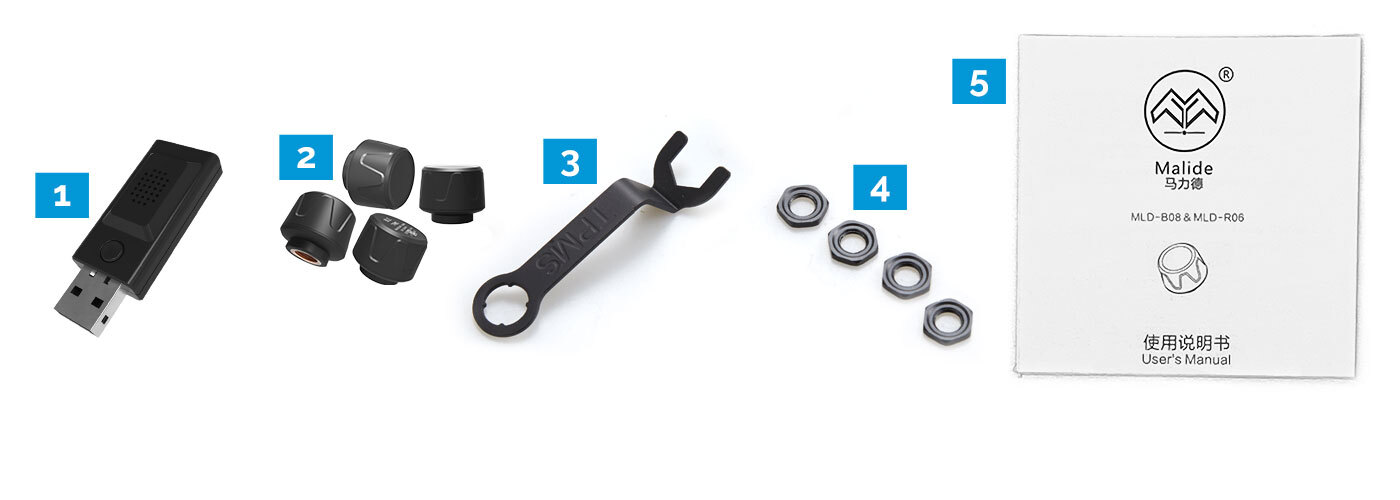

WHAT'S INCLUDED

1. 1x USB Module

2. 4x Sensors (Battery Included)

3. 1x Spanner

4. 4x Anti-Theft Nuts

5. 1x User Manual
