Elinz 7" Touch Screen Digital Wireless AHD Monitor 2x 1080P Reversing Camera
4CH~Quad Split Screen~USB Powered
| SKU | M7DWA-RVDWABCx2 |
| Barcode # | 0725806358574 |
| Brand | Elinz |
| Shipping Weight | 1.9000kg |
| Shipping Width | 0.340m |
| Shipping Height | 0.100m |
| Shipping Length | 0.310m |
| Shipping Cubic | 0.010540000m3 |
Help other users shop smarter by writing reviews for products you have purchased.

Elinz 7" Touch Screen Digital Wireless AHD Monitor 2x 1080P Reversing Camera

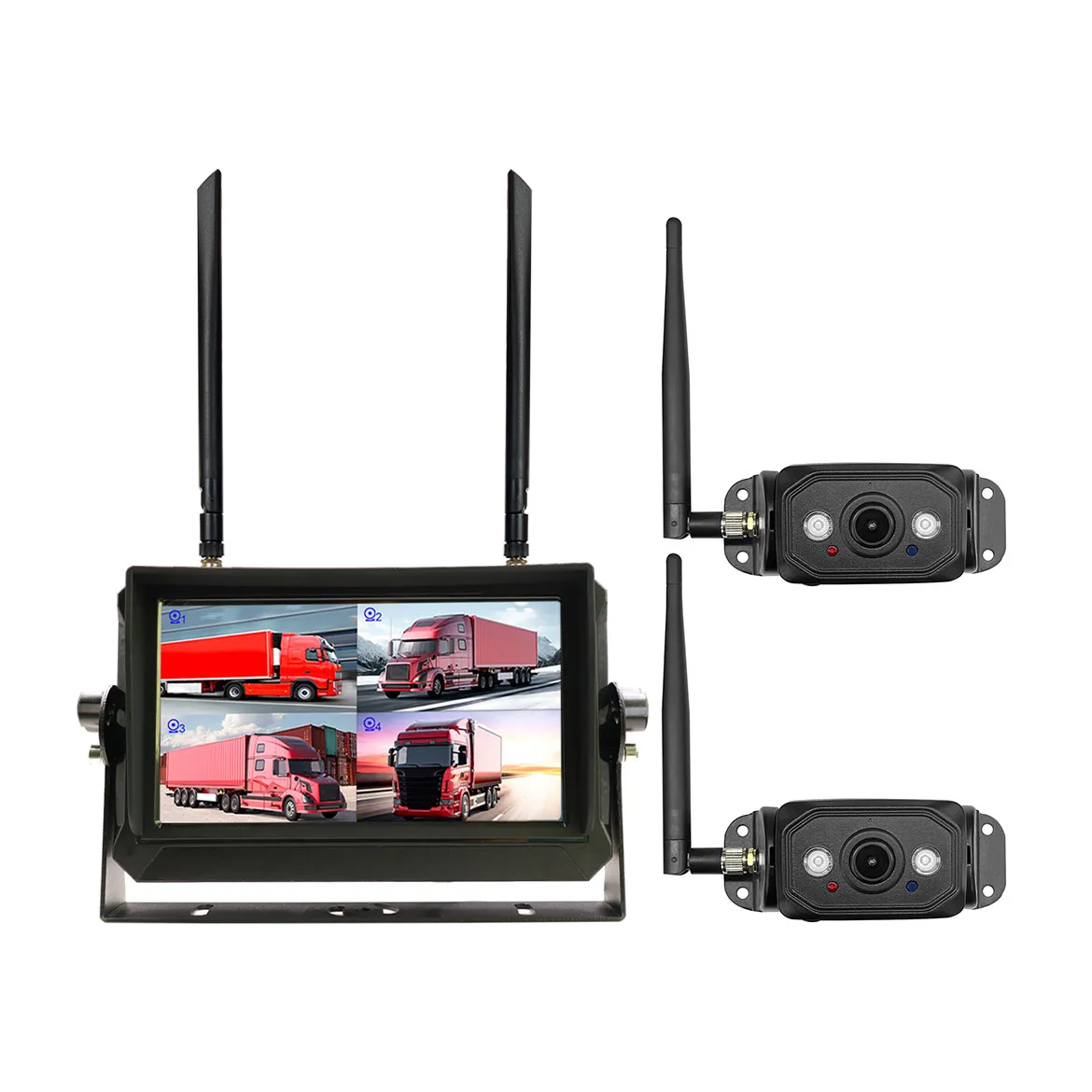

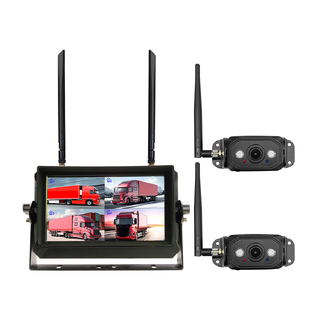

The Elinz 7" Touch Screen Digital Wireless AHD Monitor and Reversing Camera System offers a premium, cable-free solution for enhancing vehicle safety and rear-view visibility. Featuring a crisp 7" IPS quad-split touch screen and a rugged, IP69K waterproof 1080P Full HD camera, this system delivers crystal-clear, real-time footage even in the harshest environments. With its expansive 130° viewing angle, stable 2.4GHz wireless connectivity, and night vision capabilities, it ensures effortless reversing and monitoring for a wide range of vehicles.
PRODUCT FEATURES
Monitor
- 7" HD Display Touch Screen Monitor: IPS panel with 1024×600 resolution, delivering crisp and clear images for improved rear and reverse viewing.
- Quad Split View Function
- Wireless Connectivity: 2.412~2.4835 GHz ISM Band with 802.11b wireless standard, offering stable, cable-free video transmission.
- Reliable Signal Performance: Uses CCK modulation and IEEE 802.11b: DSSS(Direct Sequence Spread Spectrum) spread spectrum technology to reduce interference and maintain signal integrity.
- Compatibility: Supports digital AHD wireless cameras, enhancing installation flexibility and convenience. Not compatible with RVDWT and RVDWRL cameras.
- Expandable Memory Support: Supports Micro SD cards up to 256GB for video recording and playback capabilities.
- Wide Operating Voltage Range: DC 12V to 24V power input, suitable for various vehicle electrical systems.
- Wireless data rate: 11Mbps
- RF output power: 20dBm ±1dBm
- Working mode: Ad-Hoc
- Receiver Sensitivity: 11Mbps-86dBm@8%
Camera
- Image sensor: 1/2.9" Colour CMOS
- Resolution: 1920×1080 Full HD
- Video Format: AHD Wireless
- View angle: 130° (Horizontal)
- Wireless Frequency: 2.412–2.4835 GHz
- Output power: 20dBm ±1dBm
- Working voltage: DC 12V–24V
- Waterproof Rating: IP69K
- Night Vision: 2 pcs. IR LEDs

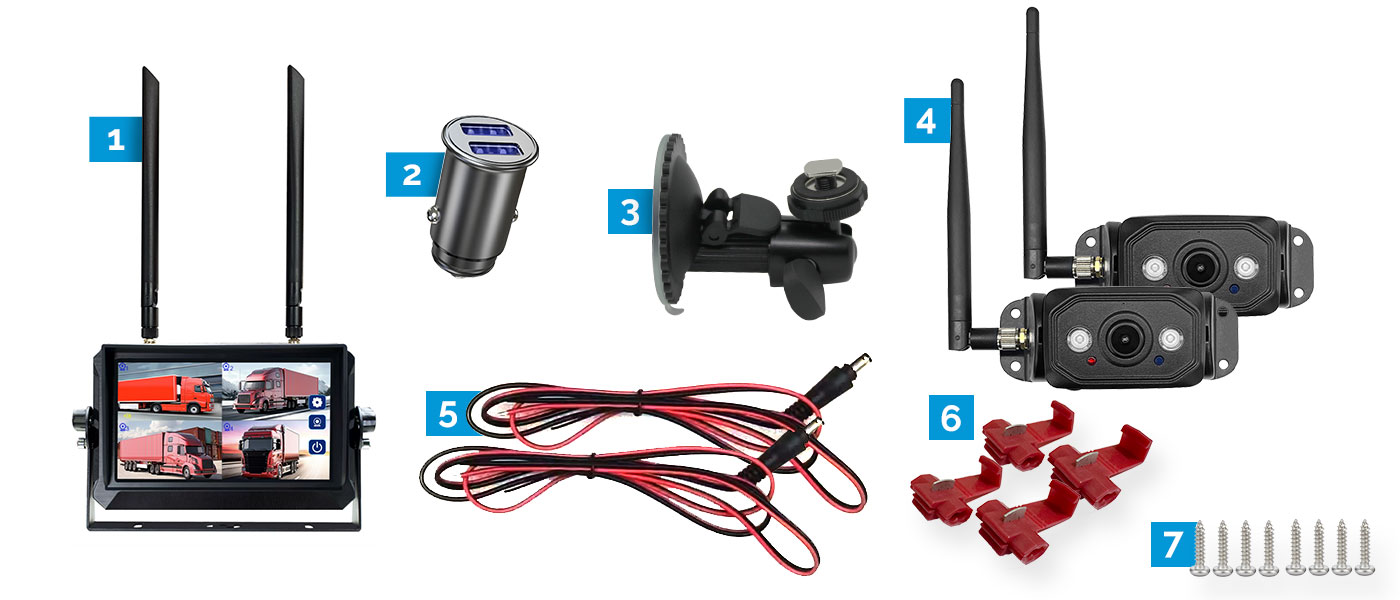

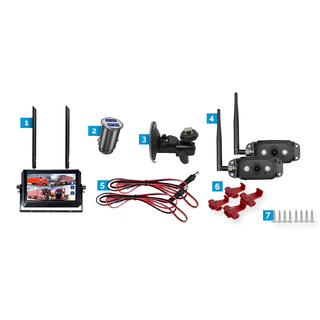

What's Included
1. 1x 7" Monitor
2. 1x Car USB Charger
3. 1x Suction Cup Mount
4. 2x AHD Camera
5. 2x Power Cable
6. 4x Wire Tap Connectors
7. 8x Screws
